BD064-44-B-0-L-C datasheet, PDF

Datasheet> All Categories > The connector> The connector> BD064-44-B-0-L-C

BD064-44-B-0-L-C: DescriptionBoard Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size150KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD064-44-B-0-L-C Overview

Board Connector, 44 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,

BD064-44-B-0-L-C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.122 inch
subject depth	0.181 inch
body length	1.114 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	100 Cycles
maximum insertion force	2.0016 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Manufacturer's serial number	BD064
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.6576 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	44
Evacuation force-minimum value	.15012 N

Preview

Download Datasheet

View All

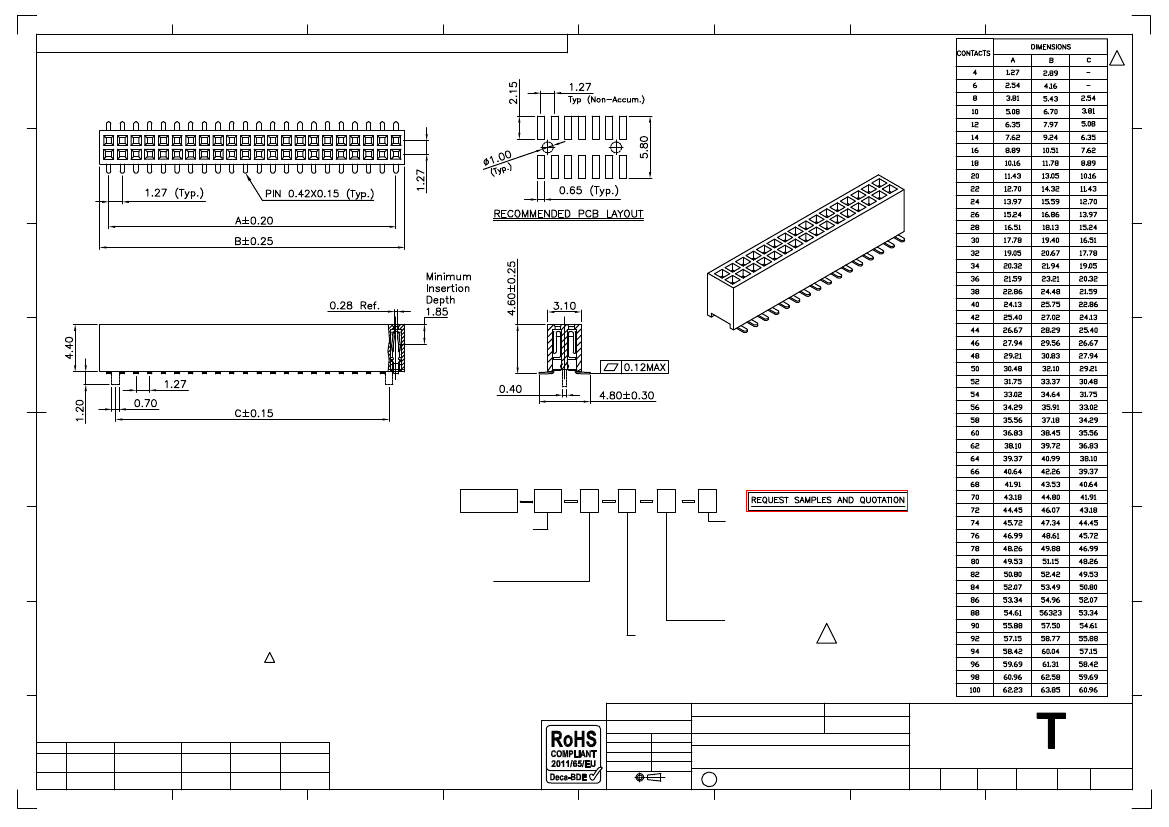

Global Connector Technology Ltd. - BD064: 1.27mm PITCH SOCKET, DUAL ROW, SURFACE MOUNT, VERTICAL

Ordering Grid

BD064

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 1 Amp

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MΩ Min.

DIELECTRIC WITHSTANDING

耐电压

: AC 300 V

CONTACT RESISTANCE

接触电阻值

: 20 mΩ Max.

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

: POLYESTER

聚酯

, LCP, UL 94V-0

SOLDERING PROCESS

可焊性

: LCP -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BD025

BD030

BD035

BD038

BD040

BD095

Packing Options

C = Tape and Reel with Film

(Standard)

B = Tape and Reel with Cap

D = Tube

E = Tube with Cap

F = Tube with Film

Insulator Material

L = LCP

No. of Contacts

04 to 100

00 = 100

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Locating Peg

0 = No Peg

1 = With Peg

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

BD064

Description:-

16 APR 08

DETAIL

REV

DATE

ASE

DRAWING

RELEASE

16/04/08

ASE

AJO

CHANGE TO SOLDER

DIM. C ADDED

B2B PCN002

1.27mm SOCKET

DIMENSION C

TEMP. INFORMATION

TO TABLE

N6T REMOVAL

CORRECTION

X.°±5°

.X°±3°

.XX°±2°

X.XXX ± 0.10 .XXX°±1°

X. ± 0.30

X.X ± 0.25

X.XX ± 0.15

Third Angle Projection

1.27mm PITCH SOCKET, DUAL ROW,

SURFACE MOUNT, VERTICAL

Scale

NTS

Sheet No.

E & OE

1/1

www.gct.co

Drawn by

ASE

27/07/09

16/04/08

13/12/12

10/07/13

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Material

See Note
