SMBJ8.0C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMBJ8.0C

SMBJ8.0C: Description600 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AA; CategoryDiscrete semiconductor diode; File Size416KB，4 Pages; ManufacturerSECOS; Websitehttp://www.secosgmbh.com/

Download Datasheet Parametric View All

SMBJ8.0C Overview

600 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AA

SMBJ8.0C Parametric

Parameter Name	Attribute value
Maker	SECOS
package instruction	R-PDSO-C2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	EXCELLENT CLAMPING CAPABILITY, PRSM-MIN
Maximum breakdown voltage	10.52 V
Minimum breakdown voltage	8.6 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak reverse power dissipation	600 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
polarity	BIDIRECTIONAL
Maximum repetitive peak reverse voltage	8 V
surface mount	YES
technology	AVALANCHE
Terminal form	C BEND
Terminal location	DUAL

Preview

Download Datasheet

View All

SMBJ SERIES

Elektronische Bauelemente

VOLTAGE 5.0V ~ 170V

600W Peak Power Surface Mount TVS

RoHS Compliant Product

FEATURES

* For surface mount application

* Built-in strain relief

* Excellent clamping capability

* Low profile package

* Fast response time: Typically less than

1.0ps from 0 volt to BV min.

* Typical I

less than 1m above 10V

* High temperature soldering guaranteed:

260 C / 10 seconds at terminals

DO-214AA(SMB)

.083(2.11)

.075(1.91)

.155(3.94)

.130(3.30)

.185(4.70)

.160(4.06)

.012(0.31)

.006(0.15)

.096(2.44)

.083(2.13)

.050(1.27)

.030(0.76)

.008

MAX.

(.203)

.220(5.59)

.200(5.08)

MECHANICAL DATA

* Case: Molded plastic

* Epoxy: UL 94V-0 rate flame retardant

* Lead: Solderable per MIL-STD-202,

method 208 guaranteed

* Polarity: Color band denotes cathode end except Bidirectional

* Mounting position: Any

* Weight: 0.093 grams

Dimensions in inches

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating 25 C ambient temperature unless otherwise specified.

Single phase half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

RATINGS

Peak Power Dissipation at T

=25 C, T

=1ms(NOTE 1)

Peak Forward Surge Current at 8.3ms Single Half Sine-Wave

superimposed on rated load (JEDEC method) (NOTE 3)

Maximum Instantenous Forward Voltage at 35.0A for

Unidirectional only

SYMBOL

FSM

, T

STG

Minimum 600

100

3.5

-55 to +150

VALUE

UNITS

Watts

Amps

V olts

Operating and Storage Temperature Range

NOTES:

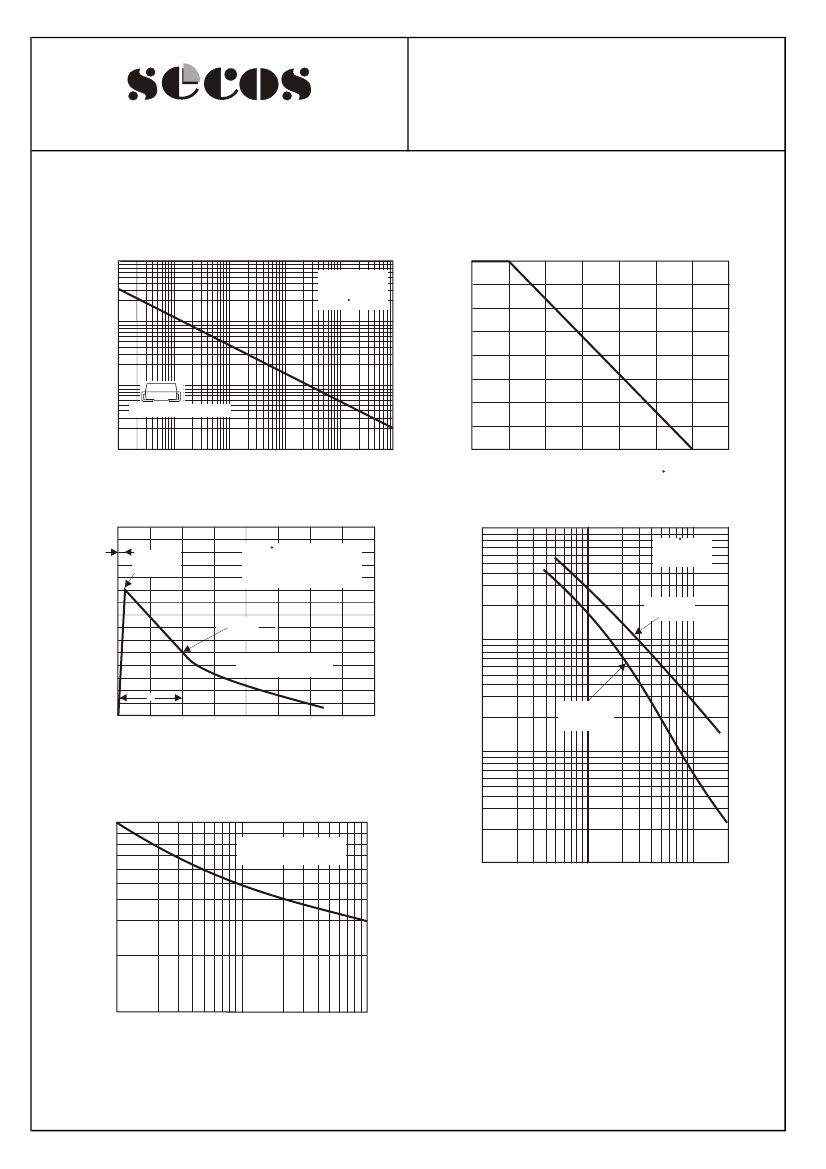

1. Non-repetitive current pulse per Fig. 3 and derated above T

=25 C per Fig. 2.

2. Mounted on Copper Pad area of 5.0mm (.013mm Thick) to each terminal.

3. 8.3ms single half sine-wave, duty cycle = 4 pulses per minute maximum.

DEVICES FOR BIPOLAR APPLICATIONS

1. For Bidirectional use C or CA Suffix for types SMBJ5.0 thru SMBJ170.

2. Electrical characteristics apply in both directions.

http://www.SeCoSGmbH.com

Any changing of specification will not be informed individual

01-Jun-2002 Rev. A

Page 1 of
