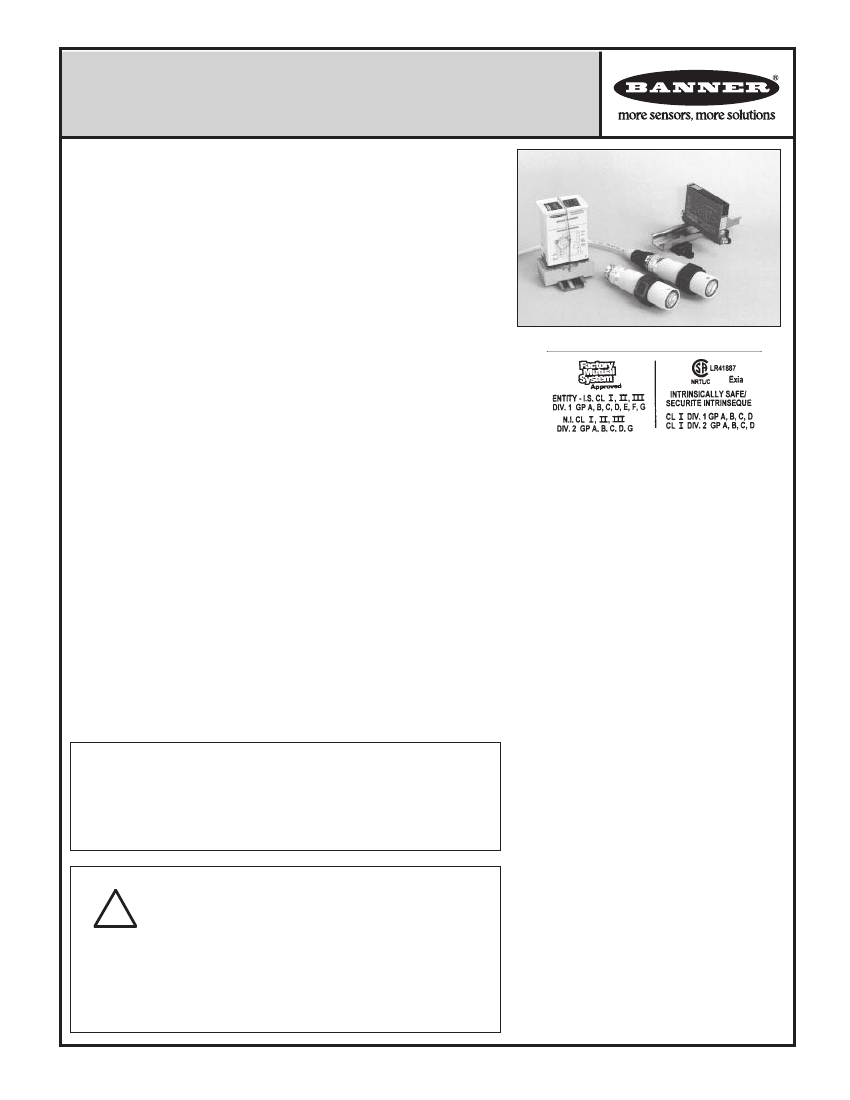

SMI30 Series
Intrinsically Safe Sensors
•
•
•
•
•
•
•
Designed for use with approved amplifiers and intrinsically safe
barriers in explosive environments
Very high excess gain; 460 ft. range (standard 10 ms models)
Fast 1 ms response models (200 ft. range) available by special order
Totally sealed, self-contained, intrinsically safe threaded-barrel
opposed mode sensor pairs in rugged 30 mm PBT housings
Highly immune to noise: the best noise immunity of any self-
contained emitter/receiver pair
Internal alignment indicator LED may be viewed either from the
side or from the front of the receiver through the lens
Integral mini-type 3-pin "QD" (quick-disconnect) connector
Rugged, NEMA 6P-plus sensors in 30 mm threaded PBT barrel housings
SMI30 Series sensors, shown with Intrinsic Safety Kit
(see page 5).
KEMA No. 03ATEX1441
II 2 G
E Ex ib IIC T5
Banner SMI30 Series intrinsically safe barrel sensors are extremely rugged and
powerful opposed mode infrared sensor pairs designed for the most demanding
industrial applications. Their high excess gain (460 foot range) provides enough
sensing power to penetrate the heaviest contamination (excess gain curve, page 5).
Electronics are fully epoxy-encapsulated for maximum resistance to mechanical
shock and vibration. Positive sealing at both ends, with no exposed epoxy interfaces,
eliminates all leak paths (including capillary leakage). Construction exceeds NEMA
6P (IEC IP 67) standards. Sensors are approximately 1.2" in diameter by 4" long.
SMI30 series dc receivers operate from 10 to 30V dc. These sensors carry entity
approval from
Factory Mutual Research
and
CSA
for intrinsically safe operation in
hazardous atmospheres. SMI30 Series sensors are certified as being intrinsically safe
when used with approved intrinsic safety barriers. SMI30 Series sensors are suitable
for intrinsically safe use in hazardous locations as defined by Article 500 of the
National Electrical Code (see classifications, above right). SMI30 Series sensors are
also certified by Factory Mutual and CSA as non-incendive devices when used in
Division 2 locations (except Groups E and F) without intrinsic safety barriers.
SMI30 Series sensors may be wired for either two- or three-wire current-sinking
operation. In the three-wire hookup, which requires two intrinsic-safety barriers (or
one dual barrier), the sink current is 15mA. The two-wire hookup, which requires one
barrier, sinks
≤10mA
(OFF state) and
≥20mA
(ON state).
Intrinsic safety barriers are available from Banner (see page 5). Current trip point amplifier
CI3RC2 is also offered (page 4). Several mounting brackets are available (see page 6).
(continued on page 2)
Specifications
SUPPLY VOLTAGE:
Emitters:
10 to 30V dc at 25mA.
Receivers:
10 to 30V dc at 15mA max. Division 1 use,
with barriers, requires
minimum system supply voltage
of 10V. See hookup information, pages 3-4.
OUTPUT:
Receivers only:
Current sinking NPN open-collector
transistor. Three-wire hookup sinks 15mA maximum
continuous, 10-30V dc. Two-wire hookup sinks
≤10mA
(OFF state) and
≥20mA
(ON state), 10-30V dc.
Outputs are short-circuit protected.
SENSING BEAM:
880 nanometers, infrared;
effective beam size 0.75" diameter.
RESPONSE TIME:
10 milliseconds on/off (models
with 1ms response are available by special order)
REPEATABILITY:
See chart, page 5
Response Time
and
Repeatability
specifications are
independent of signal strength.
INDICATOR:
Internal red LED lights whenever the
receiver sees its modulated light source.
Emitters
have red "power on" indicator LED. All indicators are
visible through the lens or from side of the sensor.
CONSTRUCTION:
NEMA 6P, IEC IP67.
30mm diameter tubular threaded PBT housing,
positive sealing at both ends; quad-ring sealed acrylic
lens. Electronics are fully epoxy encapsulated. Two
PBT jam nuts are provided.
CABLE:
Three-wire mini-type QD cable (12 ft. long
model SMICC-312 or 30 ft. long model SMICC-330).
Cable electrical properties: 40pf/ft.; .20µH/ft.
Order cable separately from sensor.
MOUNTING ALTERNATIVES:
30mm clearance hole;
SMB30C split clamp mounting bracket (page 6);
SMB30MM two-axis mounting bracket (page 6);
SMB30S swivel mounting bracket (page 6).
OPERATING TEMPERATURE RANGE:
-40 to +70°C (-40 to +18°F).
P/N 35331 rev.
B
Banner SMI30 Series Intrinsically Safe Sensors are designed to meet
the following standards:
UL 913
UL 1604
UL 508
CSA 22.2 #142-M1987
CSA 22.2 #157-92
CSA 22.2 #213-M1987
FM 3610
FM3611
!
WARNING
These photoelectric presence sensors do NOT include the
self-checking redundant circuitry necessary to allow their use in personnel safety
applications. A sensor failure or malfunction can result in
either
an energized
or a de-energized sensor output condition.
Never use these products as sensing devices for personnel protection. Their use as safety
devices may create an unsafe condition which could lead to serious injury or death. Only
MACHINE-GUARD and PERIMETER-GUARD Systems, and other systems so designated,
are designed to meet OSHA and ANSI machine safety standards for point-of-operation
guarding devices. No other Banner sensors or controls are designed to meet these standards,
and they must NOT be used as sensing devices for personnel protection.
Printed in USA
11/06

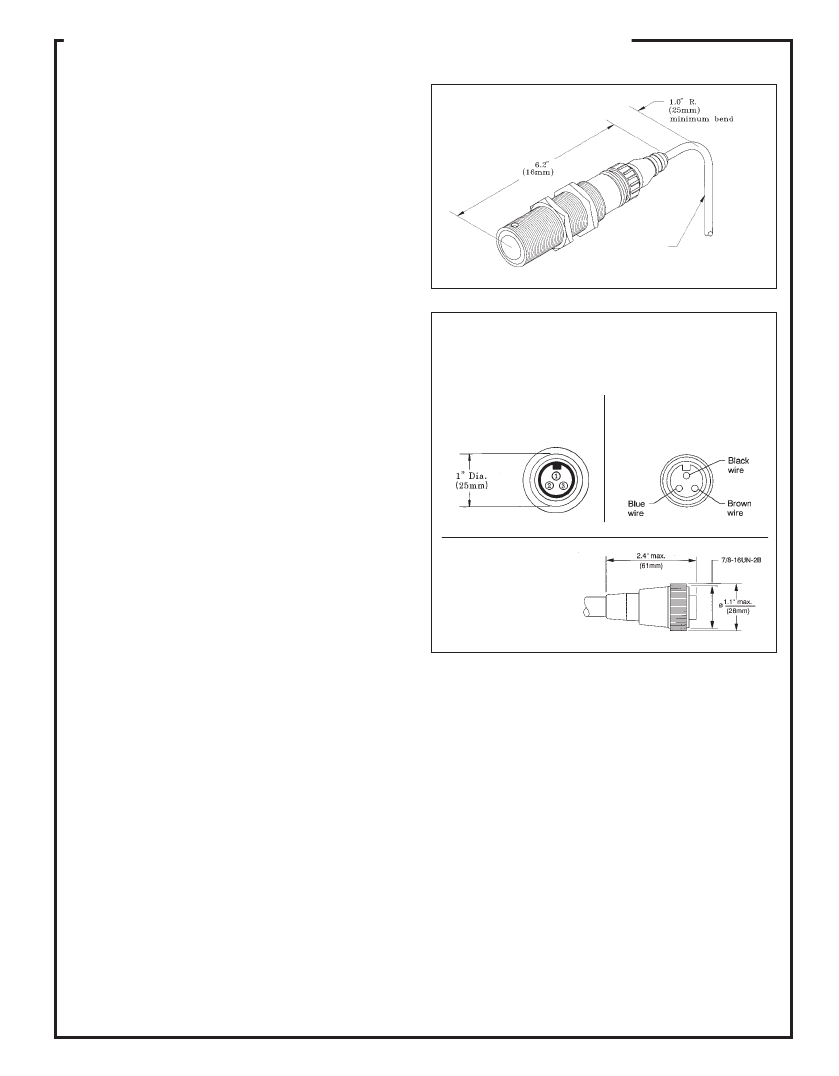

SMI30 Series Intrinsically Safe Sensors
SMI30 Series receivers have a red LED alignment indicator that lights
whenever the receiver "sees" its modulated light source. Emitters have
a red LED to indicate "power on". All LED indicators are mounted
internally to preserve the waterproof integrity of the sensor housing, and
are visible from both the side and front of the sensor through the sensor's
quad-ring sealed acrylic lens.
The innovative circuitry used in SMI30 Series emitters and receivers
provides the best noise immunity of any self-contained opposed mode
sensor pair. For applications where optical crosstalk between sensors
might be a problem, SMI30 Series emitters and receivers are available
with a choice of three modulation frequencies (frequency "A",
frequency "B", or frequency "C"). This makes it possible to use high-
powered sensor pairs of different frequencies in close proximity to
each other without crosstalk. (NOTE: frequency "A" is standard;
frequencies "B" and "C" are available by special order. An emitter and
its receiver must be of the same modulation frequency.) See the chart
on page 5 for a summary of models.
Each unit is supplied with two hexagonal jam nuts. A 30mm clearance
hole is required for mounting, and mounting bracket models
SMB30MM, SMB30S, and SMB30C are available (page 6). All
models have a built-in standard quick-disconnect ("QD") connector.
"QD" models mate with 12-foot long model SMICC-312 or 30-foot
long model SMICC-330 mini-type QD cable (sold separately from
sensor).
SMI30 Series
Dimensions
PVC-covered
mini-type QD cable
MBCC Series QD Cable
(order separately)
SMICC-312
(12 feet, p/n 36356) or
SMICC-330
(30 feet, p/n 36357)
3-wire QD cable for emitters and receivers
Sensor end (male connector)
Cable end (female connector)
Hookup Information
SMI30 Series sensors are certified intrinsically safe ONLY
when used with certified energy-limiting intrinsically safe
barriers. Emitter units use a two-wire hookup (there is no output
connection). Note from the hookup diagram (page 3) that the
receiver installation may be made using either a single barrier
(2-wire hookup) or with a dual channel barrier (3-wire hookup).
In the 2-wire configuration, the sensor acts as a current sink,
drawing less than 10mA in the OFF state and more than 20mA
in the ON state. The customer must provide a current sensing
device ("current sensor" in the diagram) to convert the current
to a logic level. SMI30 Series sensors may be used with Banner
Current Amplifier Control Module CI3RC2.
The CI3RC2 module may be purchased (with model RS-11
module socket, one dual-channel barrier, and DIN rail barrier
mounts included) by specifying kit model CI2BK-2. One dual-
channel intrinsic barrier (alone) may be ordered by specifing
model CI2B-1. See the photo, page 5.
In the 3-wire configuration, the output may be used directly to
control loads of less than 15mA.
In selecting the barrier, it is important to consider the barrier's
resistance.
The sensors must have at least 10 volts across the
brown and blue power leads for proper operation, and the
barrier will cause a voltage drop due to its resistance.
The
formula that determines how much resistance is allowed is:
Cable connector (female,
for SMICC cable,
side view)
Note that, in the 3-wire hookup, the barrier is in series with the
load. This results in an apparent saturation voltage of the output
that is higher than the sensor output by the amount of IxR
(current times voltage) drop through the barrier.
Emitters use the 2-wire hookup; receivers use either 2- or 3-wire
hookup. See the chart (page 5) for a summary of models.
Barriers are generally classified as either "positive input" or
"negative input". SMI30 Series intrinsically safe sensors re-
quire "positive input" barriers for both supply and load. The
blue (negative supply) lead of the sensor is normally connected
to the ground terminal of the barrier.
The user of this equipment is responsible for proper installation
and maintenance of the equipment, and must conform with the
certification requirements relating to barriers and to maximum
allowable capacitance and inductance of the field wiring. If you
are in doubt about these requirements, our applications engi-
neers can refer you to the appropriate authority.
R = 40 (supply voltage - 10 volts).
If the supply voltage is 24V dc, then the maximum resistance is
560 ohms. If the supply voltage is 18V dc, then the maximum
resistance is 320 ohms. This includes the resistance of any
current sensing device used (in the 2-wire configuration), so the
barrier resistance must be further reduced by the current sensor
resistance.
2
SMI30 Series Intrinsically Safe Sensors
Hookup Diagrams
SAFE AREA
BARRIERS NOT REQUIRED FOR DIV. 2
30 VDC MAX. (Reference NOTE #5 for FM & CSA)
FM: CL I, II, III
GP A, B, C, D, E, F, G
DIV 1
HAZARDOUS AREA
3-WIRE HOOKUP
L
O
A
D
IN
+
BARRIER
CSA: CLI
GP A, B, C, D
+
I.S.
OUT
BLACK
1
Entity parameters:
Vmax = 30 V
Imax = 350 mA
Ci = 0
µF
Li = 0 mH
15 MA.
MAX.
V
-
2
3
SMI30
Series
Sensor
BOTTOM VIEW (colors shown arefor mating cable MBCC-312)
FM INSTALLATION NOTES:
1. Barriers must be installed in accordance with manufacturer's instructions.
OPERATING
VOLTAGE:
INPUT
(CONNECTION TO CONTROL ROOM
18-30 VDC
EQUIPMENT SHOULD NOT USE OR
GENERATE MORE THAN 250V)
25 MA. DC
+
IN
+
+
OUT
BROWN
-
EARTH GROUND
(less than 1 ohm)
G
BUSBAR
BLUE
2. Barrier entity parameters must meet the following requirements:
Ca
≥
Ci + Ccable
Voc or Vt
≤
Vmax
Isc or It
≤
I max
La
≥
Li + Lcable
3. Maximum non-hazardous area voltage must not exceed 250V.
4. For guidance on installation, see ANSI/ISA RP12.6, "Installation of Intrinsically
Safe Instrument Systems for Hazardous (Classified) Locations".
5. The sensors are suitable for installation without barriers in Class I Div. 2
Groups A, B, C, D; Class II Div. 2 Group G; and Class III Div. 2, when installed in
(or through the wall of) a suitable enclosure with provision for connection of rigid
metal conduit per the National Electrical Code, as acceptable to the local
inspection authority having jurisdiction.
NOTE: Emitters have no output connection (no connection to black wire)
SAFE AREA
BARRIERS NOT REQUIRED FOR DIV. 2
30 VDC MAX. (Reference NOTE #5 for FM & CSA)
HAZARDOUS AREA
FM: CL I, II, III
GP A, B, C, D, E, F, G
DIV 1
BLACK
1
CSA: CLI
GP A, B, C, D
2-WIRE HOOKUP
IN
+
-
V
+
I.S.
-
OUT
Entity parameters:
Vmax = 30 V
Imax = 350 mA
Ci = 0
µF
Li = 0 mH
≤10
MA. (OFF STATE)
≥20
MA. (ON STATE)
BARRIER
2
3
SMI30
Series
Sensor
KEMA
V
max = 30V
Imax = 100 mA
Ci = 0 µF
Li = 0 mH
Pi = 750 mW
OPERATING
VOLTAGE:
INPUT
18-30 VDC
25 MA. DC
+
CURRENT
SENSOR
(CONNECTION TO CONTROL ROOM
EQUIPMENT SHOULD NOT USE OR
GENERATE MORE THAN 250V)
BROWN
BOTTOM VIEW (colors shown are for mating cable MBCC-312)
CSA INSTALLATION NOTES:
-
EARTH GROUND
(less than 1 ohm)
G
BUSBAR
BLUE
1. Barriers must be installed in accordance with manufacturer's instructions.
2. Barrier entity parameters must meet the following requirements:
Ca
≥
Ci + Ccable
Voc
≤
Vmax
La
≥
Li + Lcable
Isc
≤
I max
3. Maximum non-hazardous area voltage must not exceed 250V.
4. Install in accordance with Canadian Electrical Code, Part I.
5. The sensors are suitable for installation without barriers in Class I Div. 2
Groups A, B, C, D when installed in (or through the wall of) a suitable enclosure
with provision for connection of rigid metal conduit per the Canadian Electrical
Code, as acceptable to the local inspection authority having jurisdiction.
Sensor Models
Emitter
10ms
Models
Receiver
Lt. Opr.
Receiver
Dk. Opr.
Emitter
1ms
Models
Receiver
Lt. Opr.
Receiver
Dk. Opr.
Frequency "A"
SMI306EQ
SMI30AN6RQ
SMI30RN6RQ
SMI306EYQ
SMI30AN6RYQ
SMI30RN6RYQ
Frequency "B"
SMI306EBQ
SMI30AN6RBQ
SMI30RN6RBQ
Frequency "C"
SMI306ECQ
SMI30AN6RCQ
SMI30RN6RCQ
SMI306EYCQ
SMI30AN6RYCQ
SMI30RN6RYCQ
Iin Div. 2 installations (without barriers), observe the following warnings:
WARNING: EXPLOSION HAZARD
DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS BEEN
SWITCHED OFF OR THE AREA IS KNOWN TO BE NON-HAZARDOUS.
AVERTISSEMENT: RISQUE D'EXPLOSION
AVANT DE DECONNECTER L'EQUIPMENT, COUPER LE COURANT OU
S'ASSURER QUE L'EMPLACEMENTS EST DESIGNE NON DANGEREUX.
6. If barriers with Volt/Ohm parameters are used, the following parameters shall
apply:
One Single-Channel Barrier Systems
- one 28 V (max), 300
Ω
(min)
Two Single-Channel Barrier or One Dual-Channel Systems
- two 28 V (max), 600
Ω
(min)
- one 28 V (max), 300
Ω
(min) and one 10 V (max), 50
Ω
(min)
- one 28 V (max), 300
Ω
(min) and one 28 V diode return
Banner Engineering Corp.
9714 Tenth Avenue North
Minneapolis, MN 55441
MANUFACTURING DRAWING #35392 rev. A
NO CHANGES MAY BE MADE TO THIS DRAWING WITHOUT PRIOR APPROVAL OF FACTORY MUTUAL AND CSA
HOOKUP DIAGRAM: SMI30 SERIES
INTRINSICALLY-SAFE SENSORS
3
CI3RC2 Current Amplifier Module

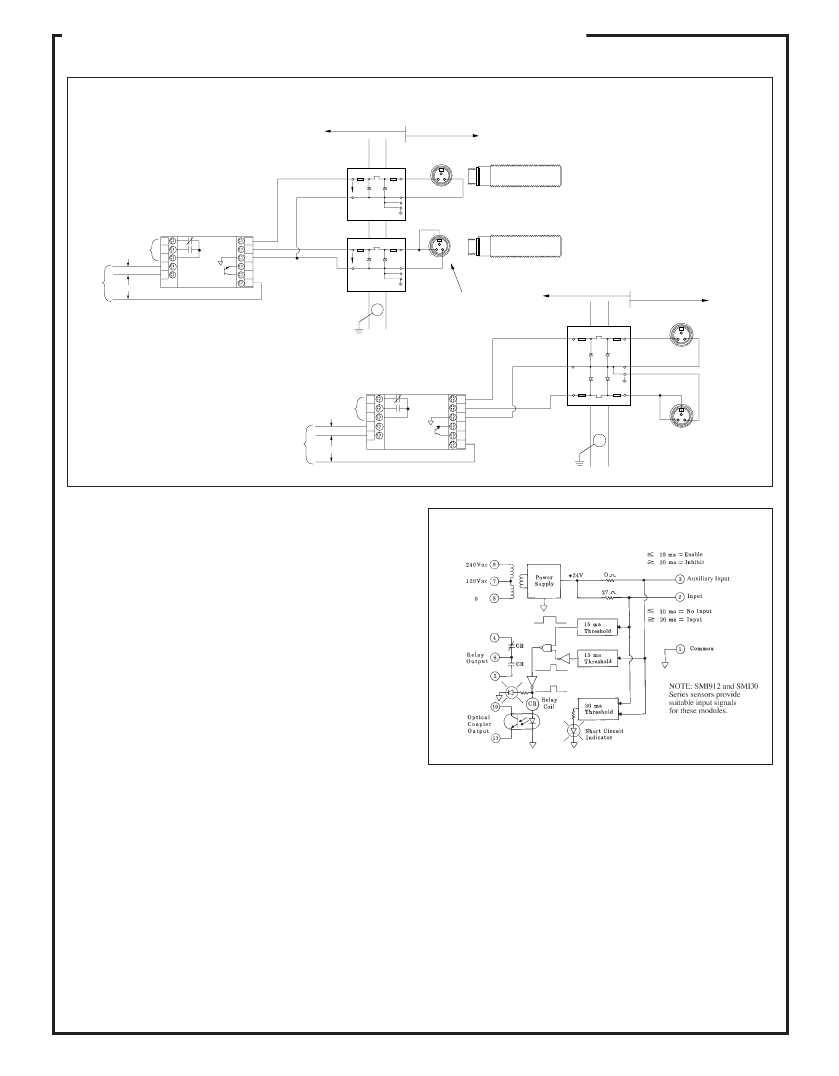

Hookup to Banner MAXI-AMP CI3RC2
Current Amplifier Module
SAFE AREA
(see the data sheet packed with the CI3RC2 for more information)
HAZARDOUS AREA
Hookup using two single-channel barriers
IN
1
+
V
+
OUT
BROWN 2
3
BLUE
SMI30
Series
Emitter
-
I.S.
INPUT:
≤10
MA. (OFF STATE)
≥20
MA. (ON STATE)
AUX.
INPUT
COMMON
OPTO-COUPLER
OUTPUT: 20mA max.
IN
-
BARRIER
BLACK
1
9 10 11 1 2 3
RELAY OUTPUT
5 AMP CONTACTS
+
V
+
OUT
BROWN 2
3
SMI30
Series
Receiver
4
5 6 7 8
-
I.S.
BARRIERG
-
BLUE
105 to 130V ac
AC
SUPPLY
CI3RC2
210 to 250V ac
SAFE AREA
BUSBAR
G
EARTH GROUND
(less than 1Ω)
BOTTOM VIEW OF SENSOR
(colors shown are for mating
cable model MBCC-312)
HAZARDOUS AREA
1
IN
+
Dual Barrier +
I.S.
OUT
BROWN
2
3
SMI Series
Emitter
BLUE
Hookup using one dual-channel barrier
4
RELAY OUTPUT
5 AMP CONTACTS
-
INPUT:
≤10
MA. (OFF STATE)
≥20
MA. (ON STATE)
AUX.
INPUT
COMMON
OPTO-COUPLER
OUTPUT: 20mA max.
IN
-
BLUE
+
+
OUT
BLACK
1
9 10 11 1 2 3
BROWN
2
BUSBAR
3
SMI Series
Receiver
5 6 7 8
105 to 130V ac
AC
SUPPLY
CI3RC2
G
EARTH GROUND
(less than 1Ω)
210 to 250V ac
BOTTOM VIEW OF CABLE
CONNECTOR ON SENSOR
(colors shown are for mating
cable model MBCC-312)
MAXI-AMP
™
CI3RC2 Module
Banner MAXI-AMP module model CI3RC2
(part number 36606)
is a self-contained module which converts the current output signal
of an SMI30 Series sensor to a trip point switch.
Both sensors of the opposed mode pair are wired to model CI3RC2
using the two-wire hookup, which requires the use of two single
channel or one dual channel intrinsic safety barrier(s). In this mode,
the SMI30 receiver sinks
≤10
milliamps in the "OFF" state and
≥20
milliamps in the "ON" state. The CI3RC2 senses this current change
and switches internal relays which are easily wired to most loads and/
or additional control circuitry.
Model CI3RC2 is powered by either 105-130 or 210-250V ac. The
CI3RC2 supplies power to operate both the emitter and receiver.
Inputs are protected against short circuits. Built-in circuit diagnos-
tics indicate an overload of either input by pulsing an LED status
light.
The CI3RC2 module has two isolated output switches. There is a 5
amp rated SPDT electromechanical relay, and a solid-state transistor
switch which may be used for logic-level interfaces.
Functional Schematic, CI3RC2
SPECIFICATIONS, CI3RC2
SUPPLY VOLTAGE:
105 to 130 or 210 to 250V ac, 50/60 Hz (8VA).
OUTPUT CONFIGURATION:
SPDT electromechanical relay:
Contact rating: 250V ac max., 24V dc max., 5 amps max. (resistive load),
1/10 HP at 240V ac. Install transient suppressor (MOV) across contacts
that switch inductive loads.
Closure time: 10 milliseconds max.
Release time: 10milliseconds max.
Maximum switching speed: 20 operations/second.
Mechanical life: 20,000,000 operations
Solid-state dc relay:
SPST optically-coupled transistor;
30V dc max., 20mA max.
INPUTS:
Trip point for output "OFF":
≤10
milliamps
Trip point for output "ON":
≥20
milliamps
Trip point range for input overload indication: 30mA
≤
I
≤
80mA.
INDICATOR LEDs:
Status indicator for OUTPUT "ON" and INPUT
overload/short.
OPERATING TEMPERATURE:
0 to 50°C (32 to 122°F).
CONSTRUCTION:
rugged NORYL
®
polyphenylene oxide (PPO™)
housing, 1.6" x 2.3" x 4". Standard round-pin 11-pole base. Use RS-11
socket or equivalent.
4
SMI30 Series Intrinsically Safe Sensors
Models:
part numbers, frequencies, and response times
SMI30 Series
Intrinsically Safe Sensors and Part Numbers
Sensor Models
Frequency "A"
(standard)
Repeatability: 1 ms
Frequency "B"
(special order)
Repeatability: 1.6 ms
Frequency "C"
(special order)
Excess Gain Curve
Repeatability: 2.3 ms
100,000
Models
with
10 ms
response
time
Emitters
Receivers
(light operate)
Receivers
(dark operate)
SMI306EQ
(35268)
SMI30AN6RQ
(35271)
SMI30RN6RQ
(35274)
Repeatability: 360
µ
s
SMI306EBQ
(35269)
SMI30AN6RBQ
(35272)
SMI30RN6RBQ
(35275)
SMI306ECQ
(35270)
SMI30AN6RCQ
(35273)
SMI30RN6RCQ
(35276)
Repeatability: 210
µ
s
10,000
SMI30 series
opposed mode
intrinsically safe
sensors
1,000
10ms response
models
E
X
C
E
S
S
G
A
II
N
0
1 FT
0.3 m
10 FT
100 FT
3m
30 m
DISTANCE
1000 FT
300 m
100
10
1ms response
models
Models
with
1 ms
response
time
Emitters
Receivers
(light operate)
Receivers
(dark operate)
SMI306EYQ
(35277)
SMI30AN6RYQ
(35279)
SMI30RN6RYQ
(35281)
_
_
_
SMI306EYCQ
(35278)
SMI30AN6RYCQ
(35280)
SMI30RN6RYCQ
(35282)

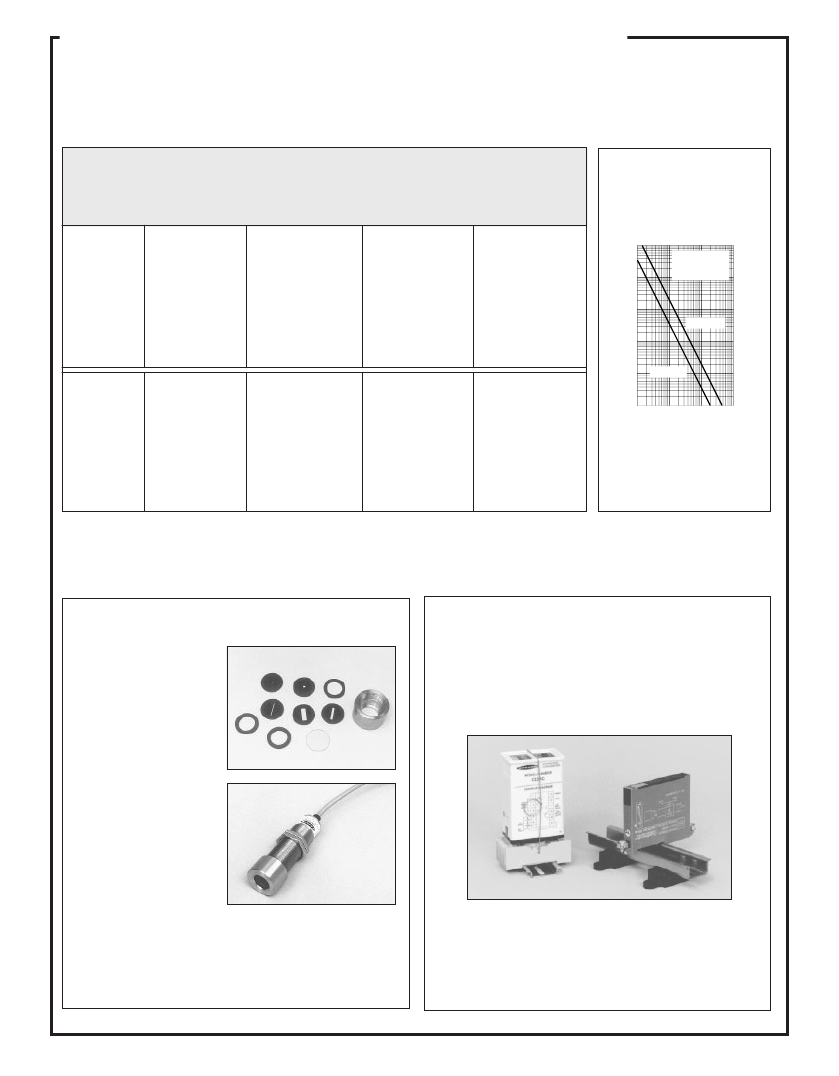

Accessories:
apertures, barriers, kits, and mounting brackets
APG30S Aperture Kit for SM30 Series Sensors
(27533)
These new water-tight aper-
tures for SM30 Series sen-
sors may be used to size and
shape the effective beam or
to limit excess gain for avoid-
ing "burn-through" effects.
Apertures are sold as a kit,
which includes a thread-on
stainless steel housing, a flat
glass lens, two quad-ring
seals, and 3 round and 3 slot-
ted aperture disks.
The stainless steel aperture
housing functions equally
well with VALOX
®
and stain-
less steel sensor models. The
glass lens is useful for pro-
tecting the SM30's acrylic
lens against substances that
are hostile to acrylics, such
as concentrated acids and alkalis and industrial solvents.
Aperture sizes include the following.
Round: .06", .12", and .70" diameter
Slotted: .04", .10", and .20" wide
Intrinsic Safety Kits for use with Intrinsic Safe Sensors
Kit CI2BK-1
(36860) includes a CI3RC2 current amplifier, one RS-
11 socket, one DIN-rail mount, and one single-channel intrinsically
safe barrier.
Kit CI2BK-2
(36605) includes a CI3RC2 current amplifier, one RS-
11 socket, one DIN-rail mount, and one dual-channel intrinsically
safe barrier.
Barriers are available separately:
Single channel barrier (model CIB-1, p/n 27030)
Dual channel barrier (model CI2B-1, p/n 36865)
5
京公网安备 11010802033920号
EEWORLD
