DFMS15PK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DFMS15PK

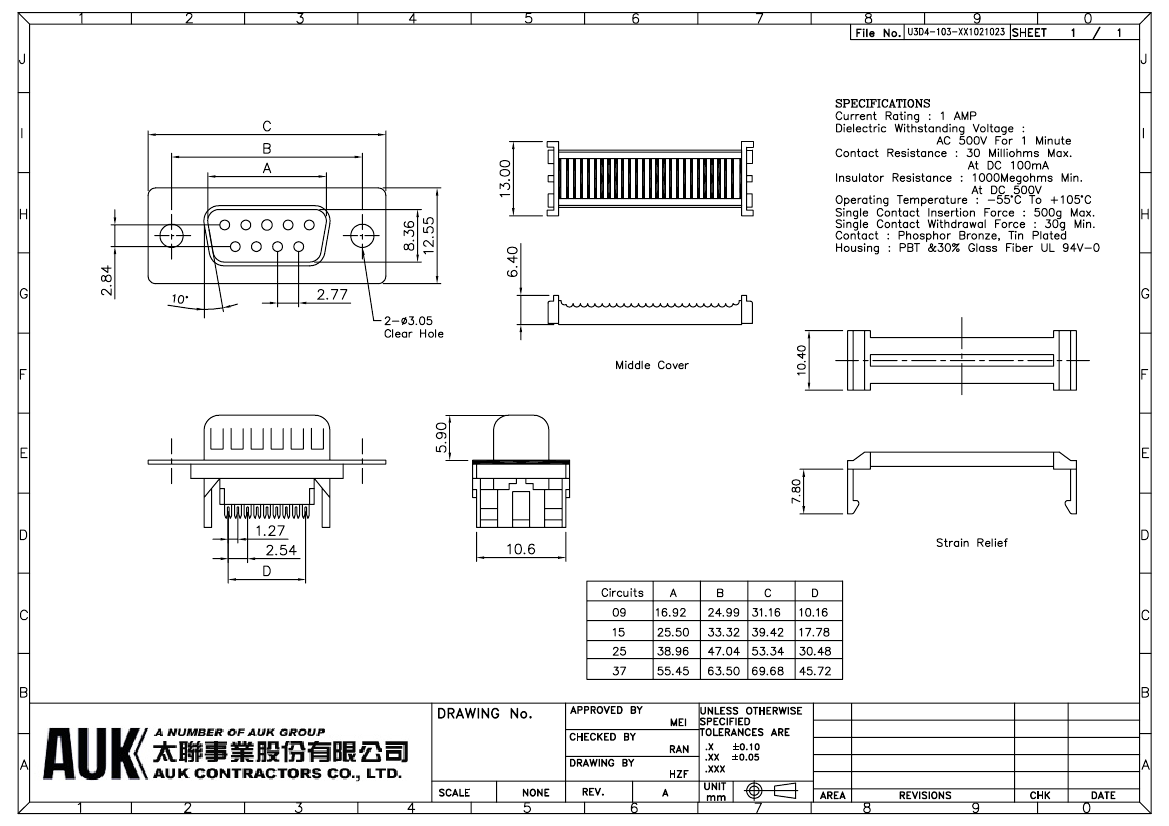

DFMS15PK: DescriptionD Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Receptacle; CategoryThe connector The connector; File Size66KB，1 Pages; ManufacturerAUK Contractors Co., Ltd.

Download Datasheet Parametric Compare View All

DFMS15PK Overview

D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Receptacle

DFMS15PK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PLASTIC STRN RLF SHORT EAR BAG
body width	0.494 inch
body length	1.552 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
maximum insertion force	4.8928 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DFMS
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .112-.124
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell material	METAL
Terminal length
Termination type	IDC
Total number of contacts	15
Evacuation force-minimum value	.3058 N

Preview

Download Datasheet

View All

DFMS09PK

DFMS15PK Related Products

	DFMS15PK	DFMS25PK	DFMS09PK
Description	D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Receptacle	D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Receptacle	D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Receptacle
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	PLASTIC STRN RLF SHORT EAR BAG	PLASTIC STRN RLF SHORT EAR BAG	PLASTIC STRN RLF SHORT EAR BAG
body width	0.494 inch	0.494 inch	0.494 inch
body length	1.552 inch	2.1 inch	1.227 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU	AU	AU
Contact point gender	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	STAGGERED	STAGGERED	STAGGERED
Contact resistance	30 mΩ	30 mΩ	30 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V
maximum insertion force	4.8928 N	4.8928 N	4.8928 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DFMS	DFMS	DFMS
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch
Installation option 1	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124
Installation option 2	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Rated current (signal)	1 A	1 A	1 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	METAL	METAL	METAL
Termination type	IDC	IDC	IDC
Total number of contacts	15	25	9
Evacuation force-minimum value	.3058 N	.3058 N	.3058 N
