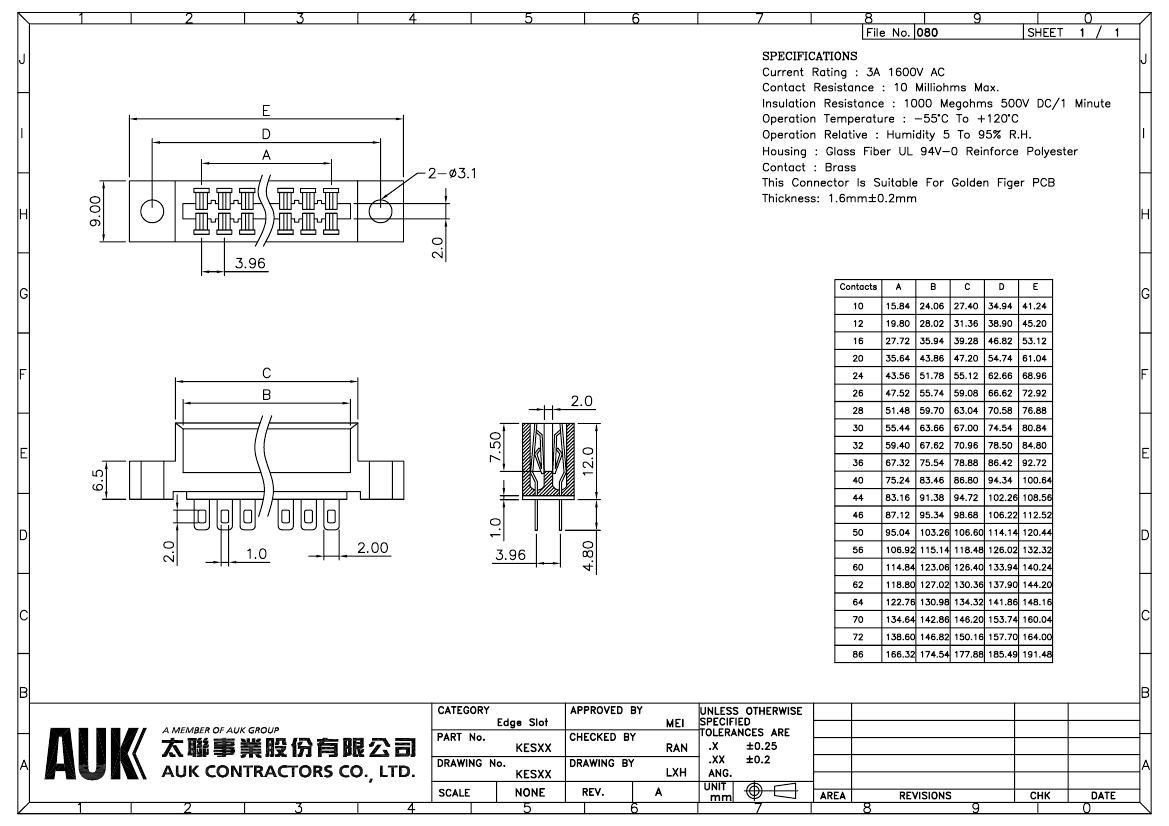

KES72: DescriptionCard Edge Connector, 72 Contact(s), 2 Row(s), 0.156 inch Pitch, Solder Lug Terminal, Hole .115-.125, Blue Insulator; CategoryThe connector The connector; File Size108KB，1 Pages; ManufacturerAUK Contractors Co., Ltd.

Download Datasheet Parametric Compare View All

KES72 Overview

Card Edge Connector, 72 Contact(s), 2 Row(s), 0.156 inch Pitch, Solder Lug Terminal, Hole .115-.125, Blue Insulator

KES72 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.354 inch
subject depth	0.472 inch
body length	6.457 inch
Connector type	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	KES
Plug contact pitch	0.156 inch
Installation option 1	HOLE .115-.125
Installation option 2	LOCKING
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	120 °C
Minimum operating temperature	-55 °C
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.189 inch
Termination type	SOLDER LUG
Total number of contacts	72

Preview

Download Datasheet

View All

KES72 Related Products

	KES72	KES30	KES36	KES56	KES50
Description	Card Edge Connector, 72 Contact(s), 2 Row(s), 0.156 inch Pitch, Solder Lug Terminal, Hole .115-.125, Blue Insulator	Card Edge Connector, 30 Contact(s), 2 Row(s), 0.156 inch Pitch, Solder Lug Terminal, Hole .115-.125, Blue Insulator	Card Edge Connector, 36 Contact(s), 2 Row(s), 0.156 inch Pitch, Solder Lug Terminal, Hole .115-.125, Blue Insulator	Card Edge Connector, 56 Contact(s), 2 Row(s), 0.156 inch Pitch, Solder Lug Terminal, Hole .115-.125, Blue Insulator	Card Edge Connector, 50 Contact(s), 2 Row(s), 0.156 inch Pitch, Solder Lug Terminal, Hole .115-.125, Blue Insulator
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.354 inch	0.354 inch	0.354 inch	0.354 inch	0.354 inch
subject depth	0.472 inch	0.472 inch	0.472 inch	0.472 inch	0.472 inch
body length	6.457 inch	3.183 inch	3.65 inch	5.209 inch	4.742 inch
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLUE	BLUE	BLUE	BLUE	BLUE
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	KES	KES	KES	KES	KES
Plug contact pitch	0.156 inch	0.156 inch	0.156 inch	0.156 inch	0.156 inch
Installation option 1	HOLE .115-.125	HOLE .115-.125	HOLE .115-.125	HOLE .115-.125	HOLE .115-.125
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	120 °C	120 °C	120 °C	120 °C	120 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Rated current (signal)	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.189 inch	0.189 inch	0.189 inch	0.189 inch	0.189 inch
Termination type	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Total number of contacts	72	30	36	56	50
