LF356AN8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LF356AN8

LF356AN8: DescriptionOperational Amplifier, 1 Func, 2300uV Offset-Max, PDIP8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size428KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

LF356AN8 Overview

Operational Amplifier, 1 Func, 2300uV Offset-Max, PDIP8

LF356AN8 Parametric

Parameter Name	Attribute value
package instruction	PACKAGE-8
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.00005 µA
Maximum bias current (IIB) at 25C	0.00005 µA
Minimum Common Mode Rejection Ratio	85 dB
Nominal Common Mode Rejection Ratio	100 dB
frequency compensation	NO
Maximum input offset current (IIO)	0.00001 µA
Maximum input offset voltage	2300 µV
JESD-30 code	R-PDIP-T8
length	9.78 mm
low-bias	YES
low-dissonance	NO
micropower	NO
Negative supply voltage upper limit	-22 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Programmable power	NO
Maximum seat height	4.445 mm
minimum slew rate	10 V/us
Nominal slew rate	12 V/us
Maximum slew rate	7 mA
Supply voltage upper limit	22 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	5000 kHz
Minimum voltage gain	30000
width	7.62 mm

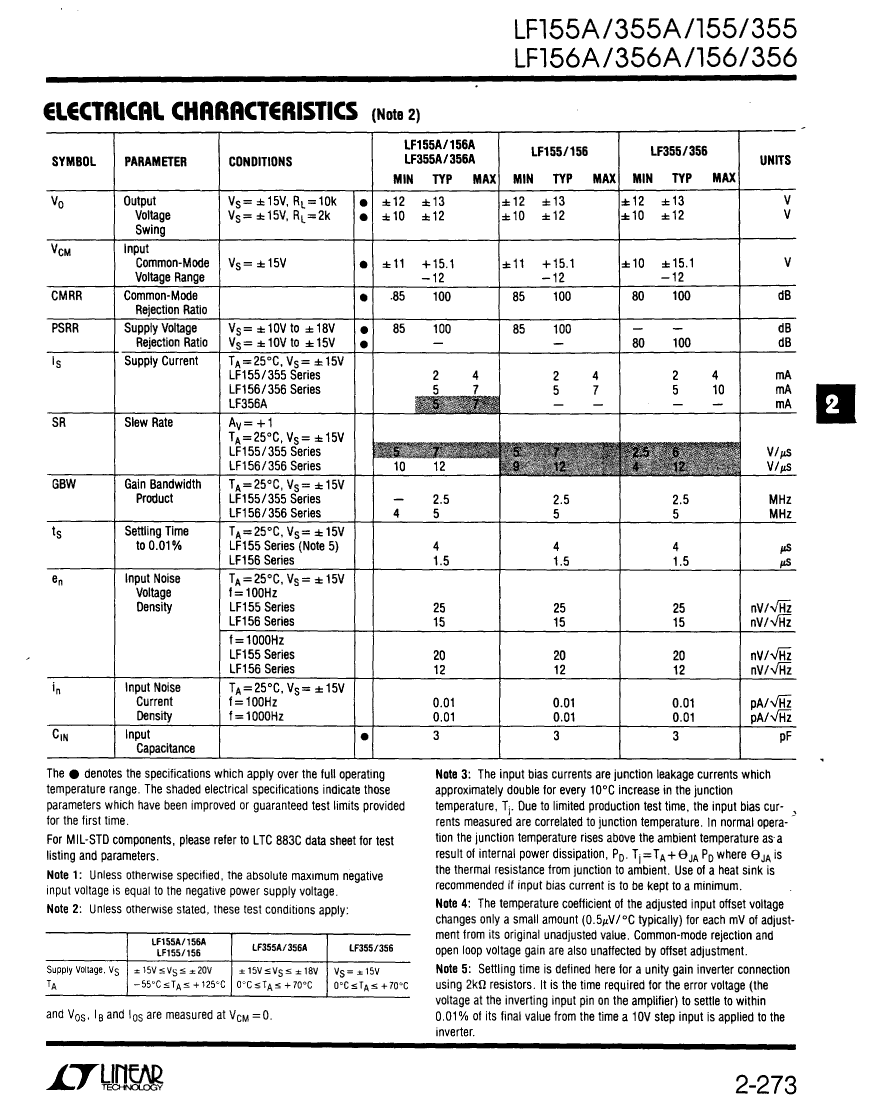

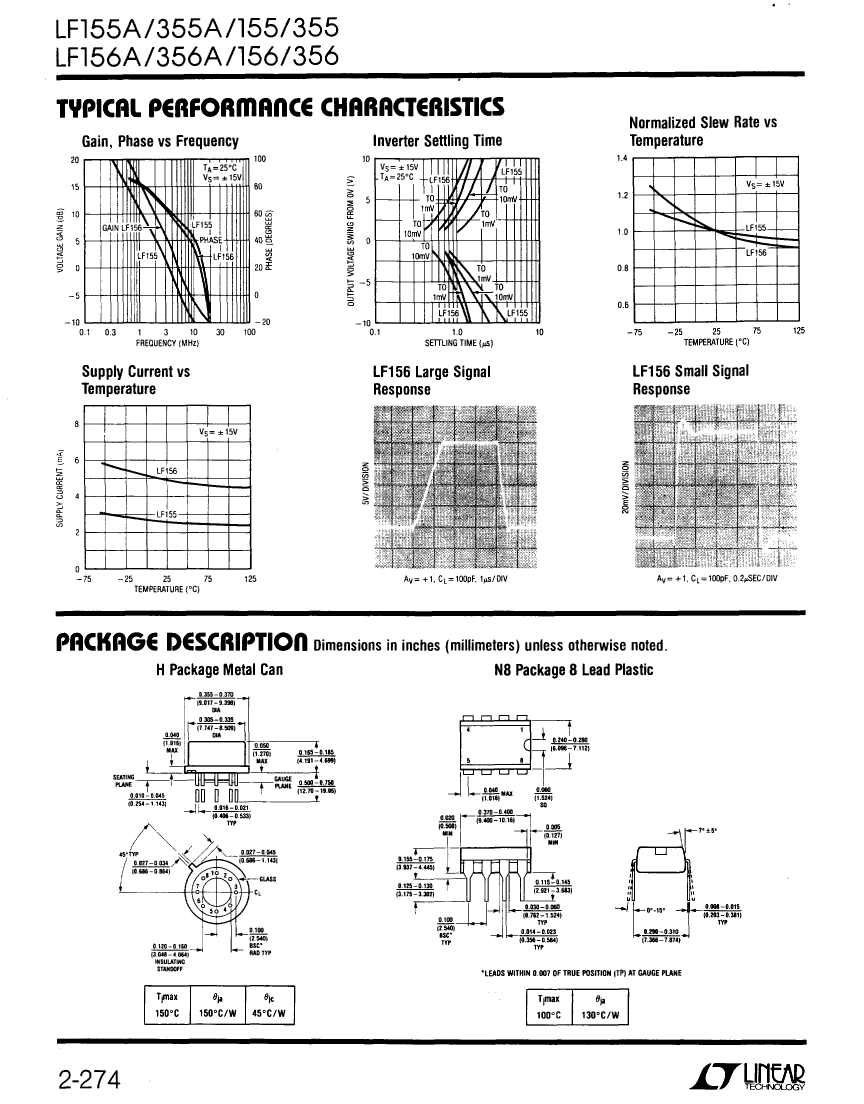

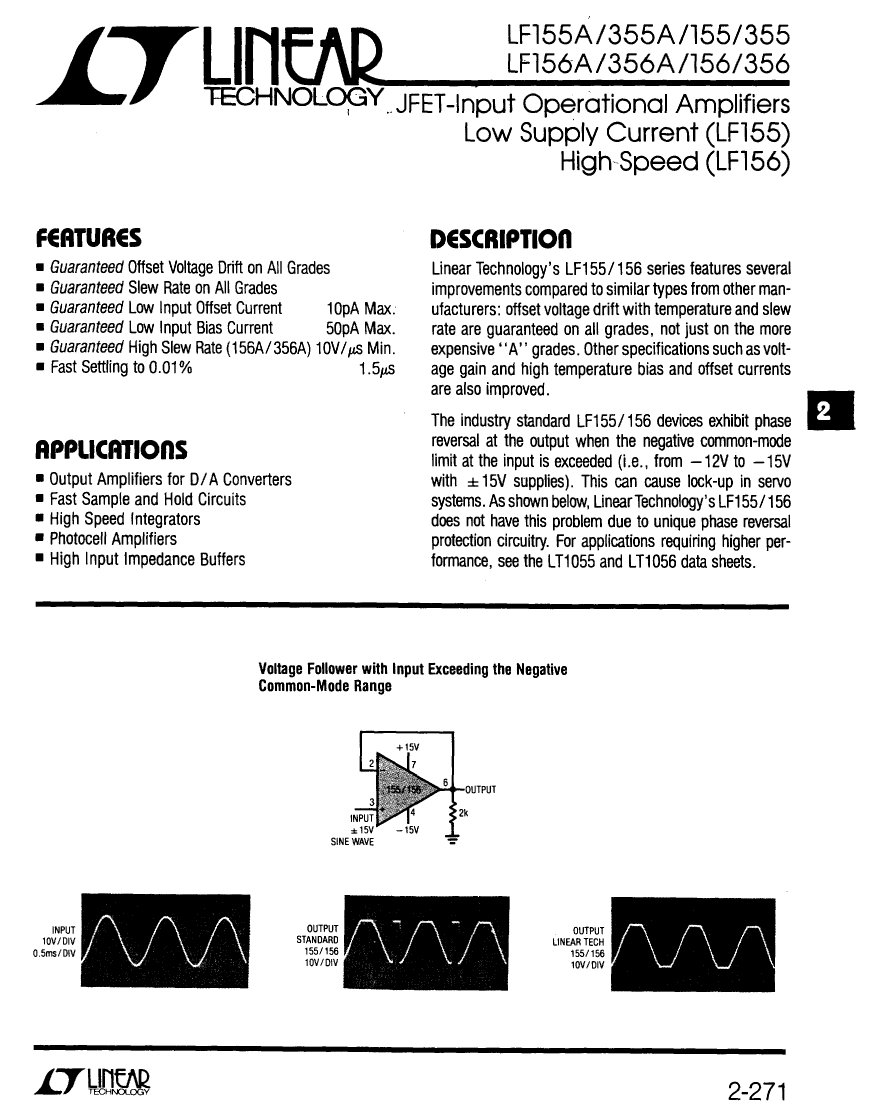

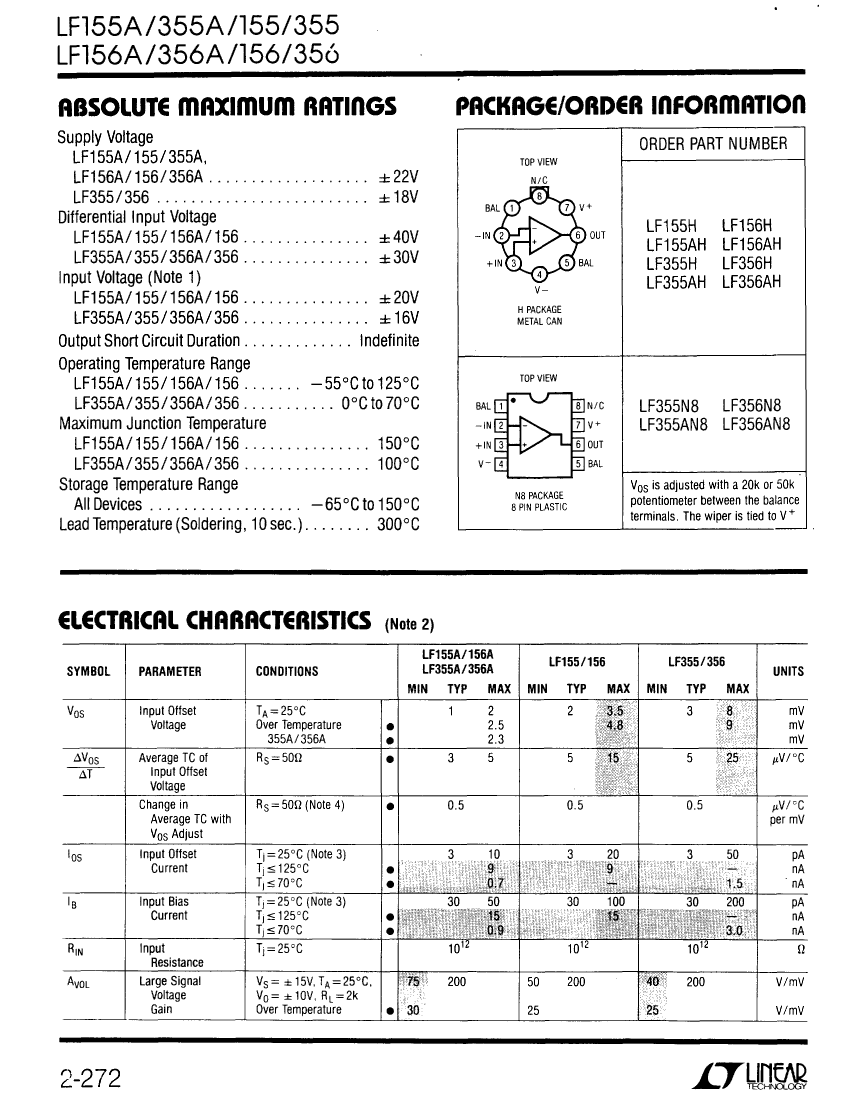

Preview

Download Datasheet

View All

LF356AN8 Related Products

	LF356AN8	LF356H	LF355N8	LF355AN8	LF356N8	LF356AH
Description	Operational Amplifier, 1 Func, 2300uV Offset-Max, PDIP8	Operational Amplifier, 1 Func, 9000uV Offset-Max, MBCY8	Operational Amplifier, 1 Func, 9000uV Offset-Max, PDIP8	Operational Amplifier, 1 Func, 2300uV Offset-Max, PDIP8	Operational Amplifier, 1 Func, 9000uV Offset-Max, PDIP8	Operational Amplifier, 1 Func, 2300uV Offset-Max, MBCY8
package instruction	PACKAGE-8	CAN-8	PACKAGE-8	PACKAGE-8	PACKAGE-8	CAN-8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.00005 µA	0.0002 µA	0.0002 µA	0.00005 µA	0.0002 µA	0.00005 µA
Maximum bias current (IIB) at 25C	0.00005 µA	0.0002 µA	0.0002 µA	0.00005 µA	0.0002 µA	0.00005 µA
Minimum Common Mode Rejection Ratio	85 dB	80 dB	80 dB	85 dB	80 dB	85 dB
Nominal Common Mode Rejection Ratio	100 dB	100 dB	100 dB	100 dB	100 dB	100 dB
frequency compensation	NO	NO	NO	NO	NO	NO
Maximum input offset current (IIO)	0.00001 µA	0.00005 µA	0.00005 µA	0.00001 µA	0.00005 µA	0.00001 µA
Maximum input offset voltage	2300 µV	9000 µV	9000 µV	2300 µV	9000 µV	2300 µV
JESD-30 code	R-PDIP-T8	O-MBCY-W8	R-PDIP-T8	R-PDIP-T8	R-PDIP-T8	O-MBCY-W8
low-bias	YES	YES	YES	YES	YES	YES
low-dissonance	NO	NO	NO	NO	NO	NO
micropower	NO	NO	NO	NO	NO	NO
Negative supply voltage upper limit	-22 V	-18 V	-18 V	-22 V	-18 V	-22 V
Number of functions	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	METAL	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	METAL
Encapsulate equivalent code	DIP8,.3	CAN8,.2	DIP8,.3	DIP8,.3	DIP8,.3	CAN8,.2
Package shape	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND
Package form	IN-LINE	CYLINDRICAL	IN-LINE	IN-LINE	IN-LINE	CYLINDRICAL
Programmable power	NO	NO	NO	NO	NO	NO
minimum slew rate	10 V/us	4 V/us	2.5 V/us	5 V/us	4 V/us	10 V/us
Nominal slew rate	12 V/us	12 V/us	6 V/us	7 V/us	12 V/us	12 V/us
Maximum slew rate	7 mA	10 mA	4 mA	4 mA	10 mA	7 mA
Supply voltage upper limit	22 V	18 V	18 V	22 V	18 V	22 V
surface mount	NO	NO	NO	NO	NO	NO
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	WIRE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	WIRE
Terminal location	DUAL	BOTTOM	DUAL	DUAL	DUAL	BOTTOM
Nominal Uniform Gain Bandwidth	5000 kHz	5000 kHz	2500 kHz	2500 kHz	5000 kHz	5000 kHz
Minimum voltage gain	30000	25000	25000	30000	25000	30000
length	9.78 mm	-	9.78 mm	9.78 mm	9.78 mm	-
encapsulated code	DIP	-	DIP	DIP	DIP	-
Maximum seat height	4.445 mm	-	4.445 mm	4.445 mm	4.445 mm	-
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	-
width	7.62 mm	-	7.62 mm	7.62 mm	7.62 mm	-
Maker	-	-	ADI	ADI	ADI	ADI
