DHB-PH34-S11NN11

Description
D Type Connector, 34 Contact(s), Male, 0.05 inch Pitch, Solder Kinked Leads Terminal, Latch, Receptacle
CategoryThe connector    The connector
File Size204KB,3 Pages
ManufacturerDDK
Websitehttp://www.ddknet.co.jp/English/index.html
Download Datasheet Parametric View All

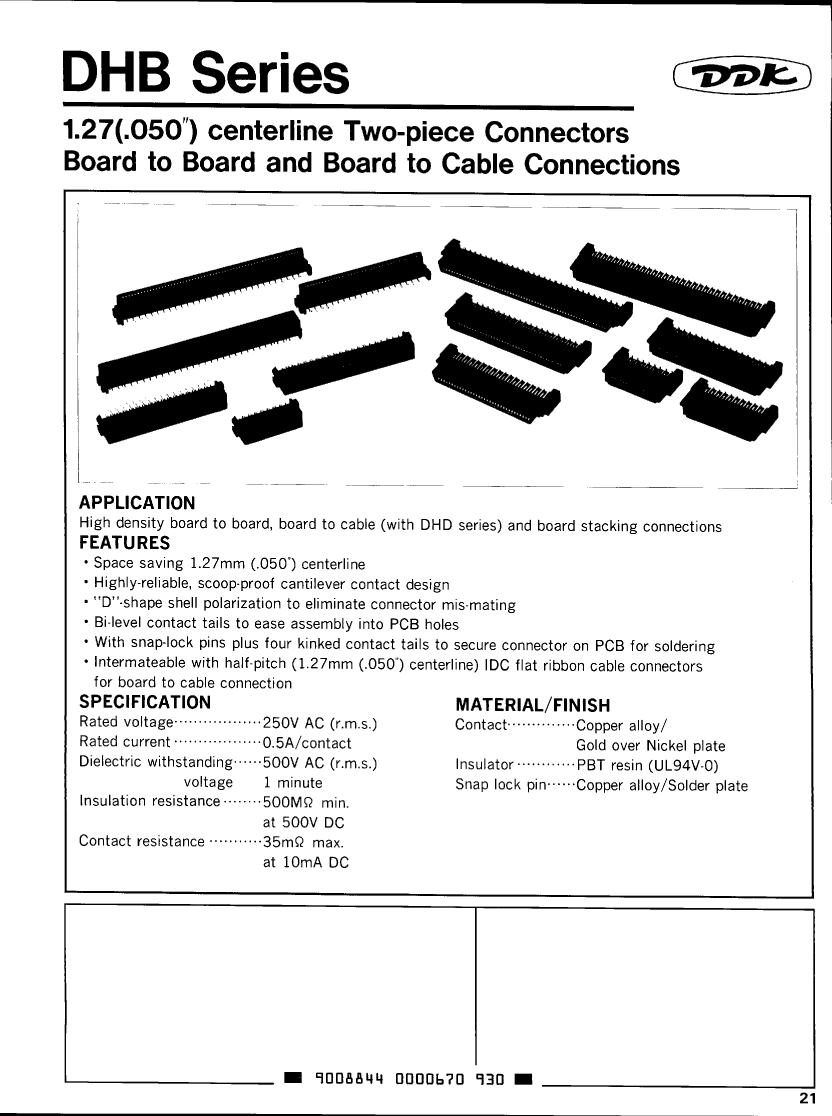

DHB-PH34-S11NN11 Overview

D Type Connector, 34 Contact(s), Male, 0.05 inch Pitch, Solder Kinked Leads Terminal, Latch, Receptacle

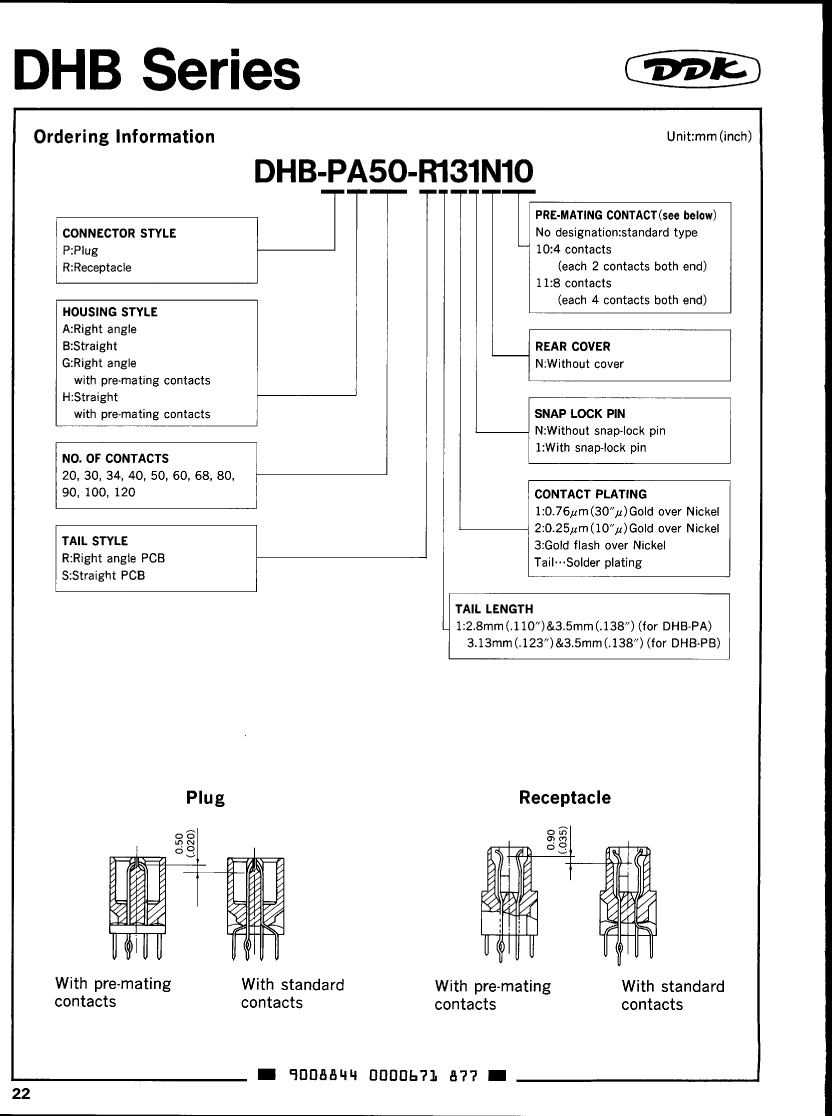

DHB-PH34-S11NN11 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
Other features8 FMLB CONTACTS

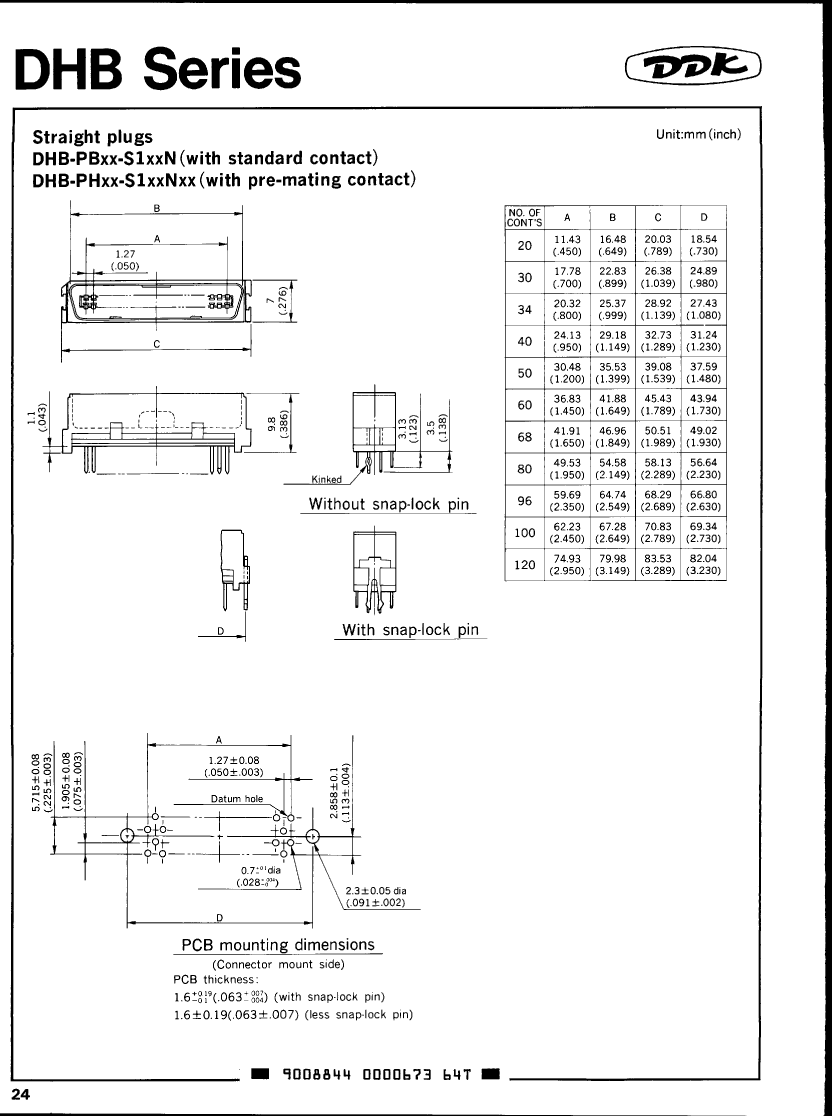

body width0.276 inch
body length1.139 inch
Body/casing typeRECEPTACLE
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance35 mΩ
Contact styleCENTRONIC
Dielectric withstand voltage500VAC V
Insulation resistance500000000 Ω
insulator materialPOLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberDHB
Plug contact pitch0.05 inch
Installation option 1LATCH
Installation methodSTRAIGHT
Installation typeBOARD
PCB row number4
Number of rows loaded2
PCB contact patternSTAGGERED
PCB contact row spacing1.905 mm
Plating thickness30u inch
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.123 inch
Terminal pitch2.54 mm
Termination typeSOLDER KINKED LEADS
Total number of contacts34
