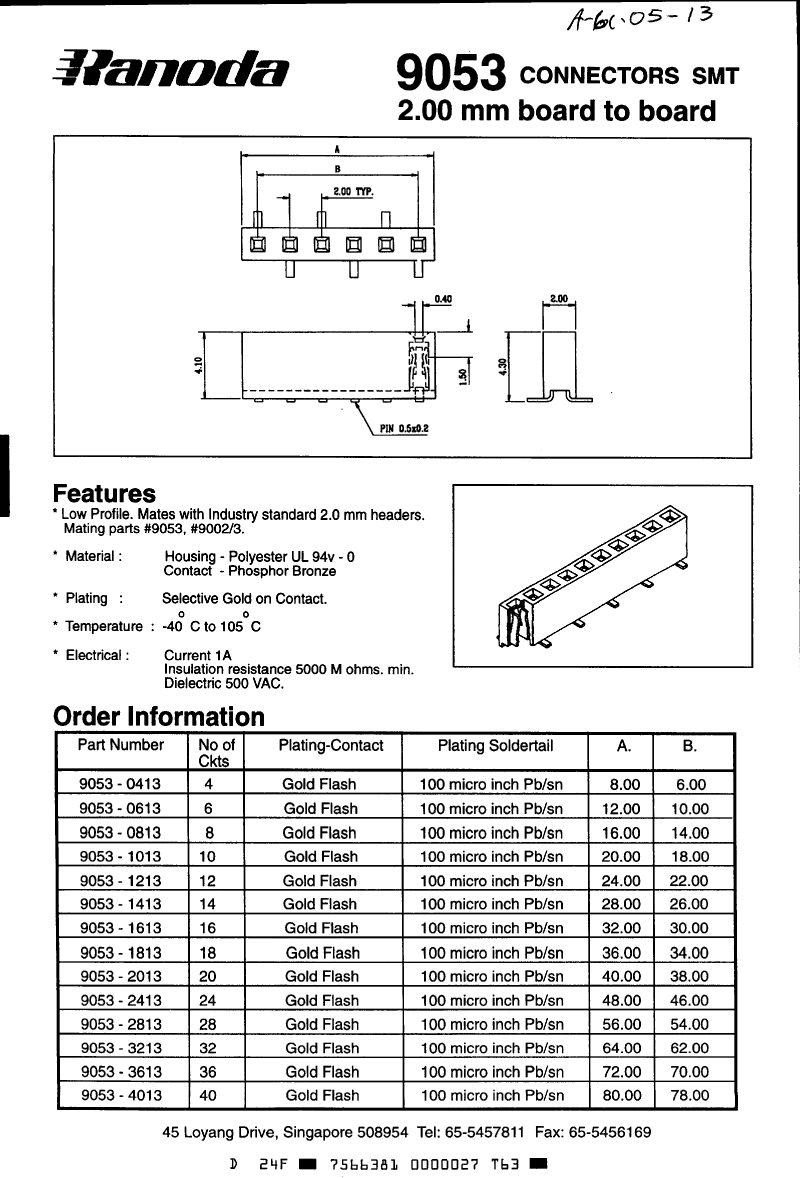

9053-3213: DescriptionBoard Connector, 32 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Plug; CategoryThe connector The connector; File Size93KB，1 Pages; ManufacturerRanoda Electronics Inc

Download Datasheet Parametric Compare View All

9053-3213 Overview

Board Connector, 32 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Plug

9053-3213 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW PROFILE
body width	0.079 inch
subject depth	0.161 inch
body length	2.52 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	POLYESTER
Manufacturer's serial number	9053
Plug contact pitch	0.079 inch
Installation method	STRAIGHT
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	3.9878 mm
Total number of contacts	32

Preview

Download Datasheet

View All

9053-3213 Related Products

	9053-3213	9053-2413	9053-2013	9053-1813	9053-0413
Description	Board Connector, 32 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Plug	Board Connector, 24 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Plug	Board Connector, 20 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Plug	Board Connector, 18 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Plug	Board Connector, 4 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE
body width	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
subject depth	0.161 inch	0.161 inch	0.161 inch	0.161 inch	0.161 inch
body length	2.52 inch	1.89 inch	1.575 inch	1.417 inch	0.315 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
Manufacturer's serial number	9053	9053	9053	9053	9053
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2
Number of rows loaded	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	3.9878 mm	3.9878 mm	3.9878 mm	3.9878 mm	3.9878 mm
Total number of contacts	32	24	20	18	4
Objectid	-	-	301369342	301369341	301369334
