NLE-S10M25V5X5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> NLE-S10M25V5X5

NLE-S10M25V5X5: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 10uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size50KB，1 Pages; ManufacturerNIC Components Corp

Download Datasheet Parametric View All

NLE-S10M25V5X5 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 10uF, Through Hole Mount, RADIAL LEADED

NLE-S10M25V5X5 Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	10 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	23300 mΩ
leakage current	0.0005 mA
Manufacturer's serial number	NLES
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	TAPE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	27 mA
surface mount	NO
Delta tangent	0.14
Terminal shape	WIRE

Preview

Download Datasheet

View All

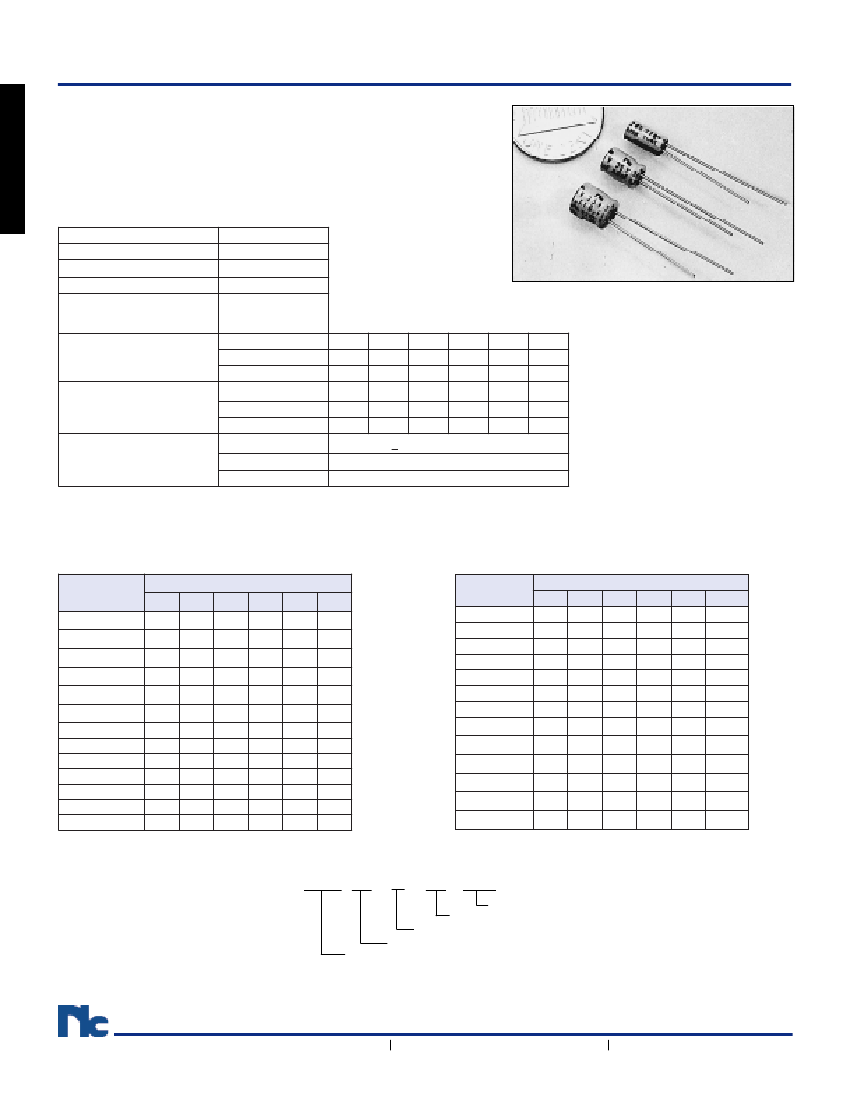

Miniature Aluminum Electrolytic Capacitors

SUPER LOW PROFILE, LOW LEAKAGE, RADIAL LEADS,

POLARIZED, ALUMINUM ELECTROLYTIC CAPACITORS

LEADED

FEATURES

• LOW LEAKAGE CURRENT

• 5mm HEIGHT

• AVAILABLE ON TAPE FOR AUTOMATIC INSERTION

CHARACTERISTICS

Rated Voltage Range

Capacitance Range

Operating Temperature Range

Capacitance Tolerance

Max. Leakage Current

After 1 minute At 20

Surge Voltage & Max. Tan

6.3 ~ 50Vdc

0.1 ~ 100

µF

-40~+85

±20% (M)

0.002CV, or 0.4

whichever is greater

W.V. (Vdc)

S.V. (Vdc)

Tan d at 120Hz/20

W.V. (Vdc)

Z-25

C/Z+20

Z-40

C/Z+20

Capacitance Change

Tan

Leakage Current

6.3

0.24

6.3

0.20

0.16

0.14

0.12

0.10

NLES Series

Low Temperature Stability

(Impedance Ratio at 120Hz)

Load Life Test

C 1,000 Hours

Within +20% of initial measured value

Less than 200% of specified value

Less than specified value

MAXIMUM PERMISSIBLE RIPPLE CURRENT

(mA rms AT 120Hz AND 85

Cap. (

0.1

0.22

0.33

0.47

1.0

2.2

3.3

4.7

100

Working Voltage (Vdc)

6.3

1.0

2.0

2.8

4.0

8.5

Ω

MAXIMUM E.S.R. (Ω AT 20

C AND 120Hz )

Cap. (

0.1

0.22

0.33

0.47

1.0

2.2

3.3

4.7

DIMENSIONS: (mm)

26.6

100

18.1

12.1

8.47

3.98

15.1

10.1

7.06

12.1

8.05

5.64

49.4

23.3

10.6

7.04

42.4

19.9

9.05

6.3

Working Voltage (Vdc)

1660

755

503

353

166

75.5

50.3

35.3

16.6

PART NUMBERING SYSTEM

NLE-S 100

25V

5x5

Size (D∅ x L)

Rated Voltage

Tolerance Code

Capacitance Code

Series

NIC COMPONENTS

www.niccomp.com

www.lowESR.com

www.RFpassives.com
