2N950 datasheet, PDF - EEWORLD Datasheet

2N950: DescriptionSilicon Controlled Rectifier, 0.26A I(T)RMS, 260mA I(T), 100V V(DRM), 1 Element, TO-18, TO-18, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size49KB，1 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric View All

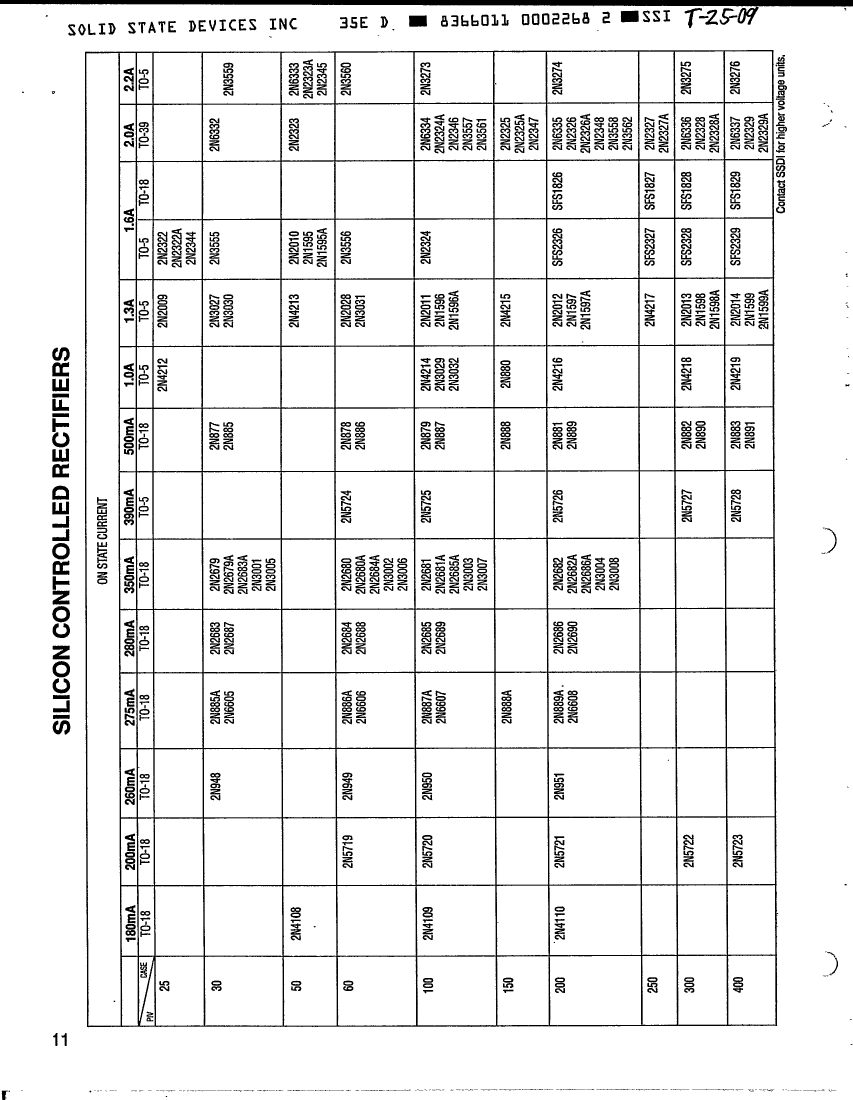

2N950 Overview

Silicon Controlled Rectifier, 0.26A I(T)RMS, 260mA I(T), 100V V(DRM), 1 Element, TO-18, TO-18, 3 PIN

Parameter Name	Attribute value
Parts packaging code	BCY
package instruction	CYLINDRICAL, O-MBCY-W3
Contacts	3
Reach Compliance Code	compli
ECCN code	EAR99
Configuration	SINGLE
Maximum DC gate trigger current	0.02 mA
Maximum DC gate trigger voltage	1 V
Maximum holding current	1 mA
JEDEC-95 code	TO-18
JESD-30 code	O-MBCY-W3
Maximum leakage current	0.02 mA
On-state non-repetitive peak current	1 A
Number of components	1
Number of terminals	3
Maximum on-state current	260 A
Maximum operating temperature	155 °C
Minimum operating temperature	-60 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Maximum rms on-state current	0.26 A
Off-state repetitive peak voltage	100 V
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
Trigger device type	SCR
Base Number Matches	1
