Q815
Feature:
High Isolation voltage between input and output
(Viso = 5000V rms)
Creepage distance > 7.62mm
Operating Temperature up to +100 ºC
Compact Small Outline Package
Available packaged in Tube or Tape and reel
Available with standard DIP-4, Wide lead bend,
and SMD lead bend options.
Conventional black housing package
4-PIN DIP PHOTOTRANSISTOR
OPTOCOUPLER
Certification & Compliance:
Pb free and RoHS Compliant
UL recognized (File # E338132)
VDE recognized (File # 40030457)
Schematic:
Product: Q815
Date: February 1, 2011
Version# 1.1
Page 1 of 12
Q815

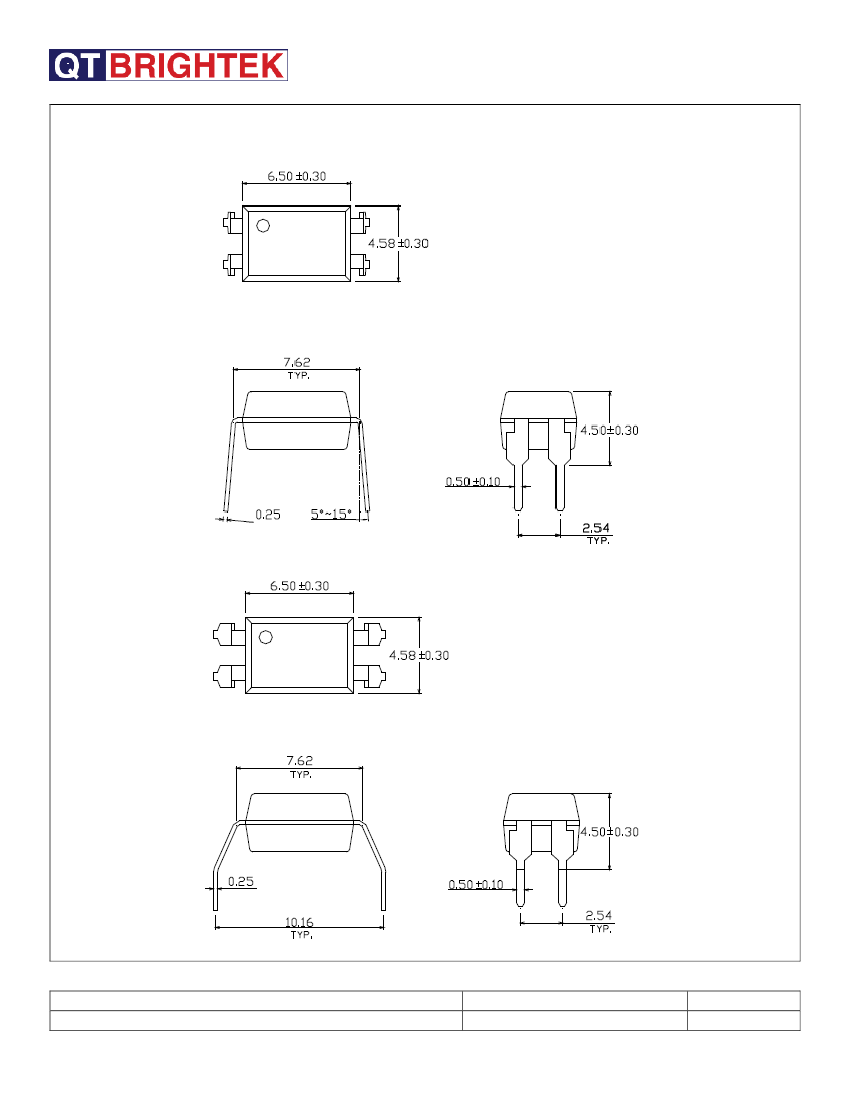

Dimension: (Dot location indicates pin 1)
4-Pin Dip (standard):
4-PIN DIP PHOTOTRANSISTOR
OPTOCOUPLER
Wide lead bend (Option W):
Product: Q815
Date: February 1, 2011
Version# 1.1
Page 2 of 12
Q815
SMD lead bend (Option S):
4-PIN DIP PHOTOTRANSISTOR
OPTOCOUPLER
All Dimensions are in mm
Tolerance = +/- 0.1mm
Product: Q815
Date: February 1, 2011
Version# 1.1
Page 3 of 12
Q815
4-PIN DIP PHOTOTRANSISTOR
OPTOCOUPLER
Absolute Maximum Rating:
Rating
Symbol
T
STG
T
OPR
T
SOL
P
TOT
EMITTER
I
F
V
R
P
D
Power Dissipation Derated above 100ºC
DETECTOR
V
CEO
V
ECO
I
C
P
C
Collector Power Dissipation Derated above 80ºC
N/A
mW/ºC
Collector–Emitter Voltage
Emitter-Collector Voltage
Continuous Collector Current
Collector Power Dissipation
35
7
80
150
V
V
mA
mW
N/A
mW
Continuous Forward Current
Reverse Voltage
Power Dissipation
60
6
100
mA
V
mW
Parameter
Storage Temperature
Operating Temperature
Lead Solder Temperature
Total Power Dissipation
Q815
-55 ~ +150
-55 ~ +100
260 for 10 sec
200
Units
ºC
ºC
ºC
mW
Product: Q815
Date: February 1, 2011
Version# 1.1
Page 4 of 12
Q815
4-PIN DIP PHOTOTRANSISTOR
OPTOCOUPLER
Electrical Characteristic
(T=25
o
C)
Emitter
Symbol
V
F
I
R
C
in
Detector
Symbol
I
CEO
BV
CEO
BV
ECO
Characteristic
Collector-
Emitter dark current
Collector-
Emitter breakdown
voltage
Emitter- collector
breakdown voltage
Device
Q815
Q815
Q815
Test Condition
V
CE
= 10V,
I
F
= 0mA
I
C
= 0.1mA
I
E
= 0.1mA
Min
-
35
7
Range
Typ
-
-
-
Max
1
-
-
Unit
µA
V
V
Characteristic
Forward voltage
Reverse current
Input capacitance
Device
Q815
Q815
Q815
Test Condition
I
F
= 20mA
V
R
= 4V
V = 0, f = 1KHz
Min
-
-
-
Range
Typ
1.2
-
30
Max
1.4
10
250
Unit
V
µA
pF
Product: Q815
Date: February 1, 2011
Version# 1.1
Page 5 of 12
