LDC0603C392M050T datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> LDC0603C392M050T

LDC0603C392M050T: DescriptionCeramic Capacitor, Ceramic, 50V, -/+4.7% TC, 0.0039uF, 0603; CategoryPassive components capacitor; File Size103KB，2 Pages; ManufacturerHoly Stone; Websitehttp://www.holystonecaps.com; Environmental Compliance

Download Datasheet Parametric View All

LDC0603C392M050T Overview

Ceramic Capacitor, Ceramic, 50V, -/+4.7% TC, 0.0039uF, 0603

LDC0603C392M050T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	, 0603
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0039 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.9 mm
JESD-609 code	e3
length	1.6 mm
Manufacturer's serial number	LDC0603C(50V)
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
series	LDC0603C(50V)
size code	0603
Temperature Coefficient	-/+4.7% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
width	0.8 mm

Preview

Download Datasheet

View All

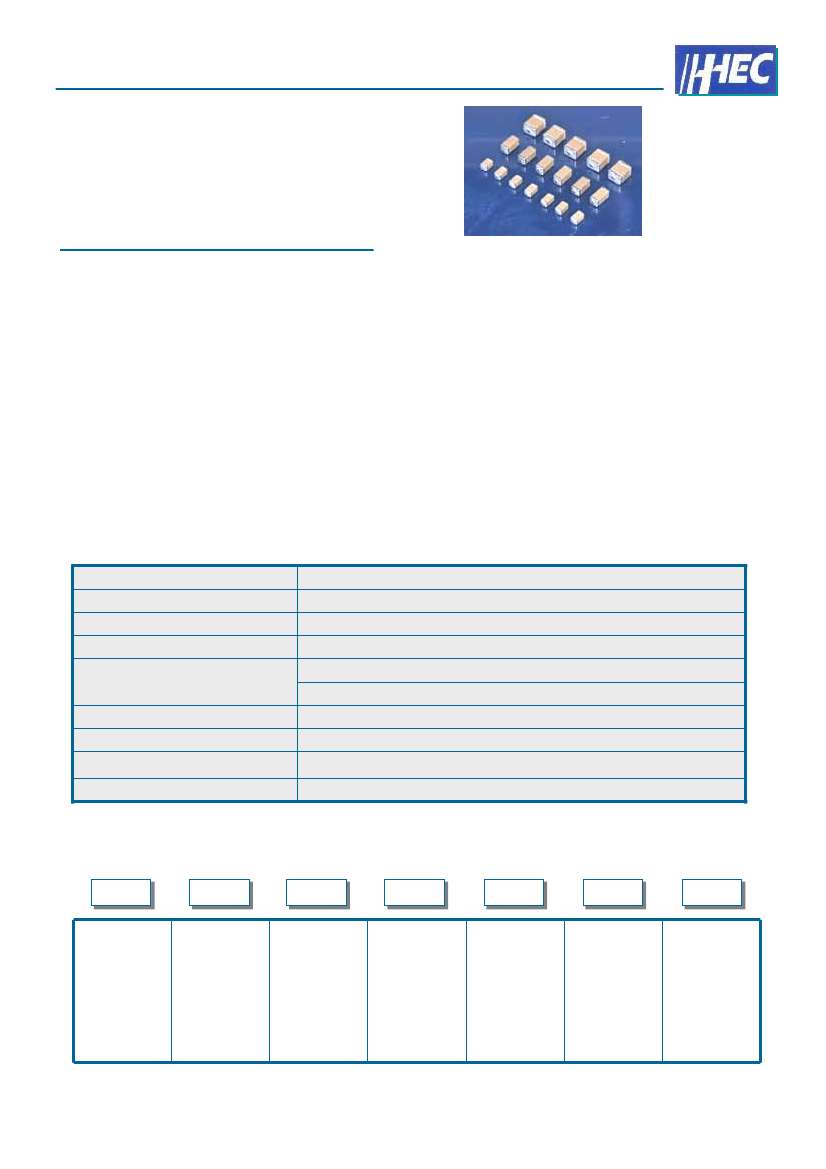

Multilayer Ceramic Chip Capacitors (MLCC)

Holy Stone

LDC

Series

[ Low Distortion Capacitor ]

The Holystone LDC series are designed with

X7E material which has extremely low capacitance

variation over the operating temperature range as

opposed to X7R material. LDC exhibits very low

ESR and due to the high dielectric constant nature

of the material, high capacitance values can be

packaged in small size, which makes LDC

desireable for SMT Film capacitor replacement.

LDC’s are suitable for refolw soldering with

Pb free solders up to 260°C and are ROHS

compliant. The LDC series are offered in 0603 to

2220 size, 25 and 50 volts and capacitance values

up to 270 nF.

Features & Application

Small Size & High Capacitance

Excellent Bias,High Temperature Stability &

Low Tan

High Breakdown Voltage

Replace Film Capacitor

Suitable for Telecommunication (ADSL、

Modem…),Power (Inverter for Burst Mode

Circuit) & Audio Circuit

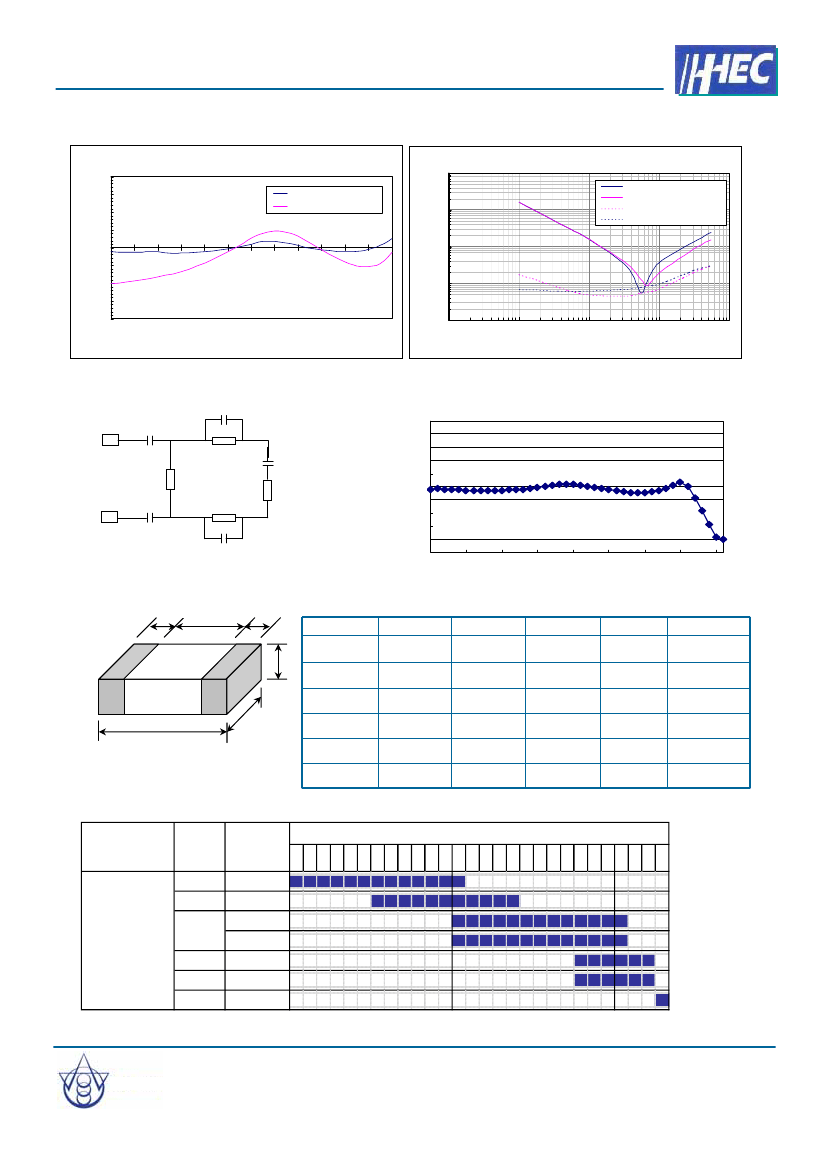

Summary of Specification

Operation Temperature

Rated Voltage

Temperature Coefficient

Capacitance Range

Dissipation Factor :

Insulation Resistance

Dielectric Strength

Capacitance Tolerance

Aging

-55~+125

℃

25V and 50Vdc

X7E :

≤

4.7%

1nF ~ 270nF

For 50V : 1.2% max. at 1KHz 25℃

For 25V : 2.0% max. at 1KHz 25℃

10GΩ or 500/C

whichever is smaller

250% Rated Voltage for 5 second @ 50mA max. current

5% ,

10%

1.0% per decade hr , Typical

, -55~+125

℃

(EIA Class II )

How To Order

LDC

Product

Code

LDC:

Low

Distortion

Capacitor

1206

Chip Size

Ex.:

1206 :

3.2×1.6 mm

1210 :

3.2×2.5 mm

Dielectric

C: X7E

103

Capacitance

Unit : pF

Ex.:

102:10×10

224:22×10

Tolerance

Ex.:

J : +/- 5%

K: +/- 10%

M: +/- 20%

025

Rated

Voltage

Ex.:

025:25Vdc

050:50Vdc

Packaging

T: Taping &

Reel

B: Bulk
