SPB-2910LG
1
***********************************************************************************************************************************************************************
SPB-2910LG / SPB-2910BLG
(RoHS Compliant)
1330 nm TX / 1270 nm RX ,
10.3 Gbps
1-Fiber SM LC
SFP+
Transceiver
**********************************************************************************************************************************************************************
DESCRIPTION
1-Fiber Bi-Directional SFP Optical Transceiver
Up to 10.3 Gbps Bi-directional Data Links
Compliant with SFP+ MSA
Compliant to IEEE 802.3ae 10GBASE-BX
Simplex LC Connector
1330 nm DFB LD Transmitter
1270 nm Receiver
Distance Up to 10 km
AC/AC Coupling according to MSA
Single +3.3 V Power Supply
RoHS Compliant
0 to 70
o
C Operating: SPB-2910LWG
-10 to 85
o
C Operating: SPB-2910BLWG
Class 1 Laser International Safety Standard IEC 60825
Compliant
The SPB-2910LG series single mode transceiver is small
form factor pluggable module for bi-directional serial optical
data communications such as IEEE 802.3ae 10GBASE-BX
by using 1330 nm transmitter and 1270 nm receiver. It is
with the SFP 20-pin connector to allow hot plug capability.
The transmitter section uses a multiple quantum well 1330
nm DFB laser and is a class 1 laser compliant according to
International Safety Standard IEC 60825. The receiver
section uses an integrated 1270 nm detector preamplifier
(IDP) mounted in an optical header and a limiting
post-amplifier IC.
LASER SAFETY
This single mode transceiver is a Class 1 laser product. It
complies with IEC 60825 and FDA 21 CFR 1040.10 and
1040.11. The transceiver must be operated within the
specified temperature and voltage limits. The optical ports of
the module shall be terminated with an optical connector or
with a dust plug.
APPLICATIONS
l
10G Ethernet Links
ORDER INFORMATION
P/No.
SPB-2910LG
SPB-2910BLG
Bit Rate
(Gb/s)
10.3
10.3
10GBASE Distance
TX
(km)
(nm)
BX
10
1330 DFB
BX
10
1330 DFB
RX
(nm)
1270
1270
Package
LC SFP+
LC SFP+
Temp
(
o
C)
0 to 70
-10 to 85
RoHS
Compliant
Yes
Yes
Absolute Maximum Ratings
Parameter
Storage Temperature
Operating Case Temperature
Relative Humidity
Power Supply Voltage
Input Voltage
Output Current
Symbol
Tstg
Topr
RH
Vcc
---
Iout
Min
-40
0
-10
0
0
GND
0
Max
85
70
85
85
3.6
Vcc
30
Units
o
C
o
C
%
V
V
mA
Notes
SPB-2910LG
SPB-2910BLG
Non condensing
Recommended Operating Conditions
Parameter
Power Supply Voltage
Power Supply Current
Operating Case Temperature
Data Rate
Symbol
Vcc
I
CC (TX+RX)
Topr
Min
3.13
0
-10
10.3125
Typ
3.3
200
Max
3.47
300
70
85
Units / Notes
V
mA
o
C / SPB-2910LG
o
C / SPB-2910BLG
Gb/s
**********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
1/1/2009
V2.0
Optoway
Transmitter Optical Specifications (0
o
C < Topr < 70
o
C, 3.13V < Vcc < 3.47V)
Parameter
Average Launch Power
Output Center Wavelength
Output Spectrum Width
Side Mode Suppression Ratio
Relative Intensity Noise
Average Launch Power of OFF
Transmitter
Symbol
Po,
Avg
λc
σ
λ
SMSR
RIN
Min
-5
1320
30
-128
-30
Typ
1330
Max
0
1340
1
Units
dBm
nm
nm
dB
dB/Hz
dBm
SPB-2910LG
Notes
1
-20 dB width
2
***********************************************************************************************************************************************************************
1. Output power is power coupled into a 9/125
µm
single-mode fiber.
Receiver Optical Specifications (0
o
C < Topr < 70
o
C, 3.13V < Vcc < 3.47V)
Parameter
Sensitivity at 10.3 Gb/s
Receiver Overload
LOS -- Deasserted
LOS -- Asserted
Wavelength of Operation
Symbol
P
MAX
LOS
D
LOS
A
λc
Min
0.5
---
-30
1260
Typ
---
---
---
Max
-14
-18
---
1280
Units
dBm
dBm
dBm
dBm
nm
Notes
2, Average Power
Transition: low to high
Transition: high to low
3
2. Measured with average power; BER < 10
-12
and PRBS 2
31
-1.
3. At least 30 dB optical isolation for the wavelength 1320 to 1340 nm.
Electrical Characteristics
Parameter
Symbol
High-Speed Signal (CML) Interface Specification
Input Data Rate
Differential Input Impedance
Rin
Differential Data Input Amplitude
Output Data Rate
Differential Output Impedance
Rout
Differential Data Output
Amplitude
Low-Speed Signal (LVTTL) Interface Specification
Input High Voltage
Input Low Voltage
Output High Voltage
Output Low Voltage
Min
Typ
10.3125
100
150
10.3125
100
600
1200
Max
Units
Gb/s
Ω
mVpp
Gb/s
Ω
mVpp
Notes
Internally AC coupled
350
700
Internally AC coupled
2.0
GND
2.4
GND
Vcc+0.3
0.8
Vcc
0.5
V
V
V
V
**********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
1/1/2009
V2.0
Optoway
CONNECTION DIAGRAM
SPB-2910LG
3
***********************************************************************************************************************************************************************
PIN Signal Name
1
2
V
EE
T
TX_Fault
Description
Transmitter Signal Ground
Transmitter Fault Indication. Logic
“1”
Output
= Laser Fault. Logic
“0”
Output = Normal
Operation
Logic
“1”
Input (or no connection) = Laser off,
Logic
“0”
= Laser on.
Modulation Definition 2
–
Two wires serial ID
Interface
Modulation Definition 1
–
Two wires serial ID
Interface
Modulation Definition 0
–
Ground in Module
RX Rate Select (LVTTL). This pin has an
internal 30k pulldown to ground. A signal on
this pin will not affect module performance.
Loss of Signal Out (OC).
TX Rate Select (LVTTL). This pin has an
internal 30k pulldown to ground. A signal on
this pin will not affect module performance.
Receiver Signal Ground
PIN Signal Name
11
12
V
EE
R
RD-
Description
Receiver Signal Ground
Inverse Receiver Data Out
3
4
5
6
7
TX_Disable
SDA
SDL
MOD-ABS
RS0
13
14
15
16
17
RD+
V
EE
R
V
CC
R
V
CC
T
V
EE
T
Receiver Data Out
Receiver Signal Ground
Receiver Power
–
3.3V±5%
Transmitter Power
–
3.3V±5%
Transmitter Signal Ground
8
9
RX_LOS
RS1
18
19
TD+
TD-
Transmitter Data In
Inverse Transmitter Data In
10
V
EE
R
20
V
EE
T
Transmitter Signal Ground
MODULE DEFINITION
Module Definition
4
PIN 4
SDA
PIN 5
SCL
PIN 6
MOD-ABS
Interpretation by Host
Serial module definition
protocol
Module Definition 4 specifies a serial definition protocol. For this definition, upon power up, SDA and SDL appear as no connector
(NC) and MOD-ABS is TTL LOW. When the host system detects this condition, it activates the serial protocol. The protocol uses the 2-wire
serial CMOS E
2
PROM protocol of the ATMEL AT24C01A/02/04 family of components.
**********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
1/1/2009
V2.0
Optoway

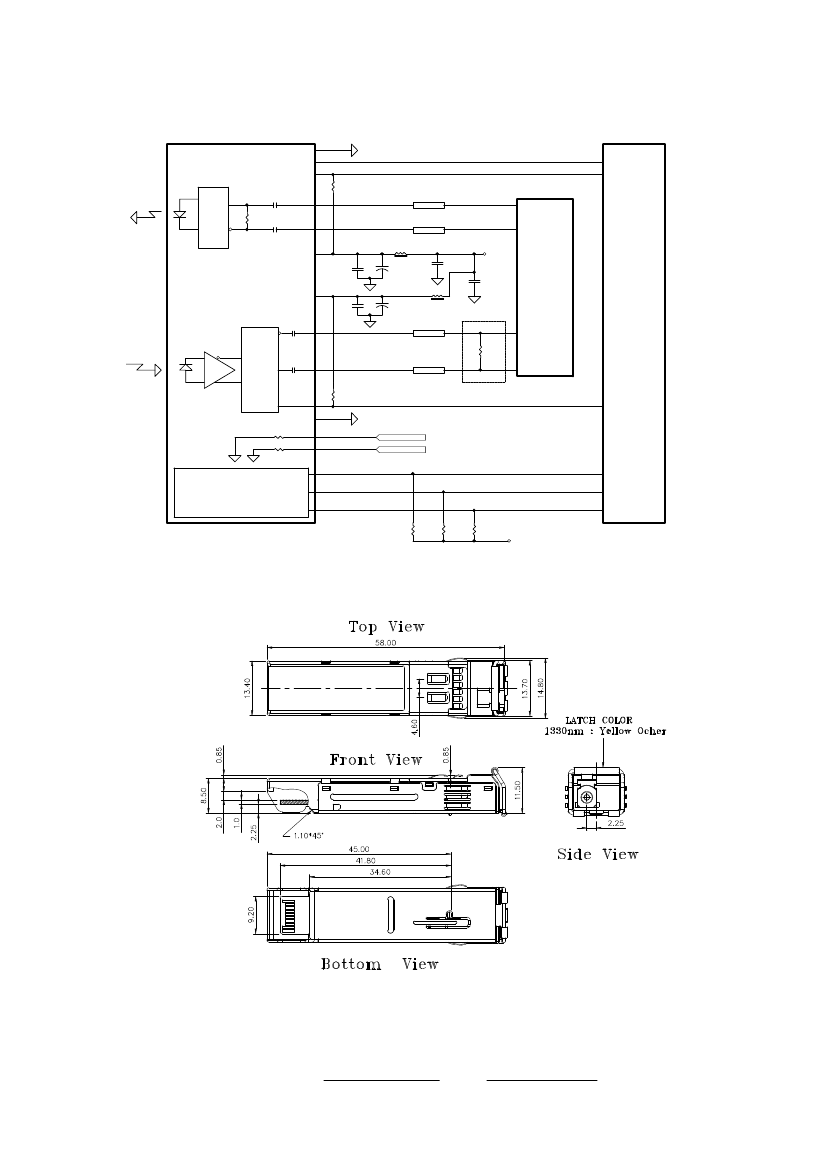

RECOMMENDED CIRCUIT SCHEMATIC
Vee T
Tx_DISABLE
Tx_FAULT
( 1,17,20)
3
2
10 KΩ
TD +
18
Z=50Ω
TD -
19
Z=50Ω
Vcc T
16
0.1μF
4 .7
μH
Vcc 3.3V
22
μF
0.1μF
0.1μF
Vcc R
15
0.1μF
22
μF
4 .7
μH
TD -
TD +
SPB-2910LG
4
***********************************************************************************************************************************************************************
Tx_DISABLE
Tx_FAULT
LD
D
river
100Ω
SerDes
IC
Protocol
IC
RD -
12
Z=50Ω
100Ω
RD -
POST
Amp
RD +
13
Z=50Ω
10 KΩ
RD +
depending on SE D S
RE
LOSS OF SINGAL
LOS
Vee R
RS1
30K
Ω
30K
Ω
MOD_ABS
RS0
8
( 10,11,14)
9
7
TX Rate Select
RX Rate Select
6
5
4
10 KΩ
10 KΩ
10 KΩ
Vcc 3.3V
MODU LE DETECT
SCL
SDA
EEPROM
SCL
SDA
SFP+ module
PACKAGE DIAGRAM
Units in mm
Note:
Specifications subject to change without notice.
**********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
1/1/2009
V2.0
Optoway
REVISION HISTORY
Version
1.0
2.0
SPB-2910LG
5
***********************************************************************************************************************************************************************
Subject
Initial datasheet
Change wavelength to 1270 nm and 1330 nm to have less dispersion penalty.
Release Date
2008/7/1
2009/1/1
**********************************************************************************************************************************************************************
OPTOWAY TECHNOLOGY INC.
No.38, Kuang Fu S. Road, Hu Kou, Hsin Chu Industrial Park, Hsin Chu, Taiwan 303
Tel: 886-3-5979798
Fax: 886-3-5979737
E-mail: sales@optoway.com.tw http: // www.optoway.com.tw
1/1/2009
V2.0
