High Reliability Commercial Off-the-Shelf (COTS)
T428 Series High Volumetric Efficiency Facedown MnO
2
Overview

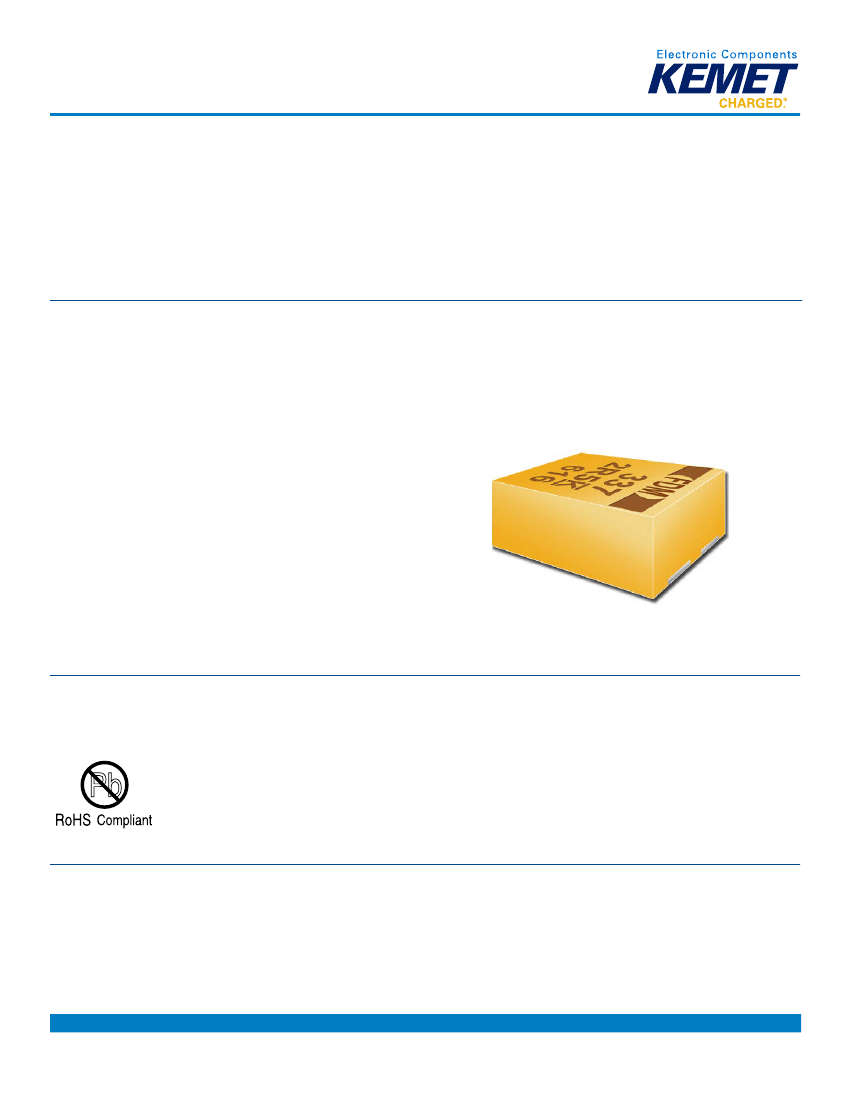

The KEMET T428 Series was developed to provide the
volumetric efficiency of a conformally coated capacitor in a pick-
and-place friendly molded package. The planerity of the molded
package eliminates the “drops” associated with the conformally
coated tantalum surface mount devices. This new package
design offers the highest CV/cc of any molded leadframe product.
In addition, the facedown construction offers higher power ratings
per cc. The robust design features and testing protocol make this
part suitable for application in the telecommunications, industrial,
military and aerospace markets.
Benefits
•
•
•
•
•
•
•
•
•
•
•
•
•
High CV/cc
Taped and reeled per EIA 481–1
SnPb termination finish
Laser-marked case
100% surge current test available
Halogen-free epoxy
Capacitance values of 15 to 470 µF
Tolerances of ±5%, ±10%, and ±20%
Voltage rating of 4 to 50 VDC
Extended range values
Pick-and-place friendly
RoHS Compliant and lead-free terminations available
Operating temperature range of -55˚C to +125˚C
Applications
Typical applications include decoupling and filtering in
telecommunications, computer, industrial, defense and aerospace
applications.
Environmental Compliance
RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn solder.
SPICE
For a detailed analysis of specific part numbers, please visit www.kemet.com for a free download of KEMET's SPICE software.
The KEMET SPICE program is freeware intended to aid design engineers in analyzing the performance of these capacitors over
frequency, temperature, ripple, and DC bias conditions.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2058_T428 • 7/22/2013
1
Tantalum Surface Mount Capacitors
High Reliability Commercial Off-the-Shelf (COTS) – T428 Series High Volumetric Efficiency Facedown MnO
2
Ordering Information
T
Capacitor
Class
T=
Tantalum
428
Series
High
Volumetric
Efficient
Facedown
Hi-Rel MnO
2
COTS
P
Case
Size
P
227
Capacitance
Code (pF)
K
Capacitance
Tolerance
006
Voltage
004 = 4 V
006 = 6.3 V
010 = 10 V
016 = 16 V
020 = 20 V
025 = 25 V
035 = 35 V
050 = 50 V
A
Failure Rate/
Design
A = N/A
B = 0.1%/1,000
hours
H
Lead Material
61
Surge
10
ESR
10 = Standard
20 = Low
30 = Ultra-low
First two digits J = ±5%
represent
K = ±10%
significant
M = ±20%
figures. Third
digit specifies
number of
zeros.
H = Standard solder 61 = None
coated (SnPb 5% Pb) 62 = 10 cycles,
T = 100% tin (Sn)
25°C
63 = 10 cycles,
-55°C and 85°C
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF (120 Hz)
ESR (100 kHz)
Leakage Current
-55°C to 125°C
15 – 470 μF @ 120 Hz/25°C
J Tolerance (5%), K Tolerance (10%), M Tolerance (20%)
4 – 50 V
Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table
≤ 0.01 CV (µA) at rated voltage after 5 minutes
Performance Characteristics
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2058_T428 • 7/22/2013
2
Tantalum Surface Mount Capacitors
High Reliability Commercial Off-the-Shelf (COTS) – T428 Series High Volumetric Efficiency Facedown MnO
2
Qualification
Test
Endurance
Condition
Δ C/C
85°C @ rated voltage, 2,000 hours
125°C @ 2/3 rated voltage, 2,000 hours
DF
DCL
ESR
Δ C/C
DF
DCL
ESR
Δ C/C
MIL–STD–202, Method 107, Condition B, mounted,
-55°C to 125°C, 1,000 cycles
DF
DCL
ESR
Extreme temperature exposure at a
succession of continuous steps at +25°C,
-55°C, +25°C, +85°C, +125°C, +25°C
+25°C
Δ C/C
DF
DCL
IL*
IL
IL
Δ C/C
DF
DCL
ESR
Δ C/C
DF
DCL
Characteristics
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±5% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
-55°C
±10%
IL
n/a
+85°C
±10%
1.5 x IL
10 x IL
+125°C
±20%
1.5 x IL
12 x IL
Storage Life
125°C @ 0 volts, 2,000 hours
Thermal Shock
Temperature Stability
Within ±5% of initial value
Within initial limits
Within initial limits
Within initial limits
Within ±10 of initial value
Within initial limits
Within initial limits
Surge Voltage
25°C and 85°C, 1.32 x rated voltage 1,000 cycles
(125°C, 1.2 x rated voltage)
Mechanical Shock/Vibration
Additional Qualification Tests
per MIL–PRF–55365/8
*IL = Initial limit
MIL–STD–202, Method 213, Condition I, 100 G peak
MIL–STD–202, Method 204, Condition D, 10 Hz to 2,000 Hz,
20 G peak
Please contact KEMET for more information.
Certification
MIL–PRF–55365/8
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2058_T428 • 7/22/2013
3
Tantalum Surface Mount Capacitors
High Reliability Commercial Off-the-Shelf (COTS) – T428 Series High Volumetric Efficiency Facedown MnO
2

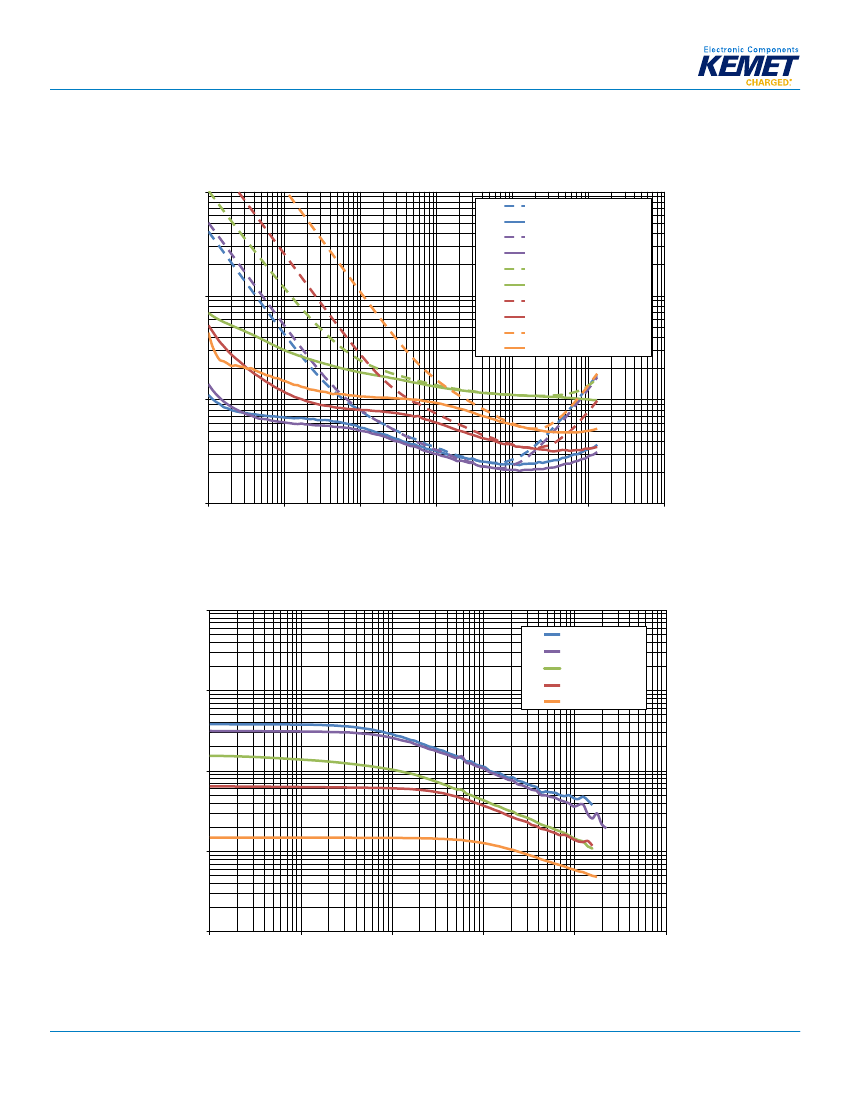

Electrical Characteristics
Impedance & ESR vs. Frequency
10
T428P390uF6V Z
T428P390uF6V ESR vs. f
T428P330uF10V Z
T428P330uF10V ESR vs. f
T428P180uF16V Z
T428P180uF16V ESR vs. f
T428P68uF25V Z
T428P68uF25V ESR vs. f
T428P15uF50V Z
T428P15uF50V ESR vs. f
Impedance & ESR
1
0
0
100
1,000
10,000
f (Hz)
100,000
1,000,000
10,000,000
100,000,000
Capacitance vs. Frequency
10,000
T428P390uF6V
T428P330uF10V
T428P180uF16V
1,000
T428P68uF25V
T428P15uF50V
Capacitance (µF)
100
10
1
100
1,000
10,000
f (Hz)
100,000
1,000,000
10,000,000
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2058_T428 • 7/22/2013
4
Tantalum Surface Mount Capacitors
High Reliability Commercial Off-the-Shelf (COTS) – T428 Series High Volumetric Efficiency Facedown MnO
2
Dimensions – Millimeters
End View
Side View
Bottom View
H
W
Case
Size
EIA
7360-38
L Max
7.2
W ±0.3
6.0
A
L
Component
H ±0.3
3.5
F ±0.20
4.95
S ±0.20
1.6
A (Nom)
3.8
F
S
S
Table 1 – Ratings & Part Number Reference
Rated
Voltage
VDC
4
6.3
6.3
10
16
16
20
25
35
50
VDC
Rated
Capacitance
µF
470
390
470
330
180
220
150
68
22
15
µF
Case Code/
Case Size
KEMET/EIA
P/7360-38
P/7360-38
P/7360-38
P/7360-38
P/7360-38
P/7360-38
P/7360-38
P/7360-38
P/7360-38
P/7360-38
KEMET/EIA
KEMET Part
Number
(See below for
part options)
T428P477(1)004(2)(3)(4)(5)
T428P397(1)006(2)(3)(4)(5)
T428P477(1)006(2)(3)(4)(5)
T428P337(1)010(2)(3)(4)(5)
T428P187(1)016(2)(3)(4)(5)
T428P227(1)016(2)(3)(4)(5)
T428P157(1)020(2)(3)(4)(5)
T428P686(1)025(2)(3)(4)(5)
T428P226(1)035(2)(3)(4)(5)
T428P156(1)050(2)(3)(4)(5)
(See below for
part options)
DC
Leakage
μA @ +20ºC
Maximum/
5 Minutes
18.8
24.6
29.6
33.0
28.8
35.2
30.0
17.0
7.7
7.5
μA @ +20ºC
Maximum/
5 Minutes
DF
%@ +20ºC
120 Hz
Maximum
10.0
8.0
10.0
8.0
8.0
8.0
8.0
6.0
6.0
6.0
%@ +20ºC
120 Hz
Maximum
Standard
ESR
mΩ @ +20ºC
100 kHz
Maximum
130
130
120
130
130
120
140
200
280
400
mΩ @ +20ºC
100 kHz
Maximum
Low ESR
mΩ @ +20ºC
100 kHz
Maximum
45
45
50
45
55
55
100
95
220
350
mΩ @ +20ºC
100 kHz
Maximum
Ultra-Low
ESR
Ω @ +20ºC
100 kHz
Maximum
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
Ω @ +20ºC
100 kHz
Maximum
Rated
Voltage
Rated
Capacitance
Case Code/
Case Size
KEMET Part
Number
DC
Leakage
DF
Standard
ESR
Low ESR
Ultra-Low
ESR
(1) To complete KEMET part number, insert J for ±5%, K for ±10% and M for ±20%. Designates capacitance tolerance.
(2) To complete KEMET part number, insert B (0.1%/1,000 hours) or A = N/A.
(3) To complete KEMET part number, insert H = solder plated or T = 100% tin (Sn). Designates termination finish.
(4) To complete KEMET part number, insert 61 = none, 62 = 10 cycles +25°C or 63 = 10 cycles -55°C +85°C. Designates surge current option.
(5) To complete KEMET part number, insert 10 = standard, 20 = low or 30 = ultra-low. Designates ESR option.
Please refer to Ordering Information for additional details.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
Roll Over for
Order Info.
T2058_T428 • 7/22/2013
5
