2N2025 datasheet, PDF - EEWORLD Datasheet

2N2025: DescriptionSilicon Controlled Rectifier, 70000mA I(T), 100V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size53KB，1 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric Compare View All

2N2025 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2N2025	-	-	View	Buy Now

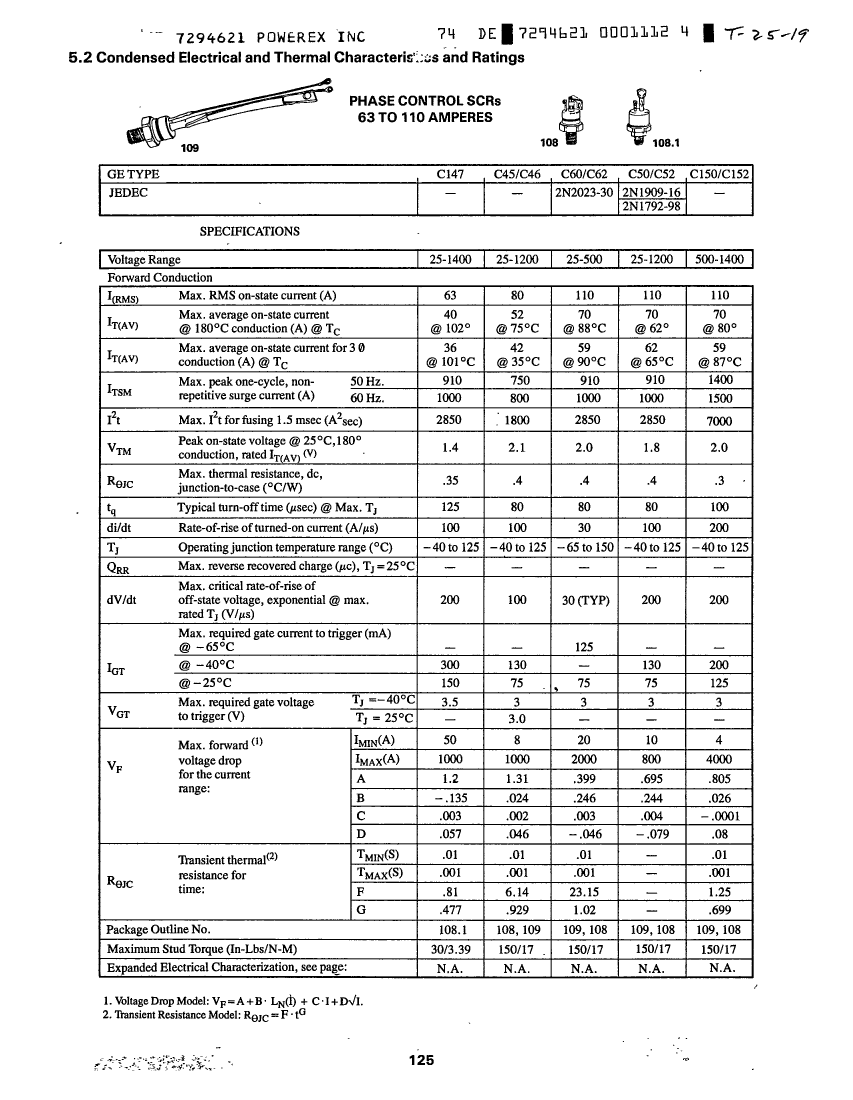

Silicon Controlled Rectifier, 70000mA I(T), 100V V(DRM),

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
Maximum leakage current	6.5 mA
On-state non-repetitive peak current	1000 A
Maximum on-state current	70000 A
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Off-state repetitive peak voltage	100 V
surface mount	NO
Trigger device type	SCR
Base Number Matches	1

	2N2025	2N2026	2N2029	2N2023	2N2027	2N2030	2N2024	2N2028
Description	Silicon Controlled Rectifier, 70000mA I(T), 100V V(DRM),	Silicon Controlled Rectifier, 70000mA I(T), 150V V(DRM)	Silicon Controlled Rectifier, 70000mA I(T), 300V V(DRM),	Silicon Controlled Rectifier, 70000mA I(T), 25V V(DRM),	Silicon Controlled Rectifier, 70000mA I(T), 200V V(DRM)	Silicon Controlled Rectifier, 70000mA I(T), 400V V(DRM),	Silicon Controlled Rectifier, 70000mA I(T), 50V V(DRM),	Silicon Controlled Rectifier, 70000mA I(T), 250V V(DRM),
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum DC gate trigger current	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA	150 mA
Maximum DC gate trigger voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Maximum leakage current	6.5 mA	6.5 mA	5 mA	6.5 mA	6 mA	4 mA	6.5 mA	5.5 mA
On-state non-repetitive peak current	1000 A	1000 A	1000 A	1000 A	1000 A	1000 A	1000 A	1000 A
Maximum on-state current	70000 A	70000 A	70000 A	70000 A	70000 A	70000 A	70000 A	70000 A
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Off-state repetitive peak voltage	100 V	150 V	300 V	25 V	200 V	400 V	50 V	250 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1	1	1	1	1
