5782-2481: DescriptionBoard Connector, 48 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size489KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

5782-2481 Overview

Board Connector, 48 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking

5782-2481 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.289 inch
subject depth	0.455 inch
body length	2.46 inch
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	5782
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.085 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	48

5782-2481 Preview

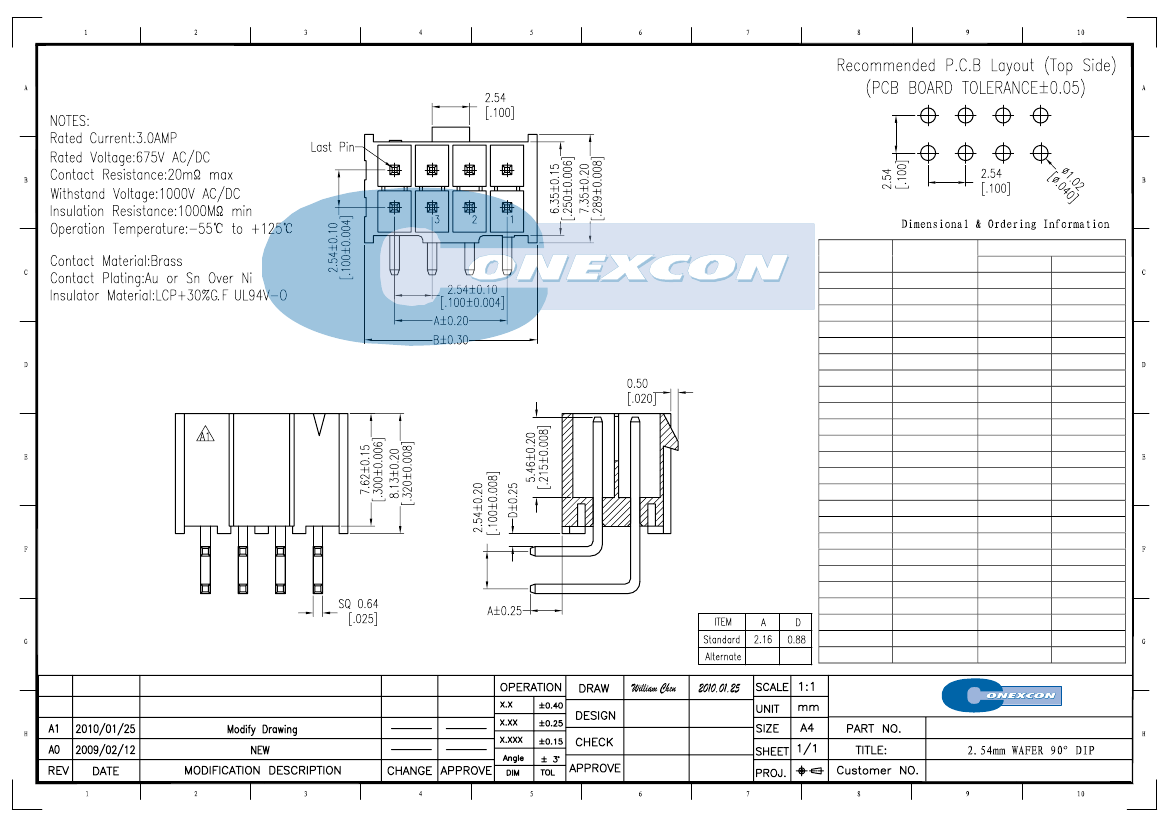

Dimensions

Circuit Size

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

42

44

46

48

50

Part Number

5782-2041

5782-2061

5782-2081

5782-2101

5782-2121

5782-2141

5782-2161

5782-2181

5782-2201

5782-2221

5782-2241

5782-2261

5782-2281

5782-2301

5782-2321

5782-2341

5782-2361

5782-2381

5782-2401

5782-2421

5782-2441

5782-2461

5782-2481

5782-2501

A

2,54

5,08

7,62

10,16

12,7

15,24

17,78

20,32

22,86

25,4

27,94

30,48

33,02

35,56

38,1

40,64

43,18

45,72

48,26

50,8

53,34

55,88

58,42

60,96

B

6,6

9,14

11,68

14,22

16,76

19,3

21,84

24,38

26,92

29,46

32,0

34,54

37,08

39,62

42,16

44,7

47,24

49,78

52,32

54,86

57,4

59,94

62,48

65,02

5782 SERIES
