285N-6P4C-GCB-L datasheet, PDF

Datasheet> All Categories > The connector> The connector> 285N-6P4C-GCB-L

285N-6P4C-GCB-L: DescriptionTelecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size169KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

285N-6P4C-GCB-L Overview

Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

285N-6P4C-GCB-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.492 inch
subject depth	0.713 inch
body length	0.52 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact style	TELCOM, MODULAR
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	285
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.157 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

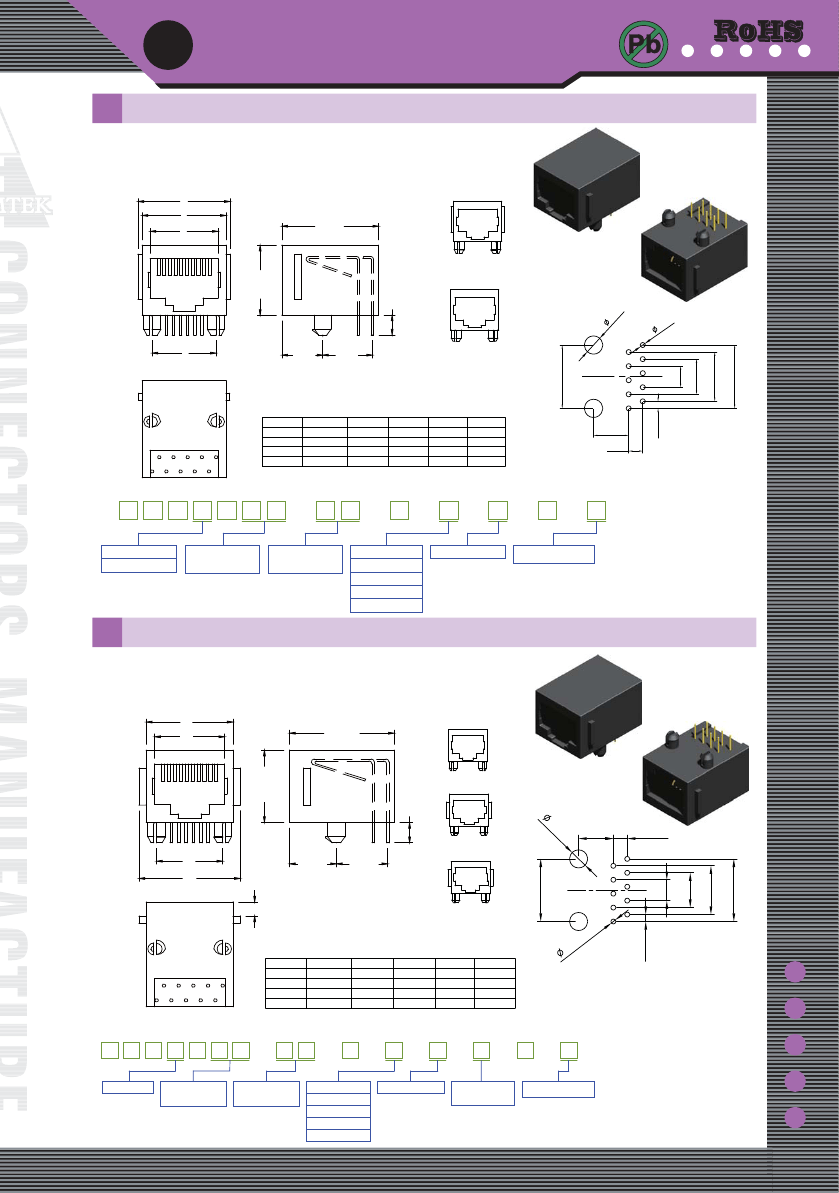

odular Jack

Modular Jack Side Entry H=12.5 W=17.3

Material&Finish

Housing:P.B.T, UL 94V-0, Black

Contact :0.35mm Thickness Phosphor Bronze,

Gold Plated Over Nickel on Contact Area,

Tin plated over Nickel on solder area.

12.50

17.30

W ith E ar

7.30

8.89

4.00

Positions

10P

Contacts

2C/4C/6C

10C

13.50

15.60

17.60

11.20

13.20

15.00

7.80

10.00

11.90

7.60

10.16

11.43

6.35

2.54

Order Information

2 8

N :W itho ut E ar

E :W ith E ar

1 X

- X P

X C

G o ld P lated

G A :G o ld 6u"

G B :G o ld 15u"

G C :G o ld 30u"

G D :G o ld 50u"

L :R oH S + P B T

N um be r of Positions

(4P ,6 P ,8P ,1 0P )

N um be r of Con ta cts

(2C ,4 C ,6C ,8 C ,10 C )

B :B la ck Insulator

Modular Jack Side Entry H=12.5 W=18.1

Material&Finish

Housing:Glass Fiber, UL 94V-0, Black

Contact :0.35mm Thickness Phosphor Bronze,

Gold Plated Over Nickel on Contact Area,

Tin plated over Nickel on solder area.

12.50

18.10

W ith ou t E ar

4.00

W ith E ar

8.10

8.89

2.40

W ith Ke yw ay

(8 P o r 1 0 P Only)

Positions

10P

Contacts

2C/4C/6C

10C

13.50

15.60

17.50

11.30

13.20

15.00

7.80

9.90

12.00

7.60

10.16

11.43

Recommended PCB Layout

(PCB TOLERANCE ±0.05)

Order Information

2 8 5 X - X P

N :W itho ut E ar

N u m b e r o f Positions

(4 P ,6 P ,8 P ,10P )

X C

G o ld P lated

G A :G old 6u"

G B :G old 15u"

G C :G old 30u"

G D :G old 50u"

K :W ith K eyw ay

(8P ,10 P O nly)

L :R o H S + P B T

N u m b e r o f Contacts

(2C ,4 C ,6C ,8 C ,10 C )

B :B la ck Insulator

www.amtek-co.com.tw

1.27

8-13

10P10C

6P4C

W ith out E ar

6P6C

8P8C
