EDH2EM40-TB-1-U datasheet, PDF

Datasheet> All Categories > The connector> The connector> EDH2EM40-TB-1-U

EDH2EM40-TB-1-U: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Latch & Eject, Black Insulator, Receptacle; CategoryThe connector The connector; File Size207KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

EDH2EM40-TB-1-U Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Latch & Eject, Black Insulator, Receptacle

EDH2EM40-TB-1-U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.24 inch
subject depth	0.618 inch
body length	2.311 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e3
Manufacturer's serial number	EDH
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.6896 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	40

Preview

Download Datasheet

View All

jector Header 2.0mm

Material

Insulator:Polyester,UL 94V-0

Standard:Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

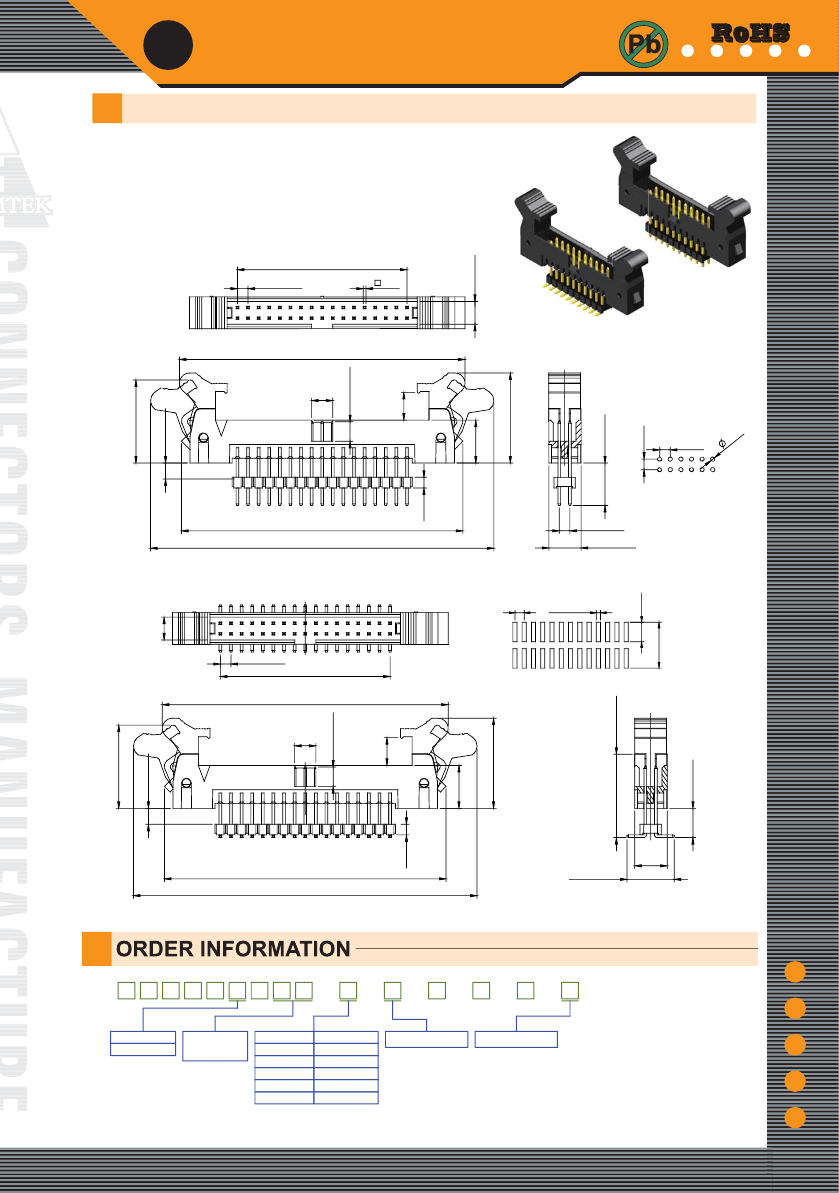

Ejector Header 2.0mm H=5.6mm Elevated SMT/Straight Type

Specifications

Current Rate:2.0 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:500V AC for one minute

Operation Temperature:-40°C to +105°C

E D H 2 E X - X X

S:Straight

S:Selective

SA:Selective 5u"

SB:Selective 10u"

SC:Selective 20u"

SD:Selective 30u"

TE:Tin 200u"

M:SMT

No. of Contacts

(10,14,16,20,26,30

,34,40,50,60,64)

G:Gold Flash

GA:Gold 5u"

GB:Gold 10u"

GC:Gold 20u"

GD:Gold 30u"

T:Tin Plated

B:Black Insulator

U:RoHS + Nylon 6T

Standard Recommended

www.amtek-co.com.tw

2-62
