Electrical compatibility with existing SpectrAlert products
•
Field selectable candela settings on wall and ceiling units:
Standard: 15, 15/75, 30, 75, 95, 110, 115
High: 135, 150, 177, 185
•
Shorting spring on mounting plate tests continuity before
installation
•
Rotary switch simplifies field selection of speaker voltage (25 and
70.7 Vrms) and power settings (¼,
½,
1 and 2 watts)
•
Universal mounting plate for wall- and ceiling-mount units
•
Compatible with System Sensor synchronization protocol
•
SP speakers offer high fidelity sound output
•
SPV speakers offer high volume sound output
•
Automatic selection of 12- or 24-volt operation at 15 and 15/75
candela
•
No extension ring required
•
Ceiling and wall mount application
•
Optional tamper resistant Torx head screw included
The SpectrAlert Advance Series
of speakers and speaker strobes
is designed to reduce ground faults. The plug-in design allows the
installer to pre-wire mounting plates and dress the wires before
plugging in the speakers. The plastic cover prevents nicked wires by
covering exposed speaker components.
This design also allows faster installations with instant feedback to
ensure that wiring is properly connected, rotary switches to select
voltage and power settings, and 11 field selectable candela settings
for wall and ceiling speaker strobes.
The low total harmonic distortion of the SP speaker offers high
fidelity sound output while the SPV speaker offers high volume
sound output for use in high ambient noise applications.
SpectrAlert Advance makes installation easy
• ttach a universal mounting plate to a 4 × 4 × 21⁄8 inch back box .
A
Flush mount applications are achievable without the need for an
extension ring.
• onnect the notification appliance circuit or speaker wiring to the
C
terminals on the mounting plate.
• ttach the speaker or speaker strobe to the mounting plate by
A
inserting the product tabs into the mounting plate grooves. Rotate
the device into position to lock the product pins into the mounting
plate terminals. The device will temporarily hold in place with a
catch until it is secured with a captured mounting screw.
Agency Listings
S4048
7320-1653:201
10-08-E
SpectrAlert Advance Speaker and Speaker Strobe Specifications
Architectural/Engineering Specifications
General
SpectrAlert Advance speaker and speaker strobes shall mount to a 4 × 4 × 21⁄8-inch back box. A universal mounting plate shall be used for mounting ceiling and
wall products. The notification appliance circuit and amplifier wiring shall terminate at the universal mounting plate. Also, SpectrAlert Advance speaker strobes,
when used with the Sync•Circuit™ Module accessory, shall be powered from a non-coded notification appliance circuit output and shall operate on a nominal
12 or 24 volts. When used with the Sync•Circuit Module, 12-volt rated notification appliance circuit outputs shall operate between nine and 17.5 volts; 24-volt
rated notification appliance circuit outputs shall operate between 17 and 33 volts. Indoor SpectrAlert Advance products shall operate between 32°F and 120°F
from a regulated DC, or full-wave rectified, unfiltered power supply. Speaker strobes shall have field-selectable candela settings including 15, 15/75, 30, 75, 95,
110, 115, 135, 150, 177, 185.
Speaker
The speaker shall be a System Sensor SpectrAlert Advance model _______ dual-voltage transformer speaker capable of operating at 25.0 or 70.7 nominal Vrms.
It should be listed to UL 1480 and shall be approved for fire protective service. The speaker shall have a frequency range of 400 to 4000 Hz and shall have an
operating temperature between 32°F and 120°F. Speaker shall have power taps and voltage that are selected by rotary switches.
Speaker Strobe combination
The speaker strobe shall be a System Sensor SpectrAlert Advance model __________ listed to UL1480 and UL 1971 and be approved for fire protective signaling
systems. Speaker shall be capable of operating at 25.0 or 70.7 nominal Vrms selected via rotary switch, and shall have a frequency range of 400 to 4000 Hz.
Speaker shall have power taps which are selected by rotary switch. The strobe shall comply with the NFPA72 requirements for visible signaling appliances,
flashing at 1 Hz over the strobe’s entire operating voltage range. The strobe light shall consist of a xenon flash tube and associated lens/reflector system.
Synchronization Module
The module shall be a System Sensor Sync•Circuit model MDL listed to UL 464 and shall be approved for fire protective service. The module shall synchronize
SpectrAlert strobes at 1Hz. The module shall mount to a 411⁄16 × 411⁄16 × 21⁄8-inch back box. The module shall also control two Style Y (class B) circuits or one Style
Z (class A) circuit. The module shall synchronize multiple zones. Daisy chaining two or more synchronization modules together will synchronize all the zones
they control. The module shall not operate on a coded power supply.
Physical Specifications
Operating Temperature
Humidity Range
Dimensions, Wall-Mount
SPS Speaker Strobe
SPSV Speaker Strobe
SP Speaker
SPSV Speaker
Dimensions, Ceiling-Mount
SPS Speaker Strobe
SPSV Speaker Strobe
SP Speaker
SPV Speaker
Electrical/Operating Specifications
Nominal Voltage (speakers)
Maximum Supervisory Voltage (speakers)
Strobe Flash Rate
Nominal Voltage (strobes)
Operating Voltage Range (includes fire alarm
panels with built in sync)
Operating Voltage with MDL Sync Module
Frequency Range
Power
32°F to 120°F (0°C to 49°C)
10 to 93% non-condensing
6.0 in L × 5.0 in W × 4.7 in D (including lens and speaker)
6.0 in L × 5.0 in W × 4.9 in D (including lens and speaker)
6.0 in L × 5.0 in W × 2.8 in D
6.0 in L × 5.0 in W × 2.9 in D
6.8 in Dia. × 4.7 in D (including lens and speaker)
6.8 in Dia. × 4.8 in D (including lens and speaker)
6.8 in Dia. × 2.8 in D
6.8 in Dia. × 2.9 in D
25 Volts or 70.7 Volts (nominal)
50 VDC
1 flash per second
Regulated 12 VDC/FWR or regulated 24 DC/FWR
8 to 17.5 V (12 V nominal) or 16 to 33V (24 V nominal)
9 to 17.5 V (12 V nominal) or 17 to 33V (24 V nominal)
400 to 4000 Hz
¼, ½, 1, 2 watts
A05-0424-002
UL Current Draw Data
UL Max. Strobe Current Draw (mA RMS)
Candela
15
15/75
30
75
95
110
115
High
Candela Range
135
150
177
185
Sound Output
UL Reverberant (dBA @ 10 ft.)
Wall-Mount SP Series
Wall-Mount SPV Series
Ceiling-Mount SPC Series
Ceiling-Mount SPCV Series
Wall-Mount SPS Series
Wall-Mount SPSV Series
Ceiling-Mount SPSC Series
Ceiling-Mount SPSCV Series
8 to 17.5 Volts
DC
123
142
NA
NA
NA
NA
NA
NA
NA
NA
NA
2W
86
90
86
90
85
89
85
89
FWR
128
148
NA
NA
NA
NA
NA
NA
NA
NA
NA
1W
83
87
83
87
82
86
82
86
16 to 33 Volts
DC
66
77
94
158
181
202
210
228
246
281
286
½W
80
84
80
84
79
83
79
83
FWR
71
81
96
153
176
195
205
207
220
251
258
¼W
77
81
77
81
76
80
76
80
Standard
Candela Range

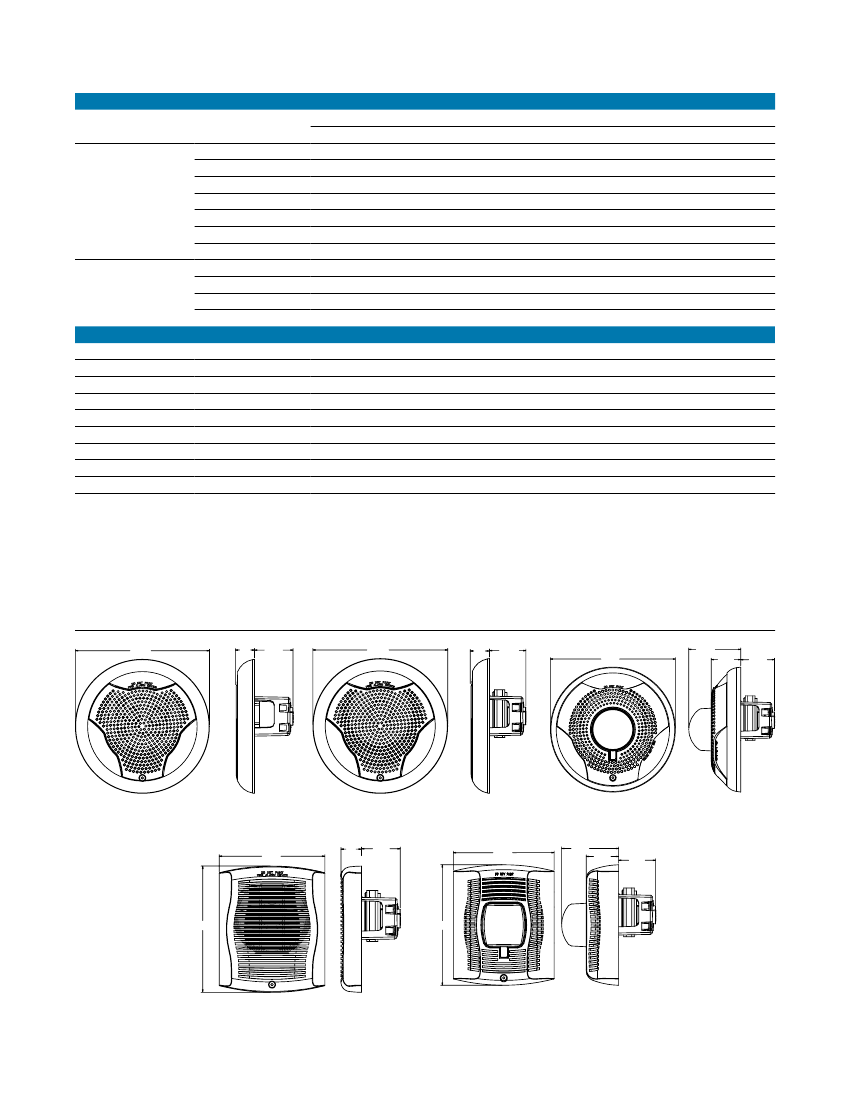

Dimensions
6.81˝
.97˝ 1.96˝
6.81˝
.97˝ 1.84˝
6.81˝
2.83˝
1.60˝
1.84˝
Ceiling Mount SPV Speaker
Ceiling Mount SP Speaker
Ceiling Mount SPS Speaker Strobe
5.00˝
.97˝
1.84˝
5.00˝
2.83˝
1.60˝
1.84˝
5.98˝
5.97˝
Wall Mount SP Speaker
Wall Mount SPS Speaker Strobe
A05-0424-002

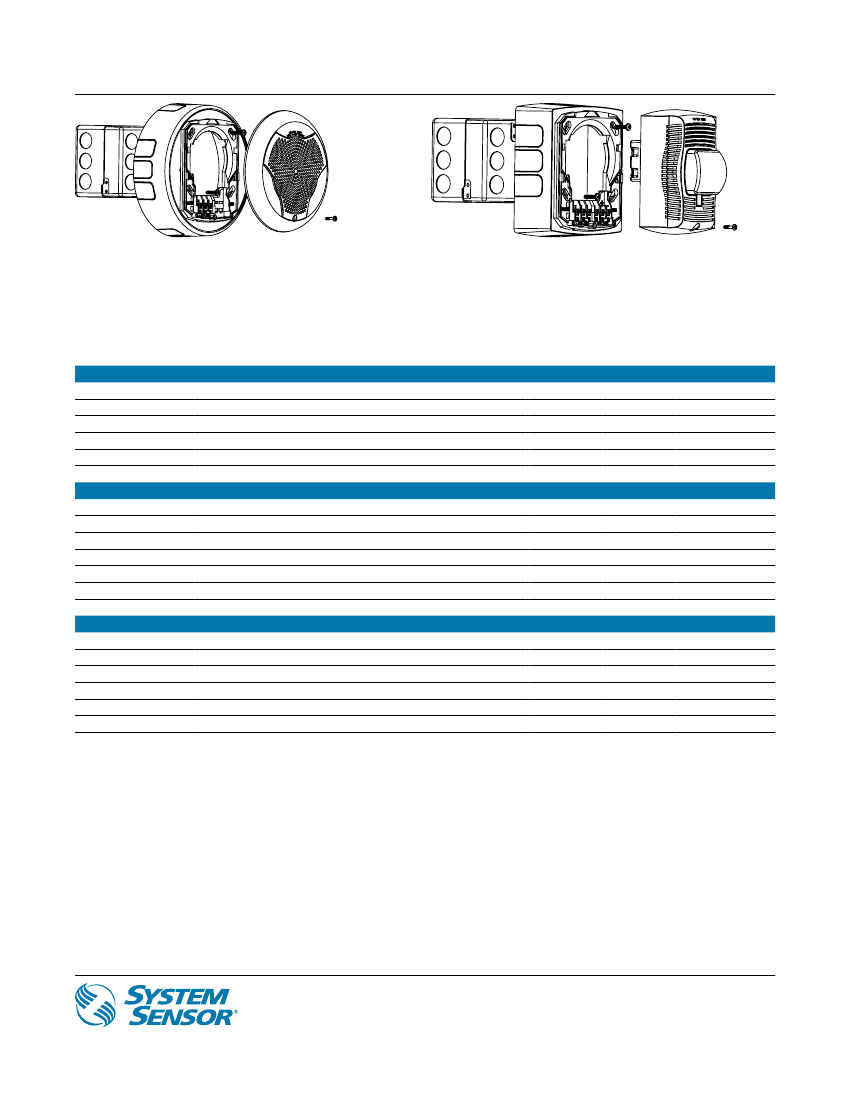

Surface Mounting
Ceiling Mount Speaker with SPBBSCW Back Box Skirt
Wall Mount Speaker Strobe with SPBBS Back Box Skirt
