C0402X7R101-392KPBE: DescriptionCeramic Capacitor, Multilayer, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0039uF, Surface Mount, 0402, CHIP; CategoryPassive components capacitor; File Size2MB，24 Pages; ManufacturerVENKEL LTD

Download Datasheet Parametric View All

C0402X7R101-392KPBE Overview

Ceramic Capacitor, Multilayer, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0039uF, Surface Mount, 0402, CHIP

C0402X7R101-392KPBE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	, 0402
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0039 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.635 mm
JESD-609 code	e0
length	1.016 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, EMBOSSED, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	100 V
size code	0402
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin/Lead (Sn90Pb10)
Terminal shape	WRAPAROUND
width	0.508 mm

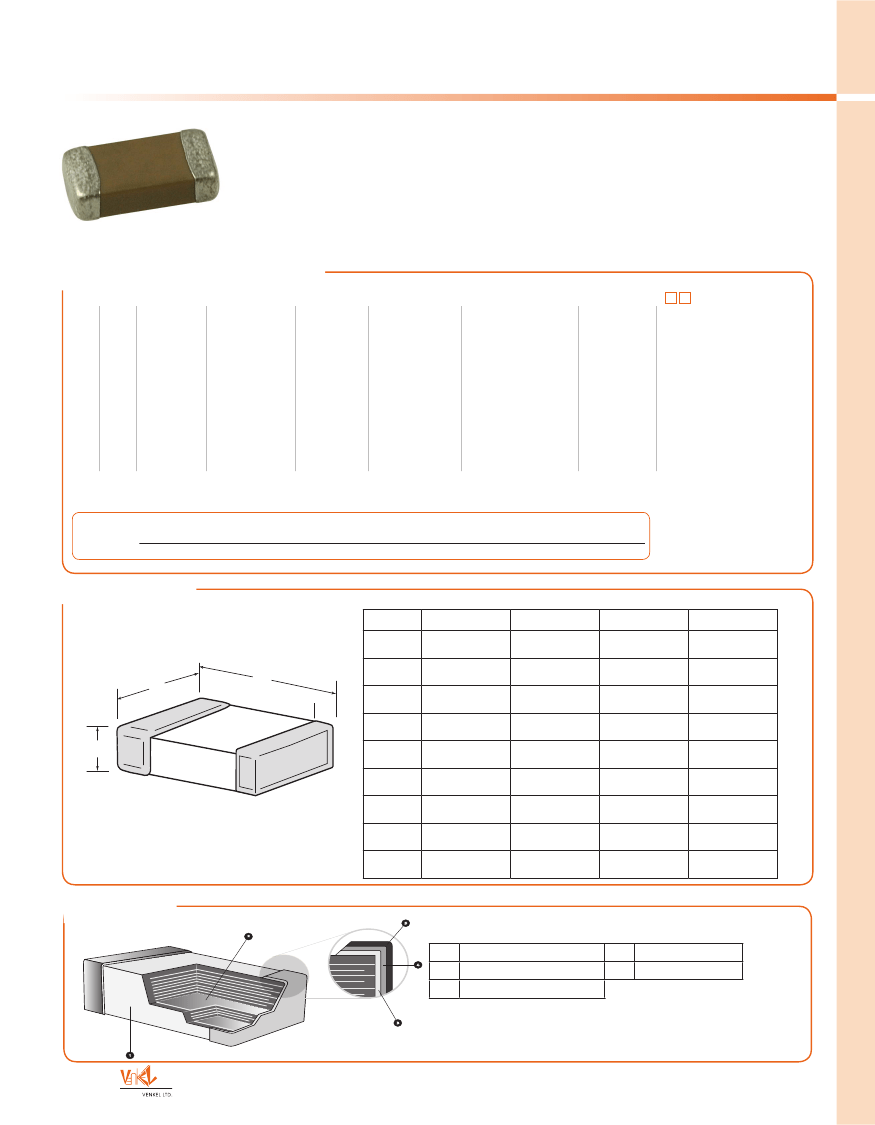

C0402X7R101-392KPBE Preview

General Purpose Ceramic Capacitors

(C Series)

Features:

•

RoHS Compliant and Halogen Free

Capacitance range: 0.1pF to 220uF

Voltage range: 4V to 100V

Terminations: 100% matte Tin (Sn), Palladium (Pd-Ag), Gold (Au) and Lead (Pb)

Very low ESR in X7R/X5R (<10mΩ typical)

Part Number Structure

Series

0805 C0G

Size

Temperature

Characteristic

01005

(Dielectric)

0201

0402 C0G

0504 X7R

0603 X6S

0805 X5R

1206 Y5V

1210 Z5U

1812

2220

2221

500

Rated Voltage

–—

101

1st two digits

are significant

followed by

number of zeroes.

4R0 = 4.0 VDCW

6R3 = 6.3 VDCW

100 = 10 VDCW

160 = 16 VDCW

250 = 25 VDCW

500 = 50 VDCW

630 = 63 VDCW

101 = 100 VDCW

Capacitance

(picofarads)

1st two digits

are significant,

followed by

number of

zeroes.

e.g:

101 = 100pF

R denotes

decimal

6R8 = 6.8pF

Tolerance

* B = ± 0.1pF

* C = ± 0.25pF

* D = ± 0.5pF

F = ± 1%

G = ± 2%

J = ± 5%

K = ± 10%

M = ± 20%

N = ± 30%

Z = +80 - 20%

* For values below

10pF only.

Termination

N = 100% matte

Tin (Sn) over Nickel

* P = Palladium Silver

* G = Gold over Nickel

Pb = 90% Tin (Sn)/10%

Lead (Pb)

* Pd/Ag & Gold

terminations have

limited values & sizes

available.

Packaging

D = Paper

Tape (10" Reel)

E = Embossed

Tape (7" Reel)

P = Paper

Tape (7" Reel)

R = Paper

Tape (13" Reel)

U = Embossed

Tape (13" Reel)

Optional

Thickness

Identifier

Leave blank

for standard

thickness.

Designate

"-" for Min.

"*" for Max.

followed by

Thickness

Code

e.g:-E

(min.

thickness

of .026")

*E (max.

thickness

of .026")

Example P/N:

C0805C0G500-101JNP

CODE:

DIMENSION:

Optional Thickness Identifier Codes:

.015 .020 .026 .030 .035 .040 .045 .050 .055 .060 .065 .070 .075 .080 .085 .090 .095 .100 .105 .110 .023

Dimensions

Size

01005

Unit: inches (mm)

0.016 ± 0.0008

(0.4 ± 0.02)

0.024 ± 0.002

(0.6 ± 0.05)

0.040 ± 0.004

(1.0 ± 0.10)

0.063 ± 0.006

(1.6 ± 0.15)

0.08 ± 0.008

(2.0 ± 0.20)

0.126 ± 0.008

(3.2 ± 0.20)

0.126 ± 0.008

(3.2 ± 0.20)

0.177 ± 0.012

(4.495 ± 0.30)

0.225 ± 0.016

(5.715 ± 0.41)

0.008 ± 0.0008

(0.2 ± 0.02)

0.012 ± 0.001

(0.3 ± 0.05)

0.020 ± 0.004

(0.5 ± 0.10)

0.031 ± 0.0046

(0.8 ± 0.15)

0.050 ± 0.008

(1.25 ± 0.20)

0.063 ± 0.008

(1.6 ± 0.20)

0.098 ± 0.008

(2.50 ± 0.20)

0.126 ± 0.012

(3.20 ± 0.30)

0.200 ± 0.006

(5.08 ± 0.41)

See Specific Value

E/B

0.002

(0.05)

0.002

(0.05)

0.004

(0.10)

0.008

(0.20)

0.020 ± 0.010

(0.508 ± 0.254)

0.020 ± 0.010

(0.508 ± 0.254)

0.020 ± 0.010

(0.508 ± 0.254)

0.024 ± 0.015

(0.6096 ± 0.381)

0.025 ± 0.015

(0.635 ± 0.381)

E/B

0201

0402

0603

0805

1206

1210

1812

2220

Structure

Ceramic Body (dielectric)

Inner Electrode

Inner Termination

Nickel Plating

Tin Plating

Email:

sales@venkel.com

Phone:

512.794.0081

Toll Free:

800.950.8365

Web:

www.venkel.com

Rev.3/2017-B

General Purpose Ceramic Capacitors

(C Series)

Electrical Specifications

NP0/C0G

15%

10%

-5%

-10%

-15%

-55˚C

-25˚C

0˚C

25˚C

50˚C

75˚C

100˚C

125˚C

Typical Capacitance Change vs. Temperature

Operating Temperature Range:

-55°C to +125°C

Temperature Coefficient:

0 ±30PPM/°C

Temperature Voltage Coefficient:

0 ±30PPM/°C

Insulation Resistance:

>1000 Ω-F or 100 GΩ, for values ≤ 0.047uF

(whichever is less at 25°C, WDCV).

For Capacitance values > 0.047uF, the 500 Ω-F

rule applies. (The IR at 125°C is 10% of the

value at 25°C)

Ageing:

None

Withstanding Voltage:

>2.5 times VDCW

Capacitance Tolerance:

B,C,D,F,G,J,K

Dissipation Factor:

0.1% max

X7R

Typical Capacitance Change vs. Temperature

15%

10%

-5%

-10%

-15%

-55˚C

-25˚C

0˚C

25˚C

50˚C

75˚C

100˚C

125˚C

Operating Temperature Range:

-55°C to +125°C

Temperature Coefficient:

0 ±15%∆°C MAX.

Temperature Voltage Coefficient:

X7R not applicable

Insulation Resistance:

>100 Ω-F or 10 GΩ, whichever is less

at 25°C, VDCW. (The IR at 125°C is 10%

of the value at 25°C)

Ageing:

2.5% per decade hour, typical

Withstanding Voltage:

>2.5 times VDCW

Capacitance Tolerance:

J,K,M

Rated

Voltage

≥50V

D.F.

≤3%

≤5%

Exception of D.F.

0201 (50V); 0603≥0.047uF

0805≥0.22uF; 1206≥0.47uF

0603≥1uF; 0805≥1uF; 1206≥4.7uF; 1210≥4.7uF

0201≥0.01uF; 0805≥1uF; 1210≥4.7uF

0402≥0.10uF; 0603≥0.33uF; 0805≥2.2uF

1206≥4.7uF; 1210≥22uF

0201≥0.01uF; 0402≥0.033uF; 0805≥0.68uF;

1206≥2.2uF; 1210≥4.7uF

0402≥0.47uF; 0603≥0.68uF; 0805≥2.2uF;

1206≥4.7uF; 1210≥22uF

0402≥0.33uF; 0603≥0.33uF; 0805≥2.2uF;

1206≥2.2uF; 1210≥22uF

≤2.5%

25V

≤2.5%

≤10%

≤5%

16V

≤3.5%

≤10%

10V

6.3V

≤5%

≤10%

X5R

Typical Capacitance Change vs. Temperature

15%

10%

-5%

-10%

-15%

-55°C

-25°C

0°C

25°C

50°C

75°C

100°C

125°C

Operating Temperature Range:

-55°C to +85°C

Temperature Coefficient:

0 ±15%∆°C MAX.

Temperature Voltage Coefficient:

X5R not applicable

Insulation Resistance:

>100 Ω-F or 10 GΩ, whichever is less

at 25°C, VDCW. (The IR at 125°C is 10%

of the value at 25°C)

Ageing:

2.5% per decade hour, typical

Withstanding Voltage:

>2.5 times VDCW

Capacitance Tolerance:

K,M

Rated

Voltage

≥50V

D.F.

≤3%

≤5%

Exception of D.F.

0201 (50V); 0603≥0.047uF

0805≥0.22uF; 1206≥0.47uF

0603≥1uF; 0805≥1uF; 1206≥4.7uF; 1210≥4.7uF

0201≥0.01uF; 0805≥1uF; 1210≥4.7uF

0402≥0.10uF; 0603≥0.33uF; 0805≥2.2uF

1206≥4.7uF; 1210≥22uF

0201≥0.01uF; 0402≥0.033uF; 0805≥0.68uF;

1206≥2.2uF; 1210≥4.7uF

0402≥0.47uF; 0603≥0.68uF; 0805≥2.2uF;

1206≥4.7uF; 1210≥22uF

0402≥0.33uF; 0603≥0.33uF; 0805≥2.2uF;

1206≥2.2uF; 1210≥22uF

≤2.5%

25V

≤2.5%

≤10%

≤5%

16V

≤3.5%

≤10%

10V

6.3V

≤5%

≤10%

Z5U

Typical Capacitance Change vs. Temperature

20%

-20%

-40%

-60%

-80%

-55˚C

-25˚C

0˚C

25˚C

50˚C

75˚C

100˚C

125˚C

Operating Temperature Range:

+10°C to +85°C

Temperature Coefficient:

+22% - 56%∆°C MAX.

Insulation Resistance:

>100 Ω-F or 10 GΩ, whichever is less

at 25°C, WDCV. (The IR at 125°C is 10%

of the value at 25°C)

Ageing:

5% per decade hour, typical

Withstanding Voltage:

>2.5 times VDCW

Capacitance Tolerance:

M,Z

Rated

Voltage

≥50V

25V

16V

10V

6.3V

D.F.

≤5%

≤9%

≤12.5%

≤16%

≤9%

≤12.5%

≤16%

Exception of D.F.

0603≥0.1uF; 0805≥0.47uF; 1206≥4.7uF;

0402≥0.047uF; 0603≥0.1uF; 0805≥0.33uF; 1206≥1uF;

1210≥4.7uF

0603≥2.2uF; 0805≥3.3uF; 1206≥10uF; 1210≥22uF;

1812≥47uF

0603≥2.2uF; 0805≥3.3uF; 1206≥4.7uF; 1210≥10uF;

1812≥47uF

Email:

sales@venkel.com

Phone:

512.794.0081

Toll Free:

800.950.8365

Web:

www.venkel.com

Rev. 3/2017-B

General Purpose Ceramic Capacitors

(C Series)

Electrical Specifications

Y5V

40%

20%

-20%

-40%

-60%

-80%

-100%

-55˚C

-25˚C

0˚C

25˚C

50C

75˚C

100˚C

125˚C

Typical Capacitance Change vs. Temperature

Operating Temperature Range:

-30°C to +85°C

Temperature Coefficient:

+22% - 82%∆°C MAX.

Insulation Resistance:

>100 Ω-F or 10 GΩ, whichever is less

at 25°C, WDCV. (The IR at 125°C is 10%

of the value at 25°C)

Ageing:

7% per decade hour, typical

Withstanding Voltage:

>2.5 times VDCW

Capacitance Tolerance:

M,Z

Rated

Voltage

≥50V

25V

16V

10V

6.3V

D.F.

≤5%

≤9%

≤12.5%

≤16%

≤9%

≤12.5%

≤16%

Exception of D.F.

0603≥0.1uF; 0805≥0.47uF; 1206≥4.7uF;

0402≥0.047uF; 0603≥0.1uF; 0805≥0.33uF; 1206≥1uF;

1210≥4.7uF

0603≥2.2uF; 0805≥3.3uF; 1206≥10uF; 1210≥22uF;

1812≥47uF

0603≥2.2uF; 0805≥3.3uF; 1206≥4.7uF; 1210≥10uF;

1812≥47uF

Test Parameters

Test parameters for Multilayer Ceramic Capacitors - X7R, X5R and Y5V:

1KHz ± 100Hz at 1.0 ± 0.2 Vrms < 10uF (10 V min.)

1KHz ± 100Hz at 0.5 ± 0.1 Vrms < 10uF (6.3V max.)

120Hz ± 24Hz at 1.0 ± 0.1 Vrms ≥ 10uF

1MHz ± 100KHz at 1.0 ± 0.2 Vrms ≤ 1000pF, 25°C

1KHz ± 100Hz at 1.0 ± 0.2 Vrms > 1000pF, 25°C

Test parameters for Multilayer Ceramic Capacitors - NPO/C0G:

Note:

To ensure proper capacitance readings, the voltage level must be held constant. The HP4284 and Agilent E4980 has a "ALC" (Automatic Level Control) function

and should be switched to the "ON" position for accurate capacitance readings.

Voltage and Capacitance Range

C0G (NP0) Dielectric

Size

T (max)

Min E/B

VDCW (MAX)

0R2

0R3

0R4

0R5

1R0

1R2

1R5

1R8

2R2

2R7

3R3

3R9

4R7

5R0

5R6

6R8

8R2

100

120

150

180

220

<---------------------------------CAPACITANCE VALUE---------------------------------->

<-------------------------------- CAPACITANCE CODE---------------------------------->

0R1

0.1pF

0.2pF

0.3pF

0.4pF

0.5pF

1.0pF

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.0

5.6

6.8

8.2

10pF

6.3V

Values that are typically available.

(All measurements in inches)

01005

(± 0.0008)

.008

.002

16V

25V

50V

0201

(± 0.002)

.012

.002

25V

50V

25V

0402

(± 0.004)

.025

.004

50V

100V

0504

(± 0.008)

.040

.005

50V

100V

0603

(± 0.006)

.033

.008

50V

100V

25V

0805

(± 0.008)

.055

.020 ± .010

50V

100V

1206

(± 0.008)

.070

.020 ± .010

50V

100V

1210

(±0.008)

.075

.020 ± .010

50V

100V

1812

(±0.012)

.085

.024 ± .015

50V

100V

Note:

Additional values may be available. Please contact us for more information. Due to demand and raw material fluctuations, specific values may not be available.

Email:

sales@venkel.com

Phone:

512.794.0081

Toll Free:

800.950.8365

Web:

www.venkel.com

Rev.3/2017-B

General Purpose Ceramic Capacitors

(C Series)

Voltage and Capacitance Range

C0G (NP0) Dielectric

Size

T (max)

Min E/B

VDCW (MAX)

<---------------------------------------------------------------------------------- CAPACITANCE CODE------------------------------------------------------------------------------------------->

330

390

470

560

680

820

101

121

151

181

221

271

331

391

471

561

681

821

102

122

152

182

222

272

332

392

472

562

682

822

103

123

153

183

223

273

333

393

473

563

683

823

104

124

154

184

224

274

334

394

474

564

684

824

<----------------------------------------------------------------------------------CAPACITANCE VALUE------------------------------------------------------------------------------------------>

270

100pF

120

150

180

220

270

330

390

470

560

680

820

1000pF

1200

1500

1800

2200

2700

3300

3900

4700

5600

6800

8200

.01uF

.012

.015

.018

.022

.027

.033

.039

.047

.056

.068

.082

.100uF

.120

.150

.180

.220

.270

.330

.390

.470

.560

.680

.820

25V

50V

6.3V

E/B

Values that are typically available.

(All measurements in inches)

01005

(± 0.0008)

.016

.008

.002

16V

25V

50V

0201

(± 0.002)

.024

.012

.002

25V

50V

25V

0402

(± 0.004)

.040

.020

.025

.004

50V

100V

0504

(± 0.008)

.053

.040

.005

50V

100V

0603

(± 0.006)

.063

.032

.033

.008

50V

100V

25V

0805

(± 0.008)

.080

.050

.055

.020 ± .010

50V

100V

1206

(± 0.008)

.126

.063

.070

.020 ± .010

50V

100V

1210

(±0.008)

.126

.098

.075

.020 ± .010

50V

100V

1812

(±0.012)

.177

.126

.085

.024 ± .015

50V

100V

2220 / 2221

(±0.016)

.225 / .225

.200 / .210

.108 /.108

.025 ± .015

50V

100V

Note:

Additional values may be available. Please contact us for more information. Due to demand and raw material fluctuations, specific values may not be available.

Email:

sales@venkel.com

Phone:

512.794.0081

Toll Free:

800.950.8365

Web:

www.venkel.com

Rev. 3/2017-B

General Purpose Ceramic Capacitors

(C Series)

Voltage and Capacitance Range

X7R Dielectric

(All measurements in inches)

E/B

Values that are typically available.

Size

T (max)

Min E/B

VDCW (MAX)

121

151

181

221

271

331

391

471

561

681

821

102

122

152

182

222

272

332

392

472

562

682

822

103

123

153

183

223

273

333

<----------------------------------------------------CAPACITANCE VALUE---------------------------------------------->

<----------------------------------------------------CAPACITANCE CODE---------------------------------------------->

101

100pF

120

150

180

220

270

330

390

470

560

680

820

1000pF

1200

1500

1800

2200

2700

3300

3900

4700

5600

6800

8200

.01uF

.012

.015

.018

.022

.027

.033

01005

(± 0.0008)

.016

.008

.002

6.3V

10V

6.3V

0201

(± 0.002)

.024

.012

.002

10V

16V

25V

16V

0402

(± 0.004)

.040

.020

.025

.004

25V

50V

100V

25V

0504

(± 0.008)

.053

.040

.005

50V

100V

10V

16V

0603

(± 0.006)

.063

.032

.038

.008

25V

50V

100V

25V

0805

(± 0.008)

.080

.050

.058

.020 ± .010

50V

100V

Note:

Additional values may be available. Please contact us for more information. Due to demand and raw material fluctuations, specific values may not be available.

All components manufactured with the X7R dielectric are also available as an X5R dielectric.

Email:

sales@venkel.com

Phone:

512.794.0081

Toll Free:

800.950.8365

Web:

www.venkel.com

Rev.3/2017-B

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

USB interface circuit design of FT245BM and FPGA

Traditional relay electric gate control circuit a

High voltage output circuit diagram

Pulse generator with wide range of adjustable duty cycle

Bridge amplifier circuit with lHz low pass filter

Computer motherboard circuit diagram 815 4_59

7 Habits of Extremely Inefficient People: Seven Habits of Very Inefficient People (The latest research results of Oxford University on 1050 college students, with the original English version attached) Source: Tan JunTJ's Diary Unlike the usu...; skey_ph Talking about work

VHDL&VerilogHDL Concise Tutorial.pdf: VHDL & VerilogHDL Concise Tutorial...; nikon FPGA/CPLD

Help: High Voltage Op Amp Selection: 1. +/-24V power supply, 2. FET input 3. Dual op amp 4. A reasonably priced one. Please help me! ! ! I need it urgently! ! !...; viseng Analog electronics

Application of HG106C/HG166A Hall Sensor in Voice Coil Zoom Lens: Editor: Xiangzumu Electronics Date: 20131218 Security camera zoom lenses and mobile phone zoom lenses need to be equipped with high-performance, miniaturized autofocus drivers. The efficient small ele...; 郑姑娘 Industrial Control Electronics

What does it mean that there are 2 load regions in ADS1.2?: I recently read the ADS1.2 document. What is the reason for an image to have two load regions? And two load regions mean two root regions, and each root region has an initial entry point. So where doe...; zhanghui9191 Embedded System

How to use the IO port of 2553 to drive the motor forward and reverse... Please help! ! !: How to use the IO port of 2553 to drive the motor forward and reverse? Please help! #include #define uchar unsigned char #define uint unsigned int #define delay_ms(x) __delay_cycles((long)(CPU_F*(doub...; yaoliming Microcontroller MCU

Shortcut: E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components
