VLH453226-151J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> VLH453226-151J

VLH453226-151J: DescriptionGeneral Purpose Inductor; CategoryPassive components inductor; File Size777KB，8 Pages; ManufacturerViking Tech Corp

Download Datasheet Parametric View All

VLH453226-151J Overview

General Purpose Inductor

VLH453226-151J Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
core material	FERRITE
DC Resistance	3.7 Ω
Nominal inductance(L)	150 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum rated current	0.13 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	1 MHz
Tolerance	5%

Preview

Download Datasheet

View All

【VLH

Series】

MD Power Inductor

VLH252010E / 252012E

PAD

LAYOUT

VLH252510/322515(C) / 322520(C) / 453226(C) / 575047C

PAD

LAYOUT

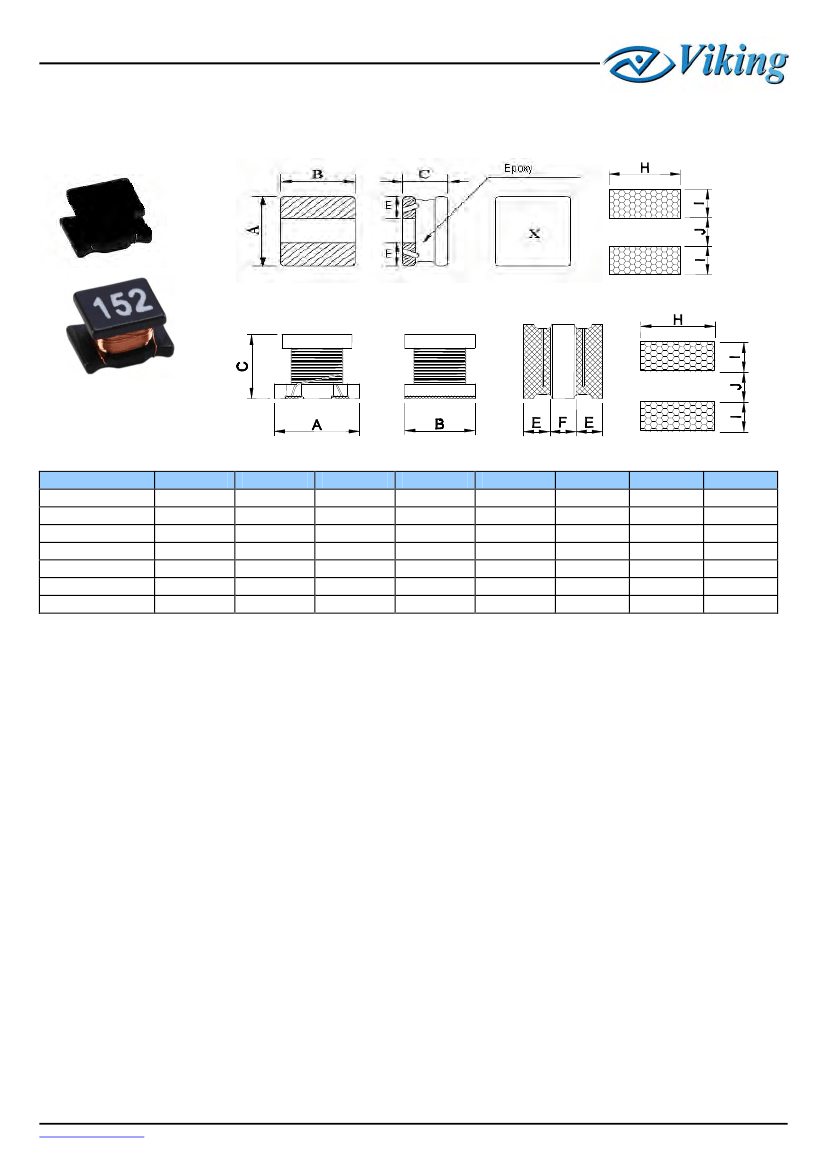

■Dimensions

Type

252010E

252012E

252510

322515(C)

322520(C)

453226(C)

575047C

2.5±0.2

3.2±0.3

4.5±0.3

5.7±0.3

2.0±0.2

2.5±0.2

3.2±0.2

5.0±0.3

1.02 max

1.20 max

1.05 max

1.55±0.3

2.0±0.3

2.6±0.4

4.7±0.3

0.8 ref

0.9 ref

1.05±0.3

0.7min.

1.0min.

1.3min.

0.7 ref

1.05±0.3

0.7min.

1.0min.

1.7min.

2.0

2.5

2.0

3.0

5.0

0.85

1.2

1.5

2.0

Unit: mm

0.8

1.0

1.2

2.0

■Features

－The

miniature chip inductors is wound on a special ferrite core.

－VLH322515/322520/453226

are low DC resistance.

－VLH322520C/453226C/565047C

are low DC resistance, high

current capacity, and high impedance characteristics. They are

excellent for using as a choke coil in DC power supply circuits.

■Inductance

and rated current ranges

－VLH252010E

－VLH252012E

－VLH252510

－VLH322515

－VLH322520

－VLH453226

－VLH322515C

－VLH322520C

－VLH453226C

－VLH575047C

－Test

equipment:

L&Q: HP4285A Precision LCR meter

DCR: Milli-ohm meter

－Electrical

specifications at 25°C

1.00½22μH

1.00½100μH

1.00½560μH

1.00½2200μH

0.47½120μH

1.00½560μH

1.00½470μH

0.12½10000μH

2.20½0.50A

2.80½0.55A

2.30½0.51A

1.00½0.1A

0.445½0.04A

0.50½0.03A

3.40½0.17A

1.00½0.06A

1.08½0.09A

6.00½0.05A

■Applications

－Pagers,

Cordless Phone

－High

Frequency Communication Products

－Personal

Computers

－Disk

Drives And Computer Peripherals

－DC

Power Supply Circuits

■Characteristics

for252010E/ 252012E/252510/322515C

－Rated

DC Current(I sat): The current when the inductance becomes

30% typical its initial value (Ta=25°C)

－Temperature

Rise Current(I rms):

The actual current when the

temperature of coil becomes

∆ T40℃..

(Ta=25°C)

－Operating

temperature range: -40½105°C

■Characteristics

except 252010E/252012E/252510/322515C

－Rated

DC Current: The current when the inductance becomes 10% lower than its

initial value or the current when the temperature of coil increases

∆ T20℃.

The

smaller one is defined as Rated DC Current. (Ta=25°C)

－Operating

temperature range: -40½105°C

www.viking.com.tw

For detail questions, contact : sales@viking.com.tw

Edition : REV.C

Revision: 17-Jan-2013
