8D125Z24HN

Description
MIL Series Connector,
CategoryThe connector    The connector
File Size328KB,2 Pages
ManufacturerEsterline Technologies Corporation
Download Datasheet Parametric View All

8D125Z24HN Overview

MIL Series Connector,

8D125Z24HN Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
Connector typeMIL SERIES CONNECTOR
J10
LAYOUT SHOWN AS EXAMPLE
Keying Shown as example
CHARACTERISTICS
-Standard : Based on MIL-DTL-38999 Series III
-Shell Material
-Shell Plating
-Insulator
-Contacts
-Seals & Grommet
-Contact Plating
-Durability
: Aluminium
: Black Zinc Nickel
: Thermoplastic
: Copper Alloy
: Silicon Elastomer
: Gold over copper Alloy 0.8µm minimum
: 500 Mating cycles
Connector dimension
Dim
Nominal
F
41.3 Max
Z
31.5 Max
VV THREAD
M37x1-6g
SOURIAU shall not be liable for any non-conformity or damage
due to a use of the Products which does not comply with
the Specifications issued by either of the Parties or by a third party
(professional recommendation, technical notice.)
Country
FR
Jurisdiction & Control List
Not Listed
-Delivered with Souriau contacts and Accessories
-Temperature Range
-Salt Spray
: -65°C to +175°C
: 500 hours
PN: 8D125Z24HN
A
ISS
26-09-2016 First Release
DATE
Latest modification - by
Date:
MOD N°

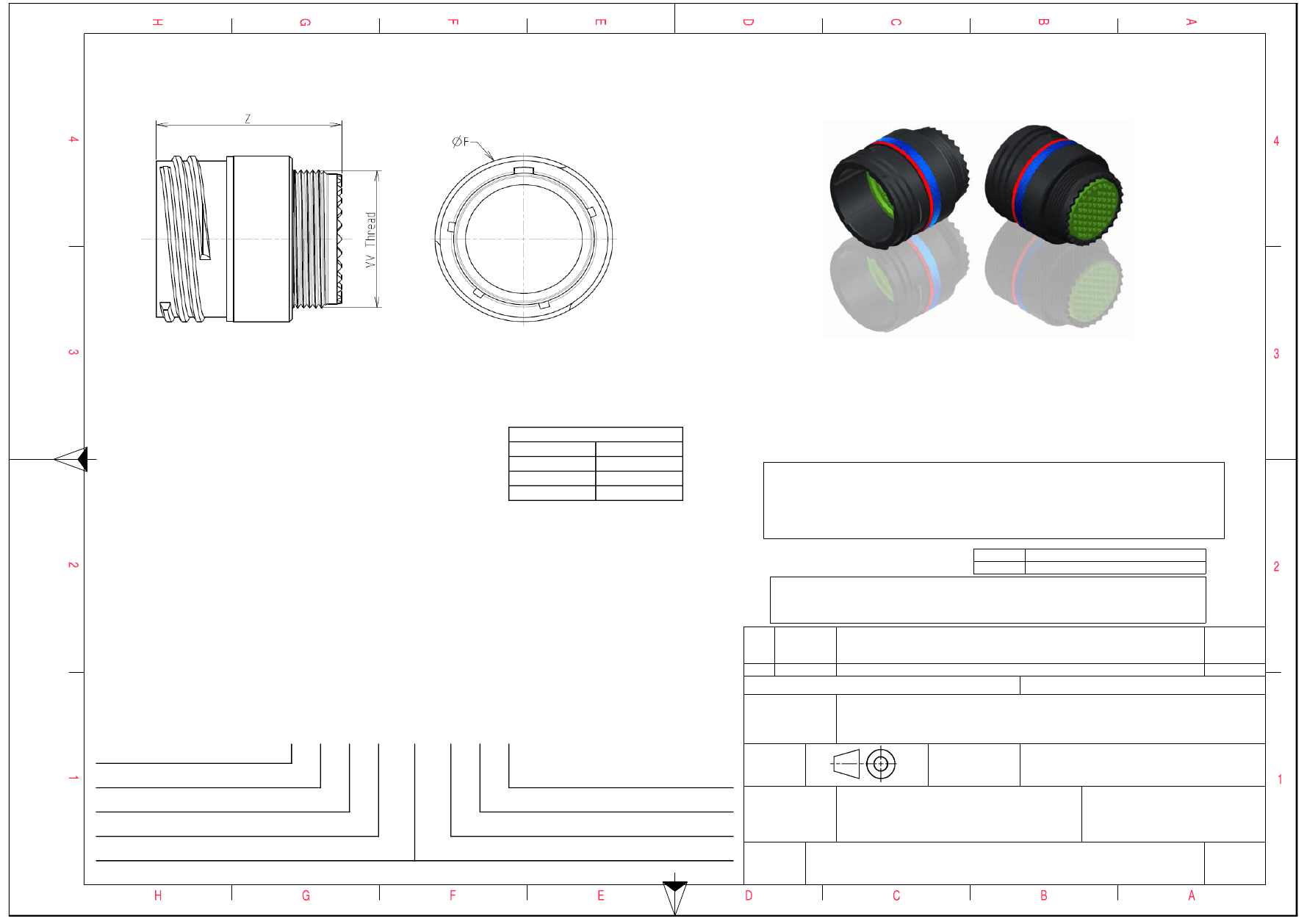

CUSTOMER DRAWING
Designed By:
TITLE
BASIC SERIES:
SHELL TYPE : In line Receptacle
CONTACT TYPE
SHELL SIZE : 25
PLATING
:
Z =
Black Zinc Nickel
: Standard Crimp Contact
ORIENTATION : N
CONTACT TYPE : PIN (1500 Matings)

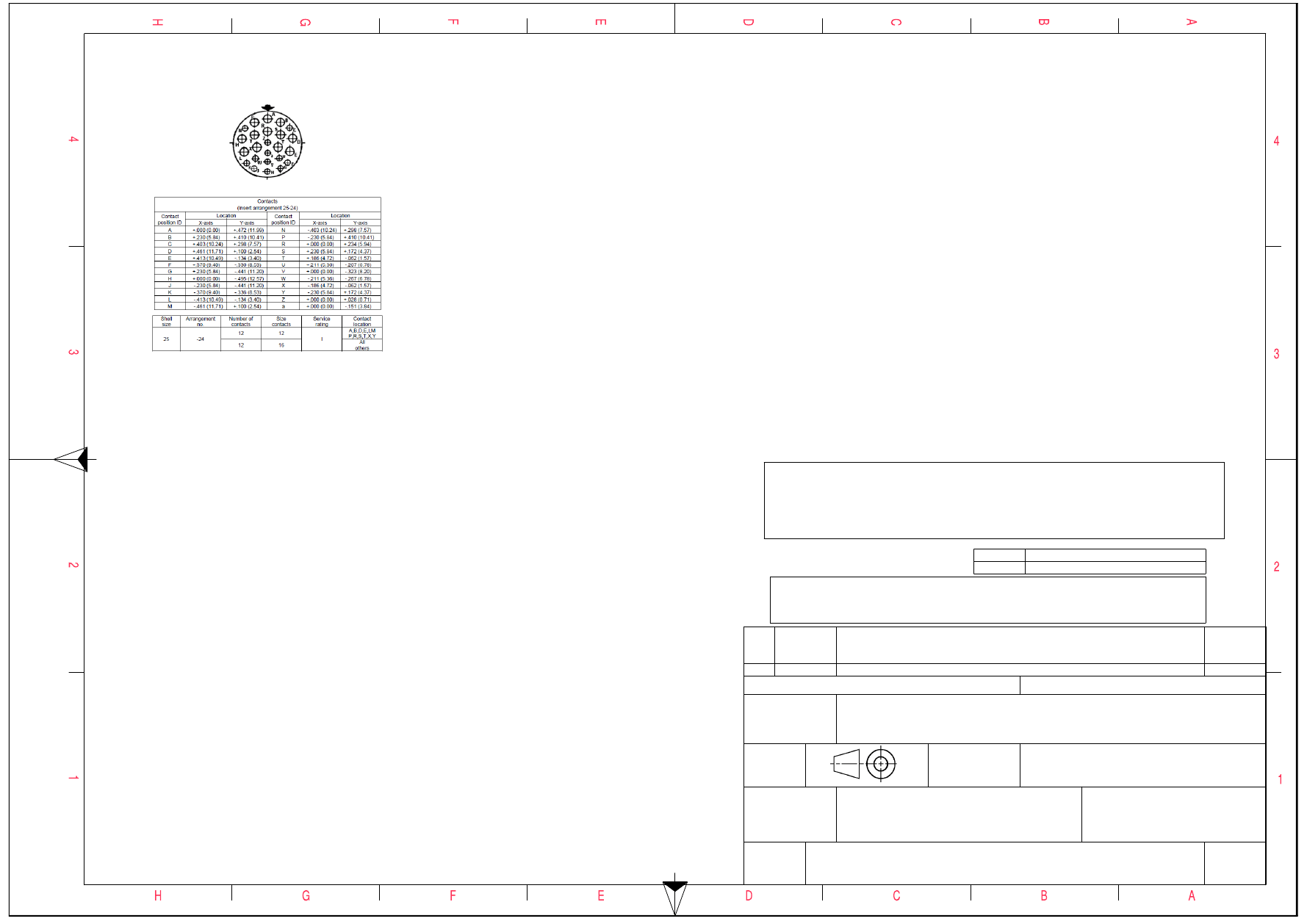

CONTACT LAYOUT : 25-24
FORMAT
Aluminium Inline plug 8D series
General linear
Tolerances:
±--
8D
1
-
25
Z
24
H
N
SCALE
NPRDS / PROJECT
NA
859
This document is the property of
SOURIAU
it must not be reproduced or
communicated without permission
SOURIAU
A3
WWW.SOURIAU.COM
SOURIAU DRG N°
8D125Z24HN-C
SHEET
1/2
