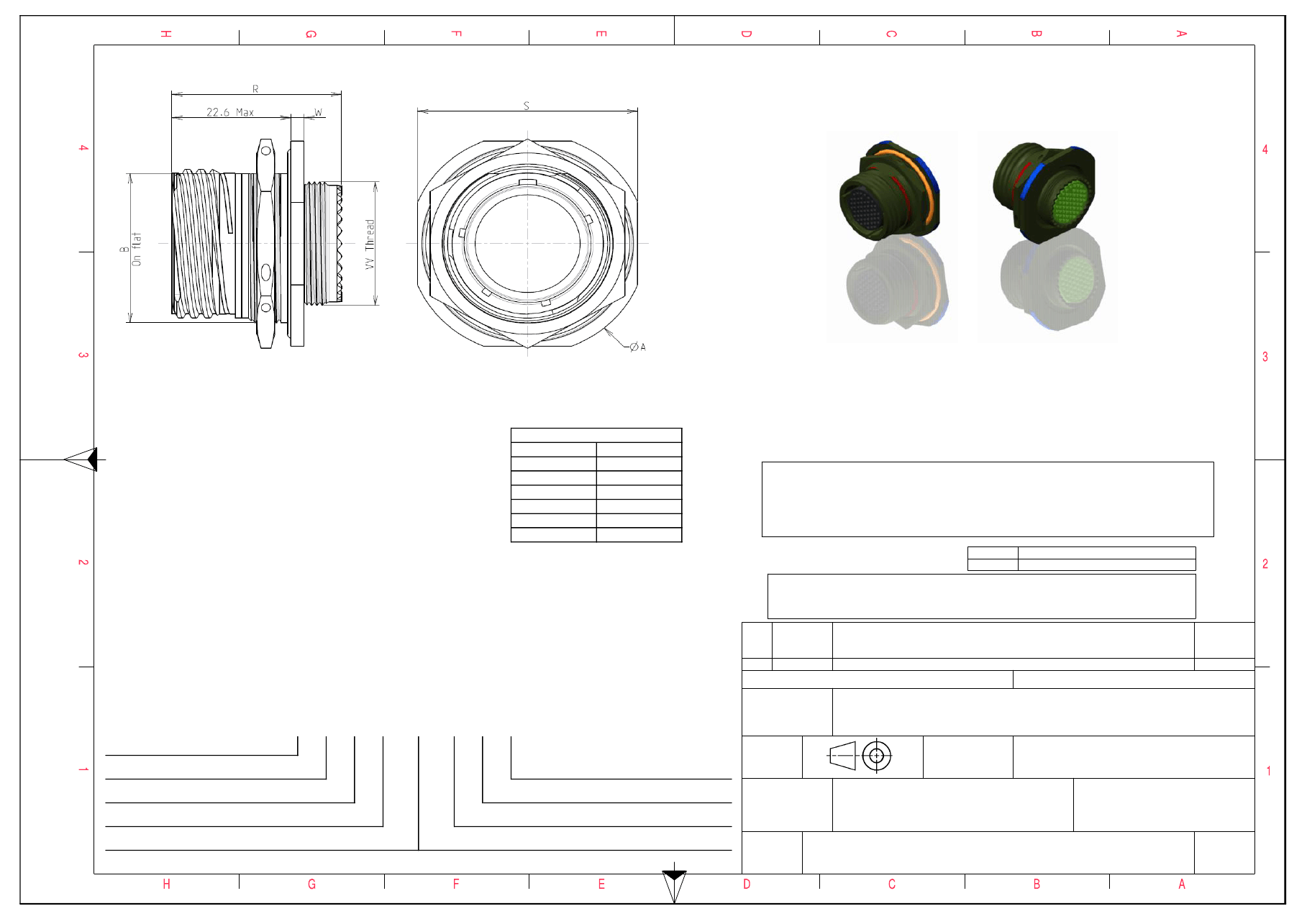

LAYOUT SHOWN AS EXAMPLE
Keying Shown as example
CHARACTERISTICS
-Standard : Based on MIL-DTL-38999 Series III
-Shell Material
-Shell Plating
-Insulator
-Contacts
-Seals & Grommet
-Contact Plating
-Durability
: Aluminium
: Olive drab Cadmium
: Thermoplastic
: Copper Alloy
: Silicon Elastomer
: Gold over copper Alloy 0.8µm minimum
: 500 Mating cycles
Connector dimension
Dim
Nominal
A
44.5±0.3
B
30.15+0.1/-0.15
R
32.5Max
S
41.3±0.4
W
2.2+0.9/-0.1
VV THREAD
M25x1-6g
SOURIAU shall not be liable for any non-conformity or damage
due to a use of the Products which does not comply with
the Specifications issued by either of the Parties or by a third party
(professional recommendation, technical notice.)
Country
FR
Jurisdiction & Control List
Not Listed
-Delivered without Souriau contacts
-Temperature Range
-Salt Spray
-Mass
: -65°C to +175°C
: 500 hours
: 38.61 g ± 10%
PN: 8D717W35SCL
A
ISS
01-10-2016 First Release
DATE
Latest modification - by
Date:
MOD N°
CUSTOMER DRAWING
Designed By:
TITLE
BASIC SERIES:
SHELL TYPE : Jam nut Receptacle
CONTACT TYPE
SHELL SIZE : 17
PLATING
: W =
Olive drab Cadmium
: Standard Crimp Contact
8D
7
-
17
W
35
S
C
L
Delivered W/O Contacts
ORIENTATION : C
CONTACT TYPE : SOCKET(500 Matings)
CONTACT LAYOUT : 17-35
FORMAT
Aluminium Receptacle 8D series
General linear
Tolerances:
±--
SCALE
NPRDS / PROJECT
NA
859
This document is the property of
SOURIAU
it must not be reproduced or
communicated without permission
SOURIAU
A3
WWW.SOURIAU.COM
SOURIAU DRG N°
8D717W35SCL-C
SHEET
1/2

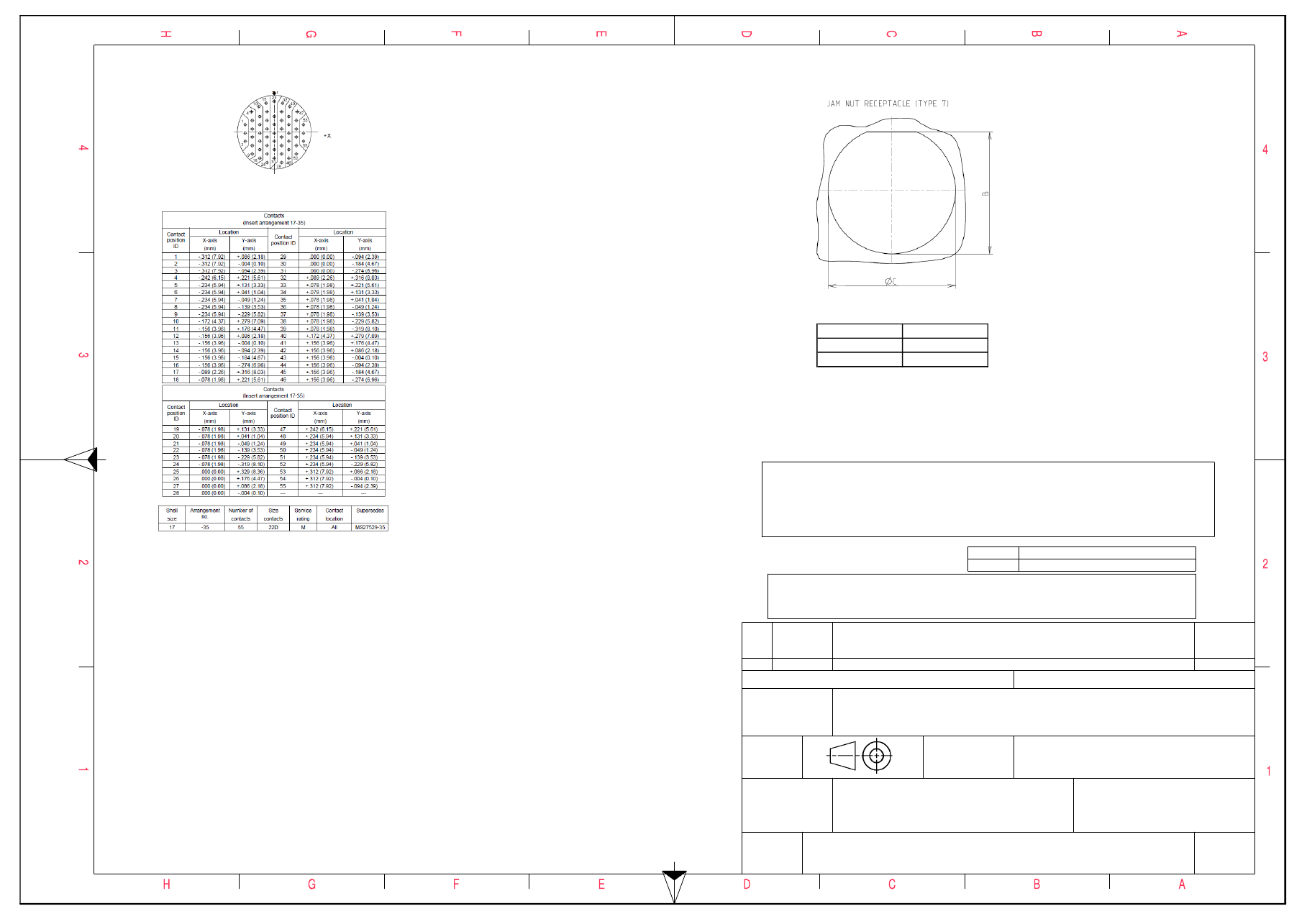

Contact Layout
Panel cutout
Dim
B
ØC
Nominal
30.73+0/-0.25
32.01+0.25/-0
SOURIAU shall not be liable for any non-conformity or damage
due to a use of the Products which does not comply with
the Specifications issued by either of the Parties or by a third party
(professional recommendation, technical notice.)
Country
FR
Jurisdiction & Control List
Not Listed
PN: 8D717W35SCL
A
ISS
01-10-2016 First Release
DATE
Latest modification - by
Date:
MOD N°
CUSTOMER DRAWING
Designed By:
TITLE
SCALE
Aluminium Receptacle 8D series
General linear
Tolerances:
±--
NPRDS / PROJECT
NA
859
This document is the property of
SOURIAU
it must not be reproduced or
communicated without permission
SOURIAU
FORMAT
WWW.SOURIAU.COM
A3
SOURIAU DRG N°
8D717W35SCL-C
SHEET
2/2
