53210300 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53210300

53210300: DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size367KB，2 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric View All

53210300 Overview

Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

53210300 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.26 inch
subject depth	0.45 inch
body length	1.1 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	532
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

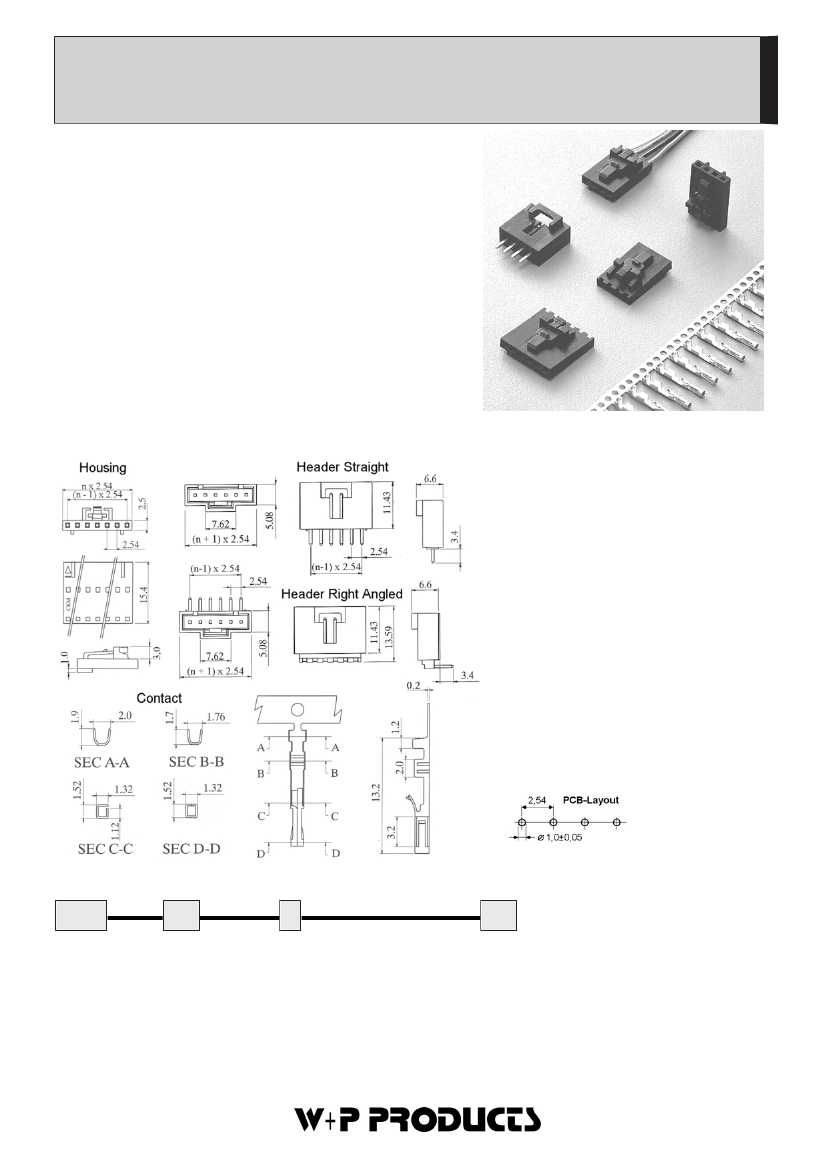

532

Stift-/Buchsenleisten - Crimp-Rast-System - RM 2,54mm

Friction Lock Header and Crimp Housing - Pitch 2,54mm

Technische Daten /Technical

Data

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Messing

Contact Material

Brass

Aderquerschnitt

AWG 24 ... 28

Applicable wire Gauge

AWG 24 ... 28

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 20mΩ

Contact Resistance

< 20mΩ

Isolationswiderstand

> 10

Ω

Insulation Resistance

> 10

Ω

Spannungsfestigkeit

1000V

Test Voltage

1000V

Nennspannung

250V

AC/DC

max.

Voltage Rating

250V

AC/DC

max.

Nennstrom

Current Rating

Temperaturbereich

-25°C ... +85°C

Temperature Range

-25°C ... +85°C

Verarbeitung

Wellenlötverfahren; weitere Informationen in Kapitel T

Processing

Wave soldering, detailed information in ch. T

Series

Contacts

Type

Plating

532

02-12

Buchsengehäuse

Housing

Buchsenkontakte

Crimp contacts

Stiftleiste gerade

Straight pin header

Stiftleiste gewinkelt

Right angled pin header

Vergoldet (für Gehäuse nicht erforderlich)

Gold plated (not used for housings)

(

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com
