0100100132005 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0100100132005

0100100132005: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size958KB，2 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

0100100132005 Overview

Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

0100100132005 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.098 inch
subject depth	0.197 inch
body length	0.5 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE
Manufacturer's serial number	010
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	5

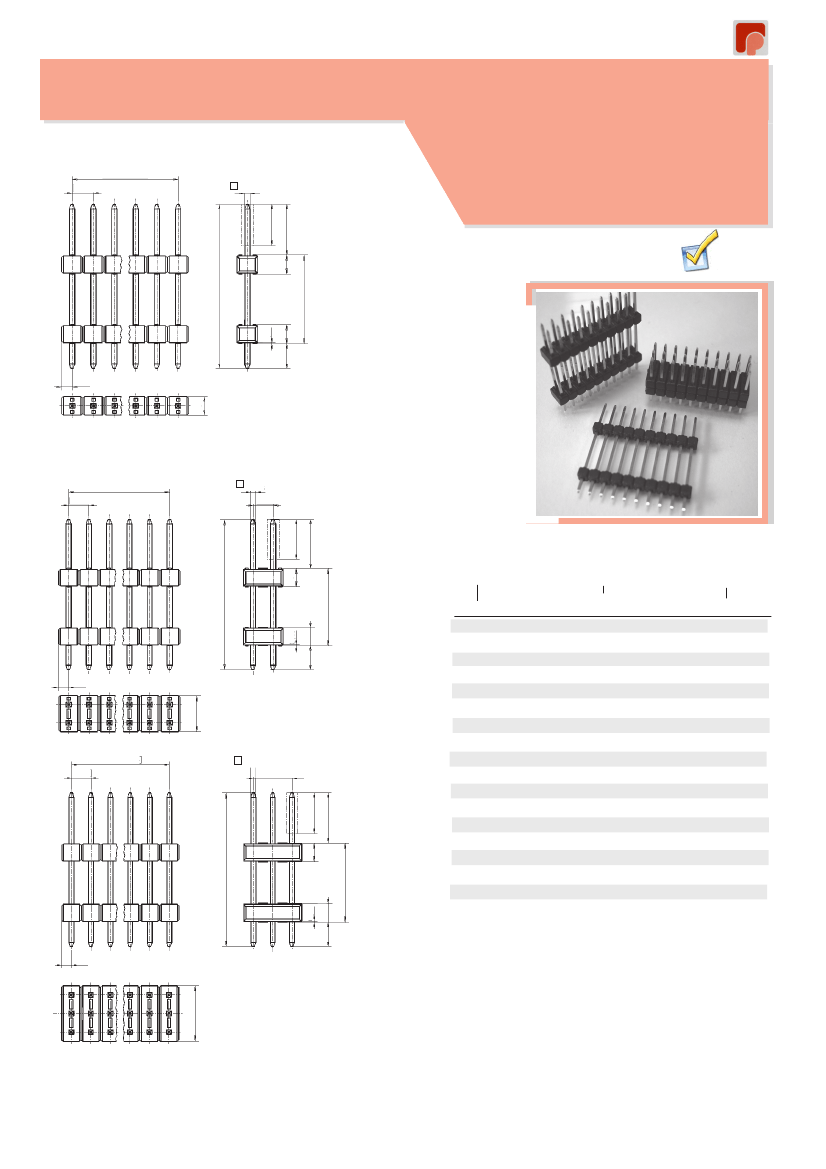

Preview

Download Datasheet

View All

Ratioplast-Electronics

Serie

Homepage: www.ratioplast.de / E-Mail: info@ratioplast.de

Tel.: +49 (0) 5741 / 23 661-0 / Fax: +49 (0) 5741 / 23 661-20

010

(n-1)x2,54

2,54

SANDWICH-STIFTLEISTEN

1-,2-,3-REIHIG, GERADE, Raster 2,54mm

DOUBLE BODY PIN HEADERS

1-,2-,3-ROW, STRAIGHT, Pitch 2,54mm

Standard-Stiftleiste mit symmetrischem

Isolierkörper und Vierkantstiften 0,635 mm

Standard pin header with symmetrical

insulator and square contacts 0,635 mm

0,635

2,5

RoHs

L1 variabel

0,15

2,5

(n-1)x2,54

2,54

0,635

2,54

C 2,5

Abmessung / Dimensions

Codierte Stiftlänge/

Leiterplattenabstand/

Gesamtstiftlänge/

Encoded pin length

Space between p.c.b.

Total length of contact

Länge Steckbereich/

Länge Lötbereich/

Length contact area

Length solder area

2,5

L1 variabel

5,0

(n-1)x2,54

2,54

0,635

2x2,54

C 2,5

L1 variabel

0,15

3,00

4,30

6,40

6,50

5,00

6,70

7,90

10,00

11,80

13,00

15,10

16,90

18,10

19,20

20,20

22,10

24,20

28,00

31,00

35,50

3,30

11,30

12,60

14,70

16,50

17,70

19,80

21,60

22,80

24,90

26,70

27,90

29,00

30,00

31,90

34,00

37,80

40,80

45,30

0,15

2,5

C 2,5

Andere Maße auf Anfrage.

Other dimensions on request.

D = Länge der selektiven Veredelung min. 4,5 mm (Standard)

Length of selective plating min. 4,5 mm (Standard)

E = 1,27 ± 0,25 mm

136

Ratioplast-Electronics,

H.Wiedemann GmbH 2006 Sonderanfertigungen und andere Veredelungen auf Anfrage / Customer Designs and special platings on request

Die Vervielfältigung dieser Unterlagen durch Kopieren oder Nachdruck ist nur mit ausdrücklicher Genehmigung des Herausgebers gestattet.

Zuwiderhandlung verplichtet zu Schadensersatz. Design und technische Änderung vorbehalten.

7,5
