4120R-601-270/101 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> 4120R-601-270/101

4120R-601-270/101: DescriptionData Line Filter, 10 Function(s), 25V, DIP-20; CategoryAnalog mixed-signal IC filter; File Size211KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Related ProductsFound1parts with similar functions to 4120R-601-270/101

Download Datasheet Parametric View All

4120R-601-270/101 Overview

Data Line Filter, 10 Function(s), 25V, DIP-20

4120R-601-270/101 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Bourns
package instruction	DIP-20
Reach Compliance Code	_compli
ECCN code	EAR99
capacitance	100 µF
Maximum DC resistance	27 Ω
filter type	DATA LINE FILTER
high	4.57 mm
Minimum insulation resistance	10000 MΩ
JESD-609 code	e0
length	27.05 mm
Manufacturer's serial number	601
Installation type	THROUGH HOLE MOUNT
Number of functions	10
Maximum operating temperature	85 °C
Minimum operating temperature	10 °C
physical size	L27.05XB6.71XH4.57 (mm)/L1.065XB0.264XH0.18 (inch)
Rated voltage	25 V
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

VE S CO

AV R M

AI SIO PL

LA N IA

BL S NT

Features

■

Cost effective R-C construction

Insulation resistance testing for reliability

Molded surface mount or DIP packaging

Compatible with automatic assembly

equipment

Custom value capability

■

RoHS compliant version available

(“L” part number suffix)

For information on EMI/RFI Filters,

download Bourns’ EMI/RFI Filters

Application Note.

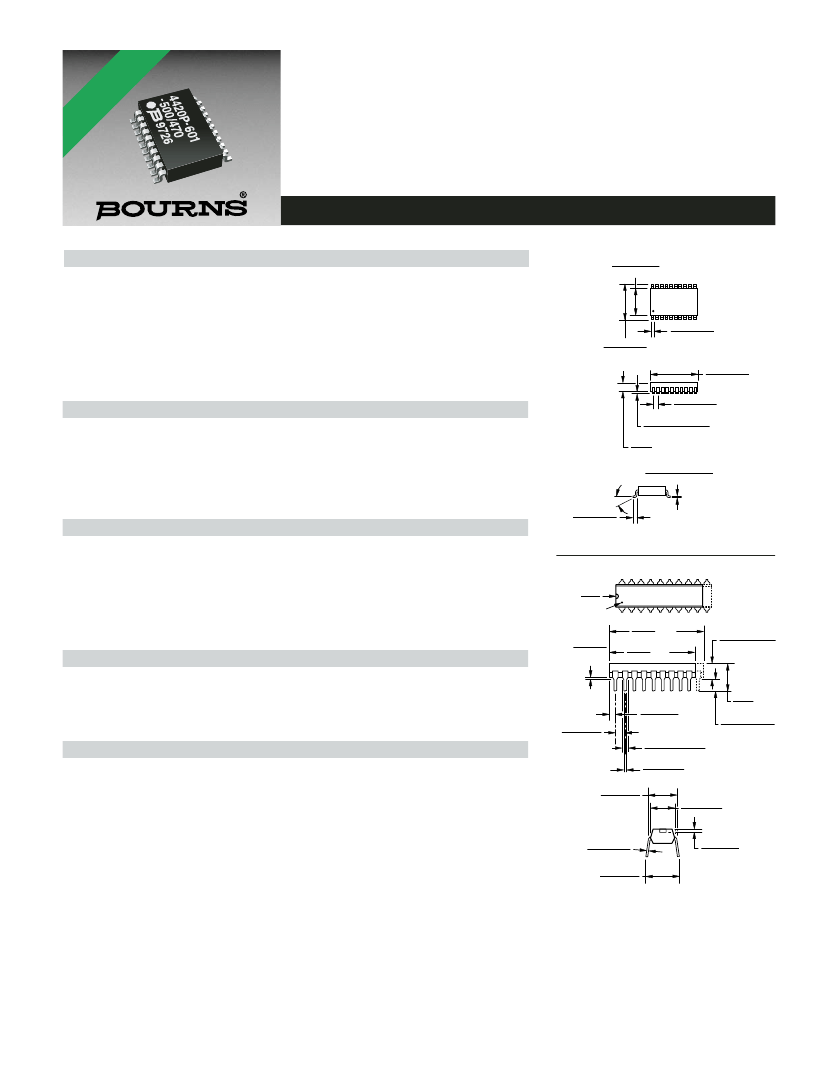

601 Series - RC Networks T-Filters

General Description

4420P

Continual advances in digital IC technology are creating stringent demands on

EMI/RFI levels in equipment.

EMI/RFI low pass filters are required in personal computers, data terminals, test

equipment and process controllers for high frequency suppression into or out of

electronic equipment.

7.493

.076

(.295

.003)

10.34

.25

(.407

.010)

.432

.056

TYP.

(.017

.002)

12.95

.07

(.510

.003)

Electrical Specifications - Resistors

Standard Resistance Range*............................................................10 ohms - 100 ohms

Series Resistance Tolerance ..................................................................................±10 %

Temperature Coefficient of Resistance .......................................................±300 ppm/°C

Operating Voltage .................................................................................25 volts maximum

Operating Temperatures ........................................................................+10 °C to +85 °C

*Other Resistance Values Available, 10 ohms - 1 megohm

Electrical Specifications - Capacitors

Standard Capacitance Range .................................................................50 pF to 200 pF

Capacitance Tolerance............................................................................................±30 %

Temperature Characteristic ........................................................................................Z5U

Operating Temperatures.........................................................................+10 °C to +85 °C

Voltage Rating .......................................................................................................25 volts

Dielectric Withstand Voltage ...............................................................2.5 x rated voltage

Insulation Resistance ............................................................10,000 megohms minimum

Environmental Specifications - Resistors

∆R

MAXIMUM

Thermal Shock ......................................................................................................±0.5 %

Resistance to Solder Heat ....................................................................................±0.5 %

Terminal Strength ..................................................................................................±0.5 %

Mechanical Specifications

Flammability...................................................................................Conforms to UL94 V-0

Leadframe .....................................................................................Copper, solder coated

Body Material ............................................................................................Epoxy/Novolac

Lead Solderability .................................Meet requirements of MIL-STD-202 Method 208

1.27

.076

TYP.

(.050

.003*)

.127 + .127/ - .000

(.005 + .005/ - .000)

2.65

MAX.

(.104)

.305 + .000/ - .076

(.012 + .000/ - .003)

8° MAX.

.940 + .355

(.037

.014)

4118R AND 4120R

.635

(.025)

PIN #1 REF.

27.05

(1.065) MAX.

24.51

MAX.

(.965)

4.57 + .12/ - .28

(.180 + .005/ - .011)

.89

.25

(.035

.010)

TYP.

2.54

.25

(.100

.010*)

TYP.

NON-ACCUM.

2.03

.12

(.080

.005)

1.65 + .12/ - .07

(.065 + .005/ - .003)

.438

.050

TYP.

(.019

.002)

8.40

MAX.

(.331)

3.43 + .38/ - .25

(.135 + .015/ - .010)

7.87

.25

(.310

.010)

TO OUTSIDE

WHEN PINS

ARE PARALLEL

.254

.050

(.010

.002)

8.64

.50

(.340

.020)

6.71

.10

(.264

.004)

.76

.25

(.030

.010)

For Standard Values Used in Capacitors, Inductors, and Resistors,

click here.

Governing dimensions are metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.
