R-24N4-A15KL-15KC datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> R-24N4-A15KL-15KC

R-24N4-A15KL-15KC: DescriptionPotentiometer, Carbon, 0.25W, 15000ohm, 20% +/-Tol; CategoryPassive components The resistor; File Size242KB，2 Pages; ManufacturerSong Huei Electric Co., Ltd.; Websitehttp://www.song-huei.com.tw

Download Datasheet Parametric View All

R-24N4-A15KL-15KC Overview

Potentiometer, Carbon, 0.25W, 15000ohm, 20% +/-Tol

R-24N4-A15KL-15KC Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Rotary
Lead diameter	1.5 mm
Lead length	4 mm
Manufacturer's serial number	R-24N4(AC,KC)
Package diameter	24 mm
Package length	11.5 mm
Package form	3 Terminals
Rated power dissipation(P)	0.25 W
resistance	15000 Ω
Resistor type	POTENTIOMETER
rotation angle	300 deg
series	R-24N4(AC,KC)
technology	CARBON
Tolerance	20%

R-24N4-A15KL-15KC Preview

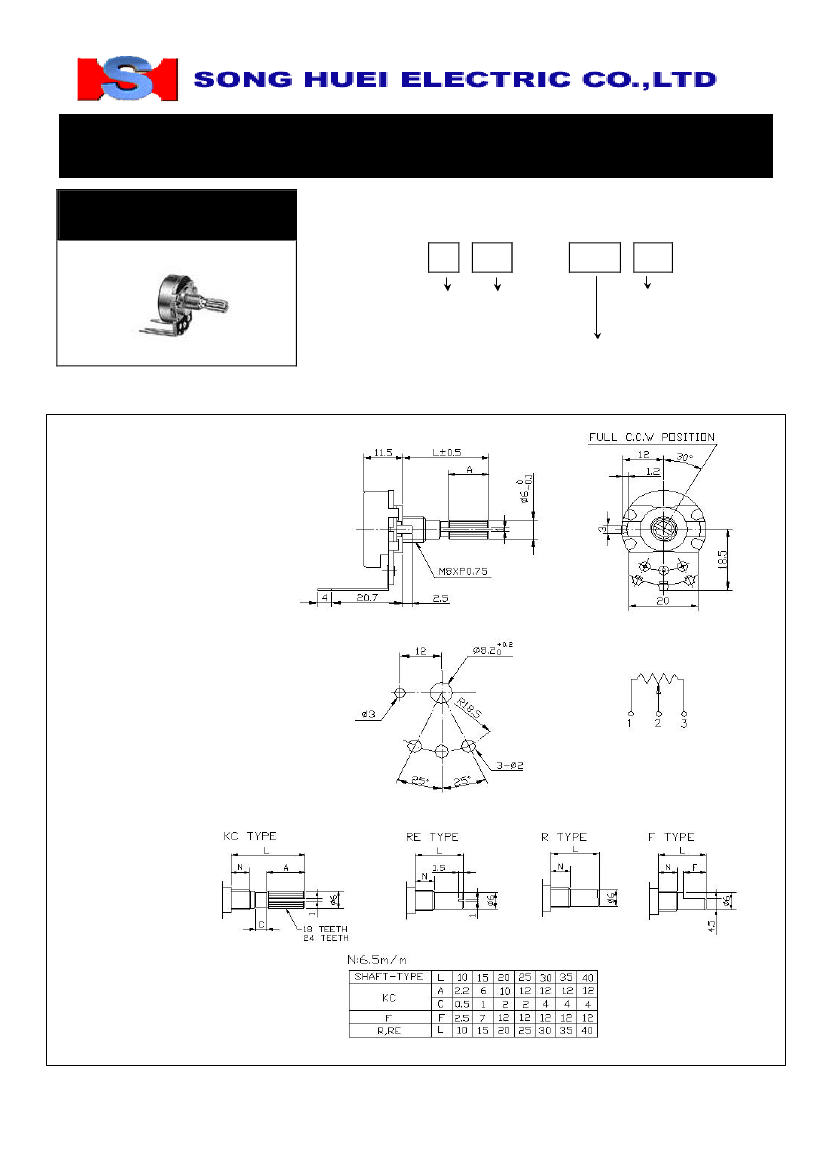

24mm Metal Shaft Rotary Potentiometer

24mm

金屬軸旋 ½ 電 ½ 器

R-24N4

Part Number

R-24N4- B

5K , L -

Shaft Type

軸型

Taper Resistance Value

線性阻值

Shaft Length

軸長

Dimensions

規格尺寸

Shaft Type

軸型

http://www.song-huei.com.tw

24mm Metal Shaft Rotary Potentiometer

9mm Metal Shaft Rotary Potentiometer (9mm

金屬軸旋 ½ 電 ½ 器)

24mm

金屬軸旋 ½ 電 ½ 器

Electrical Characteristics

電氣特性

All Resistance

½阻值

All Resistance Tolerance

½ 阻值誤差

Resistance Taper

線性

Resistance Taper Characteristics

阻值變化特性範圍

Rated Power

定格電力

1K ~ 1MΩ

20% (more than 1MΩ

30% )

A. B. C. D. W. Taper

A50%

15-25%

B50%

40-60%

C50%

75-85%

D50%

2-15%

W50%

45-55%

B Taper: AC500V0. 5W; Other Taper: AC250V0.25 W

≥

250KΩ 0.1%

Residual Resistance

殘留阻值

250KΩ> R

10KΩ

10KΩ≥ R

10ΩMax.

Noise

雜音

Insulation Resistance

絕緣阻抗

Withstand Voltage

耐電壓

Rotational Life

旋½½½

47 mV max.

More than 100MΩat DC 500V

1 minute at AC 250V

15,000 Cycles.

Mechanical Characteristics

機械特性

Total Rotational Angle

全迴½角度

Stopper Strength

全迴 ½ 止強度

Rotational Torque

旋 ½ 扭力

Push-Pull Strength

壓入拉起強度

Solder Heat

焊錫耐熱性

Remark

備註

300°

10°

5 kgf.cm max./ 3 sec .

30 ~ 200gf.cm max.

10 kgf.cm max./3 sec.

300℃,3s (Only For Hand-Soldering)

Shaft: Cast Iron , Aluminum Zinc , Plastic

Bushing Material: cast iron

http://www.song-huei.com.tw

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

AC voltmeter circuit composed of milliammeter b

Dual-circuit insurance starting and automatic switching control circuit

JD1B type electrical schematic circuit

Songhua, Zhonghua CFXB15H-CFXB65H heat preservation automatic rice cooker circuit diagram

555 audio ohmmeter circuit
