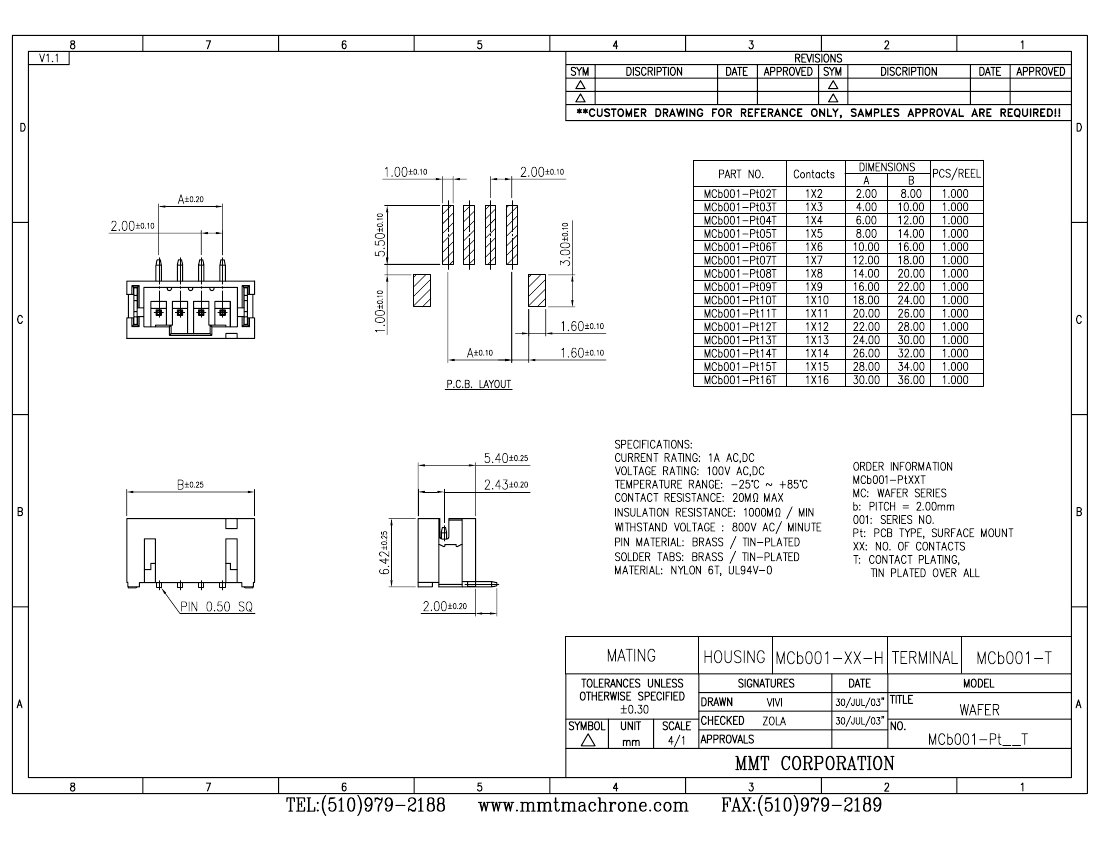

Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle
| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | 1000 PCS/REEL PACKAGING |
| body width | 0.213 inch |
| subject depth | 0.253 inch |
| body length | 1.181 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | SN |
| Contact completed and terminated | TIN |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 800VAC V |
| Insulation resistance | 1000000000 Ω |
| insulator material | NYLON |
| Manufacturer's serial number | MCB001 |
| Plug contact pitch | 0.079 inch |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| PCB contact pattern | RECTANGULAR |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 2.0066 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 13 |
| MCB001-PT13T | MCB001-PT14T | MCB001-PT09T | MCB001-PT04T | MCB001-PT12T | MCB001-PT02T | |
|---|---|---|---|---|---|---|
| Description | Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle | Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle | Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle | Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle | Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle | Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | 1000 PCS/REEL PACKAGING | 1000 PCS/REEL PACKAGING | 1000 PCS/REEL PACKAGING | 1000 PCS/REEL PACKAGING | 1000 PCS/REEL PACKAGING | 1000 PCS/REEL PACKAGING |
| body width | 0.213 inch | 0.213 inch | 0.213 inch | 0.213 inch | 0.213 inch | 0.213 inch |
| subject depth | 0.253 inch | 0.253 inch | 0.253 inch | 0.253 inch | 0.253 inch | 0.253 inch |
| body length | 1.181 inch | 1.26 inch | 0.866 inch | 0.472 inch | 1.102 inch | 0.315 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | SN | SN | SN | SN | SN | SN |
| Contact completed and terminated | TIN | TIN | TIN | TIN | TIN | TIN |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE |
| Contact material | BRASS | BRASS | BRASS | BRASS | BRASS | BRASS |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| Dielectric withstand voltage | 800VAC V | 800VAC V | 800VAC V | 800VAC V | 800VAC V | 800VAC V |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| insulator material | NYLON | NYLON | NYLON | NYLON | NYLON | NYLON |
| Manufacturer's serial number | MCB001 | MCB001 | MCB001 | MCB001 | MCB001 | MCB001 |
| Plug contact pitch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of rows loaded | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -25 °C | -25 °C | -25 °C | -25 °C | -25 °C | -25 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A |
| Guideline | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 13 | 14 | 9 | 4 | 12 | 2 |
| Objectid | - | 304302840 | 304302835 | 304302830 | 304302838 | 304302828 |
