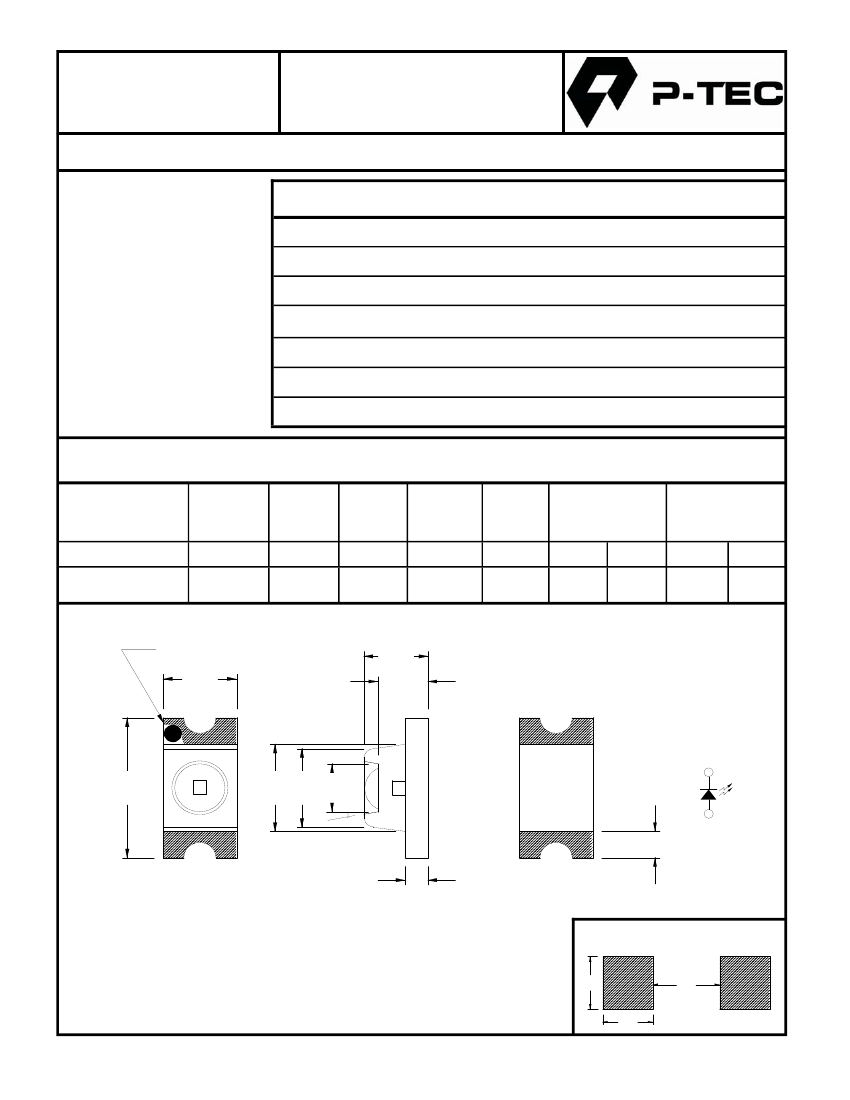

PL00101 Series SMD LED 1206 Package
Features
*Flat lens package 3.2 x 1.6 x 1.4mm
with reflector cup
*Small 30° viewing angle
*High light output
*Compatible with IR solder-process
*Industry standard footprint
*3000 pcs per reel
*RoHS compliant
Absolute Maximum Ratings at T
A
= 25°C
Power Dissipation…………………………………………………………………………...… 78mW
Reverse Voltage (<100µA) ………………...………….…………………..……………..……. 5.0V
Max Forward Current …………..…………...………………………………………………... 30mA
Peak Forward Current(1/10 Duty Cycle, 0.1ms Pulse Width) ………………..………...…… 100mA
Operating Temperature Range ………………………….……….…………………. -40°C to +85°C
Storage Temperature Range …………………………...…………...……..…..……. -40°C to +85°C
Reflow Soldering Temperature…………………………..………………...…. 260°C for 10 seconds
Electrical & Optical Characteristics at T
A
= 25°C
Part Number
Water Clear Lens
PL00101-WCY22
Yellow
GaAsP
Emitting
Color
Chip
Material
Peak
Wave
Length
nm
592
Dominant
Wave
Length
nm
590
Viewing
Angle
2θ1/2
Deg
30°
Forward
Voltage
@20mA (V)
Typ
2.15
Max
2.3
Luminous
Intensity
@20mA (mcd)
Min
2.0
Typ
14.0
Package Dimensions are in
Millimeters.
Tolerance is ± 0.25mm unless otherwise specified.
Cathode Mark
1.6
1.4
1.1
3.2
2.0 1.8
1.1
10°
0.6
0.5
Recommended Soldering Pad Layout
1.5
2.0
1.5
11.19.14 REV1 JAS
