400-37FCZG3DN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 400-37FCZG3DN

400-37FCZG3DN: DescriptionD Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size411KB，1 Pages; ManufacturerAMCO Tec International Inc

Download Datasheet Parametric View All

400-37FCZG3DN Overview

D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

400-37FCZG3DN Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NO MARK
body width	0.496 inch
subject depth	0.492 inch
body length	2.729 inch
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BURGUNDY
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	400
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	RIVET & JACKSCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	5u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	ZINC
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37

Preview

Download Datasheet

View All

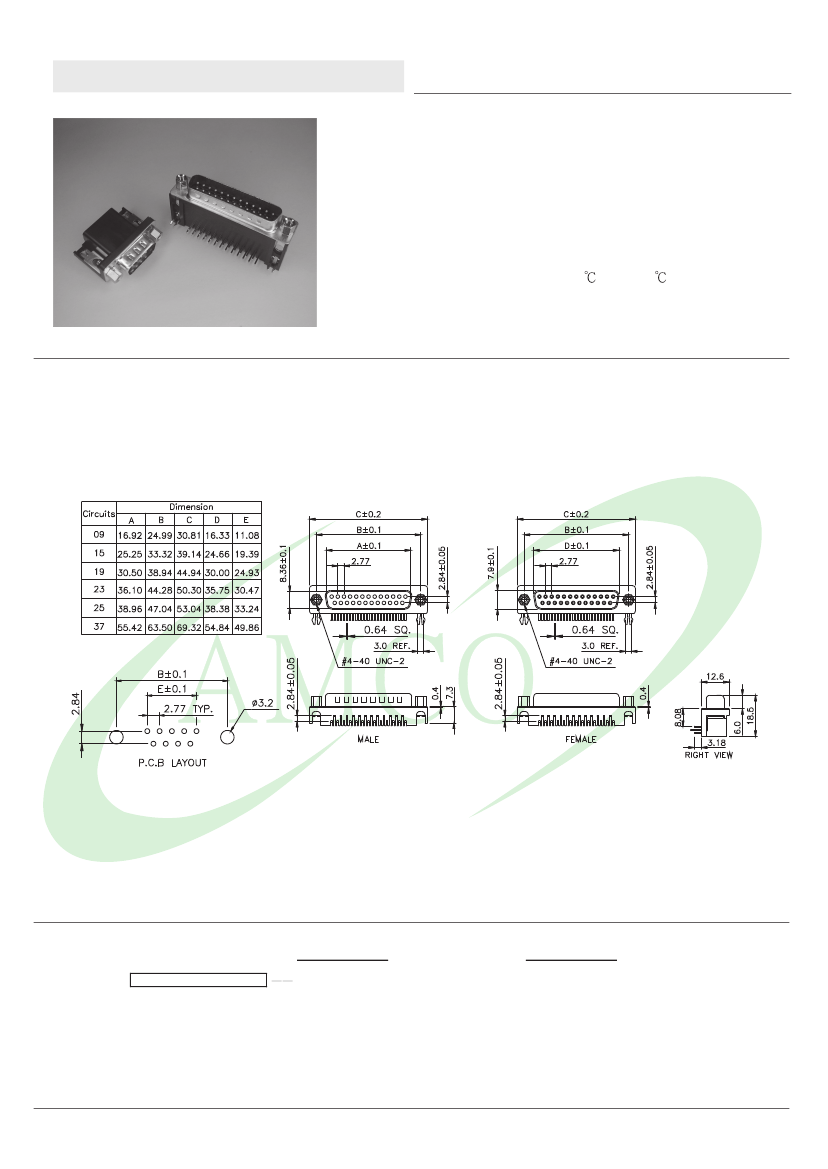

400/D-SUB 8.08mm Type

MATERIAL :

1. INSULATOR : PBT + 30% GLASS FIBER UL94V-0.

2. CONTACT : BRASS.

3. CONTACT PLATED : GOLD OVER NICKEL.

4. SHELL : STEEL ZINC PLATED OR TIN PLATED.

ELECTRICAL CHARACTERISTICS :

1. CONTACT CURRENT RATING : 5 AMPS.

2. CONTACT RESISTANCE : 30 MILLIOHMS MAX.

3. DIELECTRIC WITHSTANDING VOLTAGE : 500V AC MIN.

4. INSULATION RESISTANCE : 1000 MEGOHMS MIN.

5. TEMPERATURE RATING : -55 TO +105 ..

400. D-SUB

Series No.

R/A TYPE

8.08mm FOOT PRINT

No. of Contacts

Contact Mounting Shell

Type

Plated

M: MALE

F: FEMALE

A: Rivet

Type

T: TIN

Contact Plated

G1: Gold Flash

S1: Gold Flash

Plastic

Color

B: Black

G: Gold

D: Burgundy

T: Turquoise

Branding

A:Amco Mark

N:No Mark

N: NICKEL T1: TIN

B: With Jack Z: ZINC

Screw

C: Rivet With

Jack Screw

D: Rivet Add

Jack Screw

G2: 3u" Gold S2: 3u" Gold

G3: 5u" Gold S3: 5u" Gold

G4: 10u" Gold S4: 10u" Gold

G5: 15u" Gold S5: 15u" Gold

G6: 30u" Gold S6: 30u" Gold

(G:Full Gold)(S:Selective Gold)

AMCO TEC INTERNATIONAL INC.
