141A12459X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 141A12459X

141A12459X: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size66KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric Compare View All

141A12459X Overview

Board Connector, 60 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

141A12459X Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.315 inch
subject depth	0.456 inch
body length	3.508 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	141
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.177 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	60

Preview

Download Datasheet

View All

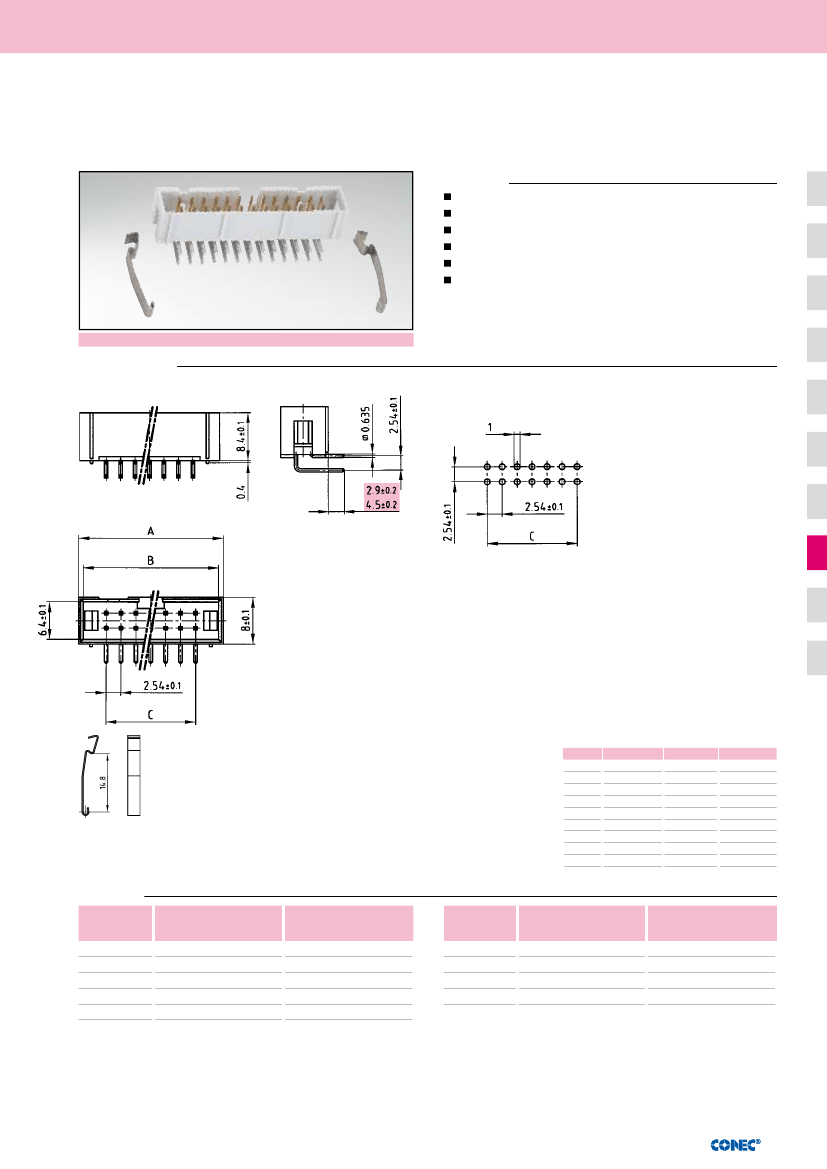

Flat cab le Conne ct ors DIN

416 51

Flatcable connectors

Low profile header – angled

Description

Solder pin

Pin length 2.9 mm alternative 4.5 mm (*) on request

10 to 64 positions

Center polarization

Space saving version

Clip latches need to be ordered separately

RoHS compliant

Product drawing

PCB-hole pattern

Clip latches

Part no.

140 X 10039 X

No. of Pos.

± 0.2

19.50

24.60

27.20

32.30

39.90

50.10

57.80

70.50

89.10

± 0.1

17.90

23.00

25.60

30.70

38.30

48.50

56.20

68.90

86.40

± 0.1

4 x 2.54 = 10.16

6 x 2.54 = 15.24

7 x 2.54 = 17.78

9 x 2.54 = 22.86

12 x 2.54 = 30.48

16 x 2.54 = 40.64

19 x 2.54 = 48.26

24 x 2.54 = 60.96

31 x 2.54 = 78.74

(Dim. = mm)

Order data

No. of Pos.

Pin length 2.9 mm

141 A 11909 X

141 A 11919 X

141 A 11929 X

141 A 11939 X

141 A 11949 X

Pin length 4.5 mm*

141 A 11999 X

141 A 12009 X

141 A 12019 X

141 A 12029 X

141 A 12039 X

No. of Pos.

Pin length 2.9 mm

141 A 11959 X

141 A 11969 X

141 A 11979 X

141 A 12399 X

Pin length 4.5 mm*

141 A 12049 X

141 A 12059 X

141 A 12069 X

141 A 12459 X

8| 7

141A12459X Related Products

	141A12459X	141A12399X	141A12019X
Description	Board Connector, 60 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 60 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle
Reach Compliance Code	compliant	compliant	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.315 inch	0.315 inch	0.315 inch
subject depth	0.456 inch	0.456 inch	0.456 inch
body length	3.508 inch	3.508 inch	1.071 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	141	141	141
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.177 inch	0.114 inch	0.177 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	60	60	16
ECCN code	EAR99	-	EAR99
Maker	-	CONEC	CONEC
