USCHSXSXR1AVHTX: DescriptionDigital Panel Meters Modular signal conditioner Type USC-DIN; File Size397KB，12 Pages; ManufacturerETC2

Download Datasheet View All

USCHSXSXR1AVHTX Overview

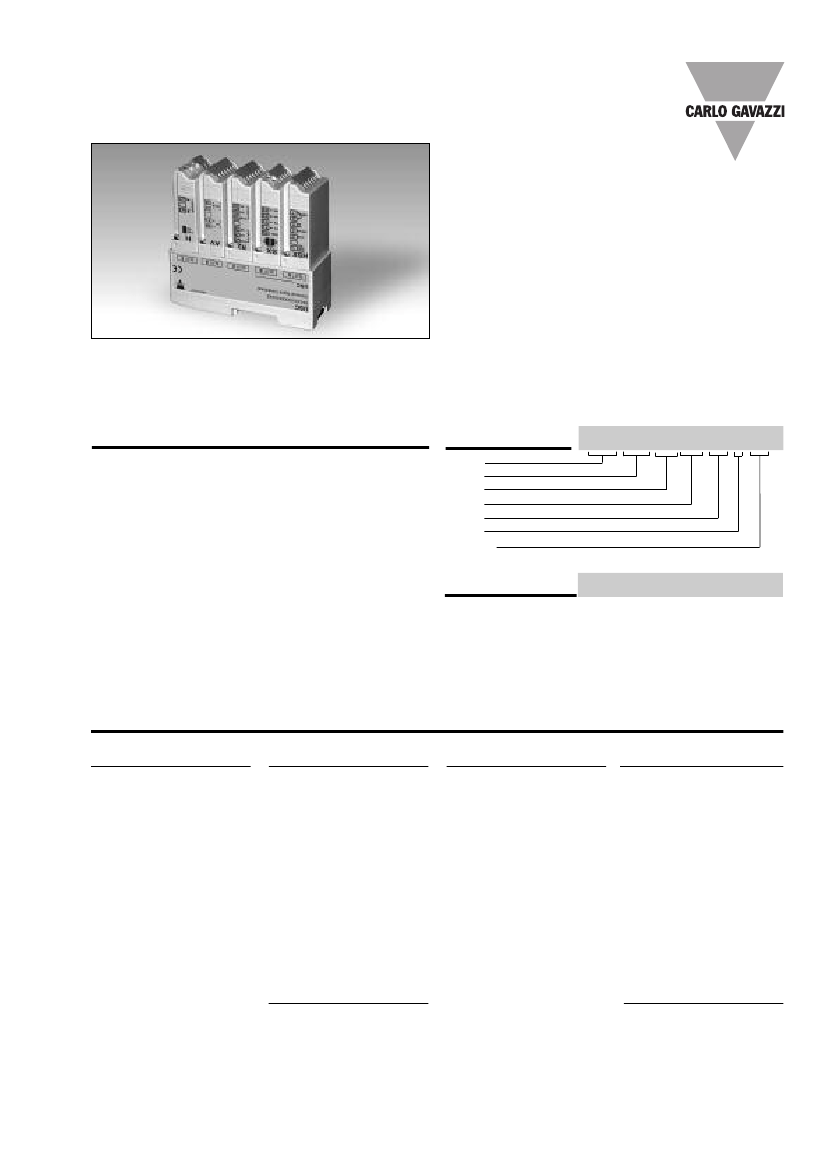

Digital Panel Meters Modular signal conditioner Type USC-DIN

Preview

Download Datasheet

View All

Digital Panel Meters

Modular signal conditioner

Type USC-DIN

•

Multi-input modular signal’s conditioner

0.1% RDG basic accuracy

TRMS AC current and voltage measurements

AC/DC current measurements; selectable full scales

(200µA to 5A)

AC/DC voltage measurements; selectable full scales

(200mV to 500V)

°C or °F temperature measurements

(Pt100-250-500-1000, Ni100, TC J-K-S-T-E)

Resistance measurements; selectable full scales

(20Ω to 20kΩ)

Up to 4 independent alarm set-points (optional)

20mA/10VDC analog output (optional)

Serial port RS485 or RS232 (optional)

MODBUS, JBUS communication protocol

Front protection degree: IP 20

• Linearization of V and A inputs up to 16 points

Product Description

µp-based signal’s condition-

er, for current, voltage, tem-

perature and resistance

measurements. Measuring

ranges and functions easily

programmable from the PC

by means of optional Usc-

Soft software available on

request. UscSoft includes

programming, display and

min-max functions. Condi-

tioner’s housing for DIN-

RAIL mounting with front

protection degree: IP 20. All

displaying and programming

data are referred to UscSoft.

How to order

Model

Slot A

Slot B

Slot C

Slot D

Slot E

Options

USC XXX XX XX XX X XX

How to order

UscSoft-kit

UscSoft-kit: software plus “UCOM1” communication cable for

programming USC by means of PC.

Type Selection

Slot A (measuring inputs)

LSX:

single channel input:

0.2-2-20mA DC/AC,

0.2-2-20V DC/AC

LSE/

LSF:

single + AUX input :

0.2-2-20mA DC/AC;

0.2-2-20V DC/AC

HSX:

single channel input:

0.2-2-5A DC/AC;

20-200-500V DC/AC

TRX:

signal input: TC tem-

perature probes: J-K-S-

T-E, Pt100-250-500-

1000 and resistance

0.02-0.2-2-20kΩ

Slot B (communication)

XX:

SX:

SY:

None

Serial port RS485

Serial port RS232

Slot C (communication and alarm)

XX:

R1:

None

Single relay output,

(AC1-8AAC, 250VAC)

R2:

Dual relay output,

(AC1-8AAC, 250VAC)

R4:

Dual relay output,

(AC1-8AAC, 250VAC) +

dual open collector out-

put (NPN, 100mA)

R5:

4 Relay outputs (AC1-

5AAC, 250VAC)

AV(*):

Single analogue out-

put:

0 to 20mA DC and

0 to 10V DC

Slot D (communication)

XX:

None

AV(*):

Single analogue out-

put,

0 to 20mA DC and

0 to 10V DC

(*):

The two analogue

outputs cannot be

used at the same

time. It is possible to

plug in only one

module by signal

conditioner.

Options

XX:

TX:

None

Tropicalization

Slot E (power supply)

90 to 260V AC/DC

18 to 60V AC/DC

Specifications are subject to change without notice

USCDS040706
