Aluminium Electrolytic Capacitors
SCREW TERMINALS - Long life 85°C / 10000 h
Description
Poles brought out to heavy duty screw terminals.
Aluminum case with insulated sleeve and safety vent.
High CV and reliability.
Applications
Industrial and professional power electronics, welding machine,
motor drives, traction, battery chargers, S.M.P.S., U.P.S.,
inverters, converters.
Features
Low equivalent series resistance (E.S.R.).
High ripple current (R.C.) in small case size.
Different case size available for capacitance values
Mounting
Vertically or horizontally, with the safety-vent upwards.
Threaded stud is available upon request
In this configuration the stud is not insulated.
Marking
ARCOTRONICS’ logo
series: (EPH)
operating temperature: (85°C)
capacitance (F),
rated voltage: (Vdc),
environmental classification (40/85/56),
negative polarity (white line), date code.
Electrical characteristics
Rated voltage
Operating temperature
Capacitance range
Capacitance tolerance
Endurance test
Userful life
Leakage current
16 to 450 Vdc
-40 to +85°C
220
F
to 1 500 000F
± 20% at 100Hz / 20°C
2000 h (see conditions in test method and performance)
10000 h (see conditions in test method and performance)
I = 0.006 CV (A)
C = rated capacitance (F); V = rated voltage (Vdc)
(after than D.C. rated working voltage at 20°C has been applied for 5 min)

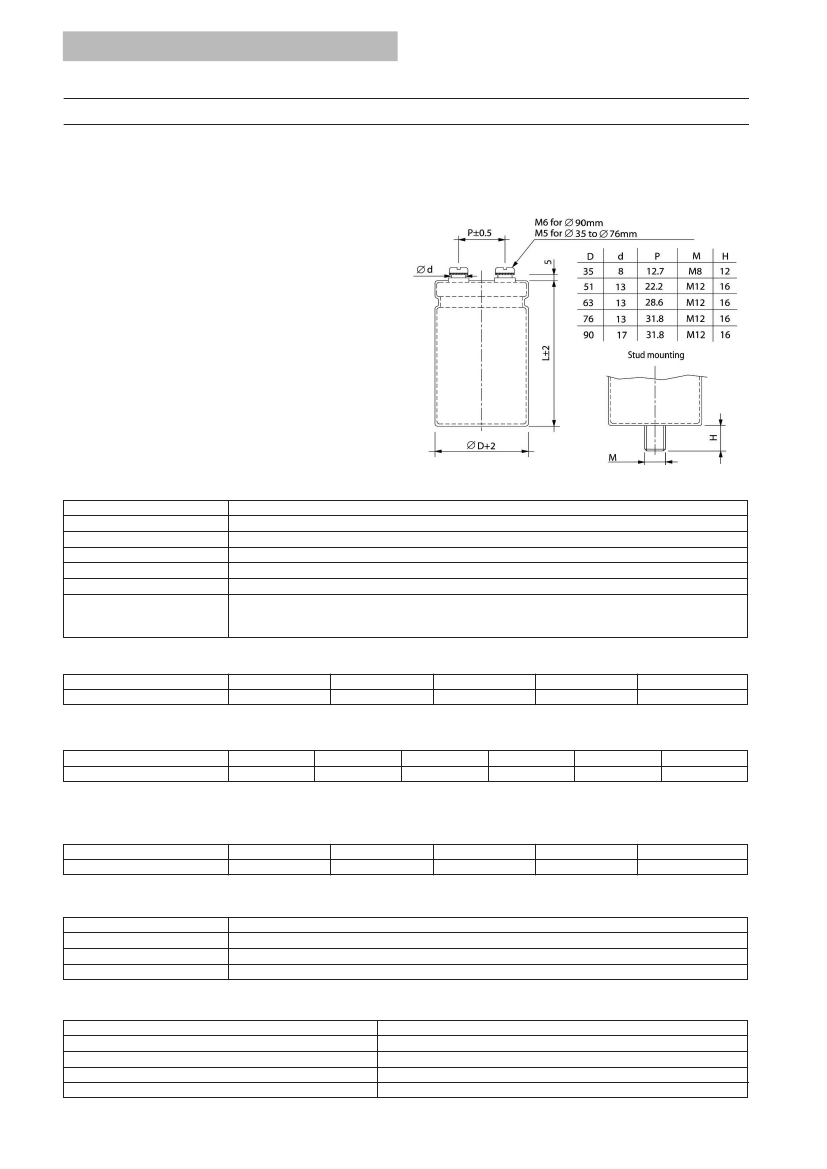

Diagram of dimensions (mm)
The dimensions “Ø d” indicated is the standard value.
Different value can be selected with the 14
th
digit of P/N only
for Ø D = 51 to 76 mm
Compensation factor of ripple current (R.C.) vs. frequency
Frequency
Multiplier factors
50 Hz
0.8
100 Hz
1.0
500 Hz
1.2
1kHz
1.3
10
kHz
1.5
Compensation factor of ripple current (R.C.) vs. temperature
Temperature
Multiplier factors
35°C
2.2
45°C
2.1
55°C
1.8
65°C
1.6
75°C
1.4
85°C
1.0
The maximum temperature allowable on the hottest part of the winding is 93°C and due to the current load capability of the contact
elements, the following limits must not be exceeded:
Case diameter
Max current (A)
Ø 35mm
20
Ø 51mm
30
Ø 63mm
40
Ø 76mm
50
Ø 90mm
70
The maximum torques applicable to insert and stud is the following:
Stud thread M8
Stud thread M12
Insert thread M5
Insert thread M6
The 15
th
digit of P/N change with the choice of accessories:
A:
flat case without accessories
Z:
flat case + ring clip
S:
stud mounting without accessories
4 Nm
8 Nm
2 Nm
4 Nm
T:
stud mounting + 39522111000 Ø 35mm (see accessory)
U:
stud mounting + 39522111200 from Ø 51 to 90 mm (see accessory)
X:
stud mounting + 39522111500 from Ø 51 to 90 mm (see accessory)
Y:
stud mounting + 39522112000 from Ø 51 to 90 mm (see accessory)
W:
stud mounting + 39522112500 from Ø 51 to 90 mm (see accessory)
09/2006
143
ARCOTRONICS
EPH
Aluminium Electrolytic Capacitors
SCREW TERMINALS - Long life 85°C / 10000 h
Test method and performance
Conditions
Temperature:
Test duration:
Ripple current:
Voltage:
Performance
Capacitance change:
E.S.R. (100Hz max):
Leakage current:
Load life test
85°C
2000 hours
max ripple current at 100 Hz 85°C
specified in table
the sum of D.C. voltage and the peak A.C. voltage
must not exceed the rated voltage of capacitor.
Shelf life test
85°C
500 hours
no ripple current applied.
no voltage applied.
The following specifications will be satisfied when the capacitors will be restored at 25°C.
within 20% of initial value.
within 15% of initial value.
not exceed 200% of the initial requirement.
not exceed 150% of the initial requirement.
not exceed initial requirement.
not exceed initial requirement.
Useful life
Test conditions
Temperature:
Duration:
Ripple current:
Voltage:
Performance
Capacitance Change:
E.S.R. (100Hz max):
Leakage current:
Others:
Failure percentage
85°C
10 000 hours
max ripple current at 100 Hz 85°C specified in table.
the sum of D.C. voltage and the peak A.C. voltage must not exceed the rated voltage of the capacitor.
The following specifications will be satisfied when the capacitors are restored at 25°C.
within 50% of initial value
not exceed 300% of initial requirement
not exceed initial requirement
safety-device do not open.
The failure percentage is
1%
Technical data and ordering codes
Rated cap.
100 Hz 20°C
(F)
22 000
33 000
33 000
47 000
47 000
68 000
100 000
100 000
150 000
150 000
220 000
330 000
330 000
470 000
470 000
680 000
1 000 000
1 500 000
Case size
DxL
(mm)
35 x 60
35 x 60
35 x 79
35 x 79
51 x 79
51 x 79
51 x 79
51 x 105
51 x 105
63 x 105
63 x 105
63 x 105
76 x 105
76 x 105
76 x 143
76 x 143
76 x 143
90 x 222
16 Vdc Rated voltage - 18 Vdc Surge voltage
E.S.R. max.
E.S.R. Typ.
Z max
R.C.
100 Hz 25°C 100 Hz 25°C 10 kHz 25°C 100 Hz 85°C
(m)
(m)
(m)
(A
rms
)
25
19
19
19
19
14
13
13
12
12
11
9
9
6
6
6
4
3
15
13
13
12
12
12
10
10
10
10
8
8
8
5
5
4
3
3
17
13
13
13
11
11
11
10
9
9
8
8
8
5
5
4
3
3
6.6
9.2
10.2
10.8
12.5
15.7
16.5
18.7
19.5
21.5
22.4
23.3
25.0
28.5
32.0
32.5
34.5
48.7
L.C.
20°C 5 min.
(mA)
2.1
3.2
3.2
4.5
4.5
6.5
9.6
9.6
14
14
21
32
32
45
45
65
96
144
Arcotronics P/N
EPH229M016AT8A_
EPH339M016AT8A_
EPH339M016AT9A_
EPH479M016AT9A_
EPH479M016AW2X_
EPH689M016AW2X_
EPH10KM016AW2X_
EPH10KM016AW3X_
EPH15KM016AW3X_
EPH15KM016AX1X_
EPH22KM016AX1X_
EPH33KM016AX1X_
EPH33KM016AY1X_
EPH47KM016AY1X_
EPH47KM016AY3X_
EPH68KM016AY3X_
EPH10LM016AY3X_
EPH15LM016AZ6X_
09/2006
144
ARCOTRONICS
EPH
Aluminium Electrolytic Capacitors
SCREW TERMINALS - Long life 85°C / 10000 h
25 Vdc Rated voltage - 29 Vdc Surge voltage
E.S.R. max.
E.S.R. Typ.
Z max
R.C.
100 Hz 25°C 100 Hz 25°C 10 kHz 25°C 100 Hz 85°C
(m)
(m)
(m)
(A
rms
)
40
30
25
19
19
17
14
14
11
11
11
11
11
10
7
27
16
12
12
12
12
10
10
10
9
9
9
9
6
5
21
15
10
10
10
10
9
9
9
9
9
9
9
6
5
5.9
8.3
10.8
12.1
13.3
15.7
16.4
18.7
21.5
22.0
23.5
24.2
28.5
30.5
35.6
Rated cap.
100 Hz 20°C
(F)
10 000
15 000
22 000
33 000
33 000
47 000
68 000
68 000
100 000
150 000
150 000
220 000
220 000
330 000
470 000
Case size
DxL
(mm)
35 x 60
35 x 60
35 x 79
35 x 79
51 x 79
51 x 79
51 x 79
51 x 105
63 x 105
63 x 105
76 x 105
76 x 105
76 x 143
76 x 143
76 x 222
L.C.
20°C 5 min.
(mA)
1.5
2.2
3.3
4.9
4.9
7.0
10
10
15
22
22
33
33
49
70
Arcotronics P/N
EPH109M025AT8A_
EPH159M025AT8A_
EPH229M025AT9A_
EPH339M025AT9A_
EPH339M025AW2X_
EPH479M025AW2X_
EPH689M025AW2X_
EPH689M025AW3X_
EPH10KM025AX1X_
EPH15KM025AX1X_
EPH15KM025AY1X_
EPH22KM025AY1X_
EPH22KM025AY3X_
EPH33KM025AY3X_
EPH47KM025AY5X_
Rated cap.
100 Hz 20°C
(F)
10 000
15 000
15 000
22 000
22 000
33 000
47 000
47 000
47 000
68 000
68 000
100 000
150 000
220 000
330 000
Case size
DxL
(mm)
35 x 60
35 x 60
35 x 79
35 x 79
51 x 79
51 x 79
51 x 79
51 x 105
63 x 105
51 x 105
63 x 105
63 x 105
76 x 105
76 x 143
76 x 222
40 Vdc Rated voltage - 46 Vdc Surge voltage
E.S.R. max.
E.S.R. Typ.
Z max
R.C.
100 Hz 25°C 100 Hz 25°C 10 kHz 25°C 100 Hz 85°C
(m)
(m)
(m)
(A
rms
)
32
27
27
22
22
17
14
14
14
12
12
10
10
7
6
18
13
13
13
13
12
10
10
10
9
9
9
9
6
6
12
10
10
10
10
10
9
9
9
8
8
8
8
6
5
6.5
7.4
8.6
8.9
10.4
13.5
14.2
15.1
17.6
18.2
19.5
21.2
25.7
31.5
38.5
L.C.
20°C 5 min.
(mA)
2.4
3.6
3.6
5.3
5.3
7.9
11
11
11
16
16
24
36
53
79
Arcotronics P/N
EPH109M040AT8A_
EPH159M040AT8A_
EPH159M040AT9A_
EPH229M040AT9A_
EPH229M040AW2X_
EPH339M040AW2X_
EPH479M040AW2X_
EPH479M040AW3X_
EPH479M040AX1X_
EPH689M040AW3X_
EPH689M040AX1X_
EPH10KM040AX1X_
EPH15KM040AY1X_
EPH22KM040AY3X_
EPH33KM040AY5X_
Rated cap.
100 Hz 20°C
(F)
4 700
6 800
10 000
15 000
22 000
33 000
33 000
47 000
47 000
68 000
68 000
100 000
100 000
150 000
Case size
DxL
(mm)
35 x 60
35 x 60
35 x 60
35 x 79
51 x 79
51 x 105
63 x 105
51 x 105
63 x 105
51 x 105
76 x 105
76 x 105
76 x 143
76 x 143
50 Vdc Rated voltage - 57.5 Vdc Surge voltage
E.S.R. max.
E.S.R. Typ.
Z max
R.C.
100 Hz 25°C 100 Hz 25°C 10 kHz 25°C 100 Hz 85°C
(m)
(m)
(m)
(A
rms
)
68
47
32
27
22
17
17
14
14
14
14
14
14
11
33
25
21
17
16
15
15
12
12
12
12
8
8
6
30
24
20
15
13
13
13
10
10
9
9
8
8
6
5.6
7.0
8.5
10.0
13.1
16.0
17.5
16.2
18.3
18.0
22.1
23.8
25.8
31.5
L.C.
20°C 5 min.
(mA)
1.4
2.0
3.0
4.5
6.6
9.9
9.9
14
14
20
20
30
30
45
Arcotronics P/N
EPH478M050AT8A_
EPH688M050AT8A_
EPH109M050AT8A_
EPH159M050AT9A_
EPH229M050AW2X_
EPH339M050AW3X_
EPH339M050AX1X_
EPH479M050AW3X_
EPH479M050AX1X_
EPH689M050AW3X_
EPH689M050AY1X_
EPH10KM050AY1X_
EPH10KM050AY3X_
EPH15KM050AY3X_
09/2006
145
ARCOTRONICS
EPH
Aluminium Electrolytic Capacitors
SCREW TERMINALS - Long life 85°C / 10000 h
Rated cap.
100 Hz 20°C
(F)
4 700
6 800
6 800
10 000
10 000
15 000
22 000
22 000
33 000
33 000
47 000
47 000
68 000
100 000
100 000
150 000
Case size
DxL
(mm)
35 x 60
35 x 60
35 x 79
35 x 79
51 x 79
51 x 79
51 x 79
51 x 105
51 x 105
63 x 105
51 x 105
63 x 105
76 x 105
76 x 105
76 x 143
76 x 143
63 Vdc Rated voltage - 72 Vdc Surge voltage
E.S.R. max.
E.S.R. Typ.
Z max
R.C.
100 Hz 25°C 100 Hz 25°C 10 kHz 25°C 100 Hz 85°C
(m)
(m)
(m)
(A
rms
)
51
42
42
32
32
27
22
22
17
17
15
15
16
11
11
10
29
21
21
21
18
15
13
13
11
11
11
10
11
8
8
6
25
20
20
20
16
13
11
11
10
10
9
10
10
8
8
6
6.2
7.0
8.2
8.7
10.1
11.1
12.4
14.6
15.6
17.9
15.8
18.8
23.7
29.5
34.5
36.1
L.C.
20°C 5 min.
(mA)
1.8
2.6
2.6
3.8
3.8
5.7
8.3
8.3
12
12
18
18
26
38
38
57
Arcotronics P/N
EPH478M063AT8A_
EPH688M063AT8A_
EPH688M063AT9A_
EPH109M063AT9A_
EPH109M063AW2X_
EPH159M063AW2X_
EPH229M063AW2X_
EPH229M063AW3X_
EPH339M063AW3X_
EPH339M063AX1X_
EPH479M063AW3X_
EPH479M063AX1X_
EPH689M063AY1X_
EPH10KM063AY1X_
EPH10KM063AY3X_
EPH15KM063AY3X_
Rated cap.
100 Hz 20°C
(F)
4 700
6 800
10 000
15 000
22 000
22 000
33 000
33 000
47 000
47 000
68 000
100 000
Case size
DxL
(mm)
35 x 60
35 x 79
51 x 79
51 x 105
51 x 105
63 x 105
63 x 105
76 x 105
76 x 105
76 x 143
76 x 143
76 x 143
75 Vdc Rated voltage - 86 Vdc Surge voltage
E.S.R. max.
E.S.R. Typ.
Z max
R.C.
100 Hz 25°C 100 Hz 25°C 10 kHz 25°C 100 Hz 85°C
(m)
(m)
(m)
(A
rms
)
51
42
32
27
22
22
17
17
15
15
15
13
29
20
18
15
12
12
11
11
10
10
10
8
25
20
16
13
11
11
10
10
10
10
10
8
5.4
8.5
11.0
12.7
15.2
15.2
18.5
18.5
22.1
22.1
26.0
32.9
L.C.
20°C 5 min.
(mA)
2.1
3.1
4.5
6.7
9.9
9.9
15
15
21
21
31
45
Arcotronics P/N
EPH478M075AT8A_
EPH688M075AT9A_
EPH109M075AW2X_
EPH159M075AW3X_
EPH229M075AW3X_
EPH229M075AX1X_
EPH339M075AX1X_
EPH339M075AY1X_
EPH479M075AY1X_
EPH479M075AY3X_
EPH689M075AY3X_
EPH10KM075AY3X_
Rated cap.
100 Hz 20°C
(F)
1 500
2 200
3 300
3 300
4 700
4 700
6 800
10 000
10 000
10 000
15 000
15 000
22 000
33 000
47 000
68 000
Case size
DxL
(mm)
35 x 60
35 x 60
35 x 60
35 x 79
35 x 79
51 x 79
51 x 79
51 x 79
51 x 105
63 x 105
51 x 105
63 x 105
63 x 105
76 x 105
76 x 143
76 x 222
100 Vdc Rated voltage - 115 Vdc Surge voltage
E.S.R. max.
E.S.R. Typ.
Z max
R.C.
100 Hz 25°C 100 Hz 25°C 10 kHz 25°C 100 Hz 85°C
(m)
(m)
(m)
(A
rms
)
159
109
72
72
51
51
47
32
32
32
27
27
18
12
10
8
84
57
48
48
30
30
23
16
16
16
13
13
12
11
9
7
65
47
39
39
26
26
20
14
14
14
12
12
12
10
9
8
4.0
5.0
5.3
6.8
7.5
10.0
11.1
11.9
13.9
14.5
14.8
17.5
18.2
23.1
30.2
36.5
L.C.
20°C 5 min.
(mA)
0.9
1.3
2.0
2.0
2.8
2.8
4.1
6.0
6.0
6.0
9.0
9.0
13
20
28
41
Arcotronics P/N
EPH158M100AT8A_
EPH228M100AT8A_
EPH338M100AT8A_
EPH338M100AT9A_
EPH478M100AT9A_
EPH478M100AW2X_
EPH688M100AW2X_
EPH109M100AW2X_
EPH109M100AW3X_
EPH109M100AX1X_
EPH159M100AW3X_
EPH159M100AX1X_
EPH229M100AX1X_
EPH339M100AY1X_
EPH479M100AY3X_
EPH689M100AY5X_
09/2006
146
ARCOTRONICS
EPH
Aluminium Electrolytic Capacitors
SCREW TERMINALS - Long life 85°C / 10000 h
160 Vdc Rated voltage - 184 Vdc Surge voltage
E.S.R. max.
E.S.R. Typ.
Z max
R.C.
100 Hz 25°C 100 Hz 25°C 10 kHz 25°C 100 Hz 85°C
(m)
(m)
(m)
(A
rms
)
159
106
72
58
41
41
28
24
24
16
14
10
98
62
50
35
25
25
20
13
13
12
10
8
90
71
43
30
25
25
22
12
12
12
10
8
4.0
5.3
7.0
8.6
10.9
10.9
13.0
17.4
17.4
20.9
26.4
34.1
Rated cap.
100 Hz 20°C
(F)
1 000
1 500
2 200
3 300
4 700
4 700
6 800
10 000
10 000
15 000
22 000
33 000
Case size
DxL
(mm)
35 x 79
51 x 79
51 x 79
51 x 105
51 x 105
63 x 105
63 x 105
76 x 105
76 x 143
76 x 143
76 x 143
76 x 222
L.C.
20°C 5 min.
(mA)
1.0
1.4
2.1
3.2
4.5
4.5
6.5
9.6
9.6
14
21
32
Arcotronics P/N
EPH108M160AT9A_
EPH158M160AW2X_
EPH228M160AW2X_
EPH338M160AW3X_
EPH478M160AW3X_
EPH478M160AX1X_
EPH688M160AX1X_
EPH109M160AY1X_
EPH109M160AY3X_
EPH159M160AY3X_
EPH229M160AY3X_
EPH339M160AY5X_
Rated cap.
100 Hz 20°C
(F)
680
1 000
1 500
2 200
3 300
3 300
4 700
4 700
6 800
6 800
10 000
10 000
15 000
22 000
33 000
Case size
DxL
(mm)
35 x 60
51 x 79
51 x 79
51 x 105
51 x 105
63 x 105
51 x 105
63 x 105
63 x 105
76 x 105
76 x 105
76 x 143
76 x 143
76 x 143
76 x 222
200 Vdc Rated voltage - 230 Vdc Surge voltage
E.S.R. max.
E.S.R. Typ.
Z max
R.C.
100 Hz 25°C 100 Hz 25°C 10 kHz 25°C 100 Hz 85°C
(m)
(m)
(m)
(A
rms
)
234
159
106
72
58
58
41
41
28
28
24
24
19
14
11
124
86
60
47
35
35
30
30
25
25
13
13
12
10
8
119
88
63
44
33
33
28
28
20
20
12
12
12
10
8
3.4
4.2
5.8
7.2
9.0
9.0
11.1
11.1
13.9
13.9
15.8
18.6
21.4
28.9
36.1
L.C.
20°C 5 min.
(mA)
0.8
1.2
1.8
2.6
4.0
4.0
5.6
5.6
8.2
8.2
12
12
18
26
40
Arcotronics P/N
EPH687M200AT8A_
EPH108M200AW2X_
EPH158M200AW2X_
EPH228M200AW3X_
EPH338M200AW3X_
EPH338M200AX1X_
EPH478M200AW3X_
EPH478M200AX1X_
EPH688M200AX1X_
EPH688M200AY1X_
EPH109M200AY1X_
EPH109M200AY3X_
EPH159M200AY3X_
EPH229M200AY3X_
EPH339M200AY5X_
Rated cap.
100 Hz 20°C
(F)
470
680
1 000
1 500
2 200
3 300
3 300
4 700
4 700
6 800
10 000
15 000
22 000
Case size
DxL
(mm)
35 x 60
35 x 79
51 x 79
51 x 105
51 x 105
51 x 105
63 x 105
63 x 105
76 x 105
76 x 105
76 x 143
76 x 143
76 x 222
250 Vdc Rated voltage - 287.5 Vdc Surge voltage
E.S.R. max.
E.S.R. Typ.
Z max
R.C.
100 Hz 25°C 100 Hz 25°C 10 kHz 25°C 100 Hz 85°C
(m)
(m)
(m)
(A
rms
)
339
234
159
106
72
58
58
41
41
28
24
16
14
211
157
110
74
40
35
35
28
28
25
20
14
12
200
150
95
65
36
29
29
25
25
21
19
18
11
2.8
3.5
4.6
6.1
7.5
9.8
9.8
11.8
13.2
14.1
19.7
21.9
34.2
L.C.
20°C 5 min.
(mA)
0.7
1.0
1.5
2.2
3.3
4.9
4.9
7.0
7.0
10
15
22
33
Arcotronics P/N
EPH477M250AT8A_
EPH687M250AT9A_
EPH108M250AW2X_
EPH158M250AW3X_
EPH228M250AW3X_
EPH338M250AW3X_
EPH338M250AX1X_
EPH478M250AX1X_
EPH478M250AY1X_
EPH688M250AY1X_
EPH109M250AY3X_
EPH159M250AY3X_
EPH229M250AY5X_
09/2006
147
京公网安备 11010802033920号
EEWORLD
