SRS Valve

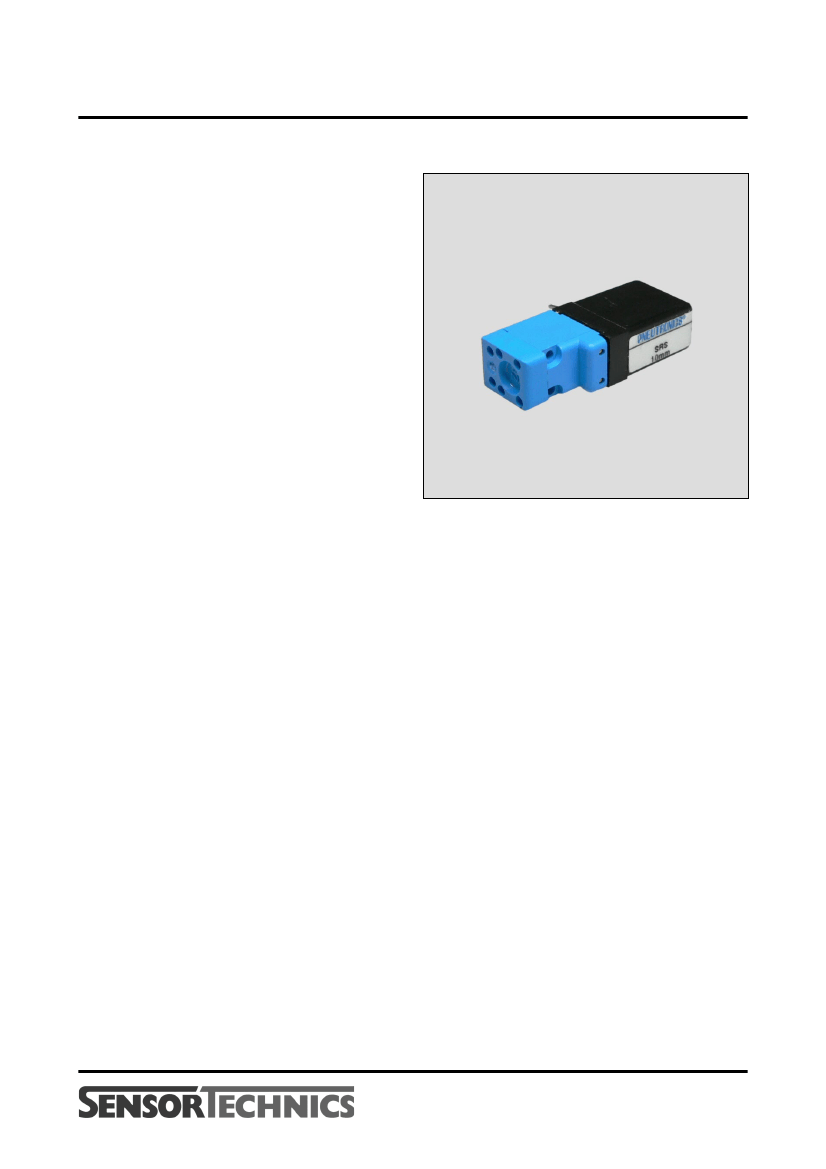

Manifold mountable plastic switching solenoid valve
FEATURES
· 3-way, 2 position valve
(NO, NC & Distributor)
· Design incorporates thermoplastics
and non-corrosive metals
· Offers high-density manifold mounting
with convenient manifold to PC board
interface
· Weighs only 7 g, perfect where low
weight is critical to overall system
MEDIA COMPATIBILITY
Gases and select liquids
PHYSICAL PROPERTIES
Operating environment
Storage temperature
0 to 70 °C
-40 to 70 °C
38 mm (1.5 in)
10 mm (0.394 in)
15.5 mm (0.61 in)
Manifold mount,
(gasket and screws supplied)
7 g (0.23 oz)
0.0267 cm
3
40 µm
None required
WETTED MATERIALS
Length
Body:
PBT; LNP Thermocomp
®
Elastomers:
FKM
Non-corrosive metals:
302 series stainless steel; 430 FR series stainless
steel; CMI-B core iron; electroless nickel plating
Width
Height
Porting
Weight
Internal volume
ELECTRICAL
Power
Voltage
0.5, 1.0 or 2.0 W
5, 12, 24 V
DC
± 10%
Filtration (recommended)
Lubrication
Thermocomp
®
is a registered trademark of General Electric Company.
October 2006 / 261
1/5
www.sensortechnics.com
SRS Valve
Manifold mountable plastic switching solenoid valve
PERFORMANCE CHARACTERISTICS
Part no.
SRS10...
SRS11...
SRS13...
SRS14...
SRS16...
SRS17...
Pressure
0...35 psig
0...85 psig
0...20 psig
0...50 psig
0...10 psig
0...20 psig
Vacuum
Orifice siz es/
Equivalent C
V1
0.020" (0.510 mm)/
0.0075 C
V
Leak rate
2
R esp o n se
0...27 "Hg
(0...13 psi)
0.030" (0.762 mm)/
0.017 C
V
0.045" (1.143 mm)/
0.027 C
V
≤
0.016 sccm
(bubble tight)
<30 msec
cycling
(2 Watts)

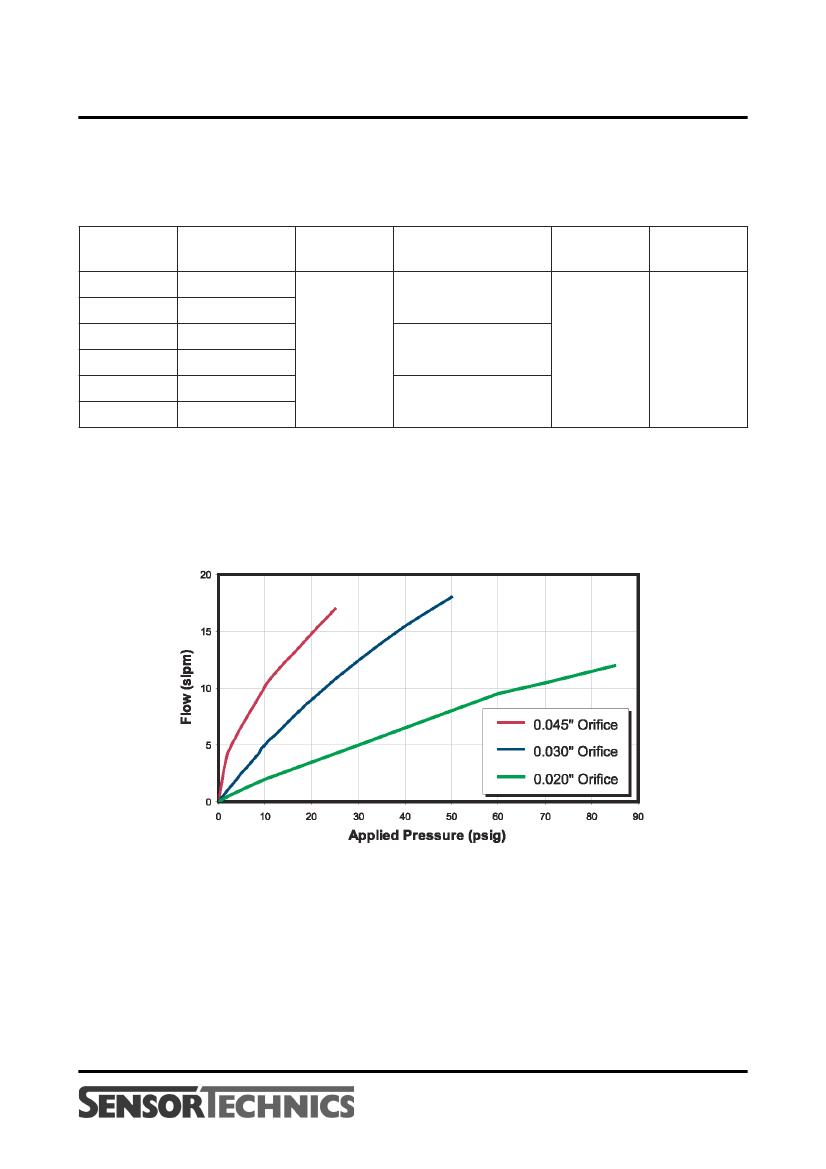

FLOW CURVES (typical air flow)
3
Notes:
1
The C
V
value is the volume flow in US gallons/min under specific flow conditions and describes the relative flow capacity of a
valve. If several valves with the same nominal diameter are compared, the valve with the highest C
V
value has the best flow
dynamics design. The equivalent european measure is the k
V
value expressed in m
3
/h (k
V
= 0.86 C
V
).
2
sccm denotes Standard Cubic Centimeters per Minute. It is a unit for the flow rate at standard conditions of temperature and
pressure. 1000 sccm = 1 slpm.
3
slpm denotes Standard Liters per Minute. It is a unit for the flow rate at standard conditions of temperature and pressure.
1 slpm = 1000 sccm.
October 2006 / 261
2/5
www.sensortechnics.com
SRS Valve
Manifold mountable plastic switching solenoid valve

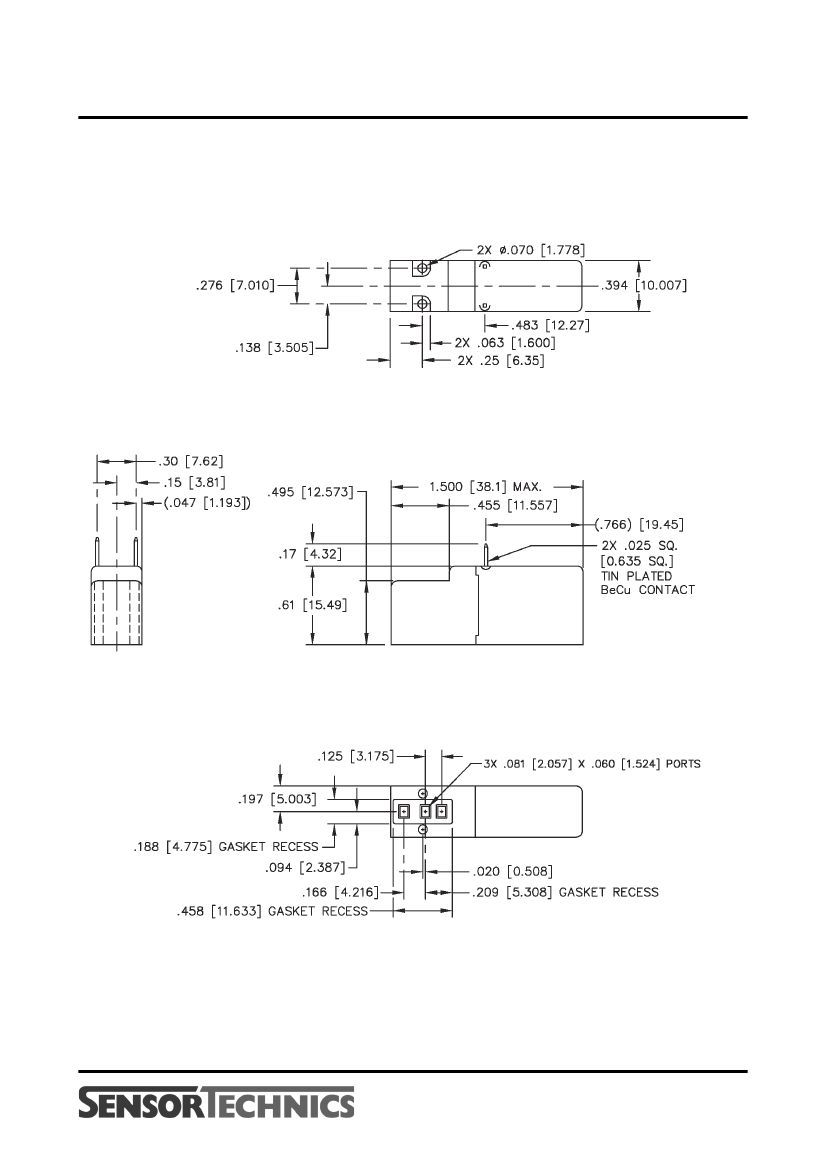

OUTLINE DRAWING
dimensions in inches (mm)
October 2006 / 261
3/5
www.sensortechnics.com
SRS Valve
Manifold mountable plastic switching solenoid valve

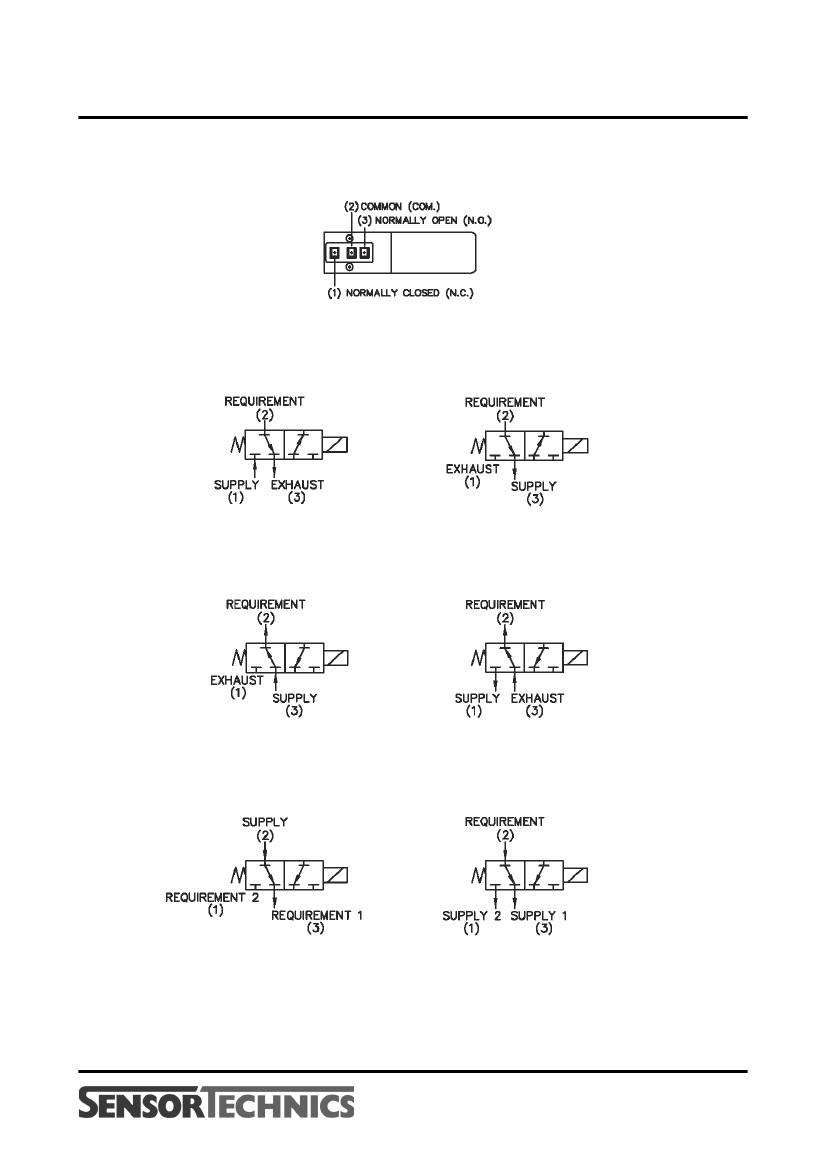

VALVE TYPE
Type 1
N.C.
PRESSURE
N.O.
VACUUM
Type 2
N.O.
PRESSURE
N.C.
VACUUM
Type 3
DISTRIBUTOR
PRESSURE
DISTRIBUTOR
VACUUM
October 2006 / 261
4/5
www.sensortechnics.com
SRS Valve
Manifold mountable plastic switching solenoid valve
ELECTRICAL INTERFACE OPTIONS
SRS...F
(Square pins, front)
SRS...M
(Square pins, manifold)
SRS...L
(Wire leads)
ORDERING INFORMATION
Model no.
Series
Options
SR S
Max.
pressure
10:
0...35 psi
11:
0...85 psi
13:
0...20 psi
14:
0...50 psi
16:
0...10 psi
17:
0...20 psi
Orifice
size
0.020"
(0.510 mm)
C oi l
wattage
0.5 W
1W
0.5 W
1W
0.5 W
1W
Type
1:
3-way NC
2:
3-way NO
3:
distributor
Material
P:
PBT
S eal
material
V:
FK M
Voltage
5:
5 V
DC
Electrical
connection
F:
0.025"
square pins,
front
0.020"
(0.510 mm)
12:
12 V
D C
0.030"
(0.762 mm)
0.030"
(0.762 mm)
24:
24 V
DC
M:
0.025"
square pins,
manifold
interface
0.045"
(1.143 mm)
0.045"
(1.143 mm)
L:
insulated
wire leads,
18", front
Example: SRS
10
2
P
V
12
M
Note: Not all combinations might be available.
Please contact your nearest Sensortechnics sales representative for further information.
Sensortechnics reserves the right to make changes to any products herein. Sensortechnics does not assume any liability arising out of the
application or use of any product or circuit described herein, neither does it convey any license under its patent rights nor the rights of others.
October 2006 / 261
5/5
www.sensortechnics.com
