9609S-C1-01-00-PP: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size111KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric View All

9609S-C1-01-00-PP Overview

Board Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug

9609S-C1-01-00-PP Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	PICK & PLACE PAD
body width	0.098 inch
subject depth	0.236 inch
body length	0.458 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	9600S
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	100u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	9

9609S-C1-01-00-PP Preview

CC

S

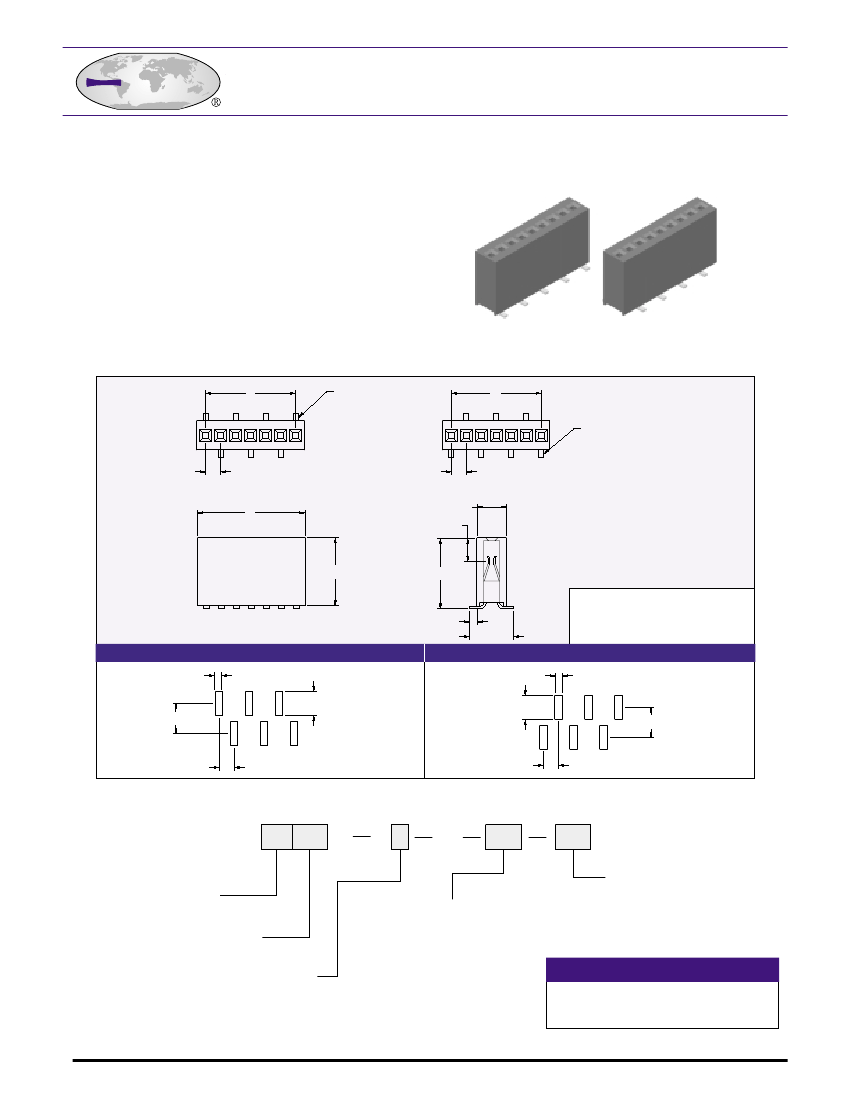

Specifications

9600S Series Sockets

.050 [1.27] SMT Socket

Insulator Material: Glass filled polyester, Thermoplastic,

94V-O Nylon-6T, UL Recognized.

Contact Material: Phosphor Bronze

Contact Plating: Gold and/or Tin over .000050” Ni

(See contact plating options)

Insulation Resistance:

5000 M ohms min.

Contact Resistance:

20 m ohms max.

Dielectric Withstand Voltage: 500 VAC

Current Rating:

1 AMP

Operating Temperature:

-40°C To +105°C

Max. Processing Temp:

230°C for 60 seconds

UL File Numbers:

E146967 & E176234

B

No.1

B

TYPE 1

.050 [1.27]

TYPE 2

.050 [1.27]

.098 [2.50]

.077 [1.95]

No.1

A

.228 [5.8]

.236 [6.0]

.024 [.60]

.146 [3.7]

A

= .008 + .050 x No. of Pos.

B

= .050 x (No. of Cont. -1)

TYPE 2 PCB LAYOUT

.025 [.63]

TYPE 1 PCB LAYOUT

.025 [.63]

.080 [2.03]

.100 [2.54]

.080 [2.03]

.100 [2.54]

.050 [1.27]

ALL DIMENSIONS ARE IN INCHES [MM]

.050 [1.27]

PART NUMBERING

96 XX S

C X

01

XX

PACKAGING

CONTACT PLATING

.000050” Nickel underplate

MATING

TAIL

00

= 100µ” Sn

100µ”Sn

01

= Au Flash

100µ”Sn

03

= Au Flash

Au Flash

10

= 10µ”Au

100µ”Sn

30

= 30µ”Au

100µ”Sn

TR

= TAPE & REEL PACKAGING

PP

= PICK AND PLACE PAD

BLANK = STANDARD PACKAGING

SERIES CODE

.050 SOCKETS

NO. OF CONTACTS

03 - 40

CONSULT FACTORY FOR

TR

AND

PP

PACKAGING

AVAILABILITY

CONNECTOR TYPE

1

= TYPE 1

2

= TYPE 2

SUGGESTED MATING CONNECTORS

94XX-AX-01-XX

(PAGE F-05)

94XX-BX-01-XX

(PAGE F-06)

94XX-C1-01-XX-XXXX (PAGE F-07)

CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR SPECIFICATION

WWW.ECSCONN.COM
