SMD POWER INDUCTORS
1. PART NO. EXPRESSION :
SSB1003 SERIES
SSB1003101MZF
(a)
(b)
(c)
(d)(e)(f)
(a) Series code
(b) Dimension code
(c) Inductance code : 101 = 100uH
(d) Tolerance code : M = ±20%
(e) X, Y, Z : Standard part
(f) F : Lead Free

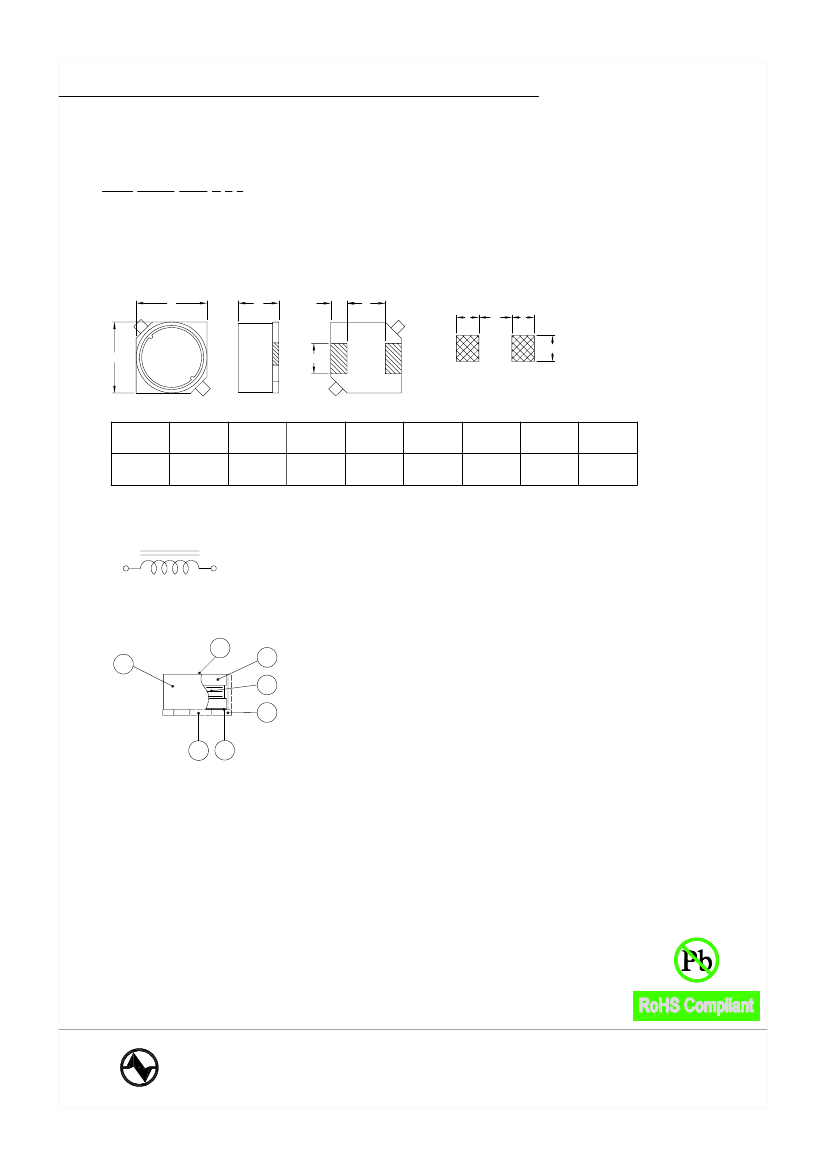

2. CONFIGURATION & DIMENSIONS :
B
C
E
F
I
G
I
101
A
B
10.0±0.3
C
3.0±0.3
A
D
PCB Pattern
Unit:m/m
D
2.4±0.2
E
2.0±0.2
F
6.0±0.2
G
5.7 Ref.
H
2.8 Ref.
I
2.5 Ref.
10.0±0.3
3. SCHEMATIC :
4. MATERIALS :
g
b
a
d
c
e
f
(a) Core : DR Ferrite Core
(b) Core : RI Ferrite Core
(c) Base : LCP
(d) Wire : Enamelled Copper Wire
(e) Terminal : Tinned Copper Plate
(f) Adhesive : Epoxy
(g) Ink : Bon Margue
5. GENERAL SPECIFICATION :
a) Temp. rise : 40°C Max.
b) Rated current : Base on temp. rise & L/L0A = 30% Max.
c) Storage temp. : -40°C to +125°C
d) Operating temp. : -40°C to +85°C
e) Resistance to solder heat : 260°C.10 secs
NOTE : Specifications subject to change without notice. Please check our website for latest information.
H
18.04.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
SMD POWER INDUCTORS
6. ELECTRICAL CHARACTERISTICS :
Part No.
SSB10031R5MF
SSB10032R2MF
SSB10033R3MF
SSB10034R7MF
SSB10036R8MF
SSB1003100MF
SSB1003120MF
SSB1003150MF
SSB1003180MF
SSB1003220MF
SSB1003270MF
SSB1003330MF
SSB1003390MF
SSB1003470MF
SSB1003560MF
SSB1003680MF
SSB1003820MF
SSB1003101MF
SSB1003121MF
SSB1003151MF
SSB1003181MF
SSB1003221MF
SSB1003271MF
SSB1003-331MF
SSB1003-391MF
SSB1003-471MF
SSB1003-561MF
SSB1003-681MF
SSB1003-821MF
SSB1003-102MF
Inductance
( µH )
1.5±20%
2.2±20%
3.3±20%
4.7±20%
6.8±20%
10.0±20%
12.0±20%
15.0±20%
18.0±20%
22.0±20%
27.0±20%
33.0±20%
39.0±20%
47.0±20%
56.0±20%
68.0±20%
82.0±20%
100.0±20%
120.0±20%
150.0±20%
180.0±20%
220.0±20%
270.0±20%
330.0±20%
390.0±20%
470.0±20%
560.0±20%
680.0±20%
820.0±20%
1000.0±20%
Test
Frequency
( Hz )
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
1V / 100K
RDC
(m )
Max.
22
25
40
45
60
70
95
120
130
180
200
210
270
300
400
440
490
670
740
790
1200
1350
1800
2000
2100
3500
3900
4100
4550
5100
SSB1003 SERIES
IDC
(A)
Max.
4.00
3.50
3.00
2.50
2.20
2.00
1.90
1.70
1.55
1.45
1.30
1.10
1.00
0.85
0.80
0.75
0.65
0.60
0.55
0.50
0.45
0.40
0.38
0.32
0.30
0.28
0.25
0.22
0.20
0.18
NOTE : Specifications subject to change without notice. Please check our website for latest information.
18.04.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
SMD POWER INDUCTORS
7. CHARACTERISTICS CURVES :
SSB1003 SERIES
@ TEMP. RISE VS. DC SUPERPOSITION RESPONSE CURVE
90
80
70
60
50
102M 331M
101M
100M
1R5M
t
(°C)
40
30
20
10
0 0
1
2
3
4
5
6
7
DC CURRENT (A)
@ INDUCTANCE VS. FREQUENCY RESPONSE CURVE
104
5
3
103
5
3
102
102M
@ INDUCTANCE VS. DC SUPERPOSITION RESPONSE CURVE
104
5
3
103
5
3
102
102M
331M
331M
101M
101M
L
(uH)
5
3
101
5
3
0
10
5
3
10-1
10-2
1R5M
100M
L
(uH)
5
3
101
5
3
0
10
5
3
10-1
10 -3
1R5M
100M
3 5
10-1 3 5
10 0
3 5
10 1 3 5
102 3 5
10 3
3 5
10 -2 3 5
10-1
3 5
100 3 5
10 1 3 5
102
FREQUENCY(MHZ)
DC CURRENT (A)
NOTE : Specifications subject to change without notice. Please check our website for latest information.
18.04.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3
SMD POWER INDUCTORS
RECOMMENDED SOLDERING CONDITIONS
REFLOW SOLDERINGS
10s max.
SSB1003 SERIES
255°C
230°C
180°C
150°C
Pre-heating
40s max.
Natural
cooling
90 to 120s

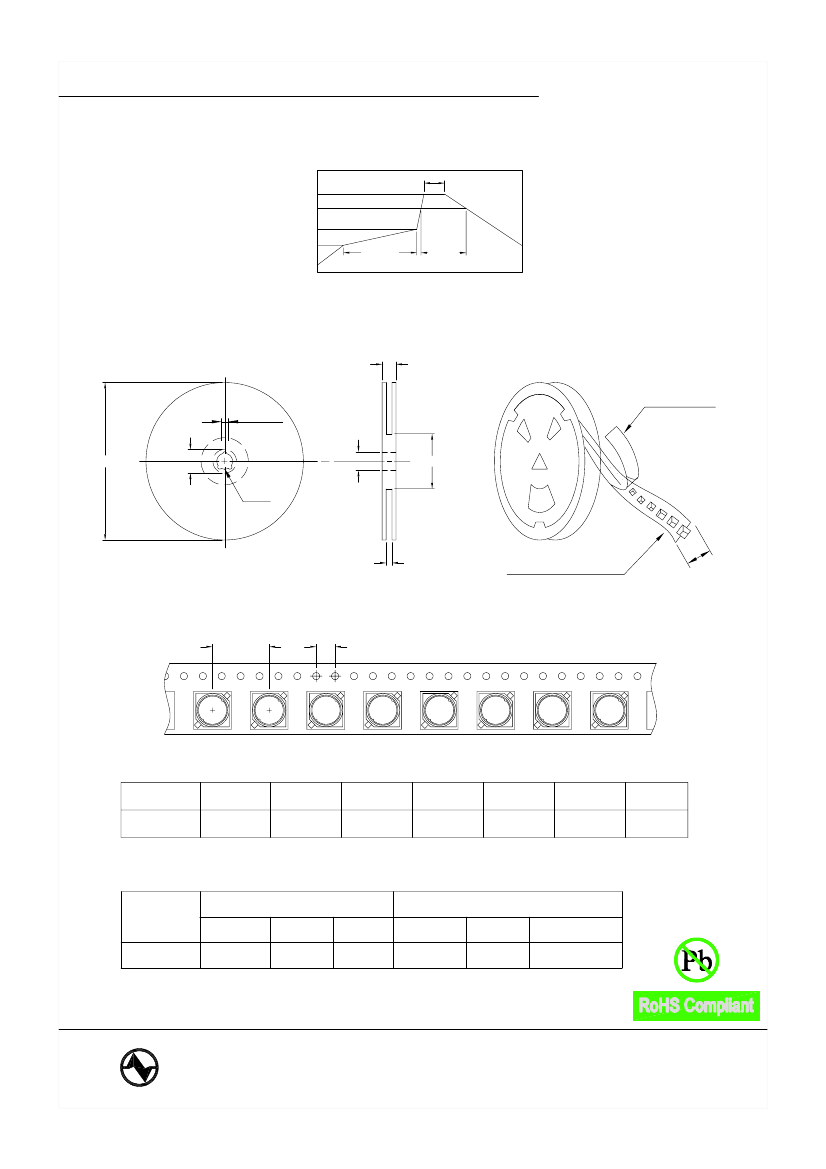

8. PACKAGING INFORMATION :
( 1 ) CONFIGURATION
T
COVER TAPE
2.0±0.5
ØC
ØC
N
A
B
G
D
EMBOSSED CARRIER
* CARRIER TAPE WIDTH : D
P:16 m/m
4 m/m
( 2 ) DIMENSIONS
STYLE
13-24
A
330
B
21±0.8
C
13
D
24
G
26
+0
N
50
-0
( 3 ) Q'TY & G.W. PER PACKAGE
INNER : REEL
SERIES
SSB1003
Q'TY (PCS)
1000
G.W. (gw)
1000
STYLE
13-24
OUTER : CARTON
Q'TY (PCS)
4000
G.W. (Kg)
7.5
SIZE (cm)
40 x 40 x 24
NOTE : Specifications subject to change without notice. Please check our website for latest information.
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
101
101
101
101
101
101
101
101
Unit:m/m
T
30.4
18.04.2008
SMD POWER INDUCTORS
9. RELIABILTY AND TEST CONDITION :
SSB1003 SERIES
TEST ITEM
SOLDERABILITY
SPECIFICATION
MORE THAN 90% OF THE
TERMINAL ELECTRODE
SHALL BE COVERED
WITH FRESH SOLDER.
TEST CONDITION
PREHEAT : 125±25°C FOR 60 SECONDS
SOLDER : 99%Sn/0.3%Ag/0.7%Cu or equivalent
SOLDER TEMP. : 245±5°C
FLUX : ROSIN
DIP TIME : 4±1 SECONDS
THERMAL SHOCK
TEST
INDUCTANCE SHALL
NOT CHANGE MORE
THAN ±20%
ROOM TEMP.
15 MINUTES
-25±2°C
30 MINUTES
( TEMP. CYCLE )
ROOM TEMP.
15 MINUTES
TOTAL : 50 CYCLES
85±2°C
30 MINUTES
HUMIDITY
RESISTANCE TEST
TEMPERATURE : 40±2°C
HUMIDITY : 90 ~ 95%
APPLIED CURRENT : PER SPEC.
TIME : 500 HOURS
HIGH TEMP.
RESISTANCE TEST
TEMPERATURE : 85±2°C
APPLIED CURRENT : PER SPEC.
TIME : 500 HOURS
NOTE : Specifications subject to change without notice. Please check our website for latest information.
18.04.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 5
