811-007
Harsh Environment Cordsets

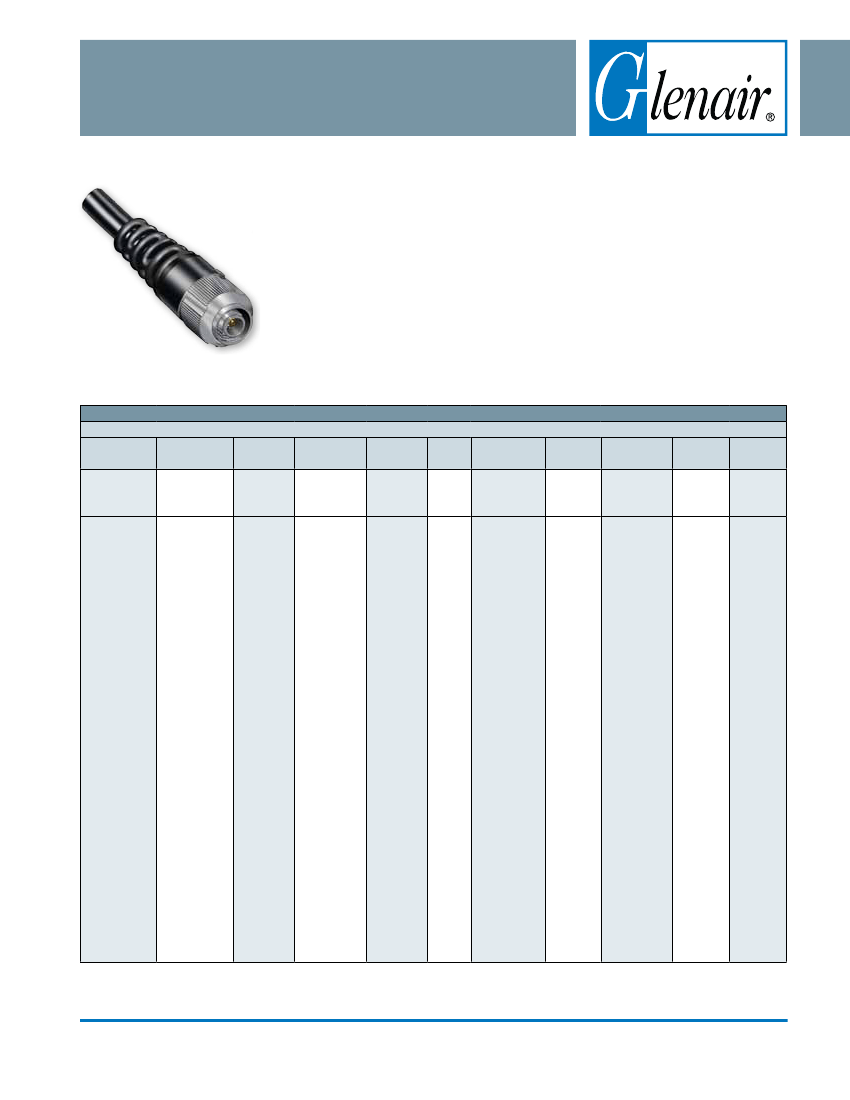

Overmolded Series 811 cordsets withstand abrasion and chemical exposure. Cable
construction features silver coated stranded conductors with TFE insulation, tinned
copper braid shield and extruded black polyurethane jacket. Choose single-ended
pigtails or double-ended "back-to-back" cables. Semi-rigid polyamide overmold
provides strain relief and environmental sealing.
Tough polyurethane jacket,
low-smoke, zero halogen
Water-resistant to 1 meter
100% electrically tested
Shielded with 90% minimum
tinned copper braid
Straight or right angle
easy to order, quick delivery
HoW To oRDER SERIES 811-007 CoRDSETS
Sample Part Number
811-007
Series
Series 811
Overmolded
Cordset
-A
End "A"
Connector
Plug with
Female
Socket
Contacts
Plug with
Male Pin
Contacts
Receptacle
with
Male Pin
Contacts
Receptacle
with
Female
Socket
Contacts
S
C
S
6
MT
Shell
Finish
5-7
Layout
P
Protective
Cover
Metal
Protective
Covers
Included
No
Protective
Covers
A
Key
Pos.
-60
Length
in
Inches
End "A" End "b" End "b" Wire
Config. Connector Config. Size
Straight
Right
Angle
811-007
-A
S
R
Plug with
Female
Socket
Contacts
Plug with
Male Pin
Contacts
Receptacle
with
Male Pin
Contacts
Receptacle
with
Female
Socket
Contacts
No
Connector
(Single-
Ended
Pigtail)
A
Straight
Right
Angle
Omit for
Single-
ended
Pigtail
S
R
#26
AWG
6
Electroless
7
Nickel
Contacts
Nickel
PTFE
Black Zinc
Nickel
ME
MT
ZR
5-7
P
-b
b
12
Contacts
22
Contacts
30
Contacts
42
Contacts
6-12
7-22
N
Overall
Length in
Normal
Inches
(12 Inch
Alternate
Minimum)
Key
Positions
A
-C
C
8-30
b
C
D
E
F
-D
D
9-42
N
Dimensions in Inches (millimeters) are subject to change without notice.
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
11 - JULY - 2013
17
E-Mail: sales@glenair.com
Mighty Mouse
High Density
Series 811 Mighty Mouse High Density (HD)
Harsh Environment Cordsets
Series 811 Mighty Mouse High Density (HD)
Harsh Environment Cordsets

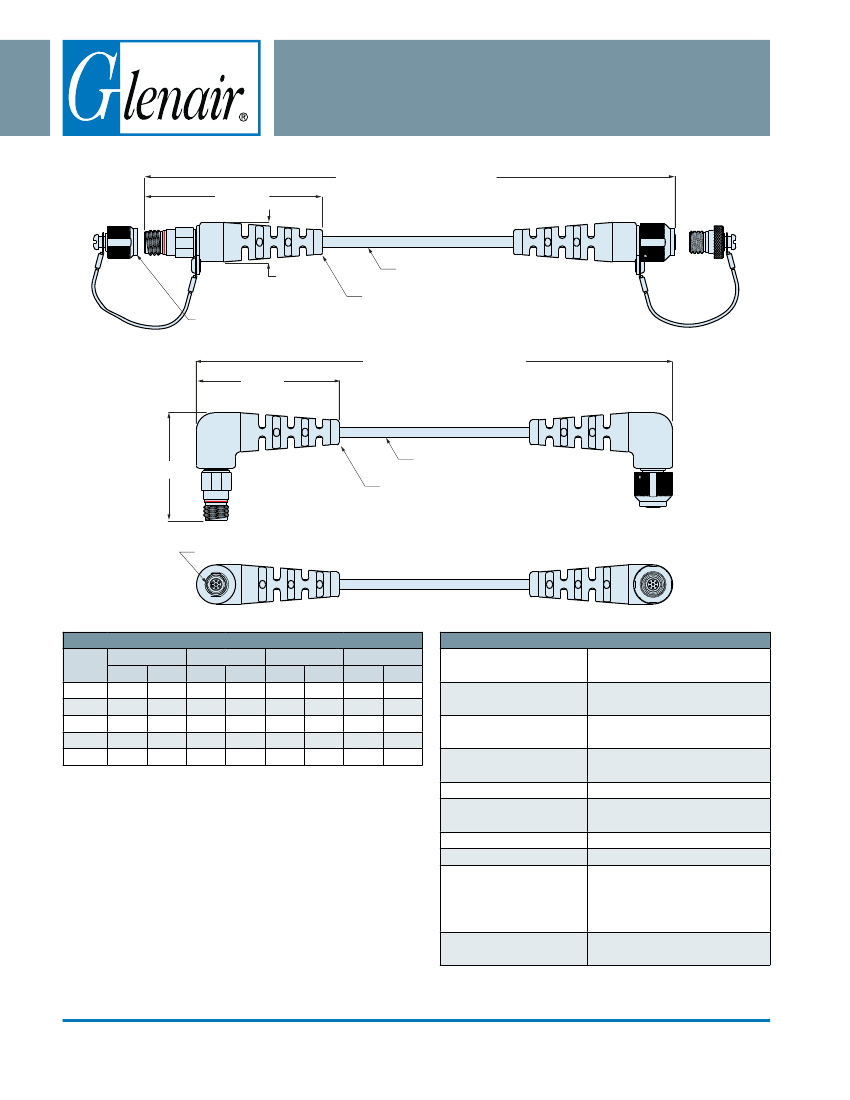

811-007
LENGTH + 2.00/ -0.00
(+50.1 / -0.0)
12 INCH (300 MM.) MINIMUM
Mighty Mouse
High Density
A MAX
B MAX
OPTIONAL PROTECTIVE
COVER
SHIELDED, JACKETED
CABLE
WATER-RESISTANT
OVERMOLD
D MAX
LENGTH + 2.00/ -0.00
(+50.1 / -0.0)
12 INCH (300 MM.) MINIMUM
C MAX
SHIELDED, JACKETED
CABLE
WATER-RESISTANT
OVERMOLD
MASTER KEY LOCATED 180°
FROM CABLE EXIT
Shell
Size
5
6
7
8
9
A Max.
In.
mm.
2.50
63.5
2.50
63.5
2.50
2.60
2.90
63.5
66.0
73.7
b Max.
In.
mm.
0.60
15.3
0.60
15.3
0.70
0.75
0.85
17.8
19.1
21.6
DIMENSIoNS
C Max.
In.
mm.
2.20
55.9
2.20
55.9
61.0
63.5
68.6
D Max.
In.
mm.
1.50
38.1
1.50
38.1
1.50
1.60
1.90
38.1
40.7
48.3
SERIES 811 CoRDSET SPECIFICATIoNS
Cable Jacket Material
Cable Shield
Conductors
BAND-IT®
Shield
Termination Band
Current Rating
Test Voltage (Dielectric
Withstanding Voltage)
Insulation Resistance
Operating Temperature
Solvent Resistance,
Polyamide Overmold
Thermoplastic Polyurethane,
Black, Low-Smoke, Zero-Halogen
Tin-Coated Copper Braid, 90%
Minimum Coverage
Silver Coated Stranded Wire, TFE
Insulated, Per M22759/11
Stainless Steel
3 A.
600 VAC Sea Level
200 megohms minimum
-30° C. to +105° C.
Excellent Resistance to Most
Solvents, Fuels, and Oils; Poor
Resistance to Strong Acids and
Bipolar Solvents (Alcohol)
50 dB minimum from 100MHz to
1000MHz.
2.40
2.50
2.70
Shielding Effectiveness
Dimensions in Inches (millimeters) are subject to change without notice.
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
11 - JULY - 2013
18
E-Mail: sales@glenair.com
