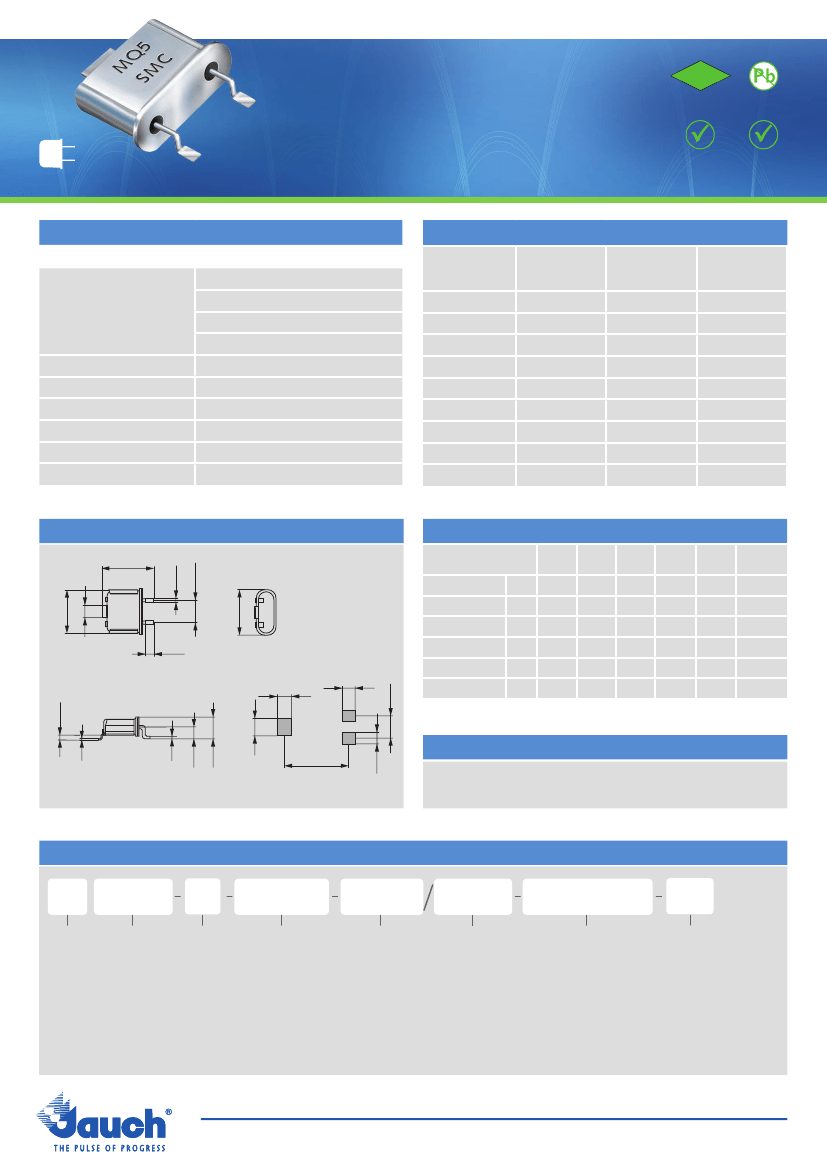

Quartz Crystal · MQ5-SMC
- UM5-SMD Crystal Version · 9.7 x 7.7 mm
- automotive temperature range available
- reflow soldering temperature: 260 °C max.
- package height 3.6 mm max.
actual size
2011/65/EC
RoHS
RoHS compliant
Pb free
REACH
compliant
Conflict
mineral free
GENERAL DATA
TYPE
frequency range
MQ5 (UM5-SMC)
10.0 ~ 40.0 MHz (fund. AT-cut)
30.0 ~ 105.0 MHz (3rd OT AT-cut)
50.0 ~ 175.0 MHz (5th OT AT-cut)
70.0 ~ 250.0 MHz (7th OT AT-cut)
frequency tolerance at 25 °C
load capacitance C
L
shunt capacitance C
O
storage temperature
drive level max.
aging
±5 ppm ~ ±30 ppm
8 pF ~ 30 pF or series
< 7 pF
-55 °C ~ +125 °C
500 µW (100 µW recommended)
< ±3 ppm first year
ESR (SERIES RESISTANCE RS)
frequency
in MHz
10.0 ~ 19.999
20.0 ~ 40.000
30.0 ~ 79.999
80.0 ~ 105.00
50.0 ~ 59.999
60.0 ~ 129.99
130.0 ~ 175.00
70.0 ~ 129.99
130.0 ~ 250.00
vibration
mode
fund. - AT
fund. - AT
3rd OT - AT
3rd OT - AT
5th OT - AT
5th OT - AT
5th OT - AT
7th OT - AT
7th OT - AT
ESR max.
in ½
60
40
100
80
250
200
180
250
200
ESR typ.
in ½
40
20
50
40
150
100
120
180
150
DIMENSIONS
3.75
±0.1
0.5
±0.1
9.7
±0.3
TABLE 1: FREQUENCY STABILITY VS. TEMPERATURE
±3
ppm
0.5
±0.1
0 °C ~ +60 °C
-40 °C ~ +85 °C T1
3.4
±0.2
1.8
±0.2
0.2
0.2
3.0
±0.1
2.0
±0.1
2.0
±0.1
7.4
±0.1
7.7
±0.1
-20 °C ~ +70 °C STD.
-40 °C ~ +90 °C T4
-40 °C ~ +105 °C T2
3.8
±0.1
3.8
±0.1
2.5
±0.1
±5
±10
ppm
2.2
±0.1
ppm
±30
ppm
±50
ppm
±100
ppm
1.5
±0.1
8.7
±0.1
2.5
±0.1
0.5
±0.1
3.0
±0.1
2.2
±0.1
-40 °C ~ +125 °C T3
standard
available
3.4
±0.2
1.8
±0.2
0.2
0.2
8.7
±0.1
2.0
±0.1
MARKING
pad layout
in mm
frequency
company code / date code
ORDER INFORMATION
Q
Quartz
frequency
10.0 ~ 250.0 MHz
type
MQ5
load capacitance
in pF
8 pF ~ 30 pF
S for series
tolerance at
25 °C
±5 ppm ~±30 ppm
stability vs.
temp. range
see table
blank =
T1 =
T2 =
T3 =
T4 =
FU =
3OT =
5OT =
7OT =
option
SMD
version
Example: Q 30.0-MQ5-30-30/50-T1-FU-SMC-LF
(Suffix LF = RoHS compliant / Pb free pins)
SMC
-20 °C ~ +70 °C
-40 °C ~ +85 °C
-40 °C ~ +105 °C
-40 °C ~ +125 °C
-40 °C ~ +90 °C
for fundamental frequencies ≥ 20 MHz
3rd overtone
5th overtone
7th overtone
22032019
info@jauch.com
Jauch Quartz GmbH • e-mail: info@jauch.de • full data can bedata can be found under:
full found under: www.jauch.com
All specifications are subject to change without notice
www.jauch.de | www.jauch.co.uk | www.jauch.fr | www.jauchusa.com
Quartz Crystal · MQ5-SMC

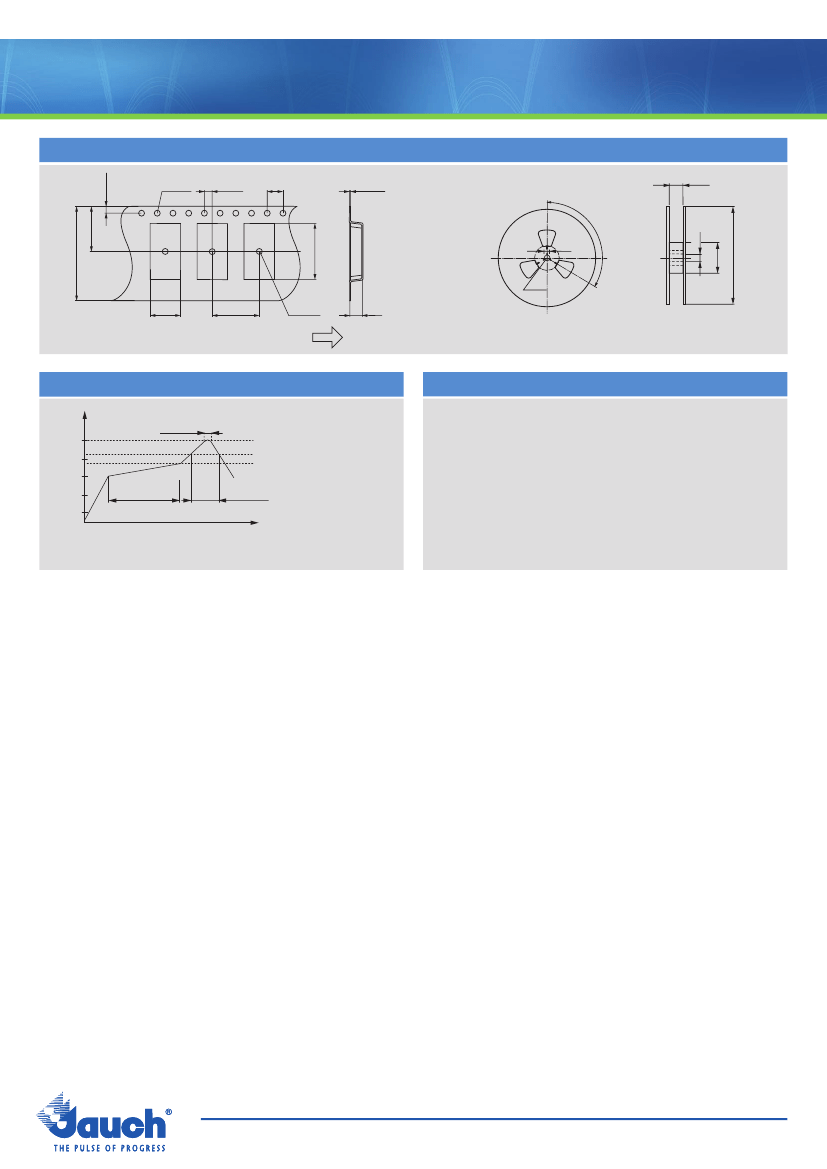

TAPING SPECIFICATION
1.75
± 0.3
ø 1.5
±
0.1
2.0
±0.1
4.0
±
0.1
0.3
±
0.05
24.8
120°
ø 13
ø 80
24.0
± 0.3
11.5
± 0.1
ø 21
7.8
12.0
ø 1.5
±
0.2
3.7
1000 pcs per reel
Direction of feed
ø 330
13
2.0
in mm
MARKING
REFLOW SOLDERING PROFILE
temperature (°C)
10 s max.
260
200
150
100
50
60 ~ 180 s
60 s max.
260 °C max.
220 5 °C
180 5 °C
frequency
company code / date code
time (s)
note: parts are also suitable for soldering systems with lead (Pb) content
22032019
Jauch Quartz GmbH • e-mail: info@jauch.com • full data can bedata can be found under:
info@jauch.de
full found under: www.jauch.com
All specifications are subject to change without notice
www.jauch.de | www.jauch.co.uk | www.jauch.fr | www.jauchusa.com
