20021112-00060T9LF datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 20021112-00060T9LF

Preview

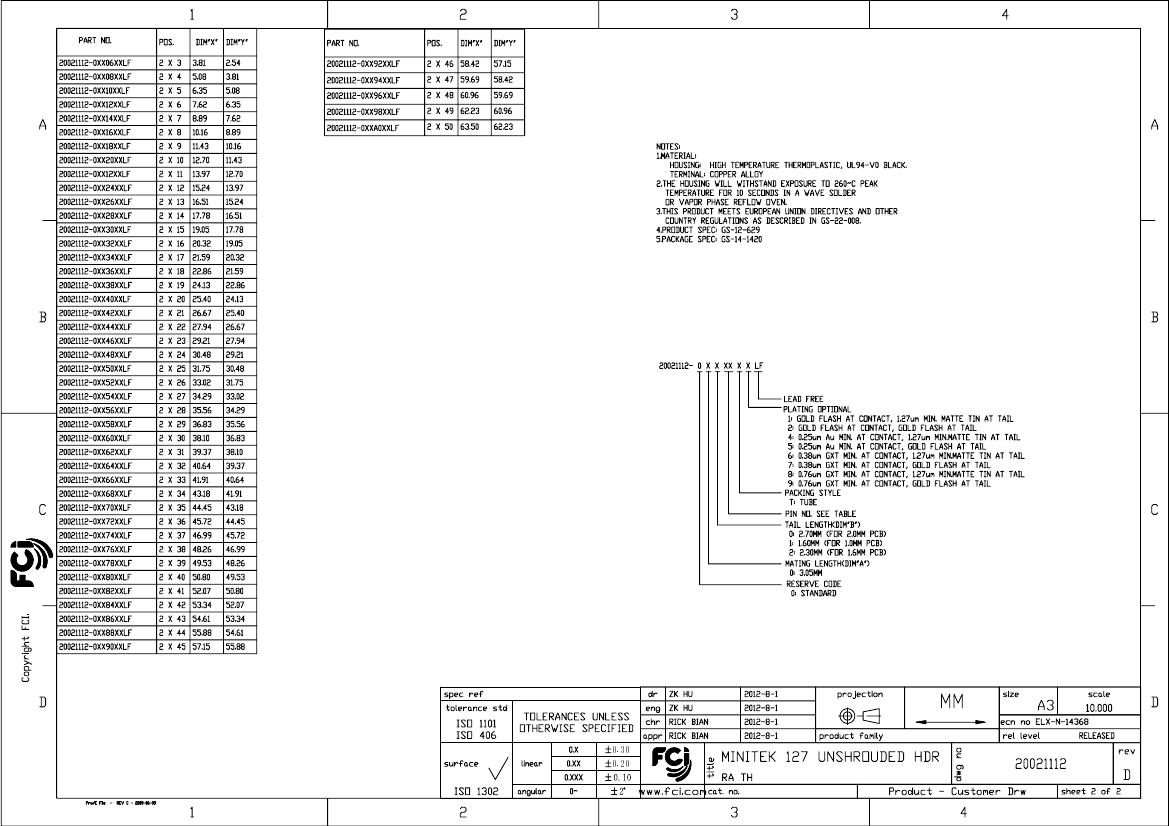

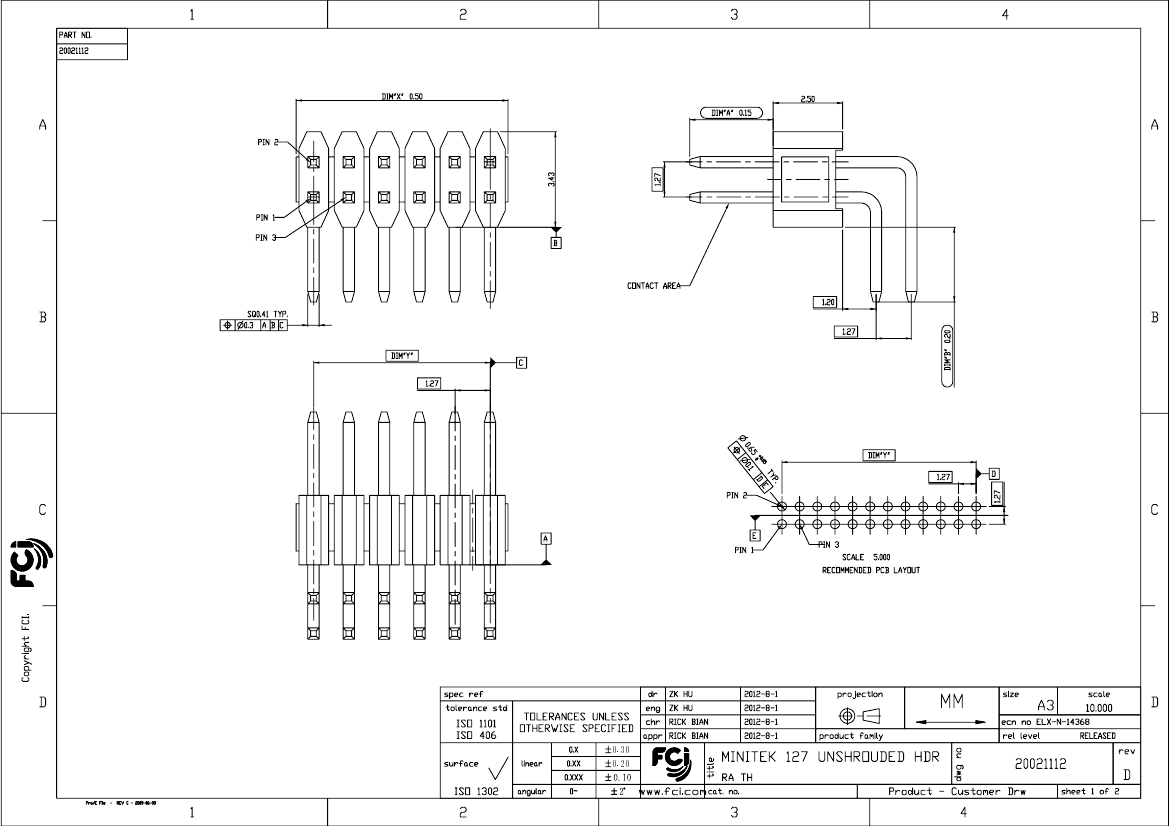

20021112-00060T9LF: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size111KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

20021112-00060T9LF Overview

Board Connector, 60 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle, LEAD FREE

20021112-00060T9LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.135 inch
subject depth	0.196 inch
body length	1.5 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (1) OVER PALLADIUM NICKEL (30)
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	700VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.1406 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
Rated current (signal)	1 A
reliability	COMMERCIAL
Terminal length	0.106 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	60
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N

Preview

Download Datasheet

View All

¡

¢ ¡¢

£ ¤

PDS: Rev :D

STATUS:Released

Printed: Mar 29, 2013

20021112-00060T9LF Related Products

	20021112-00060T9LF	B41858C4477M	20021112-00036T9LF	20021112-00068T9LF	20021112-00088T9LF	20021112-00062T9LF
Description	Board Connector, 60 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle, LEAD FREE	Aluminum electrolytic capacitors	Board Connector, 36 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle, LEAD FREE	Board Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle, LEAD FREE	Board Connector, 88 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle, LEAD FREE	Board Connector, 62 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle, LEAD FREE
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to
package instruction	LEAD FREE	-	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	-	compliant	compliant	compli	compliant
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99
body width	0.135 inch	-	0.135 inch	0.135 inch	0.135 inch	0.135 inch
subject depth	0.196 inch	-	0.196 inch	0.196 inch	0.196 inch	0.196 inch
body length	1.5 inch	-	0.9 inch	1.7 inch	2.2 inch	1.55 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (1) OVER PALLADIUM NICKEL (30)	-	GOLD (1) OVER PALLADIUM NICKEL (30)	GOLD (1) OVER PALLADIUM NICKEL (30)	GOLD (1) OVER PALLADIUM NICKEL (30)	GOLD (1) OVER PALLADIUM NICKEL (30)
Contact completed and terminated	Gold (Au)	-	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Contact point gender	MALE	-	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	-	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	-	NO	NO	NO	NO
Dielectric withstand voltage	700VAC V	-	700VAC V	700VAC V	700VAC V	700VAC V
Durability	100 Cycles	-	100 Cycles	100 Cycles	100 Cycles	100 Cycles
Filter function	NO	-	NO	NO	NO	NO
IEC compliance	NO	-	NO	NO	NO	NO
maximum insertion force	2.1406 N	-	2.1406 N	2.1406 N	2.1406 N	2.1406 N
Insulation resistance	100000000 Ω	-	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	-	BLACK	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	-	POLYETHYLENE	POLYETHYLENE	THERMOPLASTIC	POLYETHYLENE
JESD-609 code	e4	-	e4	e4	e4	e4
MIL compliance	NO	-	NO	NO	NO	NO
Plug contact pitch	0.05 inch	-	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Match contact row spacing	0.05 inch	-	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Mixed contacts	NO	-	NO	NO	NO	NO
Installation method	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	-	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	-	ONE	ONE	ONE	ONE
PCB row number	2	-	2	2	2	2
Number of rows loaded	2	-	2	2	2	2
Maximum operating temperature	105 °C	-	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	1.27 mm	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Plating thickness	30u inch	-	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	1 A	-	1 A	1 A	1 A	1 A
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.106 inch	-	0.106 inch	0.106 inch	0.106 inch	0.106 inch
Terminal pitch	1.27 mm	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	-	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	60	-	36	68	88	62
UL Flammability Code	94V-0	-	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.1946 N	-	.1946 N	.1946 N	.1946 N	.1946 N
