51939-039LF: DescriptionBoard Connector, 21 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size326KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

51939-039LF Overview

Board Connector, 21 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE

51939-039LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2126074447
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
Other features	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM
Board mount options	HOLE .138-.163
body width	0.574 inch
subject depth	0.93 inch
body length	2.6 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S24P6
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYETHYLENE
MIL compliance	NO
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	21
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N

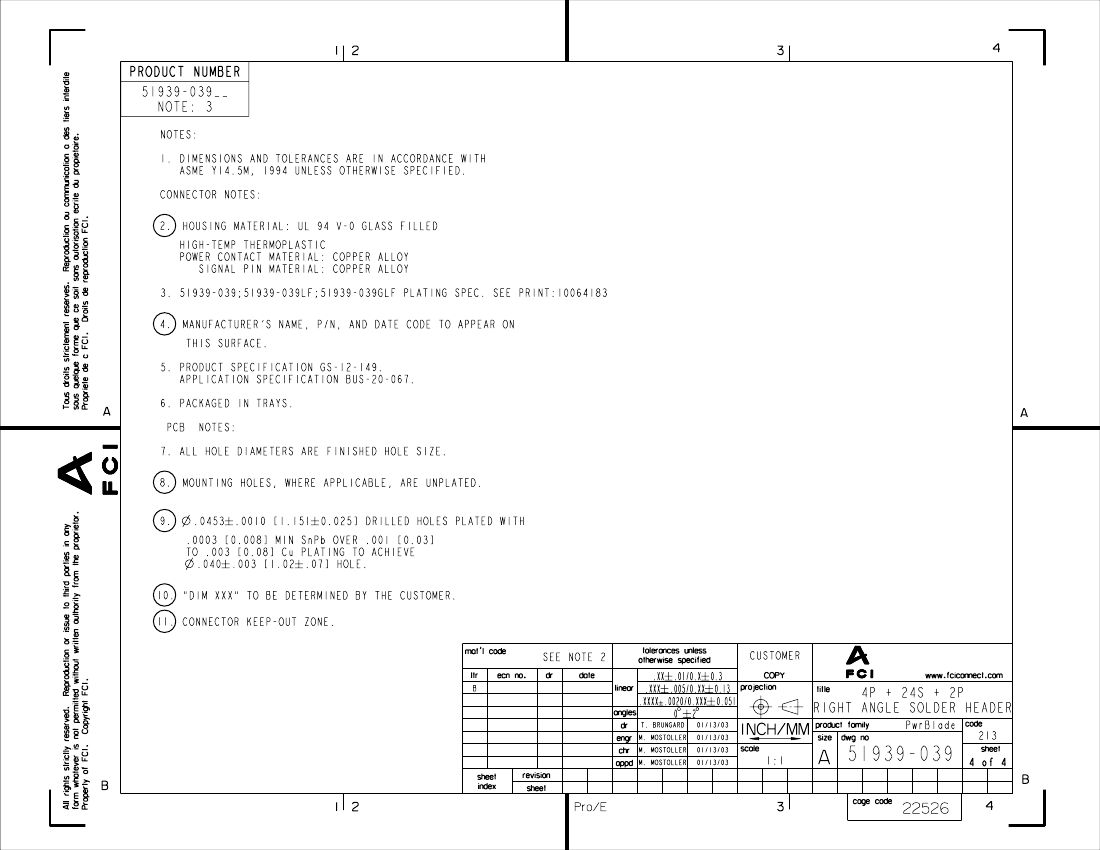

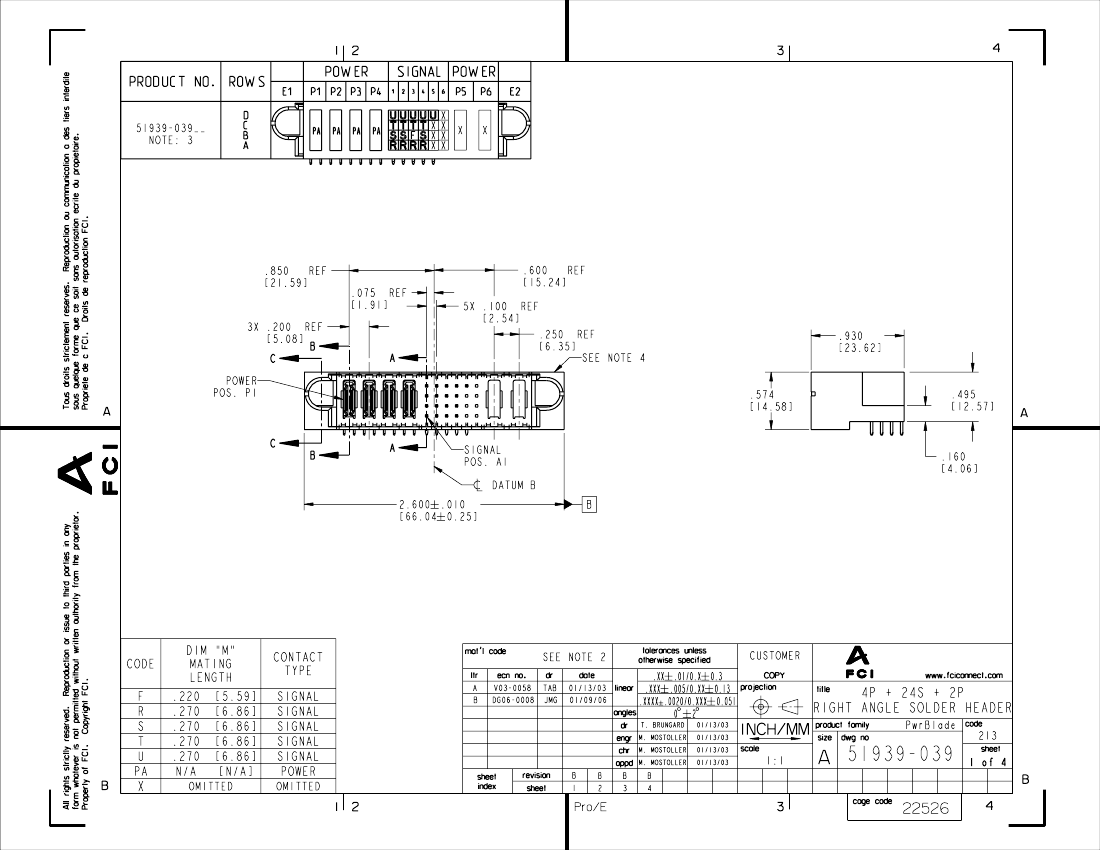

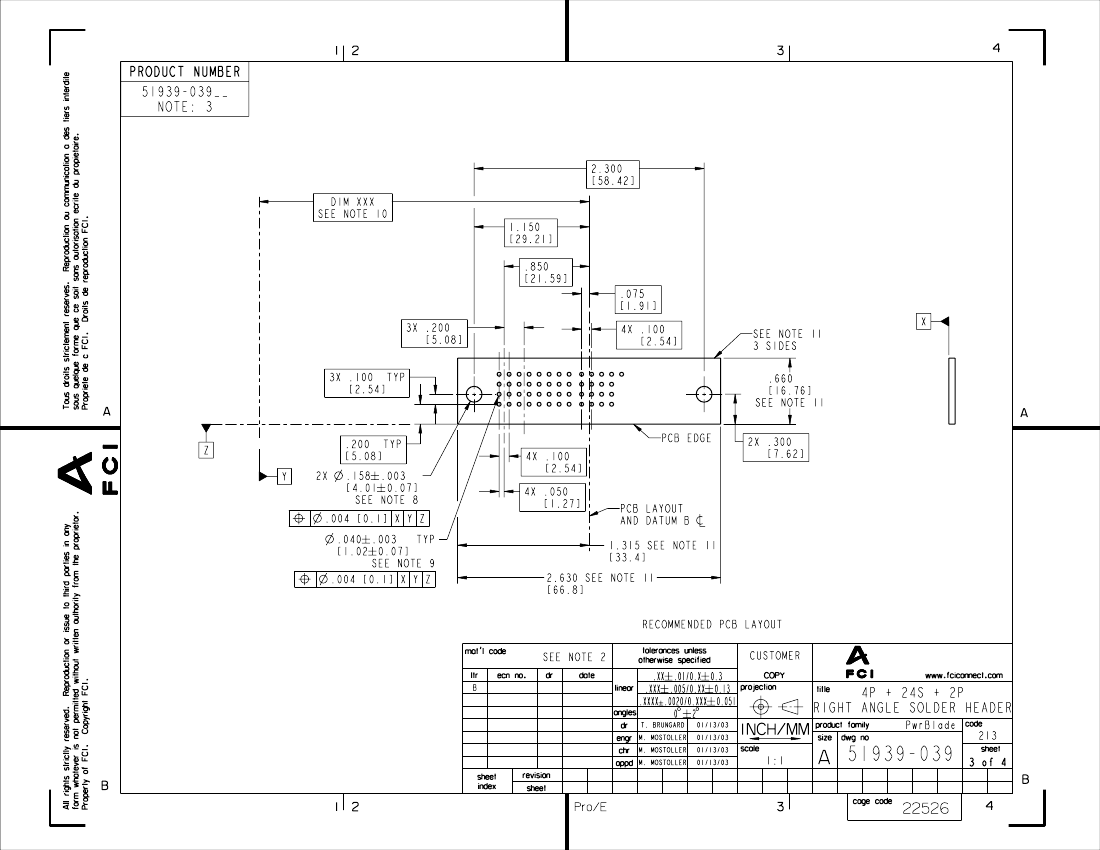

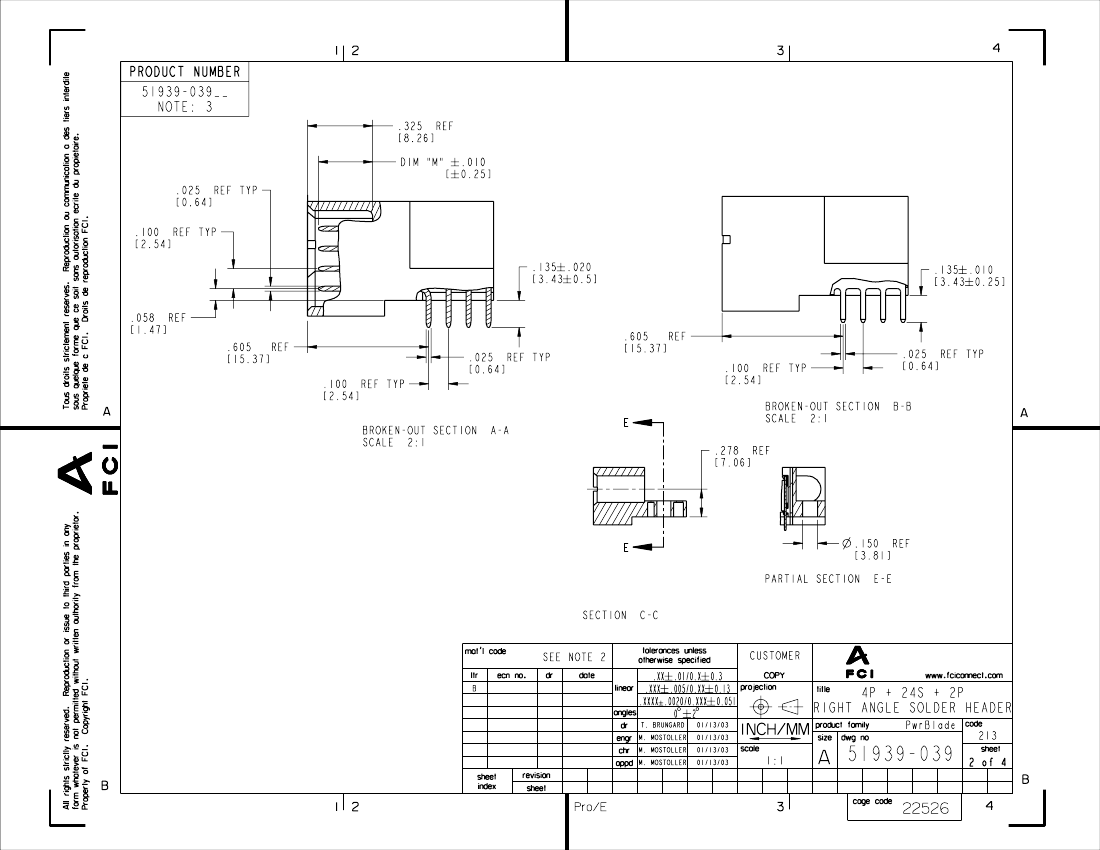

Preview

Download Datasheet

View All

PDM: Rev:C

STATUS:

Released

Printed: Dec 20, 2010

.

51939-039LF Related Products

	51939-039LF	51939-039	51939-039GLF
Description	Board Connector, 21 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE	R/A HDR POWERBLADE	Board Connector, 21 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Mixed contacts	YES	YES	YES
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	21	21	21
UL Flammability Code	94V-0	94V-0	94V-0
Is it Rohs certified?	conform to	incompatible	-
Objectid	2126074447	-	2126074446
package instruction	LEAD FREE	-	LEAD FREE
YTEOL	9.1	-	9.1
Board mount options	HOLE .138-.163	HOLE .138-.163	-
body width	0.574 inch	0.574 inch	-
subject depth	0.93 inch	0.93 inch	-
body length	2.6 inch	2.6 inch	-
Body/casing type	RECEPTACLE	RECEPTACLE	-
Contact arrangement	S24P6	S24P6	-
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	-
Contact material	NOT SPECIFIED	NOT SPECIFIED	-
Contact resistance	20 mΩ	20 mΩ	-
Contact style	HYBRID	HYBRID	-
Dielectric withstand voltage	1000VDC V	1000VDC V	-
Durability	200 Cycles	200 Cycles	-
maximum insertion force	.973 N	.973 N	-
Insulation resistance	500000000 Ω	500000000 Ω	-
insulator material	GLASS FILLED POLYETHYLENE	GLASS FILLED THERMOPLASTIC	-
Installation option 1	LOCKING	LOCKING	-
Number of connectors	ONE	ONE	-
Maximum operating temperature	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-
Guideline	UL	UL	-
Terminal length	0.135 inch	0.135 inch	-
Evacuation force-minimum value	.1668 N	.1668 N	-
