51939-239GLF: DescriptionBoard Connector, 27 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size335KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

51939-239GLF Overview

Board Connector, 27 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE

51939-239GLF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount options	HOLE .086-.098
body width	0.574 inch
subject depth	0.93 inch
body length	3.948 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	51939
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	27
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N

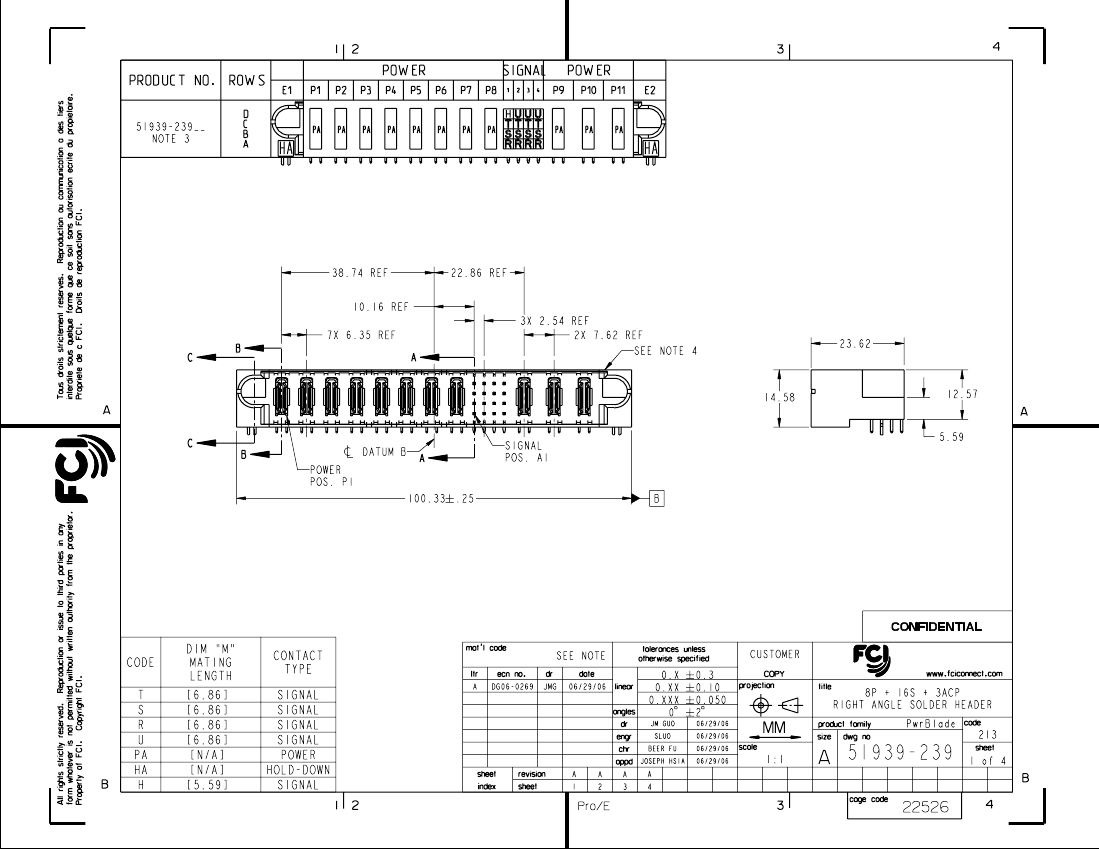

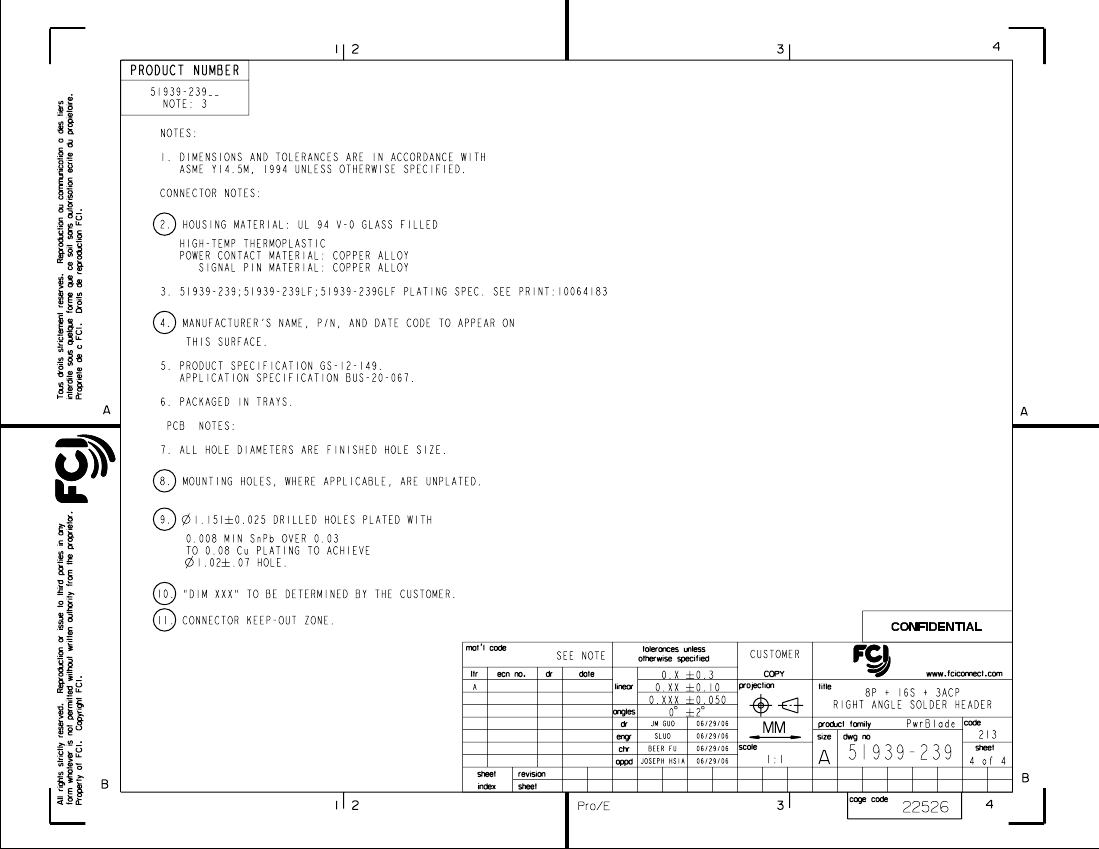

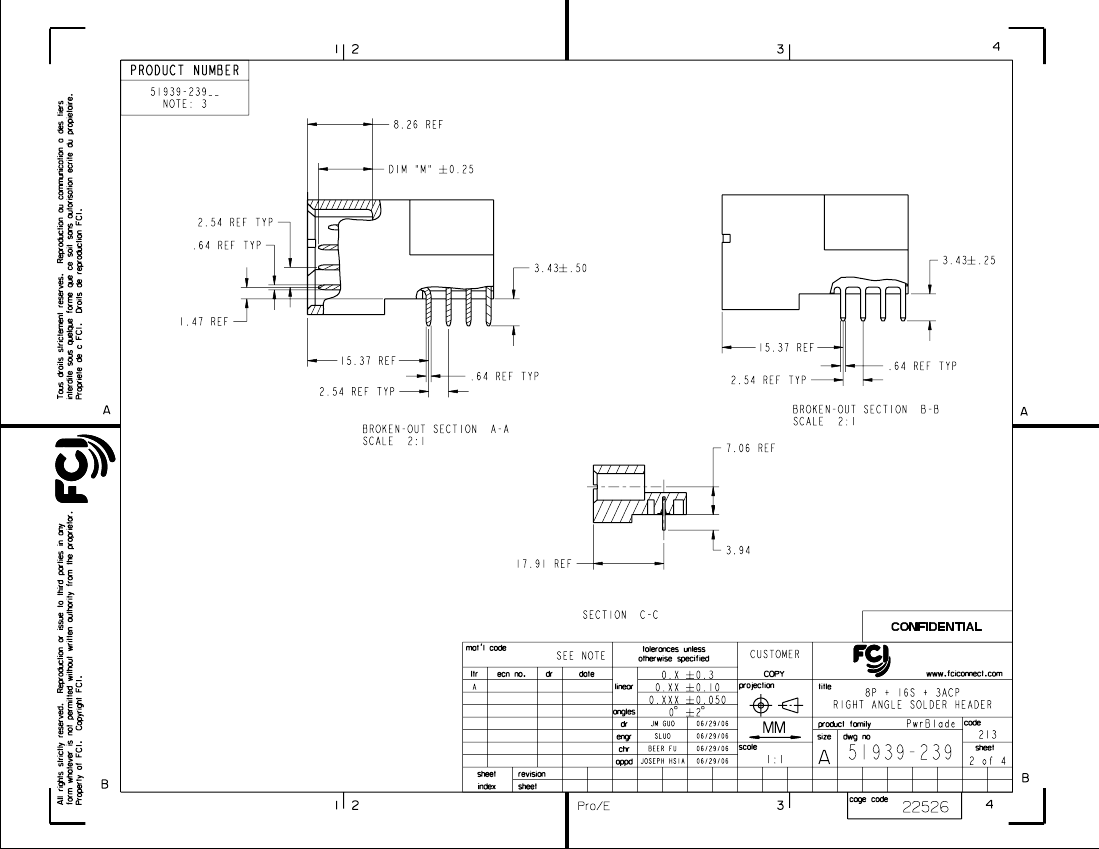

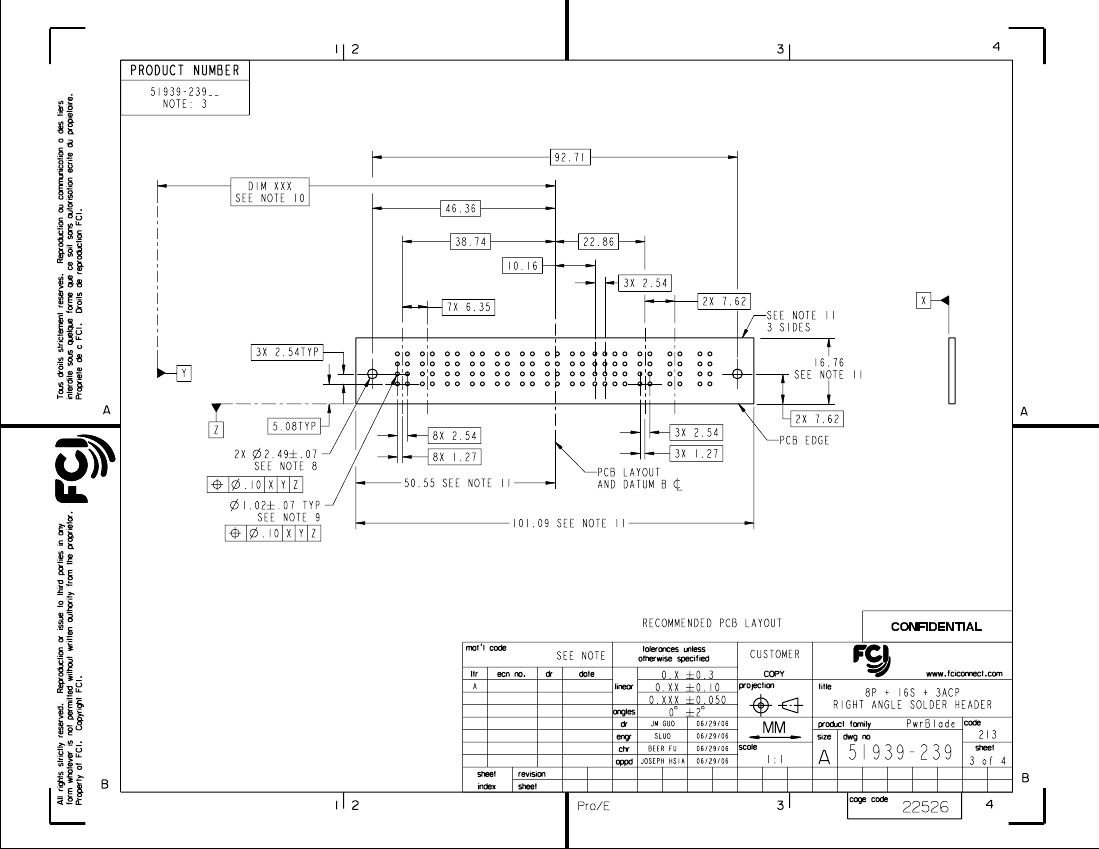

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Dec 20, 2010

51939-239GLF Related Products

	51939-239GLF	51939-239LF	51939-239
Description	Board Connector, 27 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE	Board Connector, 27 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle, LEAD FREE	Board Connector, 27 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
Is it Rohs certified?	conform to	conform to	incompatible
Reach Compliance Code	compliant	compliant	compliant
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount options	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098
body width	0.574 inch	0.574 inch	0.574 inch
subject depth	0.93 inch	0.93 inch	0.93 inch
body length	3.948 inch	3.948 inch	3.948 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID	HYBRID
DIN compliance	NO	NO	NO
Dielectric withstand voltage	1000VDC V	1000VDC V	1000VDC V
Durability	200 Cycles	200 Cycles	200 Cycles
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
maximum insertion force	.973 N	.973 N	.973 N
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	NO	NO
Manufacturer's serial number	51939	51939	51939
Mixed contacts	YES	YES	YES
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
Number of rows loaded	4	4	4
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.135 inch	0.135 inch	0.135 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	27	27	27
UL Flammability Code	94V-0	94V-0	94V-0
Evacuation force-minimum value	.1668 N	.1668 N	.1668 N
package instruction	LEAD FREE	LEAD FREE	-
Maker	-	Amphenol	Amphenol
ECCN code	-	EAR99	EAR99
