76762-6037 datasheet, PDF - EEWORLD Datasheet

76762-6037: DescriptionBoard Connector, 60 Contact(s), 6 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Pin, Black Insulator; CategoryThe connector The connector; File Size329KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

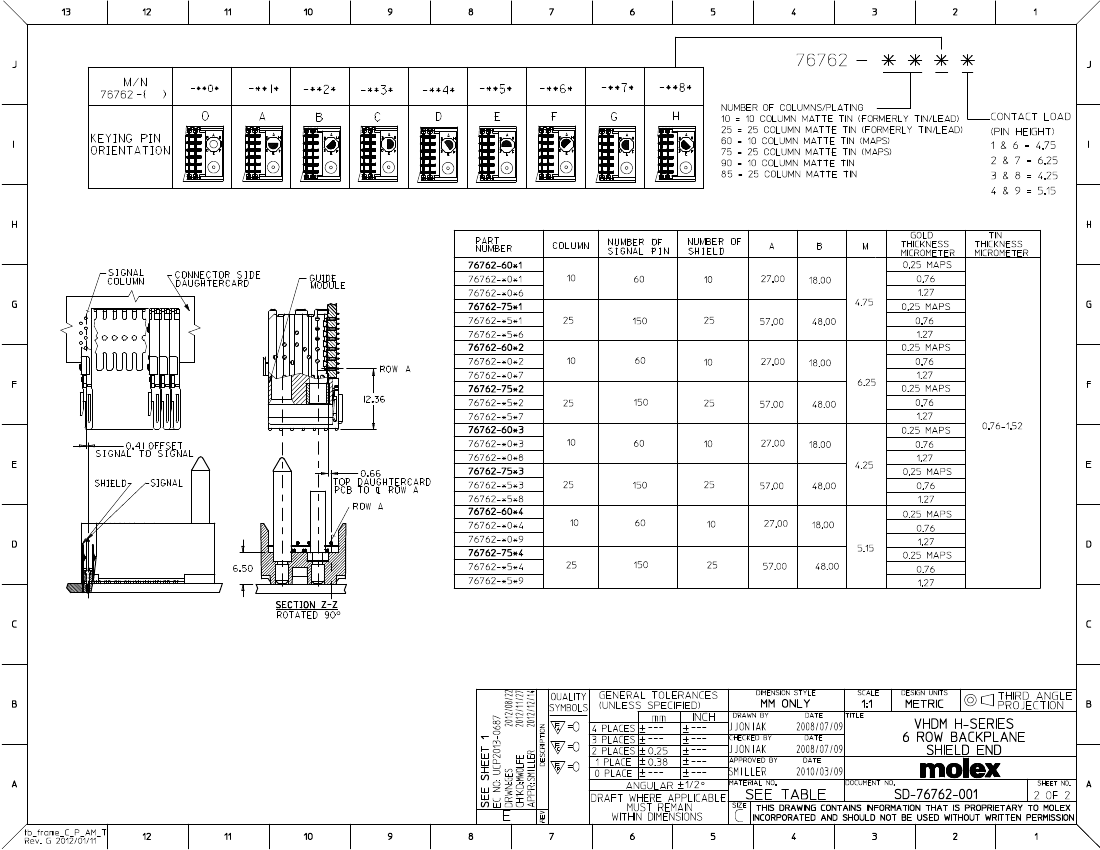

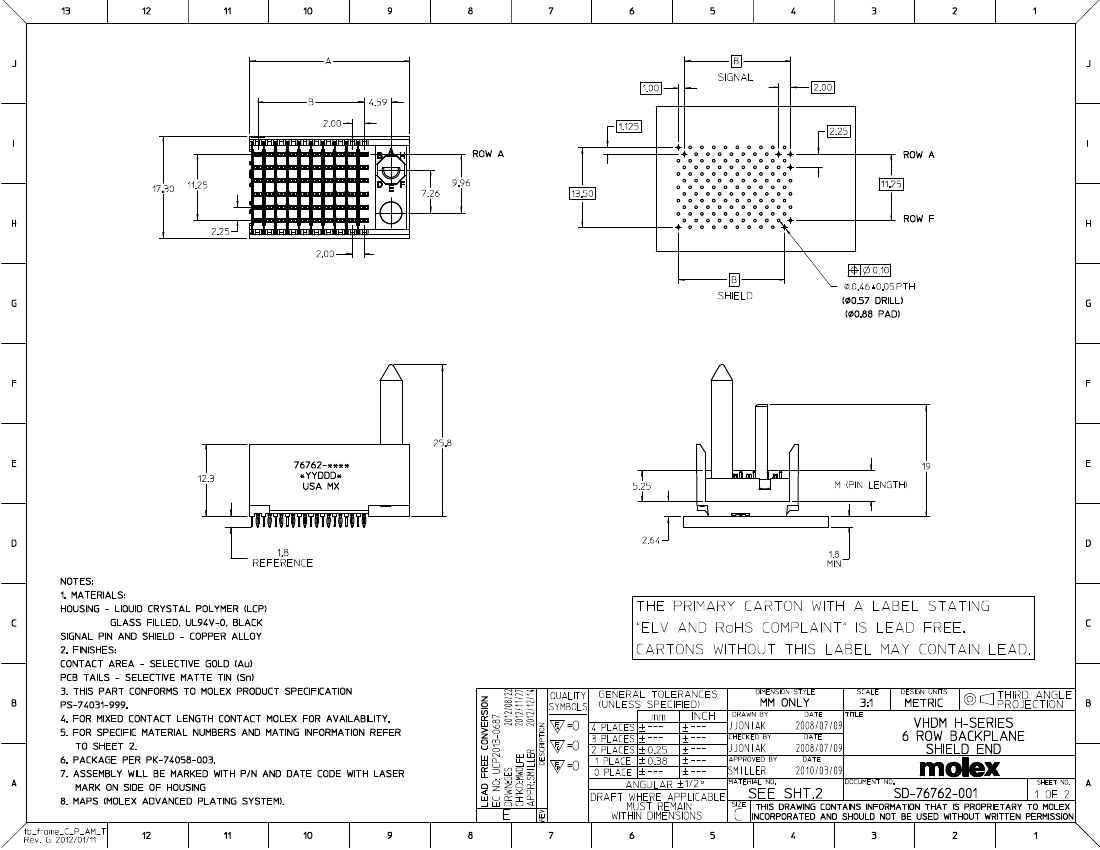

76762-6037 Overview

Board Connector, 60 Contact(s), 6 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Guide Pin, Black Insulator

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.681 inch
subject depth	0.484 inch
body length	1.063 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BLADE PIN-SKT
Dielectric withstand voltage	750VAC V
Durability	200 Cycles
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	76762
Plug contact pitch	0.079 inch
Match contact row spacing	0.089 inch
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	13
Number of rows loaded	6
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.2606 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.071 inch
Terminal pitch	2.0066 mm
Termination type	PRESS FIT
Total number of contacts	60
