Part Number

Search

54LS194AJ03

Description
Shift Register, 4-Bit, TTL, CDIP16,
Categorylogic    logic
File Size187KB,3 Pages
ManufacturerRaytheon Company
Websitehttps://www.raytheon.com/
Download Datasheet Parametric Compare View All

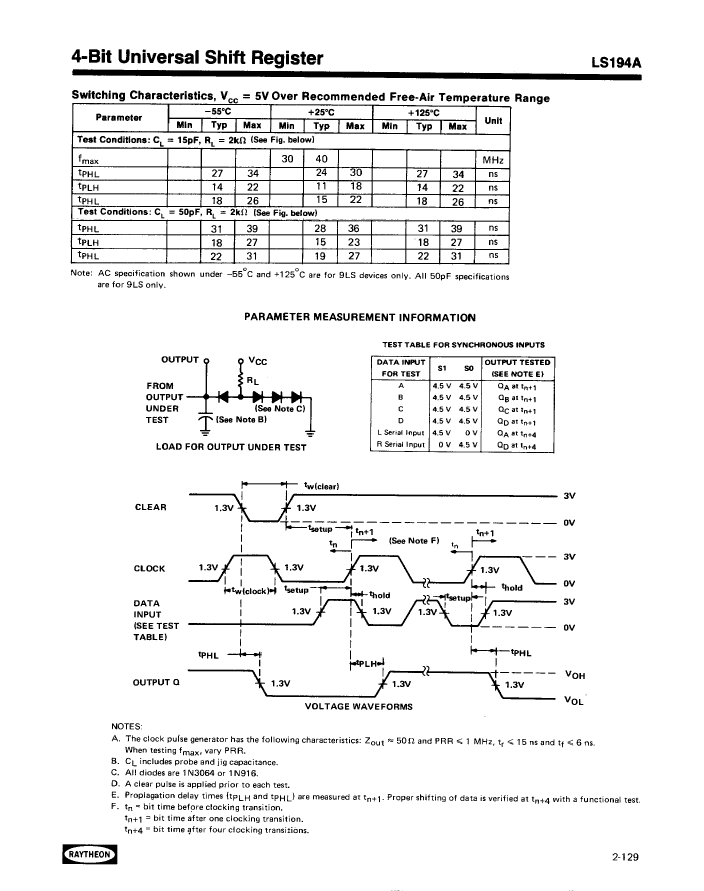

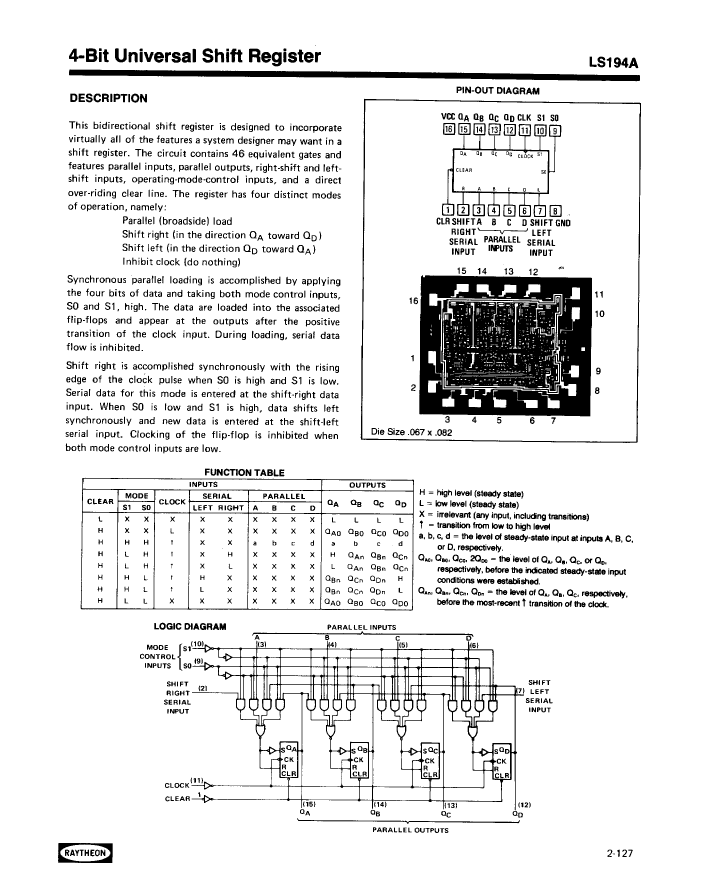

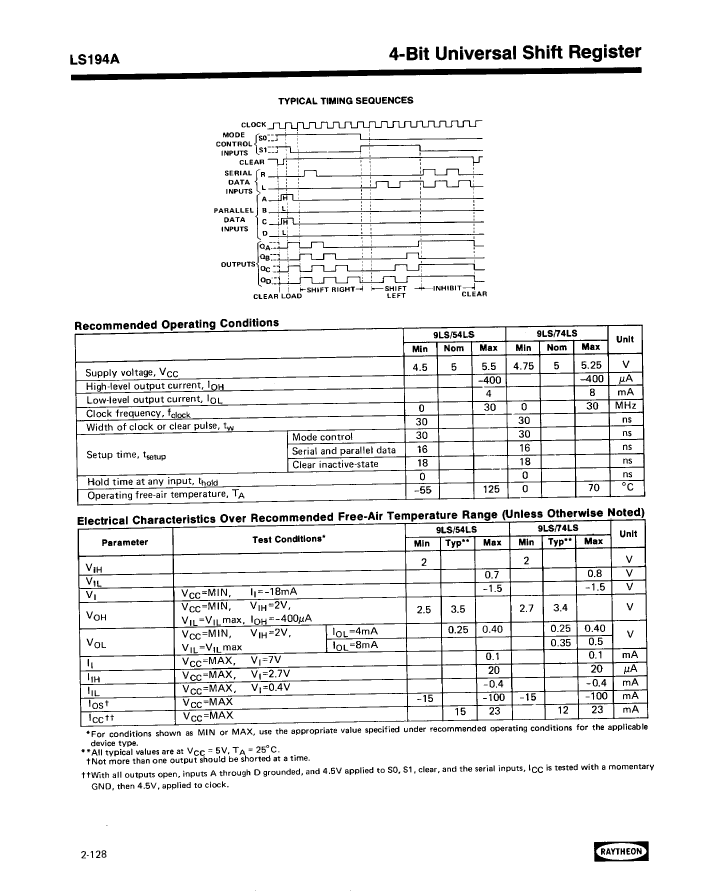

54LS194AJ03 Overview

Shift Register, 4-Bit, TTL, CDIP16,

54LS194AJ03 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instructionDIP, DIP16,.3
Reach Compliance Codeunknown
JESD-30 codeR-XDIP-T16
JESD-609 codee0
Number of digits4
Number of functions1
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply5 V
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL

54LS194AJ03 Related Products

54LS194AJ03 74LS194AN 74LS194ANA+2 74LS194ANA+1 54LS194AJ
Description Shift Register, 4-Bit, TTL, CDIP16, Shift Register, Shift Register, 4-Bit, TTL, PDIP16, Shift Register, 4-Bit, TTL, PDIP16, Shift Register, 4-Bit, TTL, CDIP16,
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible
package instruction DIP, DIP16,.3 , DIP, DIP16,.3 DIP, DIP16,.3 DIP, DIP16,.3
Reach Compliance Code unknown unknown unknown unknown unknown
JESD-609 code e0 e0 e0 e0 e0
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
JESD-30 code R-XDIP-T16 - R-PDIP-T16 R-PDIP-T16 R-XDIP-T16
Number of digits 4 - 4 4 4
Number of functions 1 - 1 1 1
Number of terminals 16 - 16 16 16
Maximum operating temperature 125 °C - 70 °C 70 °C 125 °C
Package body material CERAMIC - PLASTIC/EPOXY PLASTIC/EPOXY CERAMIC
encapsulated code DIP - DIP DIP DIP
Encapsulate equivalent code DIP16,.3 - DIP16,.3 DIP16,.3 DIP16,.3
Package shape RECTANGULAR - RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE - IN-LINE IN-LINE IN-LINE
power supply 5 V - 5 V 5 V 5 V
Certification status Not Qualified - - Not Qualified Not Qualified
Nominal supply voltage (Vsup) 5 V - 5 V 5 V 5 V
surface mount NO - NO NO NO
technology TTL - TTL TTL TTL
Temperature level MILITARY - COMMERCIAL COMMERCIAL MILITARY
Terminal form THROUGH-HOLE - THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm - 2.54 mm 2.54 mm 2.54 mm
Terminal location DUAL - DUAL DUAL DUAL
Is Samacsys - N N N -
Base Number Matches - 1 1 1 -
