ZS2-HD-04 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> ZS2-HD-04

Preview

ZS2-HD-04: DescriptionBoard Connector, 4 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Plug; CategoryThe connector The connector; File Size57KB，1 Pages; ManufacturerYamaichi Electronics Co., Ltd.; Websitehttp://www.yamaichi.com/

Download Datasheet Parametric View All

ZS2-HD-04 Overview

Board Connector, 4 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, Plug

ZS2-HD-04 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.157 inch
subject depth	0.276 inch
body length	0.157 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance
Contact style	SQ PIN-SKT
Insulation resistance	1000000000 Ω
Manufacturer's serial number	ZS2
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Rated current (signal)
Guideline	UL
reliability	COMMERCIAL
Terminal length
Total number of contacts	4
Maximum wire diameter	26 AWG
Minimum wire diameter	30 AWG

Preview

Download Datasheet

View All

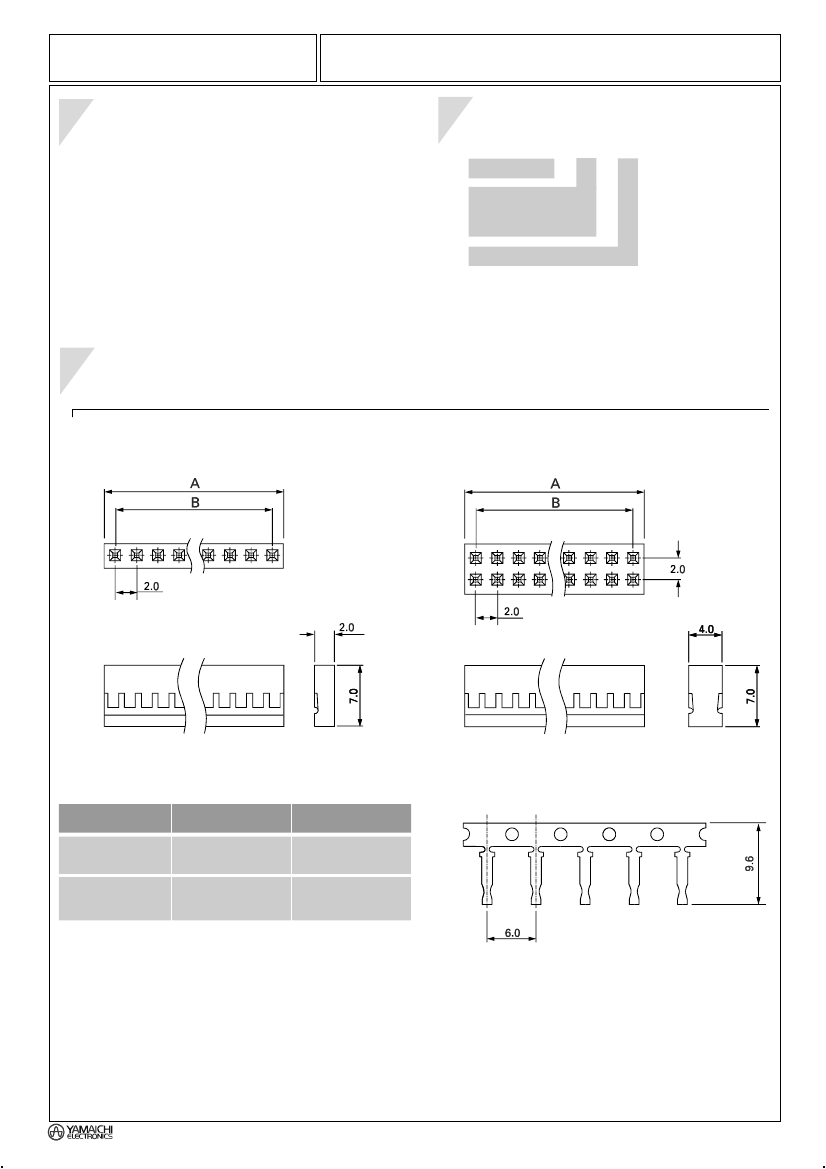

ZS2 Series

Specifications

Housing

(Single or Dual Row)

and Crimp Contacts

Part Number

(Details)

ZS2

Series No.

HS = Single Row

HD = Dual Row

T = Terminal

No. of Contact Pins

Contact Resistance:

30mΩ max. at 100mA DC

Insulation Resistance:

1,000MΩ min at 500 V

Current Rating:

1.0A

Operating Temperature Range: –55°C to +105°C

- ** - **

Materials and Finish

Housing:

UL 94V-0 listed

Terminals:

Phosphor bronze

Contact Plating: Full gold plated

Features

µ

Pin count from 2 to 80

Applicable Dimensions

(Reference Only)

Outline Connector Dimensions

Single Row

Dual Row

Dimensional Information

Part Number

YAMAICHI ELECTRONICS - Munic h 089 / 45109-0

Crimp Contacts for 26 to 30 AWG Wire

Dim. A

No. of contacts

x 2.00 mm

(No. of contacts/2)

x 2.00 mm

Dim. B

(No. of contacts –1)

x 2.00 mm

(No. of contacts/2 –1)

x 2.00 mm

ZS2-HS-**

(Single Row)

ZS2-HD-**

(Dual Row)

SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE – DIMENSIONS IN MILLIMETER

Trading Division

Recommended Resources

A crystal oscillator circuit composed of several gate circuits a

Double button light switch circuit (2)

Large dynamic range analog multiplication and division circuit diagram

Office wired intercom circuit diagram

Adjustable timer circuit diagram

Computer motherboard circuit diagram 810 4_16
