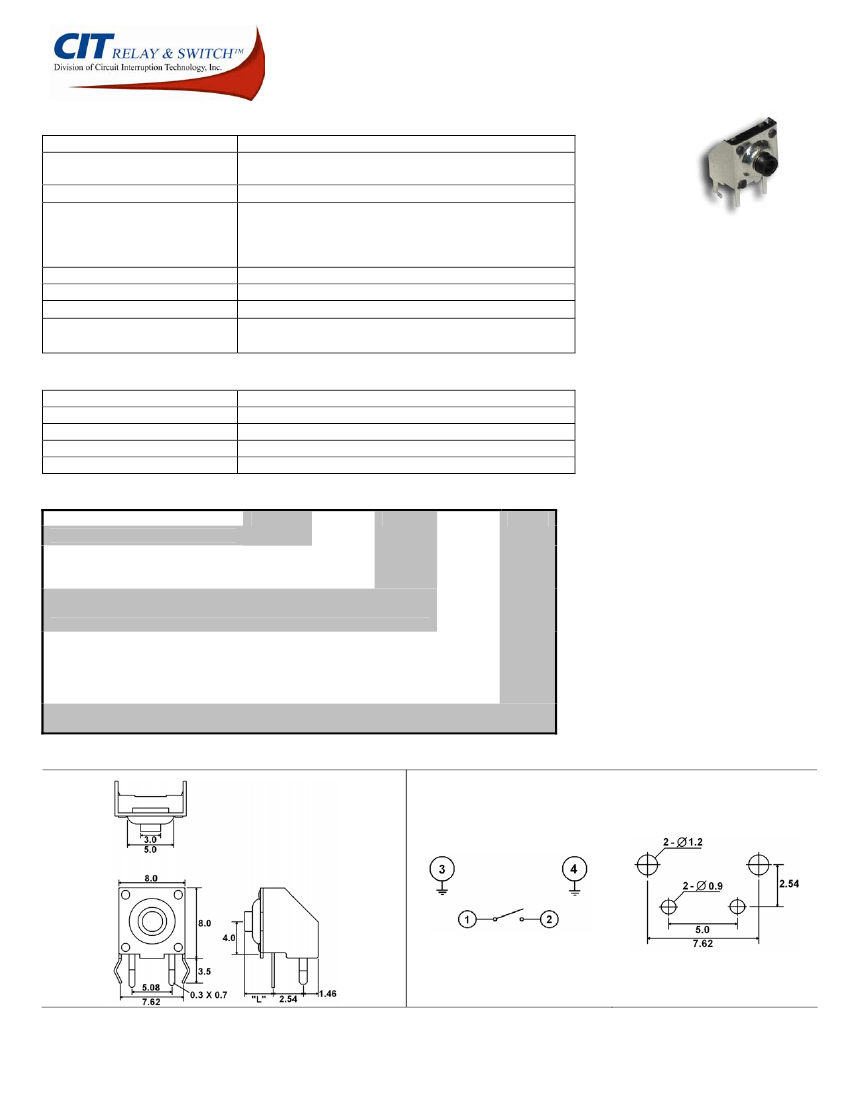

STV4.35LF520Q Overview

CIT SWITCH

STV
PROCESS SEALED
SPECIFICATIONS
Electrical Ratings
Electrical Life
Contact Resistance
Actuation Force
50mA @ 48VDC
100,000 cycles typical
1,000,000 cycles typical (Stainless steel dome only)
< 50 mΩ initial
160 +/- 50gF
200 +/- 50gF
260 +/- 50gF
520 +/- 50gF
.45 +/- .1mm
250Vrms min
> 100MΩ min
-40°C to 85°C
-55°C to 90°C
Actuator Travel
Dielectric Strength
Insulation Resistance
Operating Temperature
Storage Temperature
MATERIALS
RoHS COMPLIANT
Actuator
Housing
Cover
Contacts
Terminals
6/6 Nylon
6/6 Nylon
Stainless Steel
Phosphor Bronze or Stainless Steel, Silver Plated
Brass, Silver Plated
ORDERING INFORMATION
1. Series:
STV
2. Actuator Length:
4.35
8.35
3. Contact options:
Blank = Phosphor Bronze
L = Stainless Steel
4. Actuation Force:
F160 = 160gF
F200 = 200gF
F260 = 260gF
F520 = 520gF
5. Contact Material:
Q = Silver
STV
4.35
F160
Q
DIMENSIONS
SCHEMATIC & PC LAYOUT
www.citswitch.com
page
92
phone – 763.535.2339 fax – 763.535.2194
