STw5200
24-bit, 103 dB SNR audio DAC
Data Brief
Features
■
DAC
– 24-bit audio DAC
– 103 dB dynamic range
– Asynchronous DAC path with 8 to 48kHz
sampling rate
Supply
– Direct connection to the battery thanks to
integrated power management
Inputs
– I
2
S digital input
Analog output drivers
– Stereo headset amplifier:
- ‘True ground’ output amplifier (no coupling
capacitor)
- Driving capacity: 2 x 50 mW over 32
Ω
up
to 2 x 80 mW over 32
Ω
- Plug detection
- Click/pop suppression

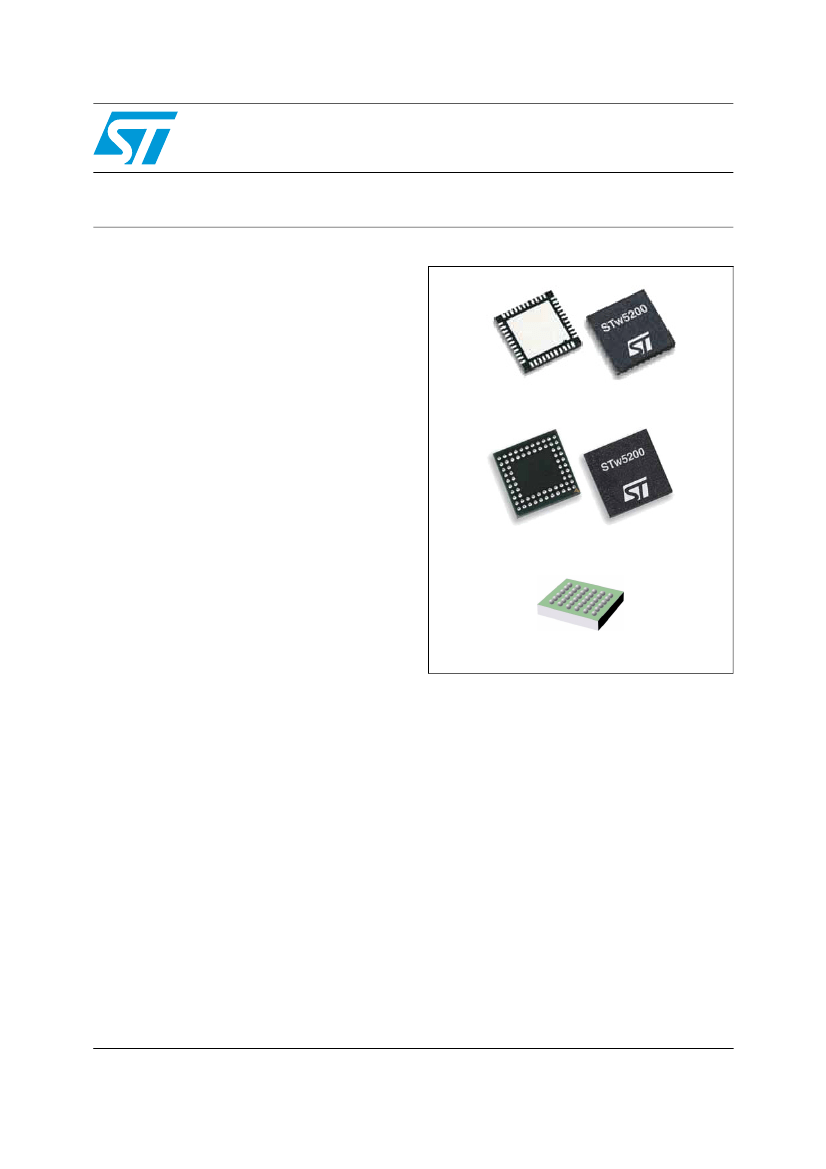

VFQFPN-44 7x7x1.0 mm, 0.5 mm pitch
■
■
■
TFBGA-40 4x4x1.2 mm, 0.5 mm pitch
WLCSP-36 2.55x2.55x0.65 mm, 0.4 mm pitch
Description
The STw5200 is a 24-bit high performance DAC
for mobile handset application with 103 dB
dynamic range for the whole audio path.
The device can be driven either by the system
clock or by the 32 kHz RTC clock.
STw5200 is very easy to integrate and thanks to
its embedded power management, it can be
directly connected to the battery.
The device foot print is very small as the EBOM is
reduced to a few components. The 50 mW
headset amplifier is of “True-ground” type (no
coupling capacitor).
January 2008
Rev 1
1/3
www.st.com
3
For further information contact your local STMicroelectronics sales office.
Block diagram
STw5200
1
Block diagram
Figure 1.
Functional block diagram of the STw5200
STw5200
Line IN
ampli
Stereo
line OUT
Stereo
Headset
No tor
aci
Cap
24-bit
24-bit
audio DAC
audio DAC
Analog
Analog
audio
audio
mixing
mixing
matrix
matrix
Supply
Supply
management
management
I²C
32 kHz
PLL
-2V
103 dB
103 dB
Stereo
Stereo
audio
audio
DAC
DAC
MCLK
I²S
SRC
SRC
2
Ordering information
Table 1.
Order codes
Package
TFBGA-40 4 mm x 4 mm x 1.2mm, pitch 0.5 mm
TFBGA-40 4 mm x 4 mm x 1.2mm, pitch 0.5 mm
WLCSP-36 2.6 mm x 2.6 mm x 0.65 mm, pitch 0.4 mm
VQFPN-44 7 mm x 7 mm x 1 mm, pitch 0.5 mm
VQFPN-44 7 mm x 7 mm x 1 mm, pitch 0.5 mm
Tray
Tape and reel
Tape and reel
Tray
Tape and reel
Packing
Order codes
STW52000K/HF
STW52000KT/HF
STW520025T/LF
STW520062/HF
STW520062T/HF
3
Revision history
Table 2.
Date
14-Jan-2008
Document revision history
Revision
1
Initial release.
Changes
