M2B25BA5W13-BB datasheet, PDF - EEWORLD Datasheet

M2B25BA5W13-BB: DescriptionPushbutton Switch, DPDT, On-(on), Momentary, 1A, 30VDC, 10 PCB Hole Cnt, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size866KB，6 Pages; ManufacturerNKK Switches; Environmental Compliance

Download Datasheet Parametric View All

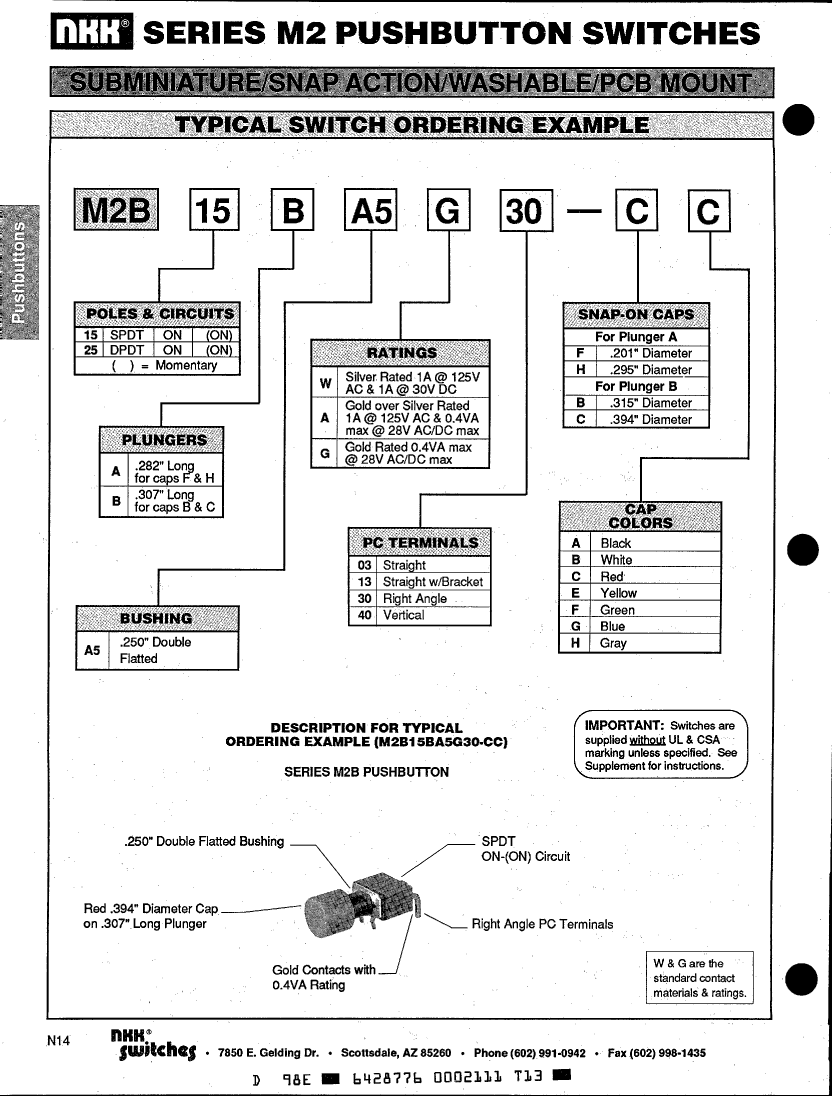

M2B25BA5W13-BB Overview

Pushbutton Switch, DPDT, On-(on), Momentary, 1A, 30VDC, 10 PCB Hole Cnt, Solder Terminal, Through Hole-straight

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	not_compliant
ECCN code	EAR99

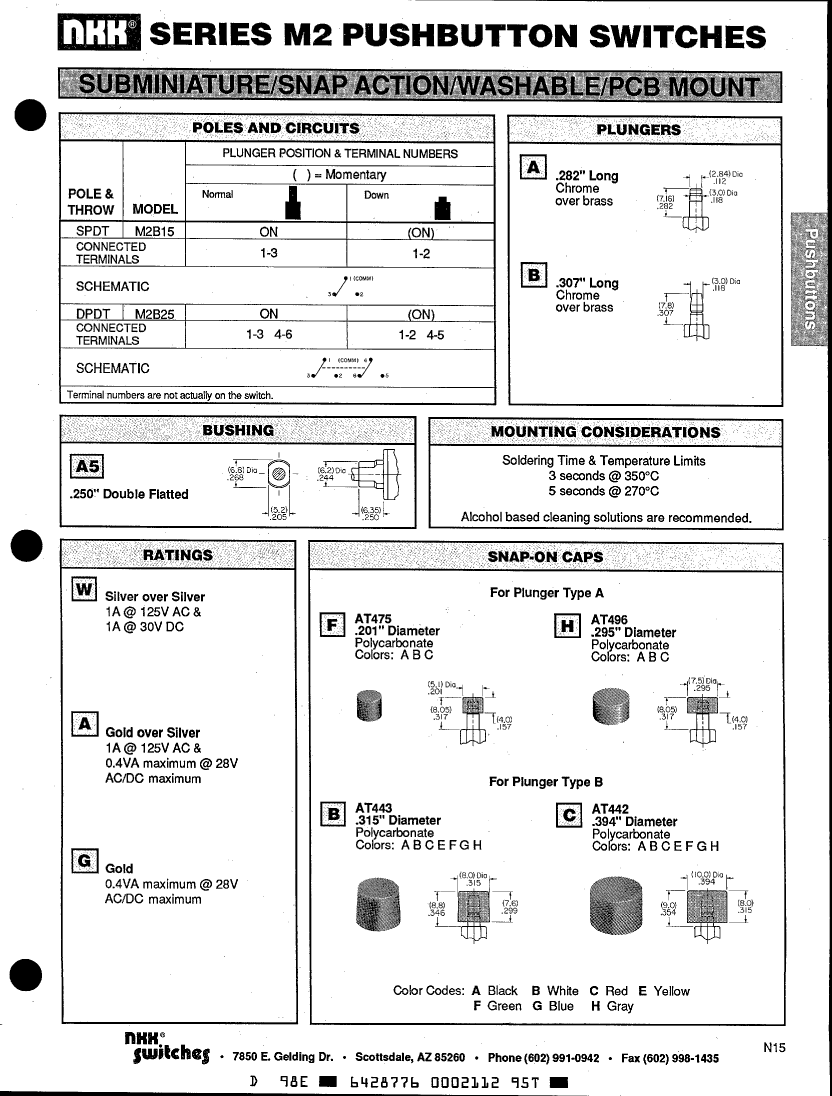

Actuator length	0.307 inch
Actuator material	BRASS
Actuator stroke	0.9906 mm
Actuator type	PUSHBUTTON
Other features	White Cap
body width	11.5062 mm
body height	31.5214 mm
Body length or diameter	15.748 mm
Casing diameter	0.244 inch
Nozzle length	0.25 inch

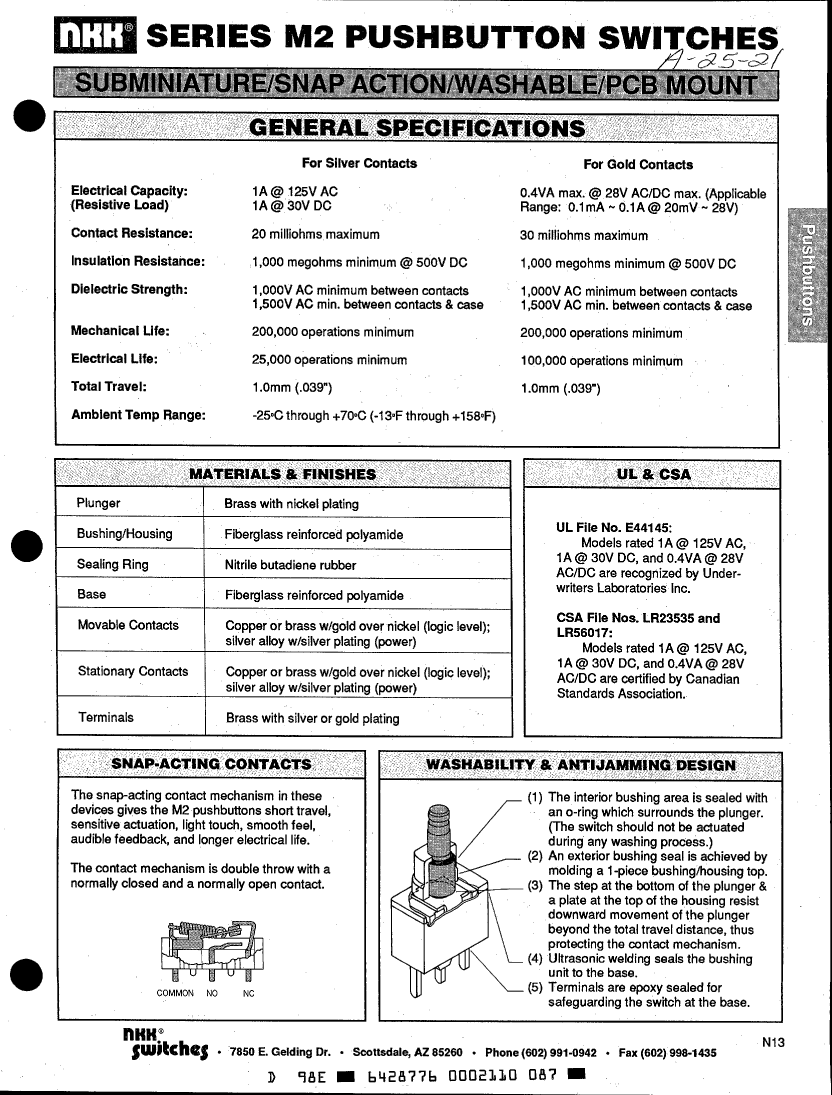

center contact material	SILVER ALLOY
Center contact plating	SILVER
Contact (AC) maximum rated R load	1A@125VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@30VDC
Contact function	ON-(ON)
Contact resistance	0.02 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	1000VAC V
Electrical life	25000 Cycle(s)
End contact material	SILVER ALLOY
End contact plating	SILVER
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYAMIDE
JESD-609 code	e4
Manufacturer's serial number	M2

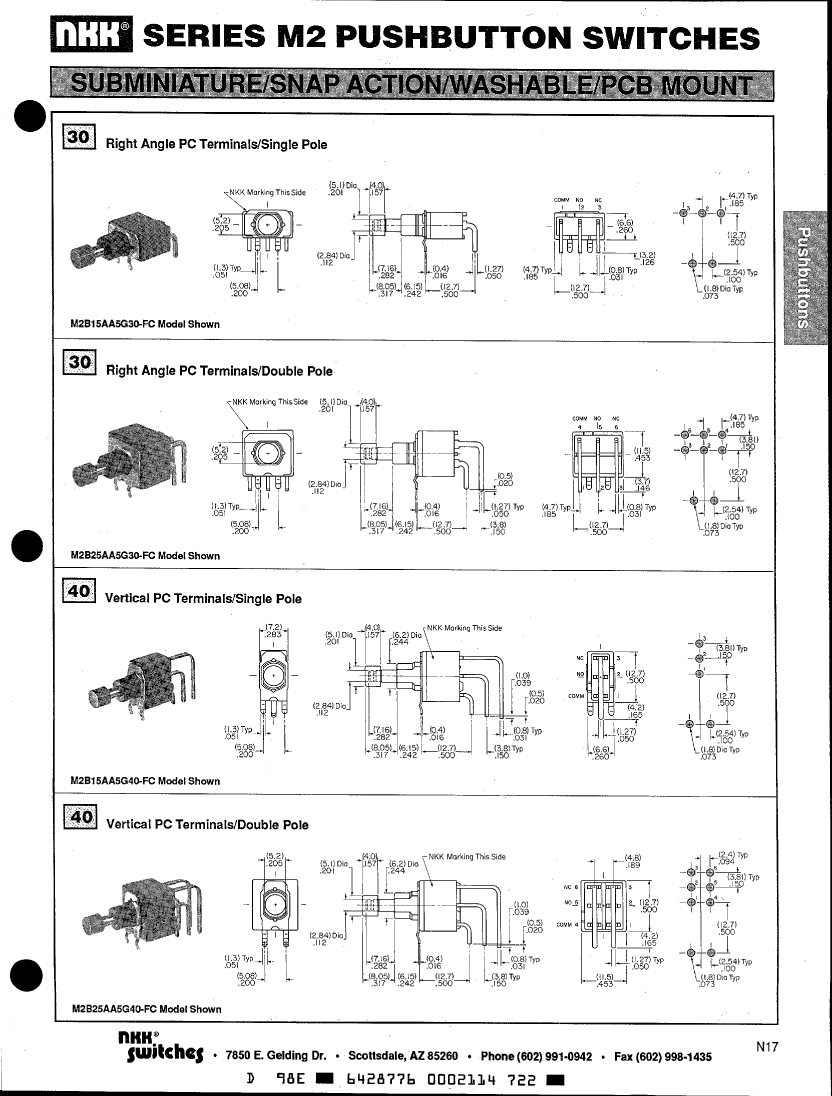

Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C

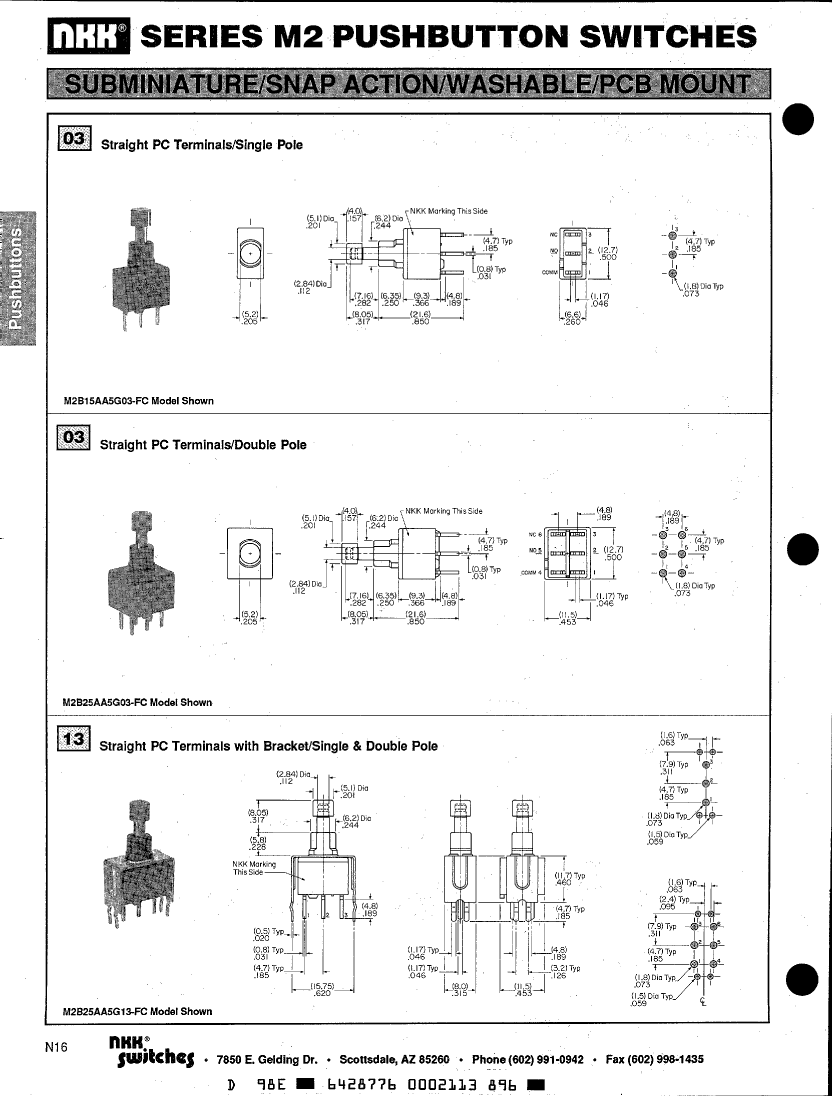

PCB hole count	10
seal	EPOXY
Solderability	WAVE
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	PUSHBUTTON SWITCH
Terminal surface	GOLD/SILVER
Terminal length	0.185 inch
Terminal material	BRASS
Termination type	SOLDER
