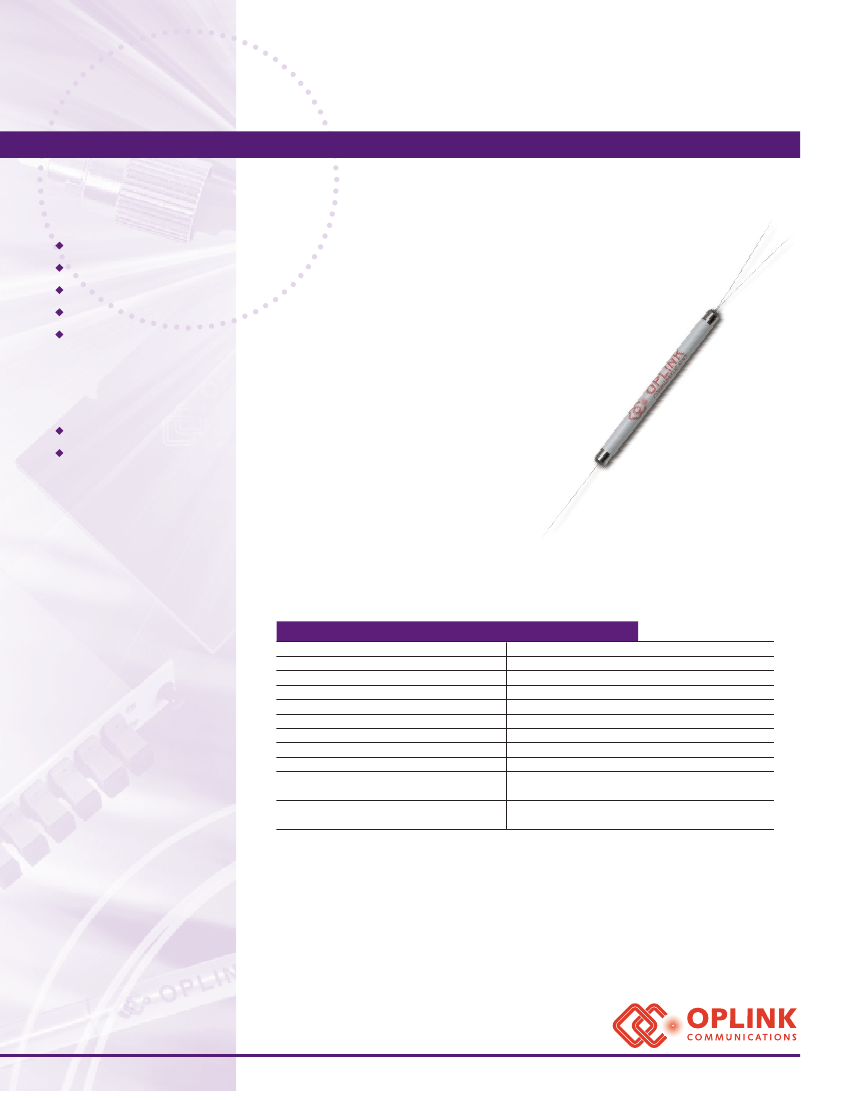

Mini Fused Single-Mode WDM
(980/1550 nm)
Mini SWDM
Series
Features
Compact Package Size
80
µm
Fiber Pigtail Option
Low Insertion Loss
High Isolation
Highly Stable & Reliable
Mini Fused Single-Mode WDM (980/1550 nm)
Oplink's mini 980/1550 nm fused single-mode wavelength division
multiplexers provide high performance and high reliability with extremely
compact package size. The short length of the package provides real estate
flexibility to EDFA design. With pigtail options of PureMode HI980
and reduced cladding 980 fibers, the bending radius and bending loss
can be achieved to be extremely small.
Oplink can provide customized designs to meet specialized
feature applications. Also, Oplink offers modular
assemblies that integrate other components to form a
full function module or subsystem.
Applications
EDFA & Raman Amplifiers
Laboratory R&D
Performance Specifications
Parameter
P Grade
A Grade
B Grade
Units
Operating Wavelength Range
Insertion Loss (970~990nm/1535~1565nm)
Isolation
Polarization Dependent Loss (PDL)
Directivity
Maximum Power Handling
Operating temperature
Storage temperature
Fiber Type
Oplink Fiber Optic
Product Lines
Amplifier Components
Amplifier Modules
DW DMs
Switching/Routing/
Monitoring/ Conditioning
Transmission
RGB Laser Modules
Package Dimension *
970~990/1535~1565
< 0.15
< 0.2
< 0.3
> 20
< 0.1
> 55
500
0 to +70
-40 to +85
PureMode HI980, HI1060
FLEX
PureMode RC980 80µm
P4: HI 980 or HI 1060
FLEX
(φ)3.0
x
(L)40
P8: RC980/80µm
(φ)3.0
x
(L)35
nm
dB
dB
dB
ps
mW
°C
°C
mm
mm
Values are referenced without connector loss.
* The mechanical tolerance should be +/- 0.2 mm on all package dimensions unless otherwise custom specified.
Oplink Communications, Inc.
Mini Fused Single-Mode WDM (980/1550 nm)
Mechanical Footprint
Dimension (unit: mm)
L
Port 1: Common
Ø
Port 2: Signal
Port 3: Pump
Ordering Information
Oplink can provide a range of customized optical solutions. For detail, please contact Oplink's OEM
design team or account manager for your requirements and ordering information (510) 933-7200.
SWDM
5
9
S
0
0
Configuration
1x2=1
2x2=2
Grade
P Grade = P
A Grade = A
B Grade = B
Type
Standard = S
Package Type
P4 = 4
P8 = 8
Fiber Length
1.0 meter = 1*
1.5 meter = 5
2.0 meter = 2
0.5 Meter = H
Fiber Type
HI980=9
HI1060
FLEX
=6
RC980 80µm =8*
Note: * RC980 80µm fiber option is for bare fiber
only (no connectors).
Connector
Type
None = 1
FC/PC=2
FC/SPC=3
FC/APC=4
SC/PC=5
SC/SPC=6
SC/APC=7
ST=8
LC=9
MU=A
46335 Landing Parkway Fremont, CA 94538-6407 Tel: (510)
933-7200
Fax: (510)
933-7300
Email: Sales@Oplink.com
