T97
Vishay Sprague
Solid Tantalum Chip Capacitors T
ANTAMOUNT
®
,
Hi-Rel COTS, Ultra-Low ESR, Conformal Coated Case
FEATURES
•
High reliability; Weibull failure rate
grading available
•
Surge current testing per MIL-PRF-55365
options available
•
Ultra-low ESR
•
Tin/Lead (SnPb) termination available
Pb-free
Available
RoHS*
COMPLIANT
PERFORMANCE CHARACTERISTICS
Operating Temperature:
- 55 °C to + 85 °C
(To + 125 °C with voltage derating)
Capacitance Range:
15 µF to 1500 µF
Capacitance Tolerance:
±
10 %, ± 20 % standard
Voltage Rating:
4 WVDC to 63 WVDC
ORDERING INFORMATION
T97
TYPE
R
CASE
CODE
227
K
CAPACITANCE CAPACITANCE
TOLERANCE
020
DC VOLTAGE
RATING
AT + 85 °C
This is expressed in
volts. To complete
the three-digit block,
zeros precede the
voltage rating. A
decimal point is
indicated by an “R”
(6R3 = 6.3 V).
E
TERMINATION/
PACKAGING
(Available options are
series dependent)
E = Sn/Pb Solder/7"
(178 mm) reel
L = Sn/Pb Solder/7"
(178 mm), 1/2 reel
C = 100 % Tin/7"
(178 mm), reel
H = 100 % Tin/7"
(178 mm), 1/2 reel
S
RELIABILITY
LEVEL
A
SURGE
CURRENT
See
Ratings
and
Case
Codes
Table.
This is
expressed in
picofarads. The
first two digits
are the
significant
figures. The
third is the
number of
zeros to follow.
K = ± 10 %
M = ± 20 %
A = 1.0 %
Weibull
B = 0.1 %
Weibull
(1)
S = 40 h
Burn-in
Z = Non-
Established
Reliability
A = 10 cycles
at + 25 °C
B = 10 cycles
at - 55 °C/+ 85 °C
S = 3 cycles
at 25 °C
Note:
(1)
Available on select ratings. See ratings table on page 7.

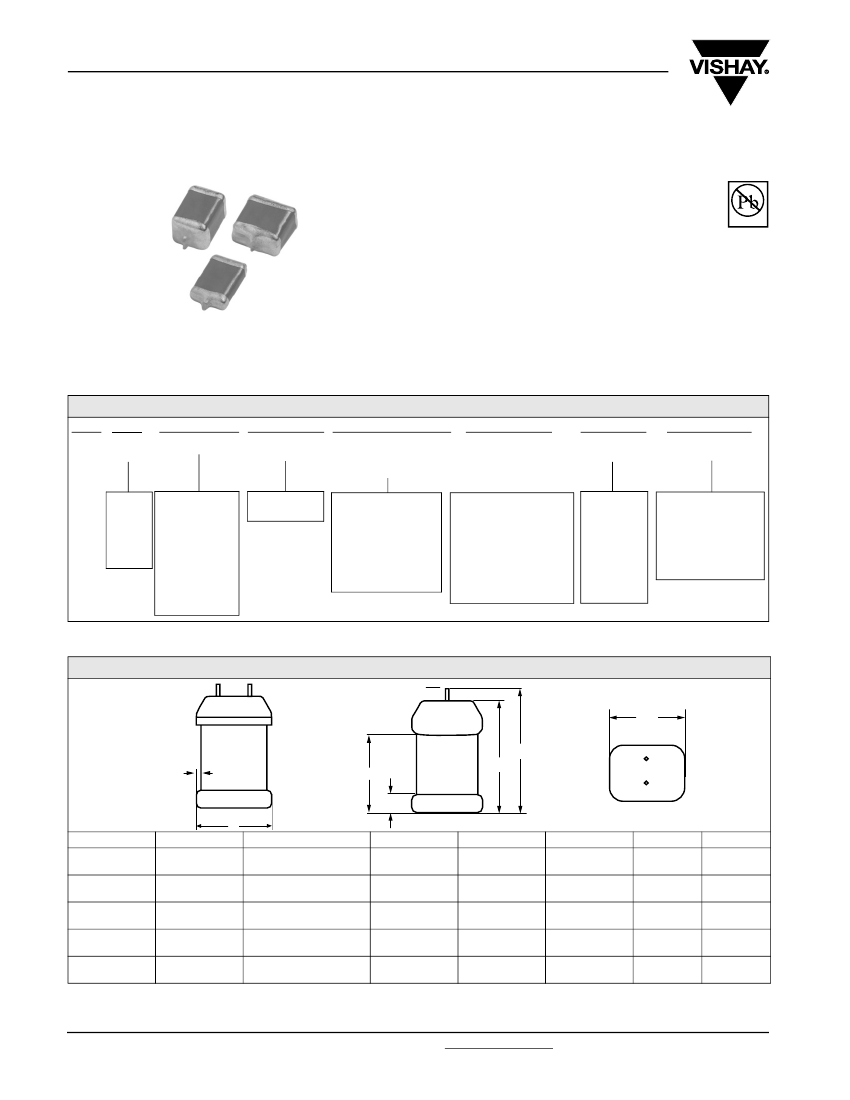

DIMENSIONS
in inches [millimeters]
Tantalum wire
Nib identifies
Anode (+)
Terminal
L
J
D
B
A
H
W
CASE CODE
E
F
R
V
Z
L (MAX.)
0.287 ± 0.012
[7.3 ± 0.3]
0.287 ± 0.012
[7.3 ± 0.3]
0.287 ± 0.012
[7.3 ± 0.3]
0.287 ± 0.012
[7.3 ± 0.3]
0.287 ± 0.012
[7.3 ± 0.3]
W
0.173 ± 0.016
[4.4 ± 0.4]
0.238 ± 0.016
[6.0 ± 0.4]
0.238 + 0.016/- 0.024
[6.0 + 0.4/- 0.6]
0.173 ± 0.016
[4.4 ± 0.4]
0.238 ± 0.016
[6.0 ± 0.4]
H
0.157 ± 0.016
[4.0 ± 0.4]
0.187 ± 0.016
[4.7 ± 0.4]
0.142 ± 0.016
[3.6 ± 0.4]
0.079
[2.0] Max.
0.238 ± 0.016
[6.0 ± 0.4]
A
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
B
0.180 ± 0.025
[4.6 ± 0.6]
0.180 ± 0.025
[4.6 ± 0.6]
0.180 ± 0.025
[4.6 ± 0.6]
0.180 ± 0.025
[4.6 ± 0.6]
0.180 ± 0.025
[4.6 ± 0.6]
D (REF.)
0.253
[6.4]
0.243
[6.2]
0.243
[6.2]
0.253
[6.4]
0.243
[6.2]
J (MAX.)
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
Note:
The anode termination (D less B) will be a minimum of 0.012" [0.3 mm]
*
Pb containing terminations are not RoHS compliant, exemptions may apply
www.vishay.com
1
For technical questions, contact: tantalum@vishay.com
Document Number: 40092
Revision: 05-Aug-08
T97
Solid Tantalum Chip Capacitors
TANTAMOUNT® Hi-Rel COTS, Ultra-Low ESR,
Conformal Coated Case
RATINGS AND CASE CODE
µF
10
15
22
33
47
68
100
150
220
330
470
680
1000
1500
2200
4V
6.3 V
10 V
16 V
20 V
25 V
35 V
50 V
E/R
R
F
Z*
63 V
75 V
Vishay Sprague
F*
R
R
F
E
V
E
E/R
R
V
E
E
R
E
E
R
F*
R
F*
STANDARD RATINGS
CAPACITANCE
(µF)
470
680
1000
1000
1500
330
470
680
1000
330
470
680
220
470
220
330
68
150
47
15
15
22
33
47
22
CASE CODE
MAX. DCL
MAX. DF
MAX. ESR
at + 25 °C
at + 25 °C
at + 25 °C
(µA)
120 Hz (%)
100 kHz (mΩ)
4 WVDC at + 85 °C, SURGE = 5.2 V . . . 2.7 WVDC at + 125 °C, SURGE = 3.4 V
T97V477(1)004(2)(3)(5)
19
8
30
T97E687(1)004(2)(3)(5)
27
6
25
T97E108(1)004(2)(3)(5)
40
8
20
T97R108(1)004(2)(3)(5)
40
8
18
T97R158(1)004(2)(3)(5)
60
8
15
6.3 WVDC at + 85 °C, SURGE = 8 V . . . 4 WVDC at + 125 °C, SURGE = 5 V
T97V337(1)6R3(2)(3)(5)
21
8
35
T97E477(1)6R3(2)(3)(5)
30
6
30
T97E687(1)6R3(2)(3)(5)
43
6
25
T97R108(1)6R3(2)(3)(5)
63
8
20
10 WVDC at + 85 °C, SURGE = 13 V . . . 7 WVDC at + 125 °C, SURGE = 8 V
T97E337(1)010(2)(3)(5)
33
6
35
T97E477(1)010(2)(3)(5)
47
6
28
T97R687(1)010(2)(3)(5)
68
6
28
16 WVDC at + 85 °C, SURGE = 20 V . . . 10 WVDC at + 125 °C, SURGE = 12 V
T97E227(1)016(2)(3)(5)
35
8
40
T97E477(1)016(2)(3)(5)*
75
14
100
20 WVDC at + 85 °C, SURGE = 26 V . . . 13 WVDC at + 125 °C, SURGE = 16 V
T97R227(1)020(2)(3)(5)
44
8
80
T97F337(1)020(2)(3)(5)*
66
10
100
25 WVDC at + 85 °C, SURGE = 32 V . . . 17 WVDC at + 125 °C, SURGE = 20 V
T97R686(1)025(2)(4)(5)
17
6
100
T97F157(1)025(2)(4)(5)
38
8
80
35 WVDC at + 85 °C, SURGE = 46 V . . . 23 WVDC at + 125 °C, SURGE = 28 V
T97R476(1)035(2)(3)(5)
17
6
80
50 WVDC at + 85 °C, SURGE = 65 V . . . 33 WVDC at + 125 °C, SURGE = 38 V
T97E156(1)050(2)(4)(5)
8
6
300
T97R156(1)050(2)(3)(5)
8
6
250
T97R226(1)050(2)(3)(5)
11
6
170
T97F336(1)050(2)(3)(5)
17
6
150
T97Z476(1)050(2)(3)(5)*
24
6
145
63 WVDC at + 85 °C, SURGE = 81 V . . . 42 WVDC at + 125 °C, SURGE = 54 V
T97F226(1)063(2)(3)(5)*
14
6
200
PART NUMBER*
(3) Reliability Level: A, S, Z
(4) Reliability Level: A,B, S, Z
(5) Surge Current: A, B, S
MAX. RIPPLE
100 kHz
IRMS (A)
2.2
2.9
3.3
3.7
4.1
2.0
2.7
2.9
3.5
2.5
2.8
2.9
2.3
1.4
1.8
1.4
1.6
1.8
1.8
0.8
1.0
0.8
0.8
1.1
0.9
V
E
E
R
R
V
E
E
R
E
E
R
E
F
R
F
R
F
R
E
R
R
F
Z
F
Notes:
* Contact factory for availability
(1) Capacitance Tolerance: K, M
(2) Termination and Packaging: C, E, H, L
Document Number: 40092
Revision: 05-Aug-08
For technical questions, contact: tantalum@vishay.com
www.vishay.com
2
T97
Vishay Sprague
Solid Tantalum Chip Capacitors
TANTAMOUNT
®
Hi-Rel COTS, Ultra-Low ESR,
Conformal Coated Case

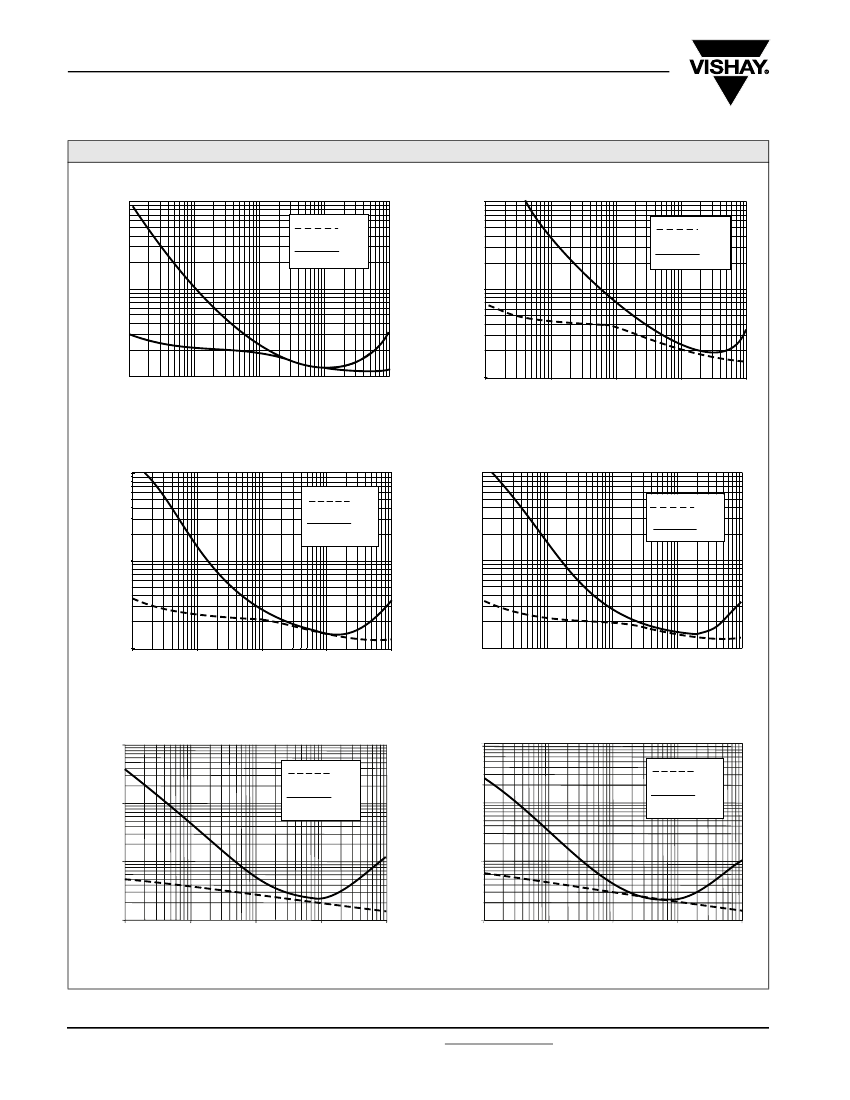

TYPICAL CURVES
T97 1500 µF - 4 V 'R' CASE SIZE ESR and Z vs. FREQUENCY
1
ESR
ESR and Z (Ω)
ESR and Z (Ω)
Z
T97 330 µF - 10 V 'E' CASE SIZE ESR and Z vs. FREQUENCY
1
ESR
Z
0.1
0.1
0.01
100 Hz
1 kHz
10 kHz
FREQUENCY
100 kHz
1 MHz
0.01
100 Hz
1 kHz
10 kHz
FREQUENCY
100 kHz
1 MHz
T97 1000 µF - 4 V 'E' CASE SIZE ESR and Z vs. FREQUENCY
1
ESR
ESR and Z (Ω)
T97 1000 µF - 6.3 V 'R' CASE SIZE ESR and Z vs. FREQUENCY
1
ESR
ESR and Z (Ω)
Z
Z
0.1
0.1
0.01
100 Hz
1 kHz
10 kHz
FREQUENCY
100 kHz
1 MHz
0.01
100 Hz
1 kHz
10 kHz
FREQUENCY
100 kHz
1 MHz
T97 330 µF - 6.3 V
'V'
CASE SIZE ESR and Z vs. FREQUENCY
10
ESR
T97 470 µF - 4 V
'V'
CASE SIZE ESR and Z vs. FREQUENCY
10
ESR
ESR and Z (Ω)
ESR and Z (Ω)
1
Z
1
Z
0.1
0.1
0.01
100 Hz
1 kHz
10 kHz
FREQUENCY
100 kHz
1 MHz
0.01
100 Hz
1 kHz
10 kHz
FREQUENCY
100 kHz
1 MHz
www.vishay.com
3
For technical questions, contact: tantalum@vishay.com
Document Number: 40092
Revision: 05-Aug-08
