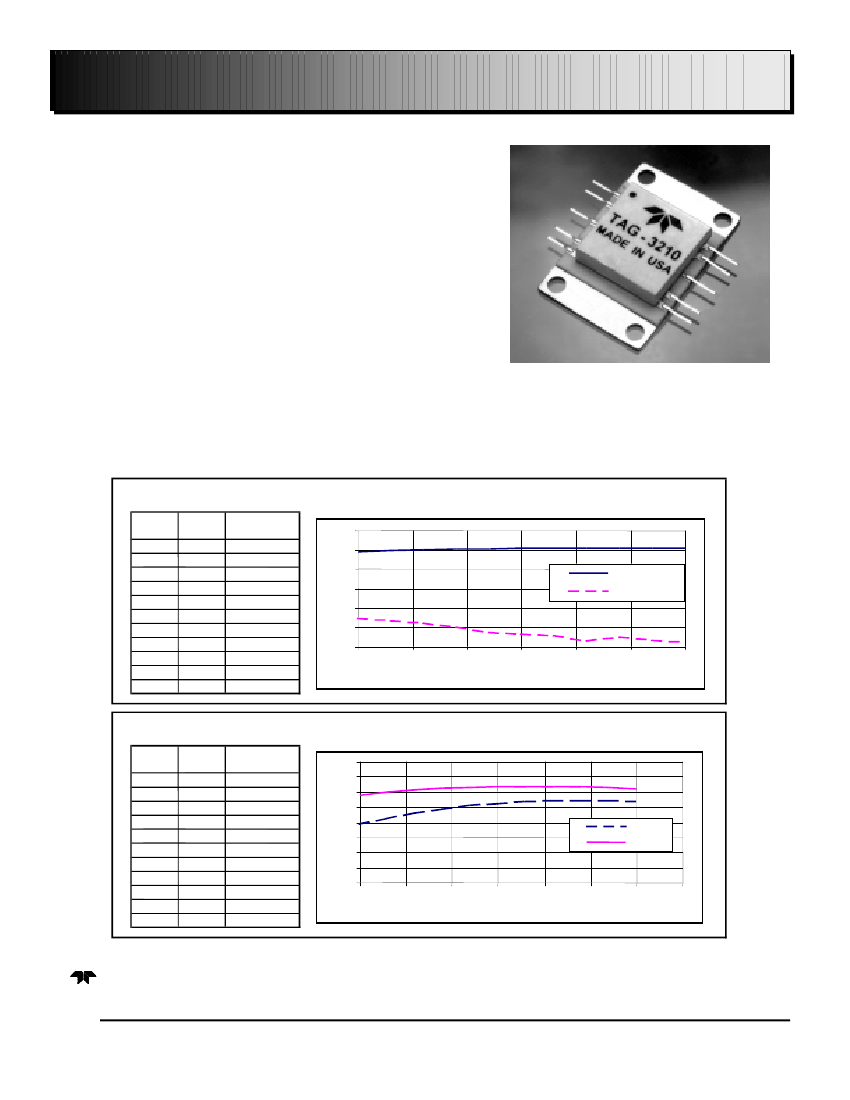

Product Information
TAG-3210
5.8 - 6.4 GHz GaAs MMIC
Power Amplifier
Features:
♦
♦
♦
♦
Dual Input / Output Amplifier
20 dB Small Signal Gain per Channel
+26 dBm Linear Output Power per Channel
Thermally Efficient Copper-Tungsten Package
ISO 9001 CERTIFIED
Product Description:
The TAG-3210 amplifier is ideally suited to provide linear power amplification for C-Band VSAT satellite
applications. Typical uses are as a driver amplifier for VSAT power modules and C-Band SATCOM
transmitters. The amplifier provides a minimum +26 dBm linear power output per channel and when
both are externally combined, over +29 dBm linear power can be achieved. Typical DC power
consumption is 1200 mA at +7.0V and 10 mA at -1.0V.
V
d
= +7.0V, I
Freq
(GHz)
5.80
5.86
5.92
5.98
6.04
6.10
6.16
6.22
6.28
6.34
6.40
d
= 600mA @25
o
C
Return Loss
(dB)
-15.5
-16.7
-18.0
-19.8
-22.5
-23.4
-24.5
-27.3
-25.1
-26.6
-28.0
30
Gain / Return Loss
(dB)
20
10
0
Typical Small Signal Gain and Input Return Loss
Gain
(dB)
19.1
19.7
20.1
20.5
20.8
21.0
21.1
21.1
21.1
21.0
20.9
Gain
Return Loss
-10
-20
-30
5.80
5.90
6.00
6.10
Frequency (GHz)
6.20
6.30
6.40
V
d
= +7.0V, I
Freq
(GHz)
5.80
5.86
5.92
5.98
6.04
6.10
6.16
6.22
6.28
6.34
6.40
d
= 600mA @25
o
C
Psat
(dBm)
29.8
30.0
30.2
30.3
30.3
30.4
30.4
30.4
30.4
30.3
30.2
32
Output Power (dBm)
31
30
29
28
27
26
25
24
5.80
5.90
Typical Output Power
P-1dB
(dBm)
27.9
28.2
28.6
28.8
29.1
29.2
29.4
29.4
29.4
29.4
29.4
P-1dB
Psat
6.00
6.10
6.20
6.30
6.40
6.50
Frequency (GHz)
TELEDYNE ELECTRONIC TECHNOLOGIES
Microwave Electronic Components
6/99
www.teledynemicrowave.com
email: amplifiers@teledyne.com
1274 Terra Bella Avenue, Mountain View, CA 94043 • Tel: (650) 962-6944 • Fax: (650) 962-6845
Product Information
TAG-3210
5.8 - 6.4 GHz GaAs MMIC Power Amplifier

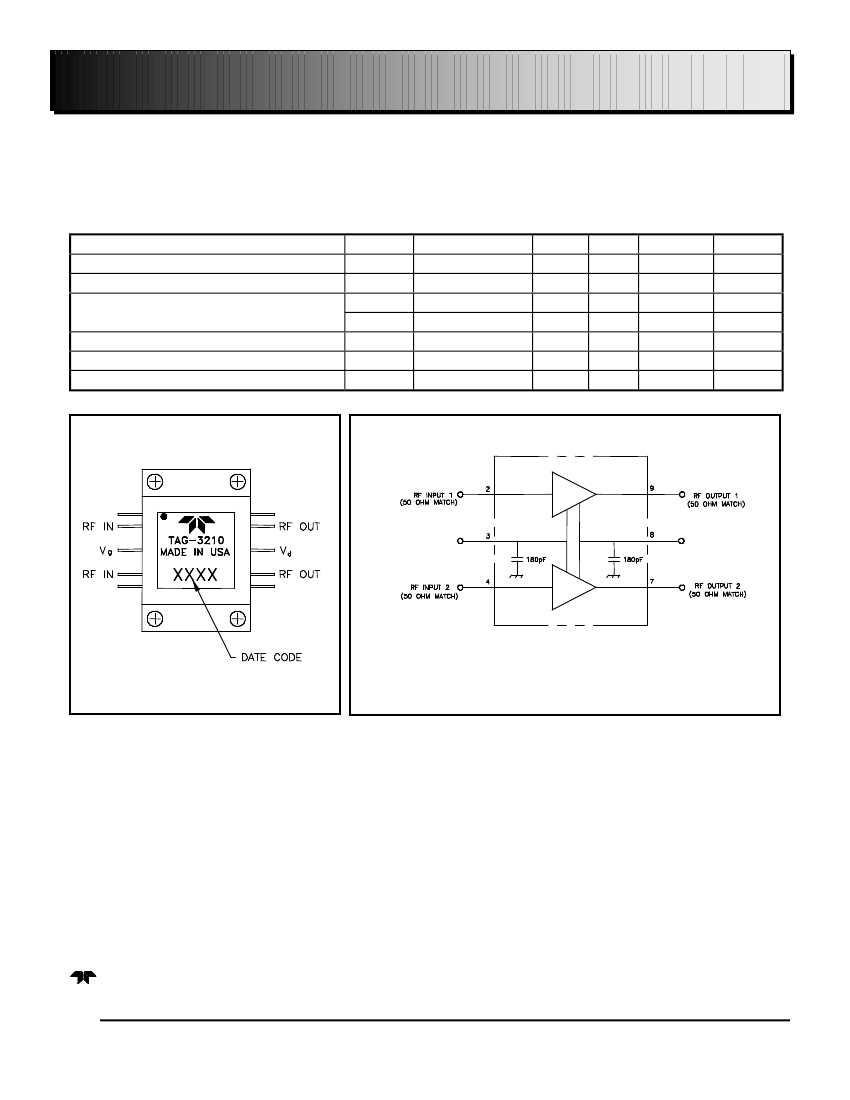

Electrical Specifications
T = at 25_C, V
d
= +7.0V, I
d
= 1000 to 1400 mA
Parameters per Channel
Small Signal Gain
Input Return Loss
Reverse Isolation
Output Power @ 1dB Gain Compression
Per Channel
Temperature Coefficient of Gain
Symbol
S
21
S
11
S
12
-
P
-1dB
-
∆S
21
Frequency
5.8 to 6.4 GHz
5.8 to 6.4 GHz
5.8 to 6.4 GHz
5.8 GHz
6.1 GHz
6.4 GHz
5.8 to 6.4 GHz
ISO 9001 CERTIFIED
Min
20.0
-
30.0
26.0
28.0
28.0
-
Max
-
-10.0
-
-
-
-
-
Typical
23.0
-16.0
48.0
27.5
29.2
29.2
-0.045
Units
dB
dB
dB
dBm
dBm
dBm
dB/°C
Package Outline
Typical Biasing Configuration
NC
NC
V
g
: -0.4V TO -1.4V
V
d
: +8.0V TYP
NC
NC
PINS 1, 5, 6, 10 NOT CONNECTED
GND: PACKAGE BASE
Notes:
1.
2.
3.
4.
DC supply sequencing and protection circuitry not included. User must apply V
g
(negative voltage) before applying V
d
(positive voltage) to prevent damage to amplifier due to excessive current.
The bias point of the amplifier can be varied by adjustment of V
g
for specific applications. Lower DC current levels and greater
efficiencies can be obtained trading off absolute output power level and small signal gain using V
g
adjustments.
A 180 pF DC supply line decoupling capacitor is included on both V
d
and V
g
lines. Additional external capacitance may be
required (see typical biasing configuration shown above).
The unit must be soldered to DC and RF ground for best results.
Teledyne reserves the right to make changes without further notice to any specifications herein. “Typical” parameters can and do vary.
